Irvion Charger
1 / 5
| Product Model | WE X7 |
| Rated Input/Output Voltage | 220VaC 1P+N+PE |
| Rated Input/Output Current | 32A |

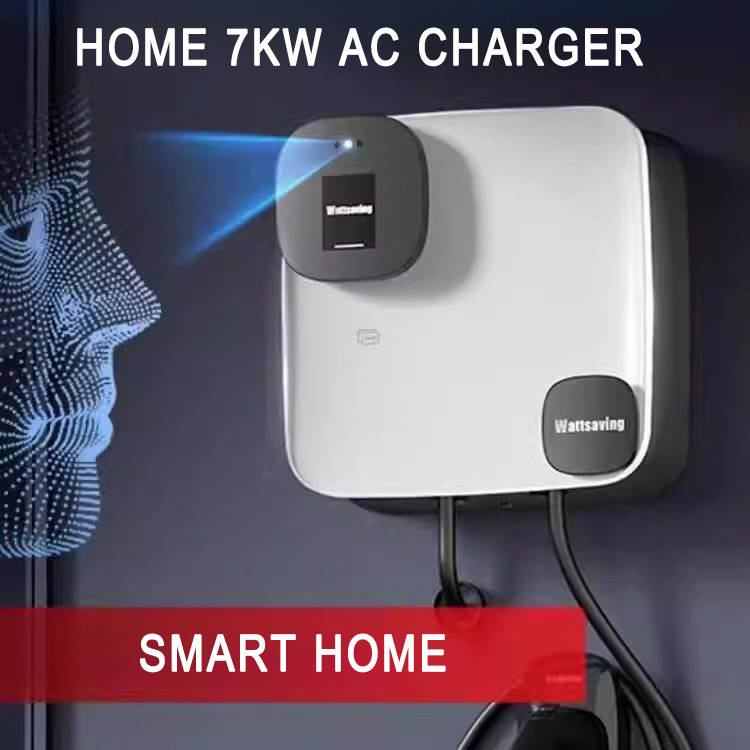

| Output Power | 7kW Max |
| Frequency | 45-65HZ |
| Residual Current Detection | AC 30mA+DC 6mA |
| Standby Power Consumption | 5W |
| Protection Functions | Overcurrent protection, earth leakage protection, overtemperature protection, short-circuit protection, electrostatic discharge protection, relay sticking protection, overvoltage protection, undervoltage protection, lightning protection, overcharge protection, flame retardant protection, anti-theft charging protection, waterproof protection, dustproof protection, ground continuity protection |
| Reference Standards | GB/T 18487.1-2023, GB/T 18487.2-2017, GB/T 20234.2-2015 |
| Measurement Accuracy | Level 2 |
| MTBF | 43,800 hours |
| Wireless Connectivity | Bluetooth/4G |
| Human-Machine Interaction | |

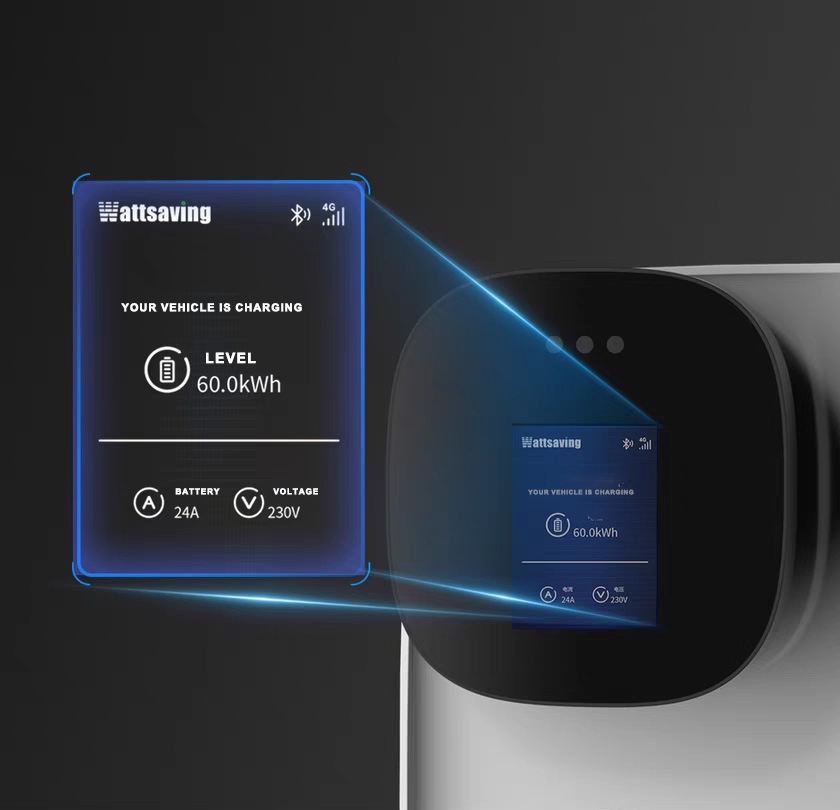

| Display Function | 2.8-inch LCD screen |

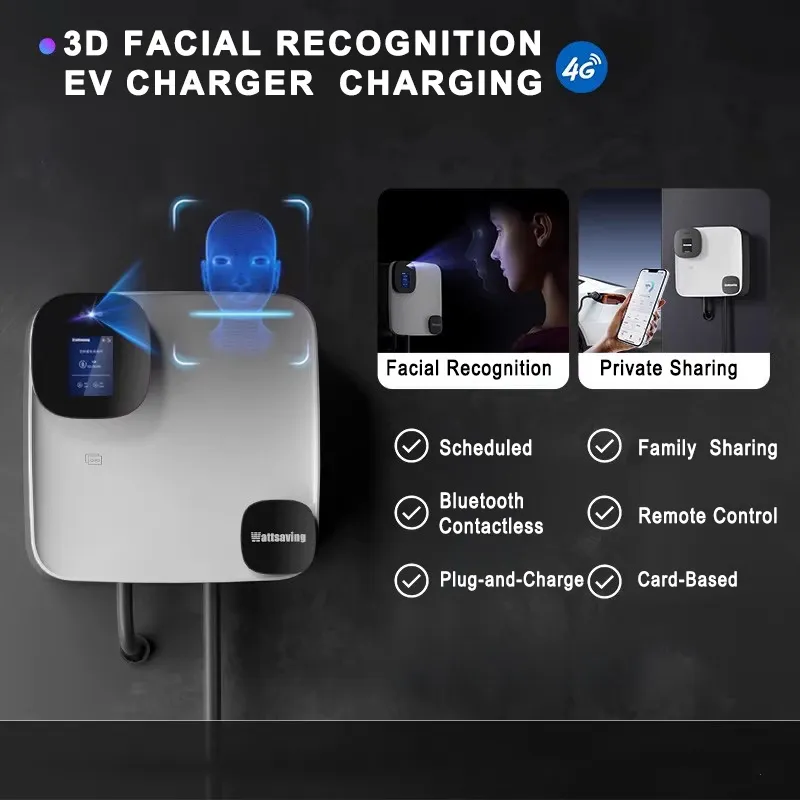

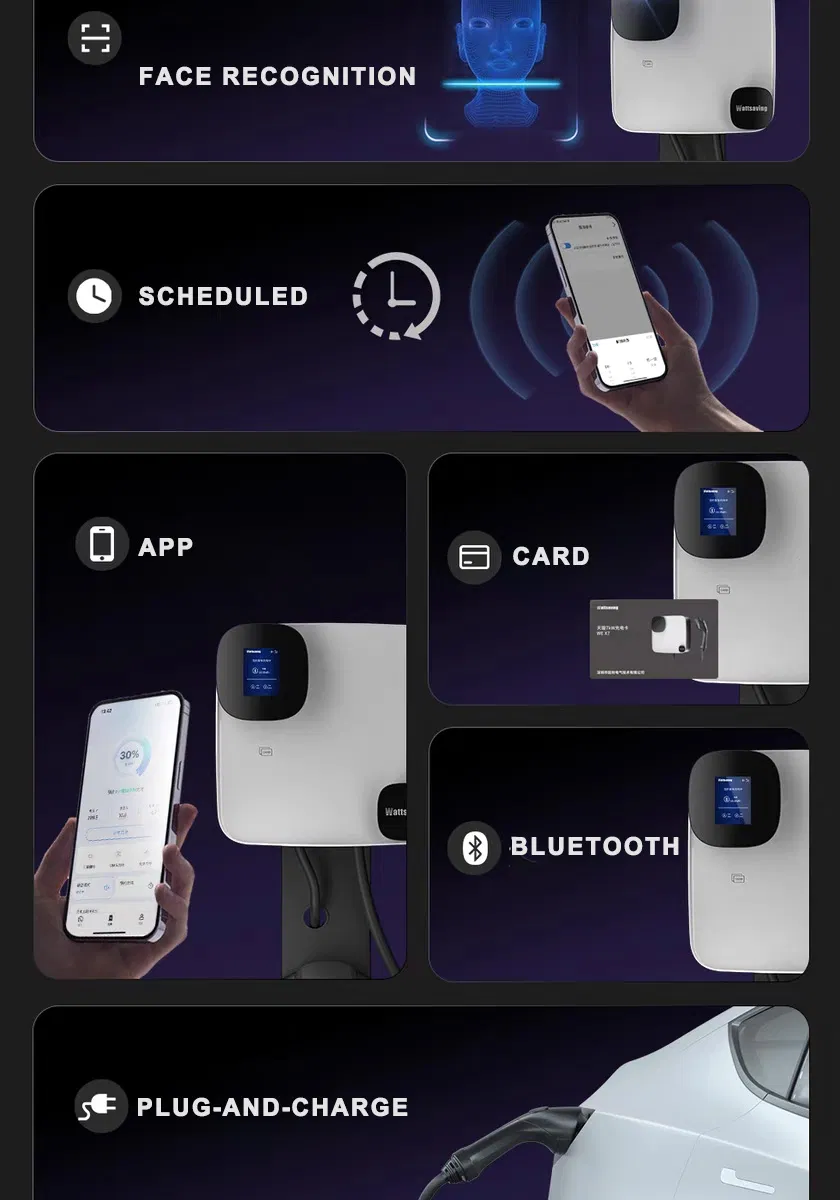

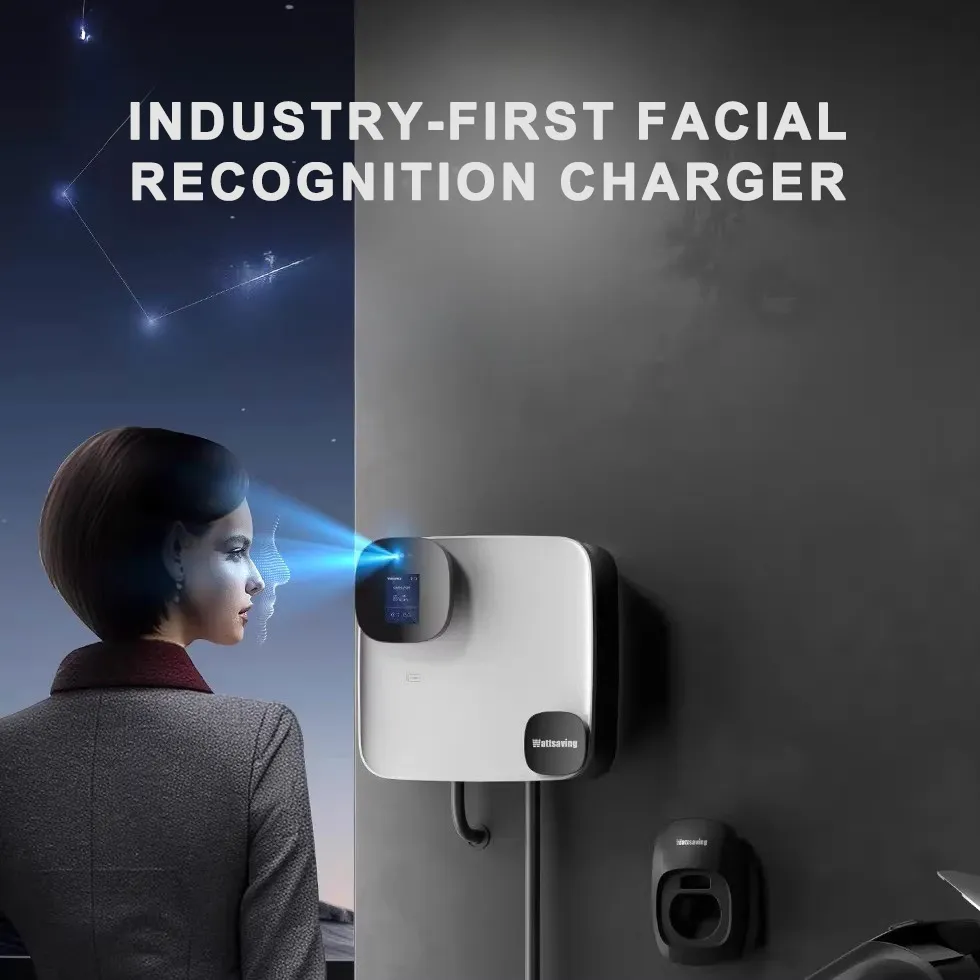

| Startup Method | Face recognition / Scheduled charging / App charging / Contactless / Card swipe / Plug-and-charge |
| Appearance Structure | |
| Housing Material | PC: UV-resistant flame retardant rating UL94V-0 |
| Main Unit Dimensions | 290mm X 290mm X 120mm |
| Net Weight | 6 kg |
| Cable Length | 5 m |

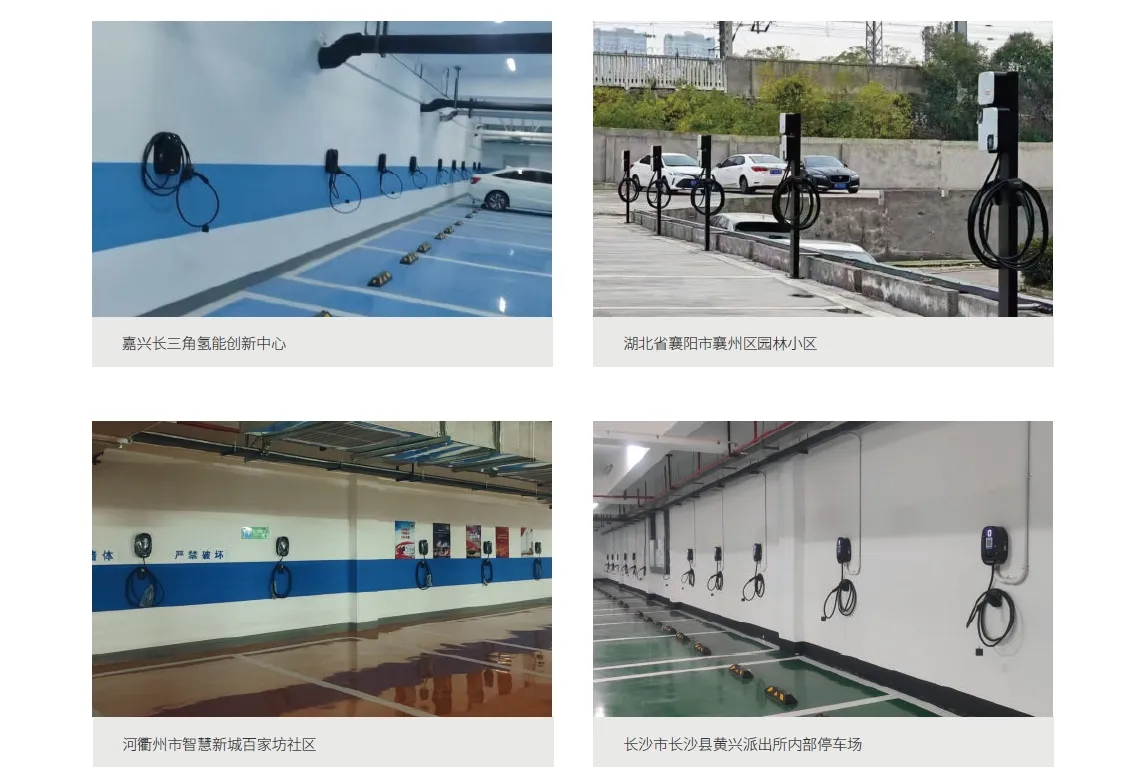

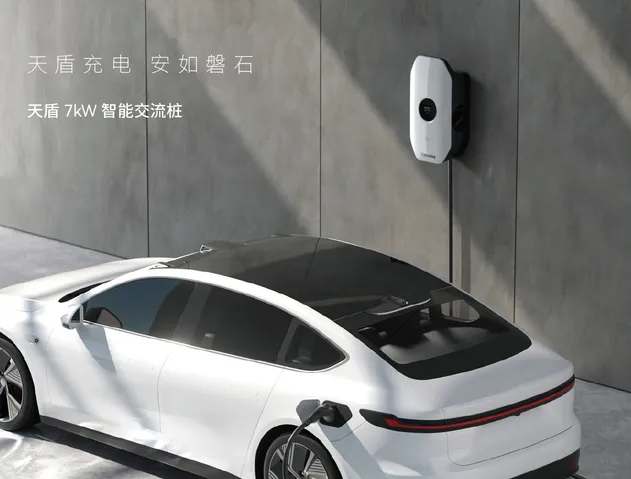

| Installation Method | Wall-mounted / Pole-mounted |
| Operating Environment | |
| Temperature Range | -30 °C to +55 °C |
| Protection Rating | IP65 (Indoor/Outdoor) |
| Cooling Method | Natural cooling |
This system features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years.
Designed for efficiency, this solution ensures high performance and environmental safety. It is widely applicable for various locations and provides a reliable user experience with advanced certification standards.
Supporting multiple startup methods, this equipment integrates seamlessly with modern infrastructure to meet diverse user needs across different environments.

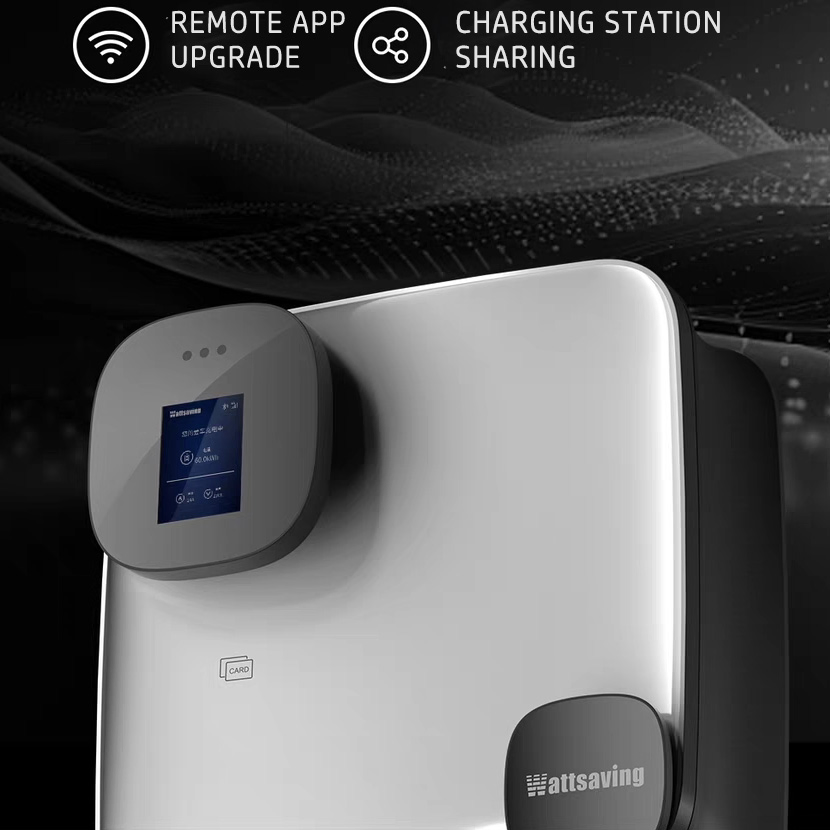

Through remote control functions, users can start, stop, and monitor charging sessions anytime and anywhere via a mobile app or centralized management system, improving convenience and operational efficiency.
Designed for multi-user scenarios, the charger supports private sharing and family sharing, making it ideal for households, residential communities, offices, and fleet operations.
