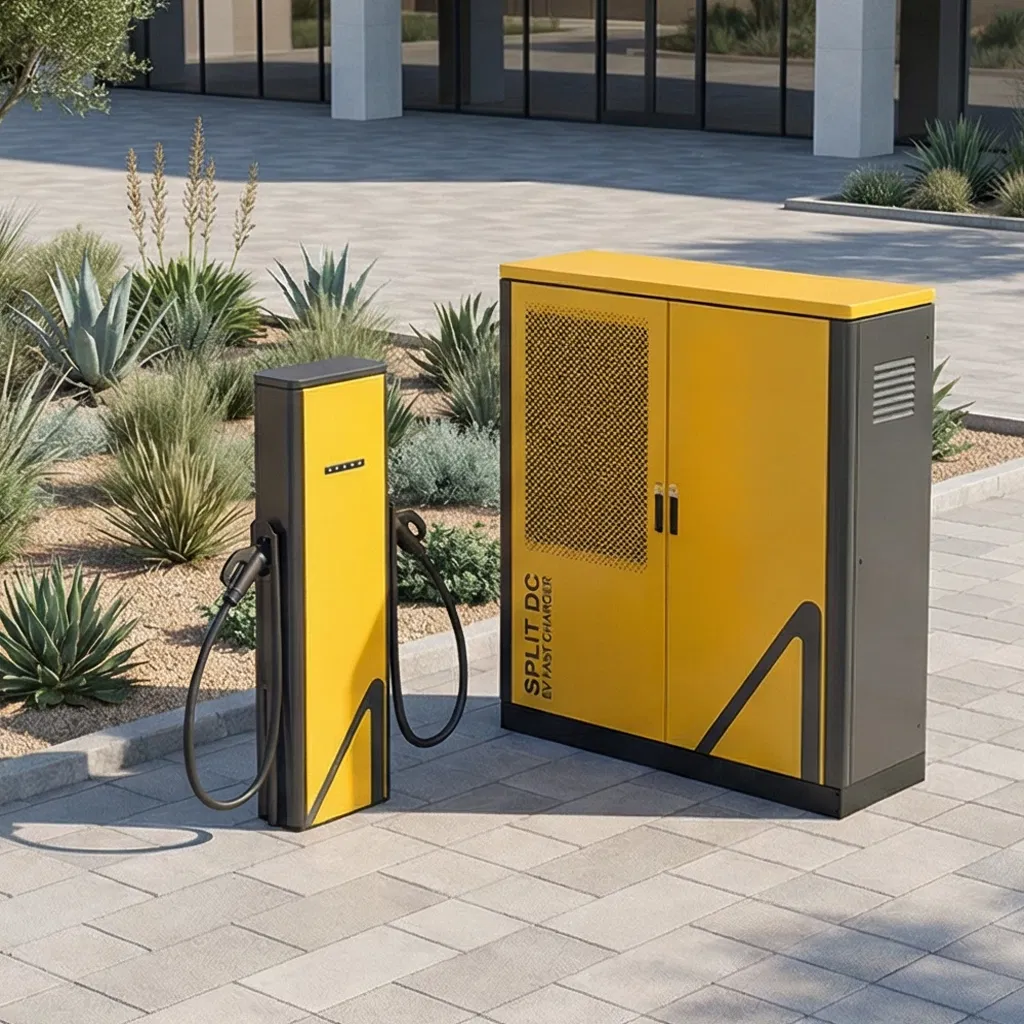

Integrated Megawatt Charging System Solution for Electric Truck Fleets

Basic Specifications

Model NO.

MS08A-12

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Credit Card, Mobile App

Rated Power

240kW - 480kW

Output Voltage

200 - 1000VDC

Connectors

GBT, CCS2, CCS1, CHAdeMO, NACS

Ingress Protection

IP54 / IK10

Weight

440kg

Input Voltage

400VAC / 480VAC (3P+N+PE)

Product Description

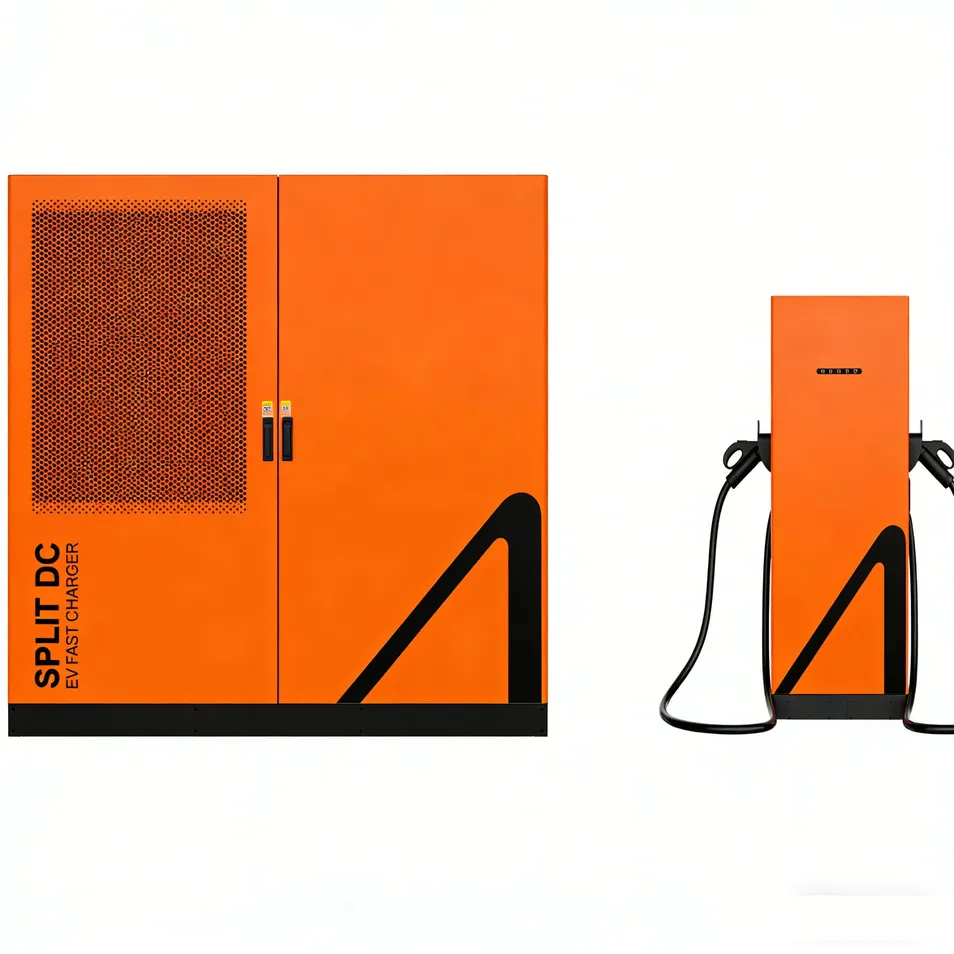

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Our next-generation ultra-high-performance DC charging station is designed for the rigorous demands of the commercial vehicle sector. This modular system offers exceptional scalability, allowing power expansion up to 480kW. With a design focused on "functional aesthetics," the station features a rugged industrial form that ensures physical protection and reliability in demanding environments such as ports, mines, and highway hubs. It utilizes efficient dual-gun technology to support the rapid green transformation of logistics and heavy-duty transportation fleets.

Technical Specification

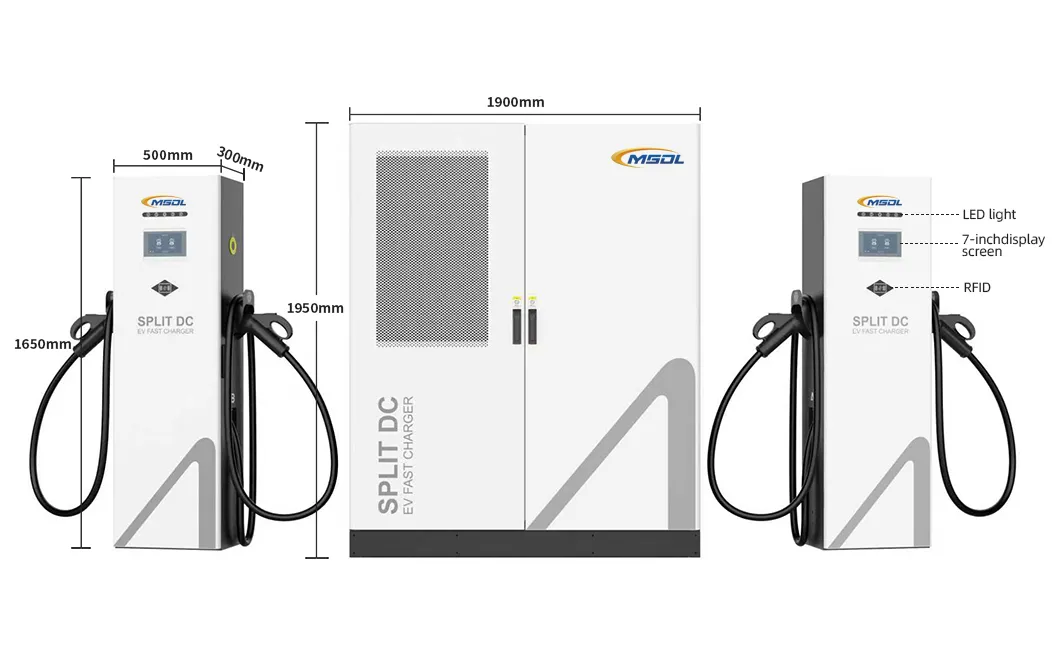

Appearance Structure	Dimensions (L x D x H)	900mm x 700mm x 1900mm
	Weight	440kg (wall-mounted)

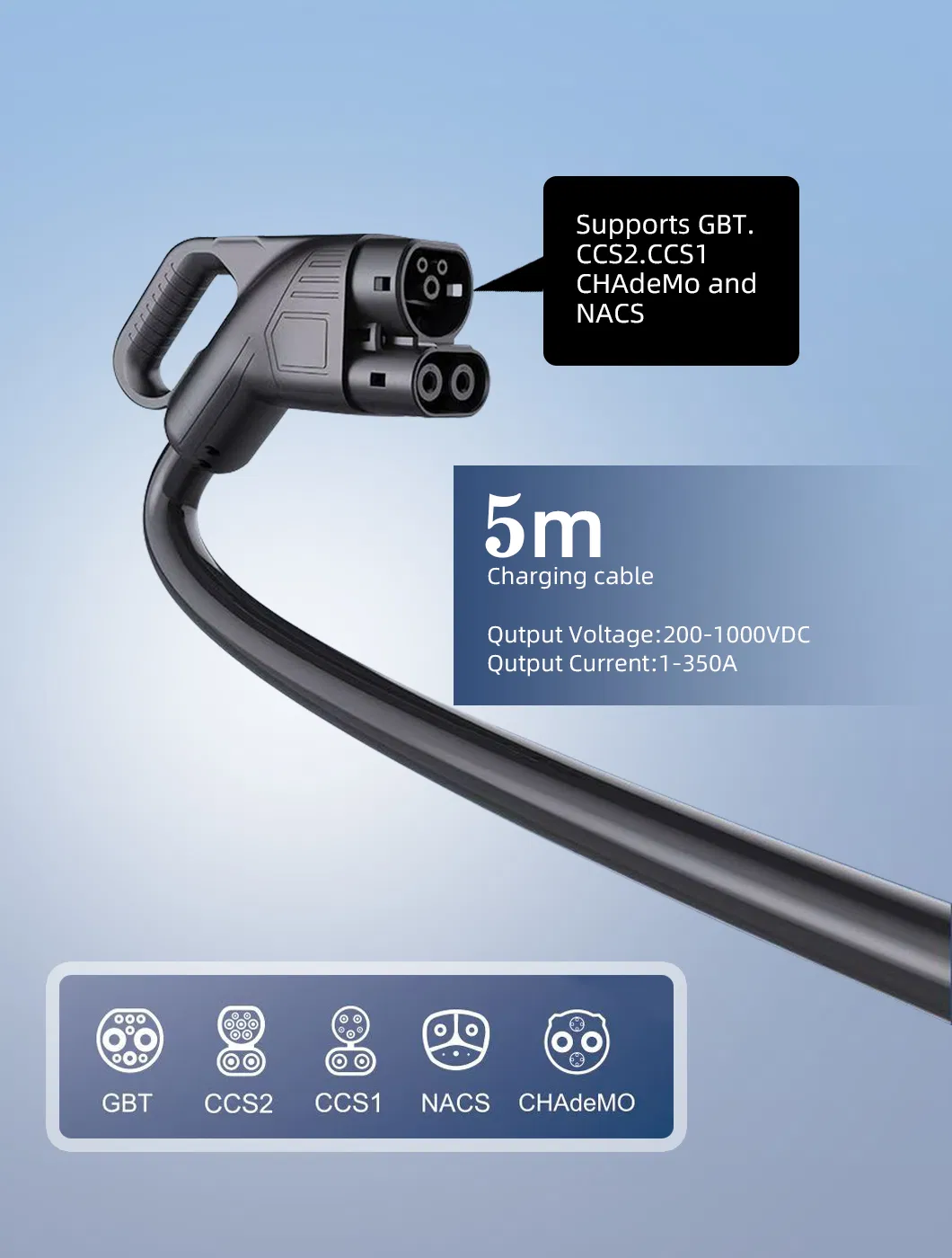

	Cable Length	5m - 7m
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Data	Input Frequency	50/60Hz
	Efficiency	Peak efficiency ≥ 96%
	Power Factor	> 0.99
	Communication Protocol	OCPP, YKC, and other platforms
Functional Design	Display	7’’ LCD with touch screen
	Access Control	RFID / POS machine (Optional)
	Cooling	Air Cooled
Environment & Safety	Operating Temperature	-30°C to 75°C
Environment & Safety	Safety Protection	Overvoltage, Lightning, Overcurrent, Leakage, Emergency Stop

Frequently Asked Questions

What is the warranty period for the charging stations?

We offer a warranty period of 12 to 60 months. During this time, we provide technical support and free replacement parts as needed.

What kind of packaging is used for shipping?

The products are packed using standard wooden box packaging or standard carton packaging to ensure safety during transit.

What is the typical delivery time after payment?

Generally, it takes between 5 to 25 working days after receiving the advance payment, depending on the items and order quantity.

Do you test the units before they are shipped?

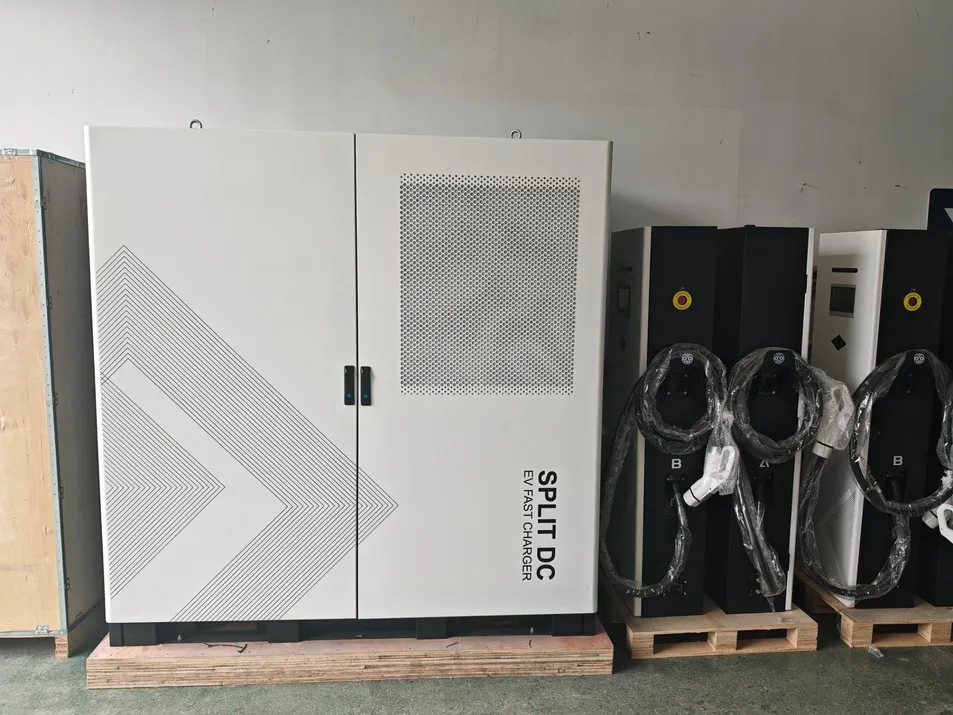

Yes, we perform a 100% test on all goods prior to delivery to ensure quality and performance.

What's the difference between a Movable Charger and a Wallbox?

Movable chargers are designed for scenarios requiring mobility and temporary power, while wall-mounted (Wallbox) chargers are fixed installations for regular charging.

What is the range of power output you can provide?

We can produce high-performance charging systems ranging from 20kW up to 1.5MW.
