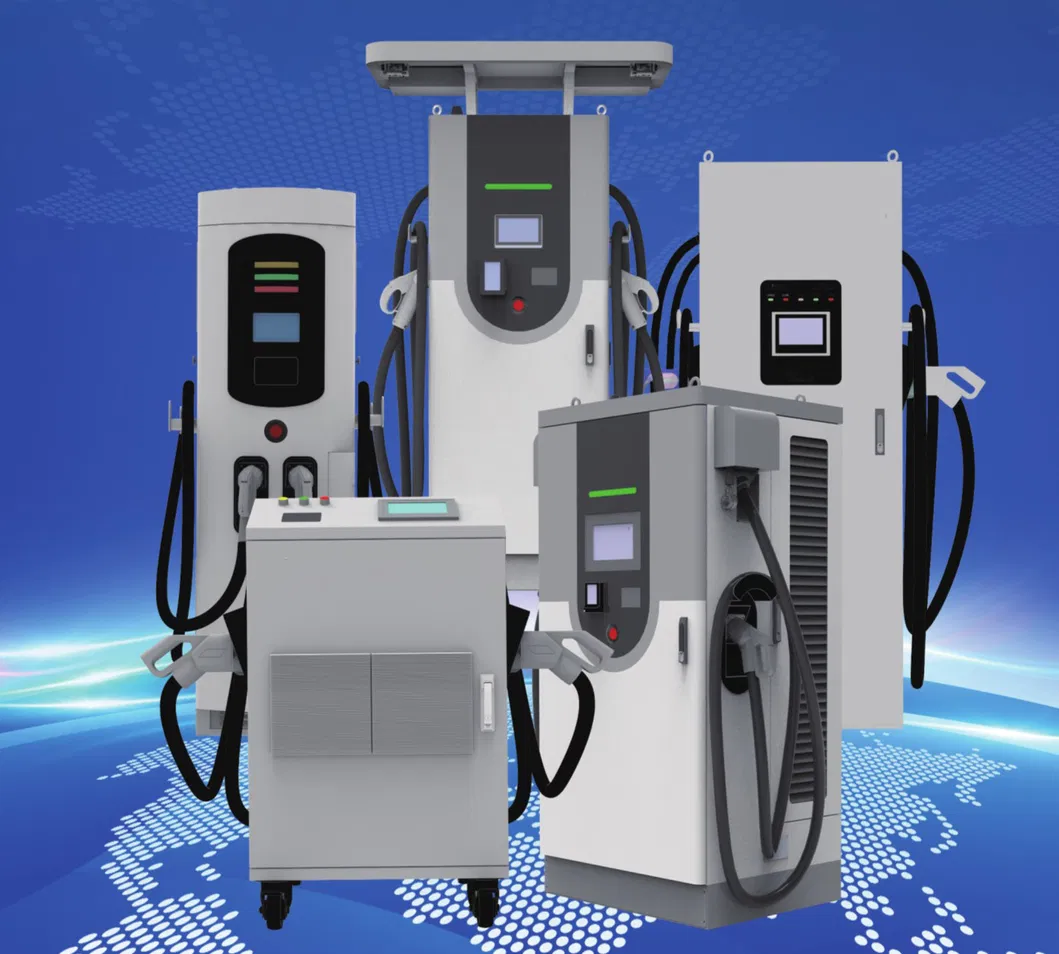

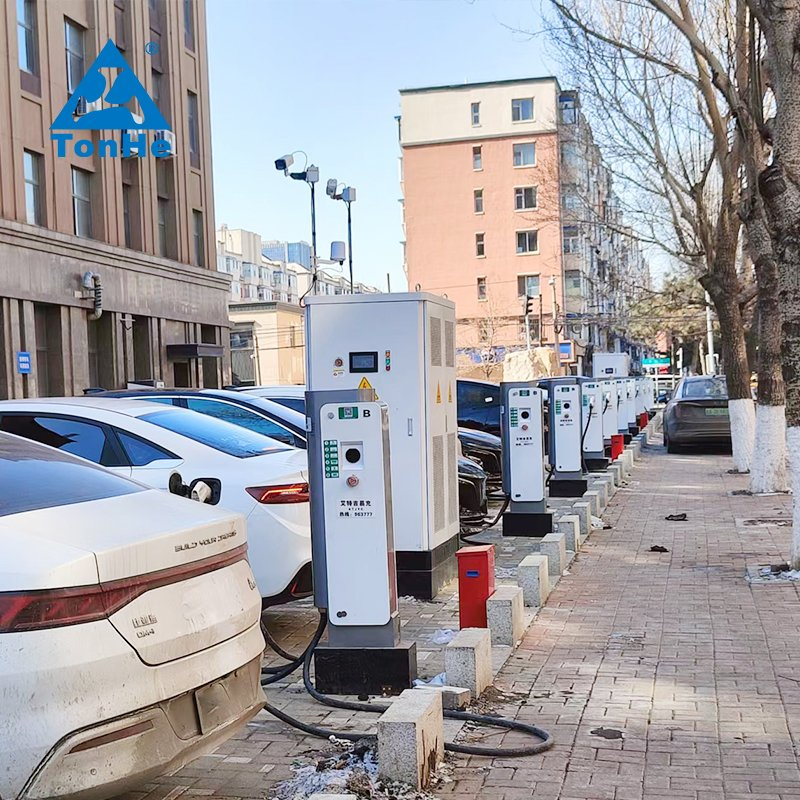

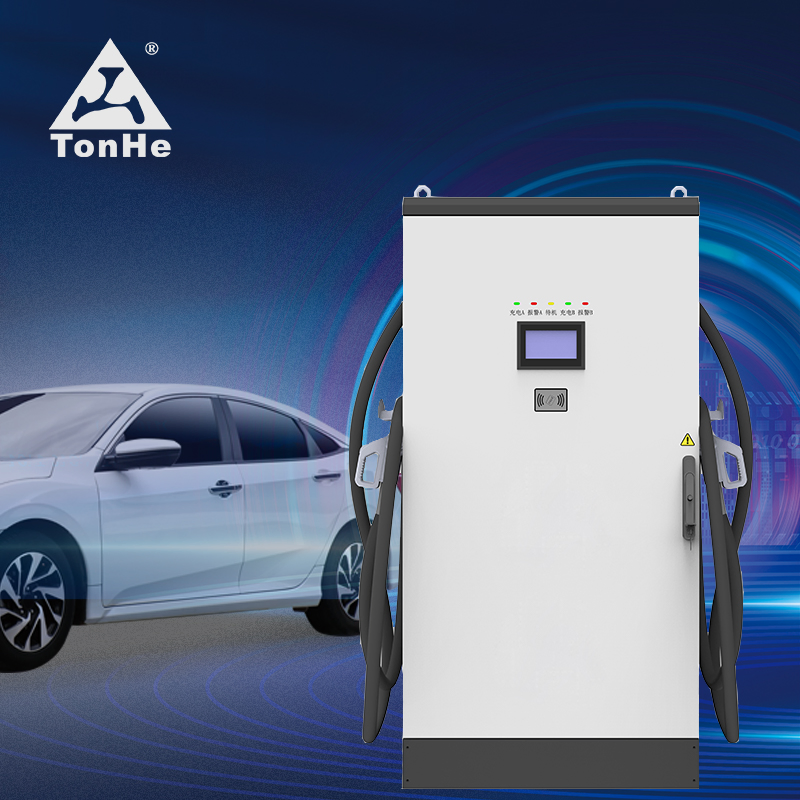

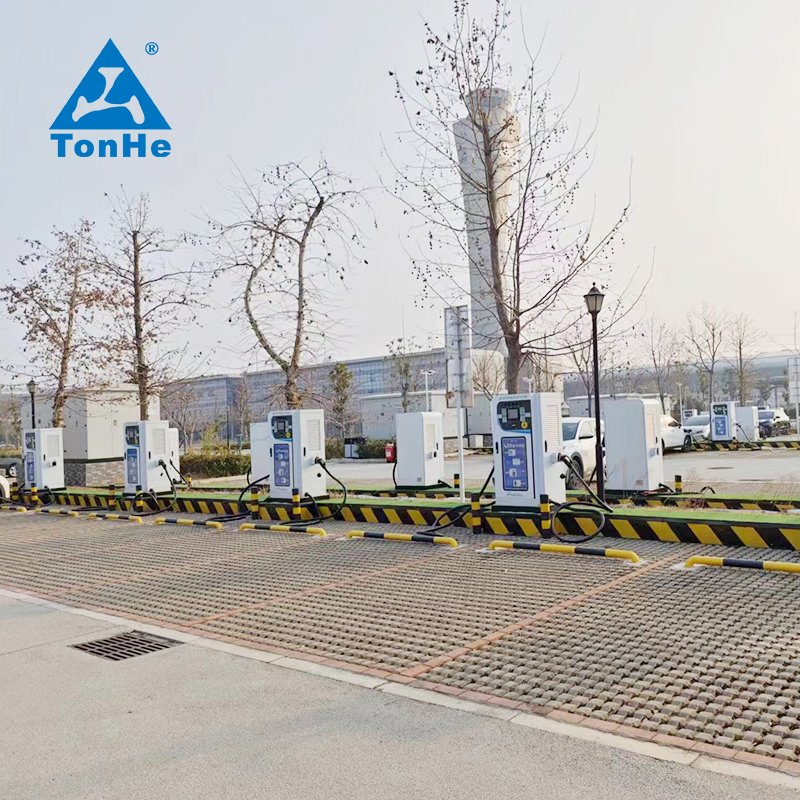

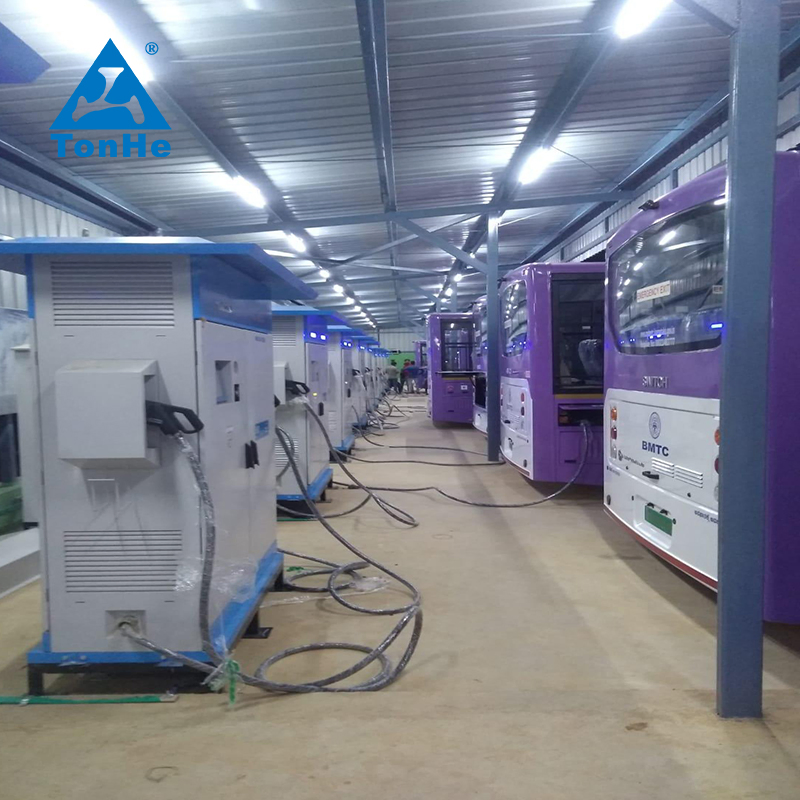

120kw Electric Vehicle Ultra Fast Quick EV Charger Electric Car Fast Level 3 240kw DC EV Charging Station Solution

Basic Information

Model NO.

EV Charger Solution

Location

Public Use

Interfaces

Multiple Charges

Start Mode

RFID Authentication

Charge Method

Quick Charging

Power Range

60kw - 200kw

Output Voltage

200-1000VDC

Origin

China

Capacity

100 Sets / Month

Product Description

✔ Constant power from 200-1000VDC
✔ Average efficiency ≥94% at nominal output power
✔ Dual outputs for simultaneous charging
✔ Ethernet/3G/4G communication
✔ High protection grade IP54
✔ APP operation or RFID authentication
✔ CE certified

Technical Specifications
Model	THGZQW-60/80/100/120/140/160/180/200kW
AC Input	3 phases+neutral+PE, 380VAC±20%, 50Hz±10%
DC Output Voltage	200-1000VDC
Max Current	CCS 2: 200A, CHAdeMO: 125A, GB/T: 250A
Connector Type	CCS 2 / CHAdeMO / GB/T (Up to 2 guns)
Efficiency	≥94% at nominal power
Communication	OCPP1.6J via Ethernet, 3G/4G
Working Temp	-30ºC to +55ºC
Protection	Over/Under Current, Surge, Short Circuit, Earth Fault

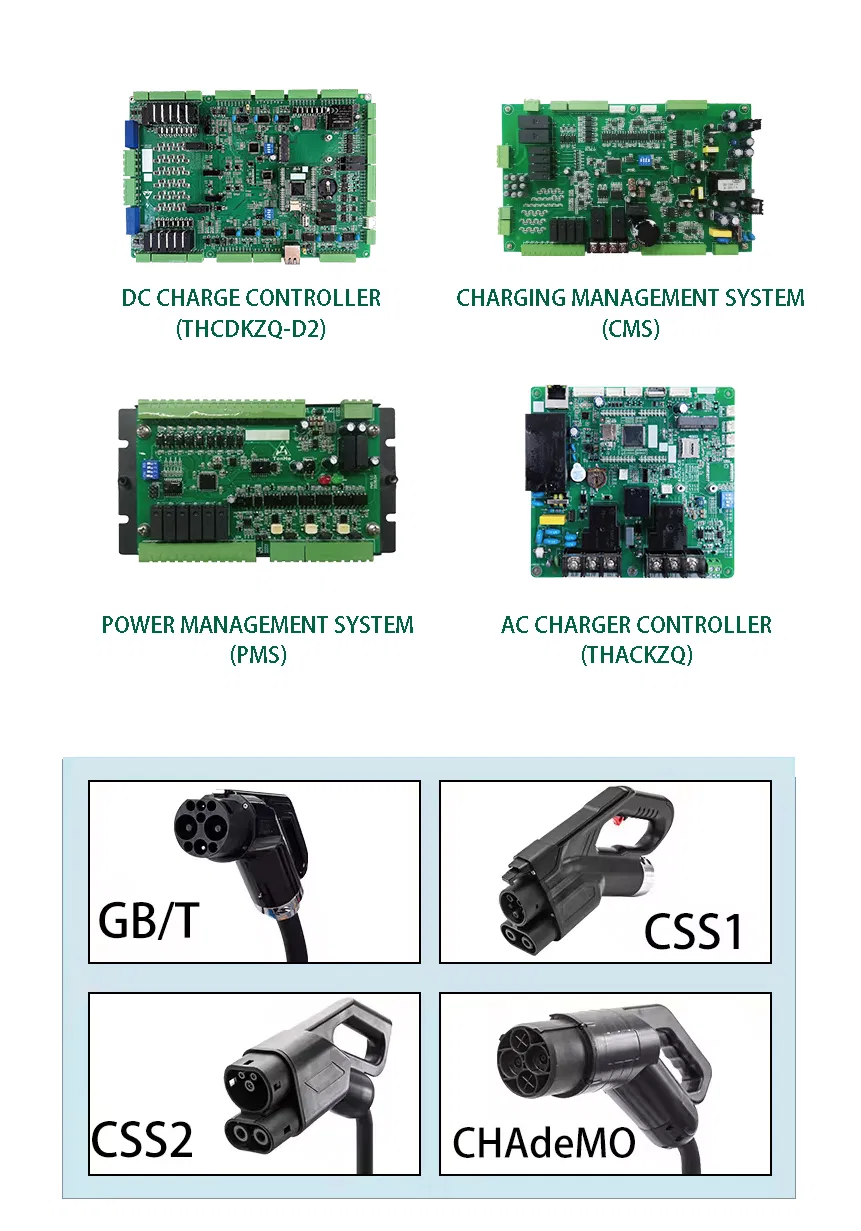

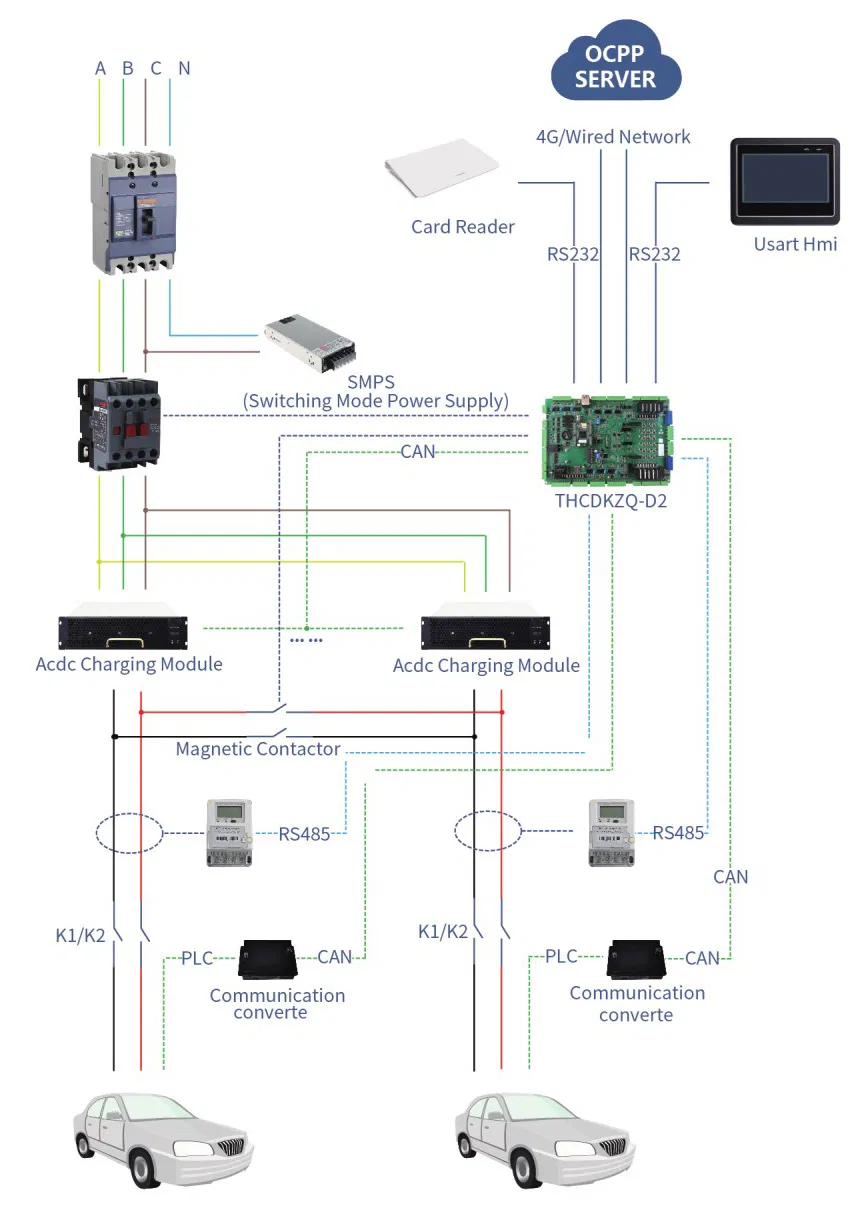

Auxiliary Product

Packaging & Shipping

Manufacturing & R&D

We focus on high-frequency power conversion technology, realizing soft switching technology for the entire power conversion process. Our commitment lies in technological innovation within the EV charging and swapping industry, providing one-stop services including R&D guidance, system solutions, and technical training.

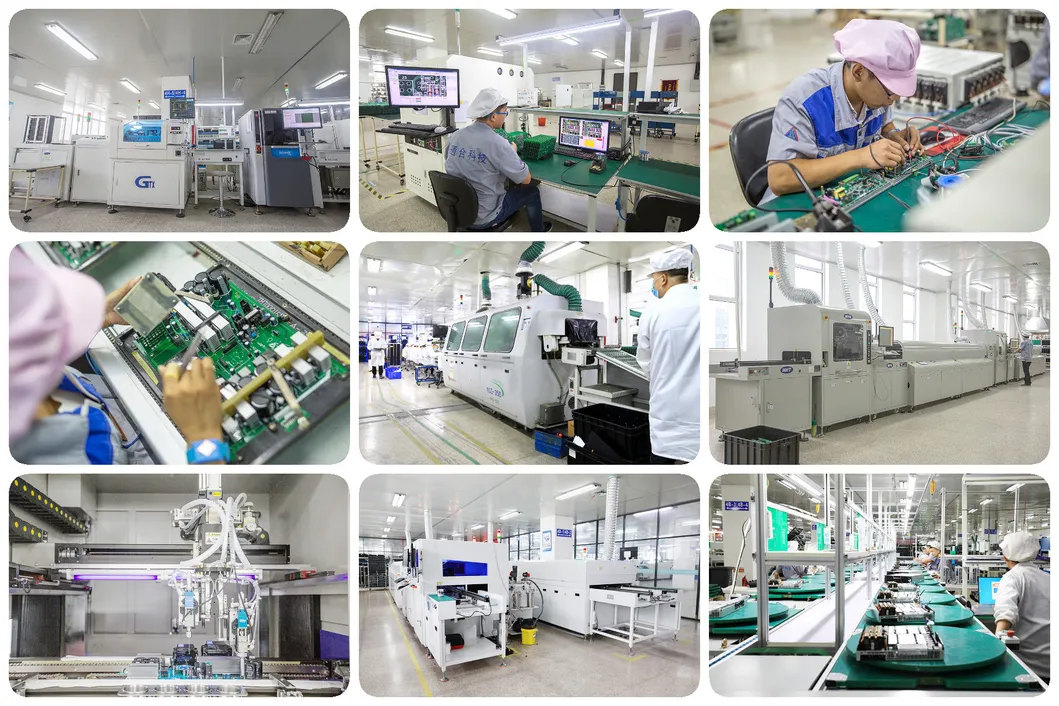

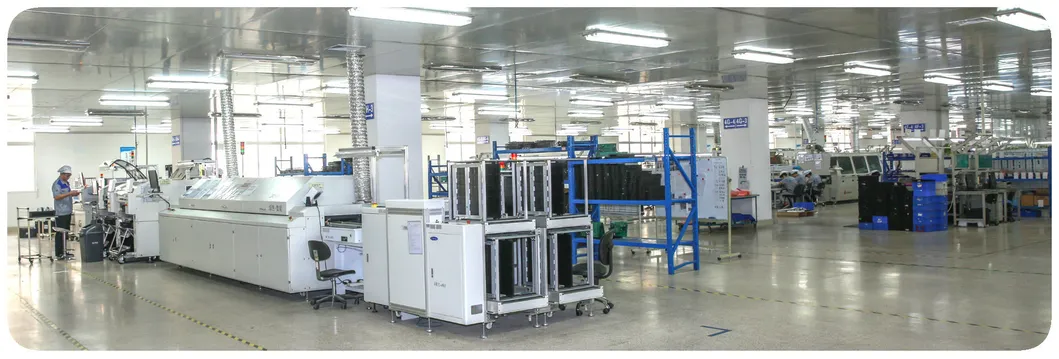

Manufacturing Workshop

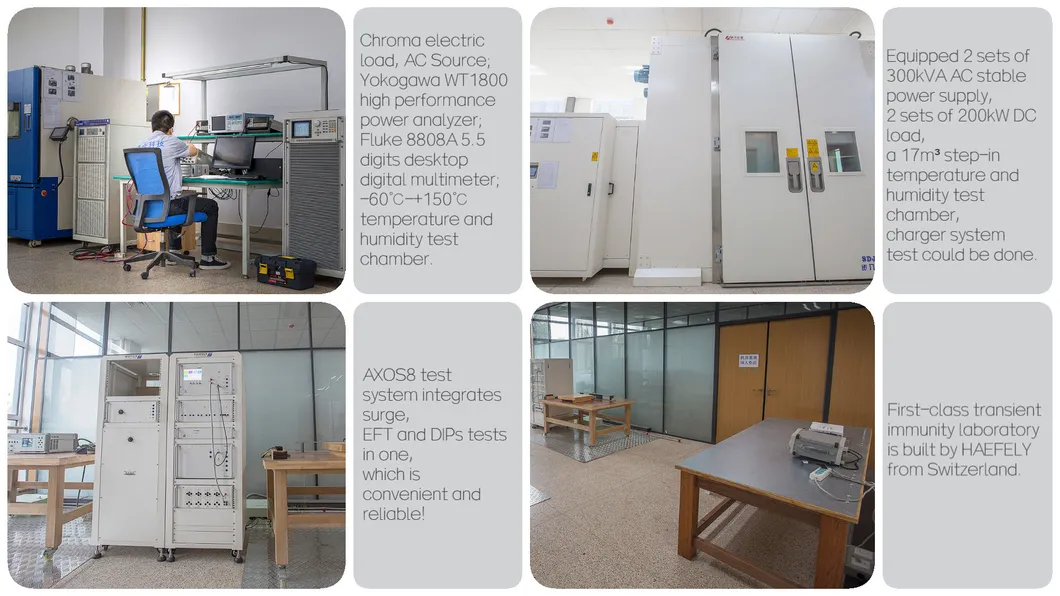

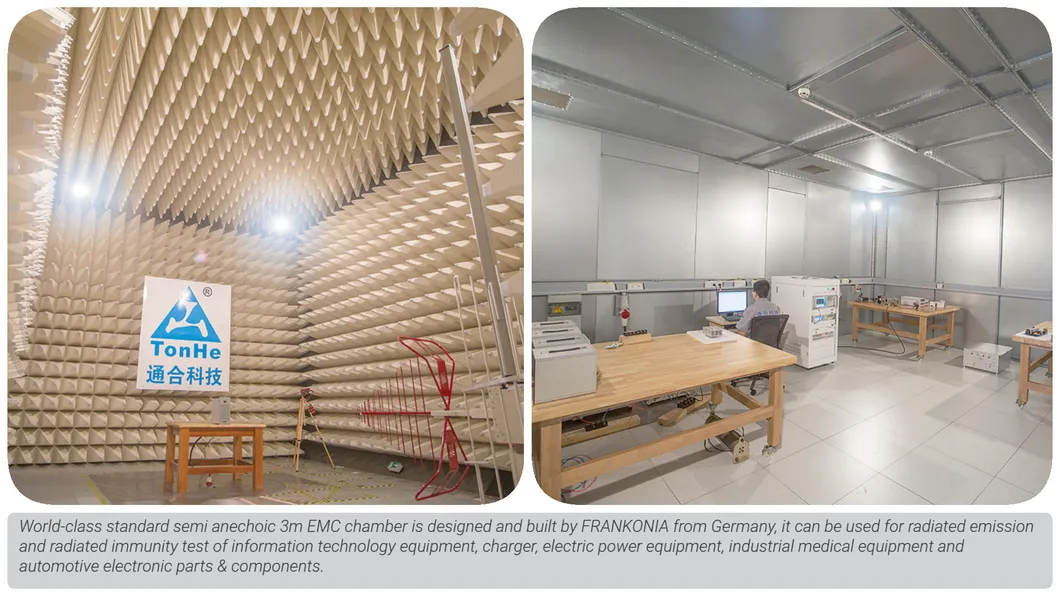

Testing Labs

Certifications & Cooperation

Frequently Asked Questions

What are the module CAN baud rate and CAN voltage levels?

- The standard is 125Kbs 5V.

Do the modules support glue filling for extra protection?

- Yes, all series modules can support glue filling.

What are the installation requirements for the charging module?

- Modules can be installed horizontally, side-standing, or upside down. For upside-down installation, customized front panels without handles are available.

What is the typical delivery time for orders?

- Approximately 7 days for individual modules and 35 days for standard charging piles.

Do you provide customized OEM/ODM services?

- Yes, we provide various OEM and ODM solutions based on specific customer requirements.

How long is the product warranty?

- The standard warranty is 12 months upon receipt of the shipment.
