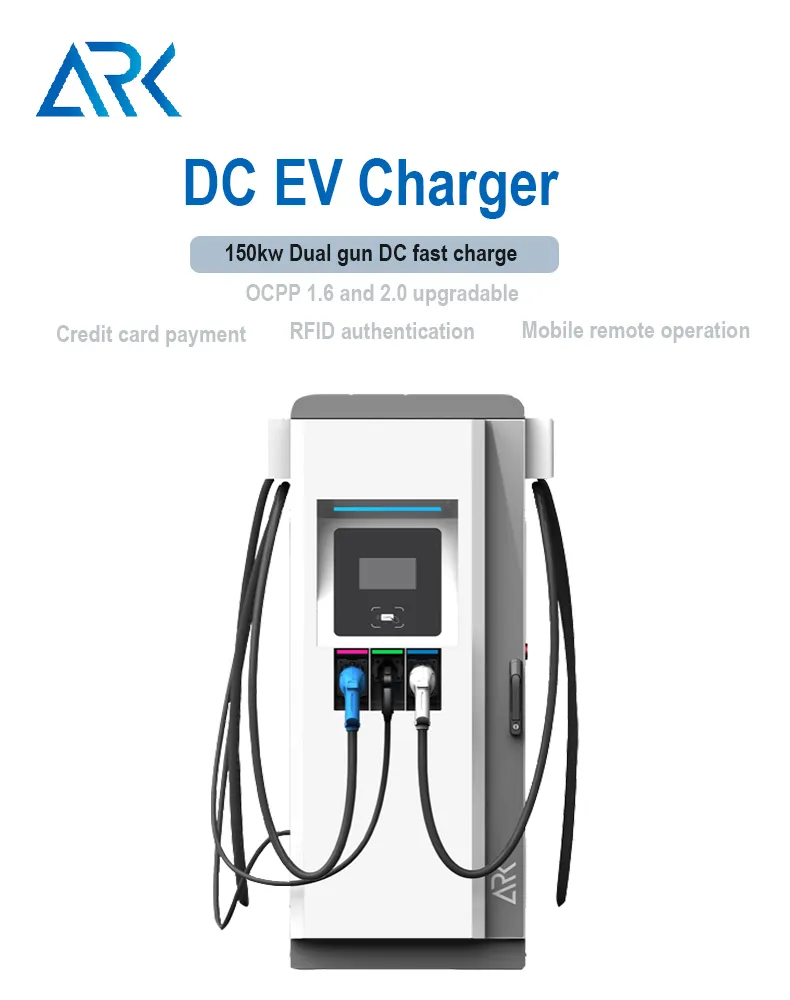

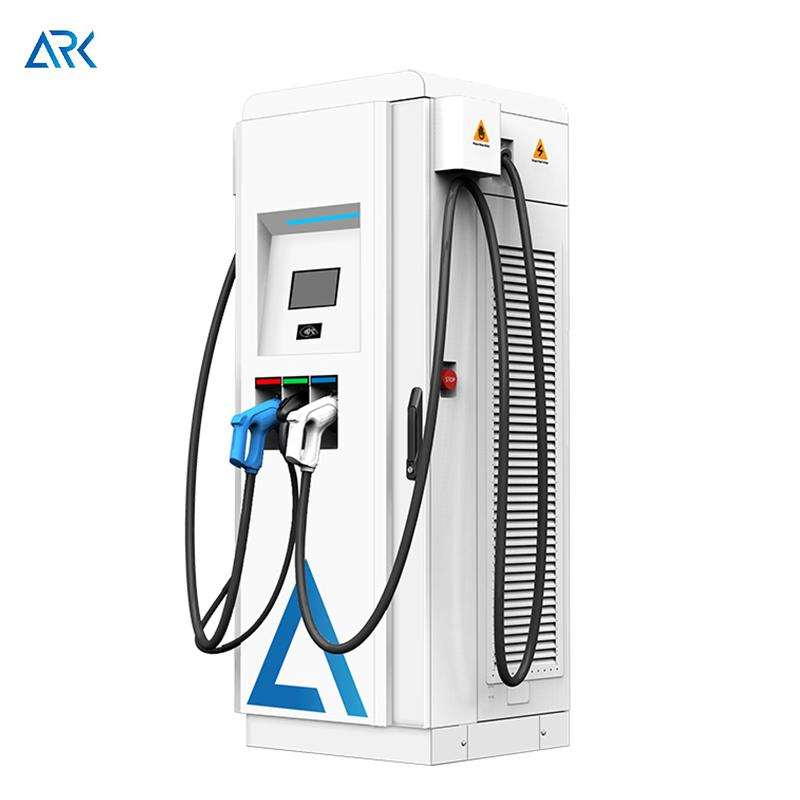

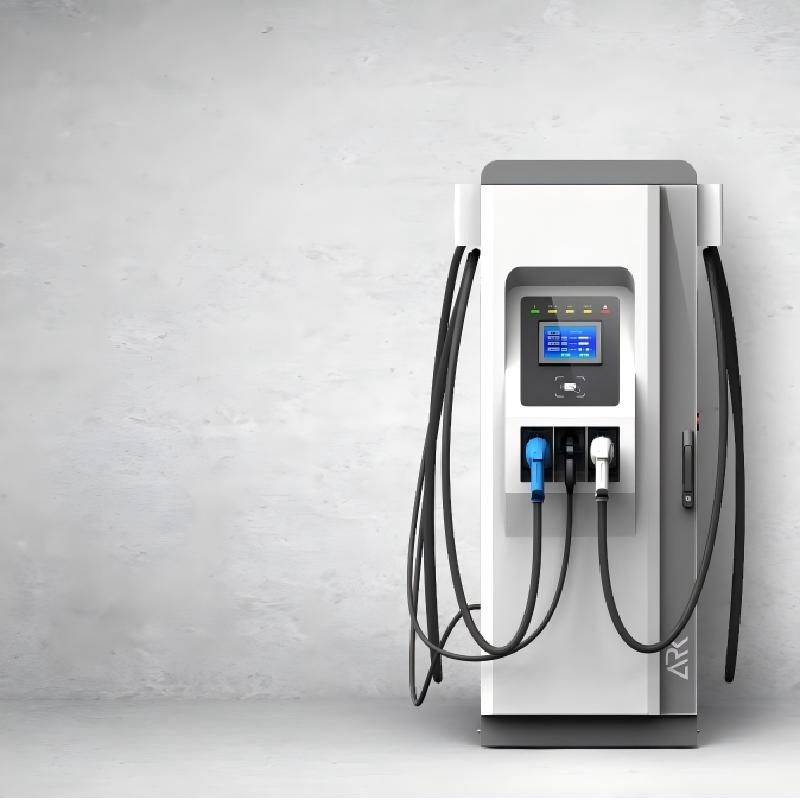

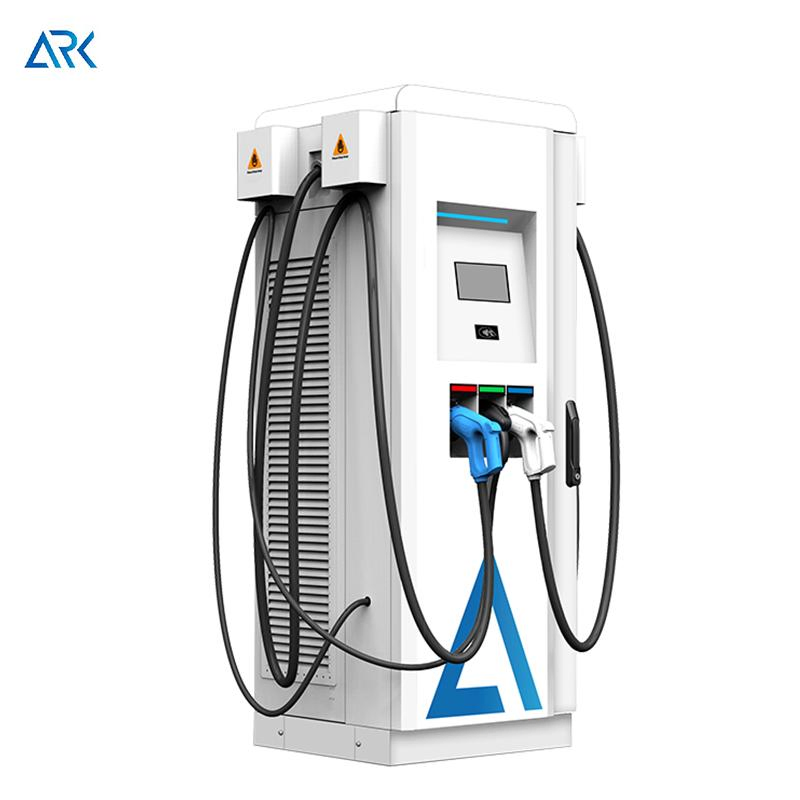

Supplier OEM High Power DC Ultra Fast EV Charging Station 180kw 150kw

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview & Basic Info

Model NO.:EF160
Charging Interfaces:One Pile with Multiple Charges
Location:Public Use
Installation:Wall/Floor Mounted
Charge Method:Quick Charge
OCPP:1.6j Supported
Screen:7 Inch Touch Screen
Protection:IP54, IK10
Charging Type:Mode 4
Certification:CE, TUV
Capacity:1000 Units/Month
P

Product Description

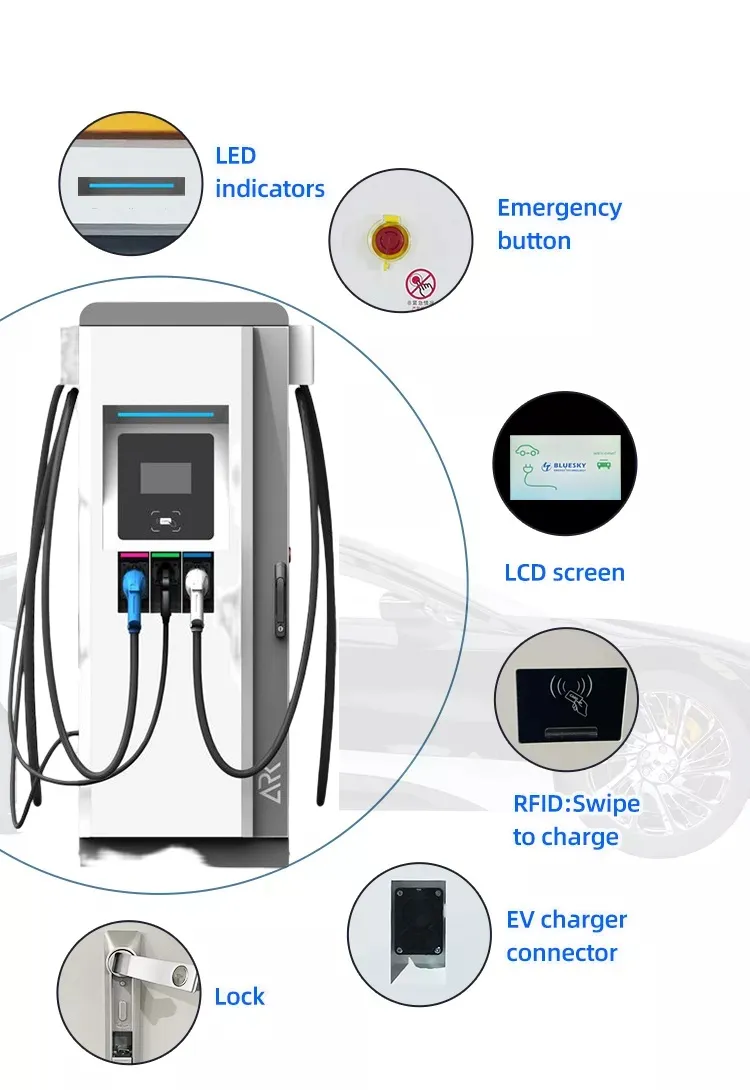

High Power DC Ultra Fast EV Charging Station Charging Station Internal Structure
S

Product Parameters

Category Feature Specification
Electrical Specifications Input Voltage 400Vac 3-phase
Input Frequency 50Hz/60Hz
Rated Power 60kW or 120KW DC
Output Voltage CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output Current CCS: 0 - 200A, CHAdeMO: 0 - 125A
Efficiency ≥ 94%
Power Factor ≥ 0.99
Structure Housing Material Metal case

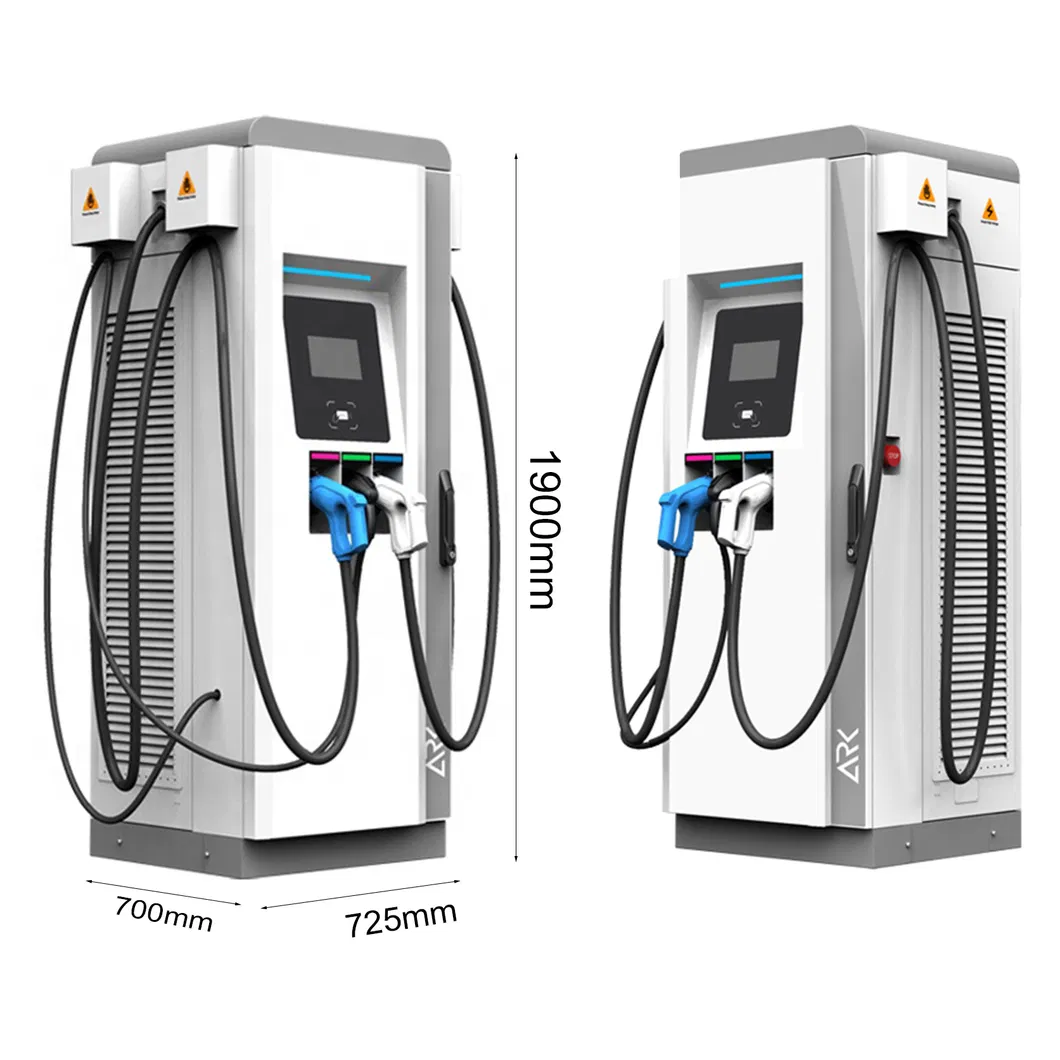

Dimension 1900 x 725 x 700mm
Cable Length 5m
Weight 380kgs
Function User Interface 7" Touch screen, RFID, LED indicator
Communication Wifi, 3G/4G, CAN, OCPP 1.6

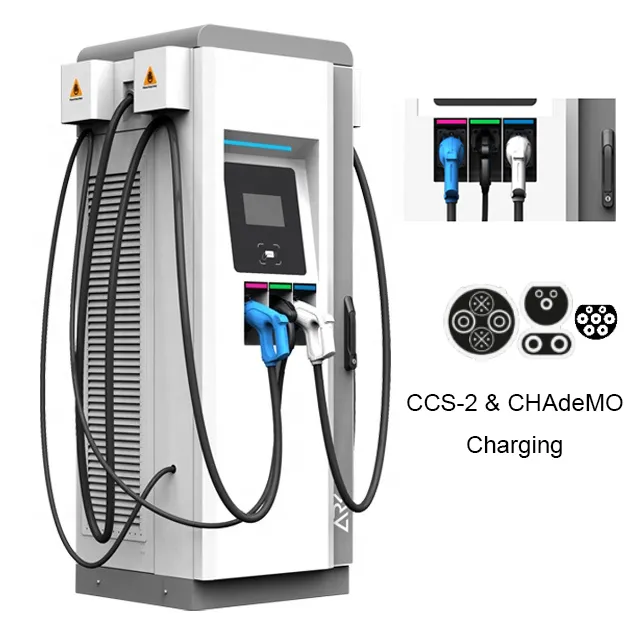

Standards CCS-1/2, CHAdeMO
C

Professional Production

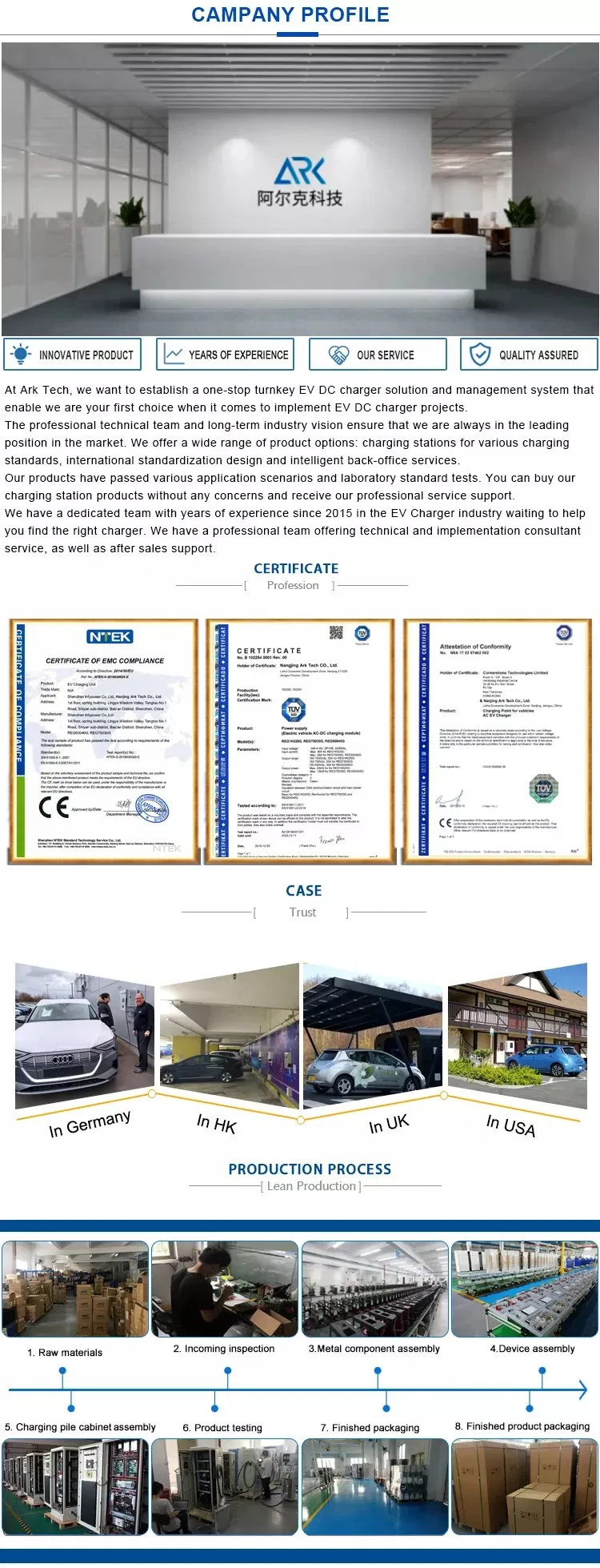

Manufacturing and Quality Control
L

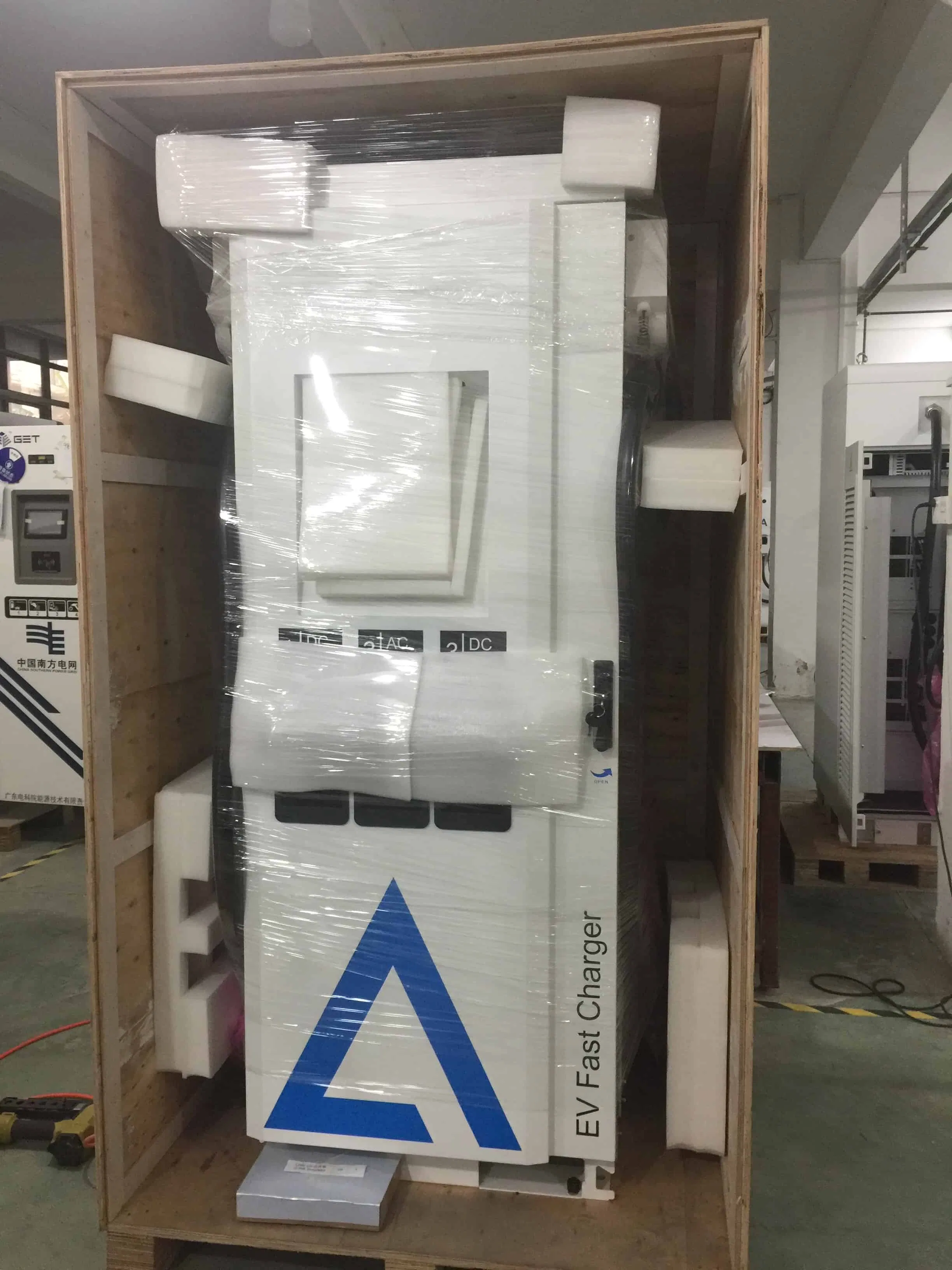

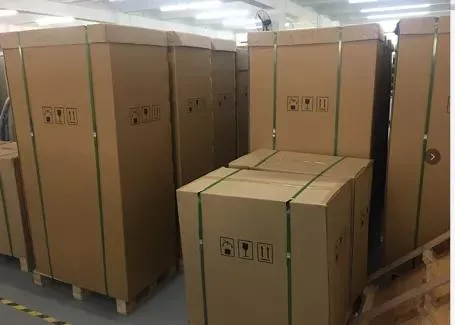

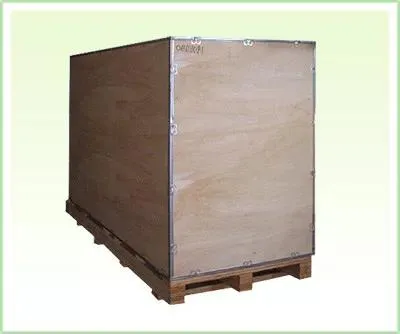

Packaging & Shipping

Package Size: 115.00cm * 100.00cm * 210.00cm
Gross Weight: 145.000kg
?

Frequently Asked Questions

1. Why choose this EV Charger solution?

Our professional technical team ensures industry-leading positions with a wide range of charging standards, international design, and smart back-end services. All products undergo rigorous laboratory and application tests to ensure safety and reliability.

2. Is there experience in overseas charging projects?

Yes, we have extensive experience implementing global projects, including integration with PV systems in the UK, freeway DC installations in the US, and providing fast charging services for major automaker fleets.

3. What are the key advantages of your DC chargers?

We provide telecom-level product design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, superior temperature adaptation, and advanced modular designs for easy maintenance.

4. What are the differences between global DC fast charging standards?

Currently, there are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. Our chargers are designed to support these global standards to ensure compatibility with various EV models.

5. Does higher output power always mean faster charging?

Not necessarily. Charging speed is often limited by the vehicle's battery. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and are future-proof for next-generation batteries.

6. How is after-sales technical support handled?

We provide comprehensive technical training through manuals and videos to help customers master maintenance and parts replacement. In urgent situations, professional technicians are available to provide dedicated support.
