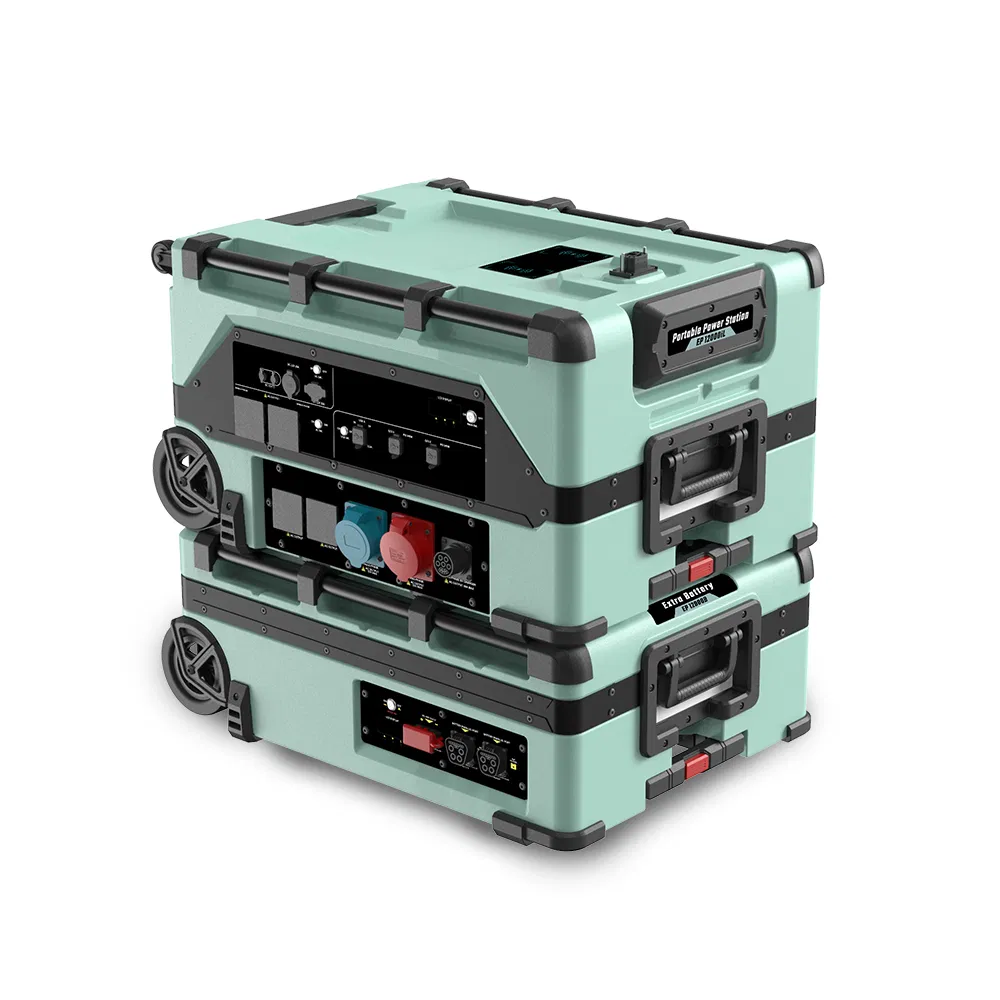

11kw 10kw 12kw Portable Three-Phase Solar Power Station with Wireless Charging and Stackable

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO. EP12000iL
Weight 100kg
Warranty 5 Years
Charging Method AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion Yes, Max 245kwh
Fast Charging Yes, 70mins Fully Charged
Certificates CE RoHS IEC62619 Un38.8 MSDS
Cell Type Lithium LFP (LiFePO4)

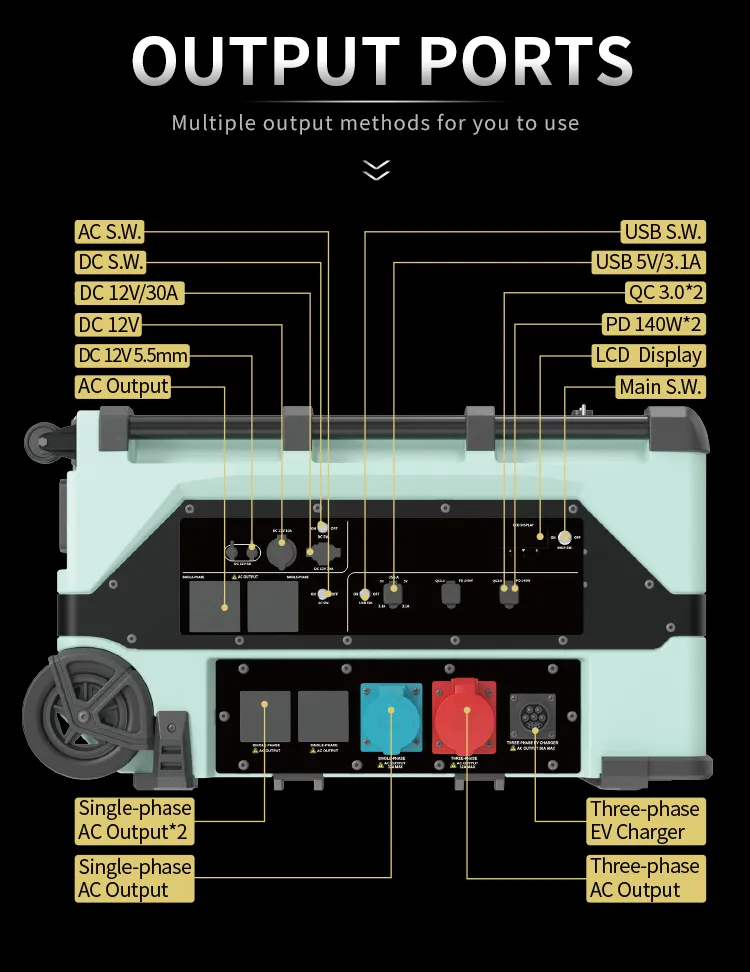

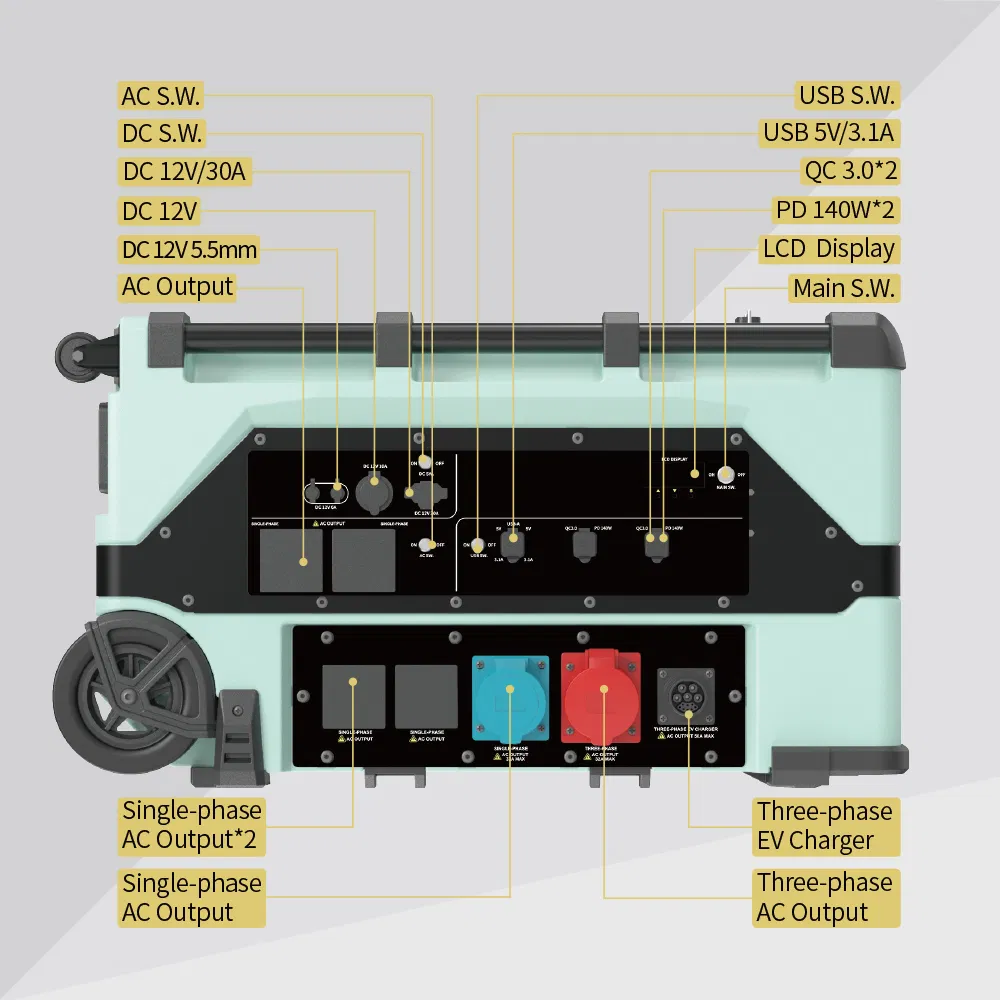

Output Multiple Ports AC/DC/USB/Type C/Cigarette Lighter

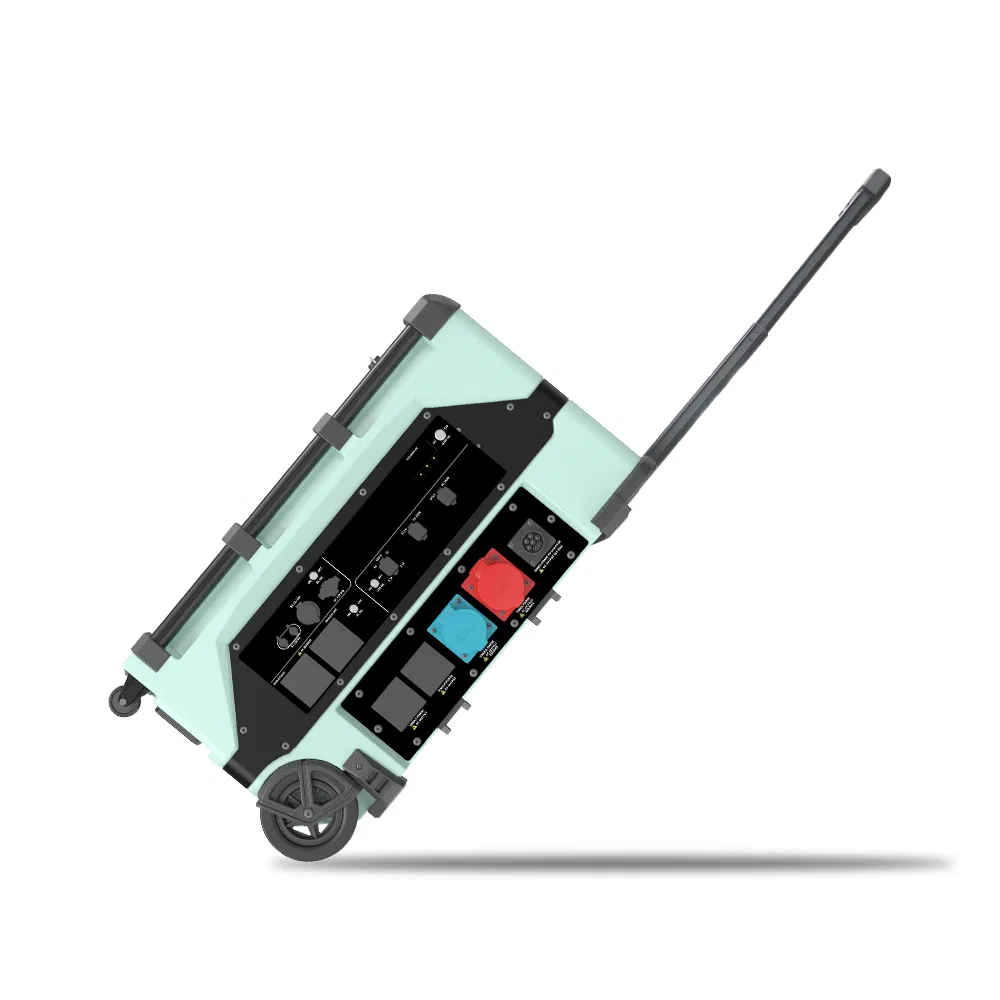

Portability Drawbar & Wheels
Package Size 95.00cm * 78.00cm * 60.00cm

Product Advantages

Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.
Supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

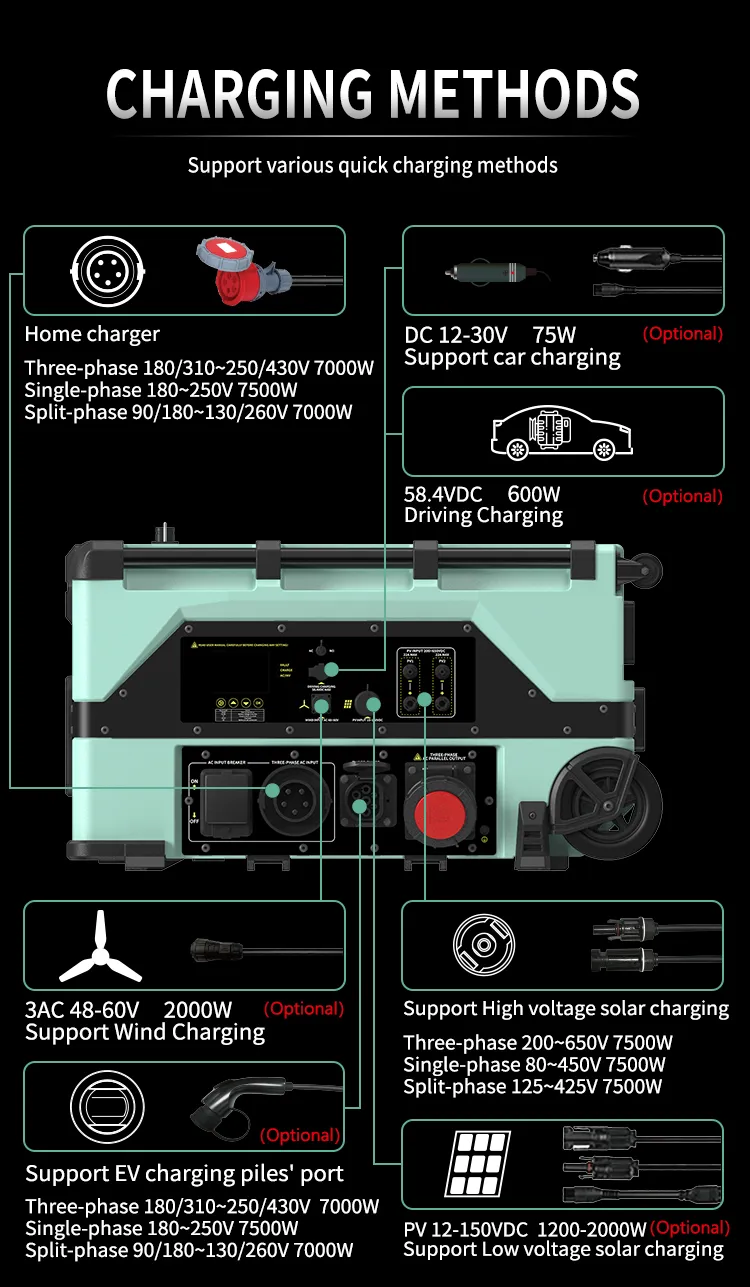

Multi-method fast charging: Utility, high/low-voltage solar, EV charger, car, AC generator, and wind turbine.
Expansion capability up to 31 extra batteries, reaching a total capacity of 245kWh.

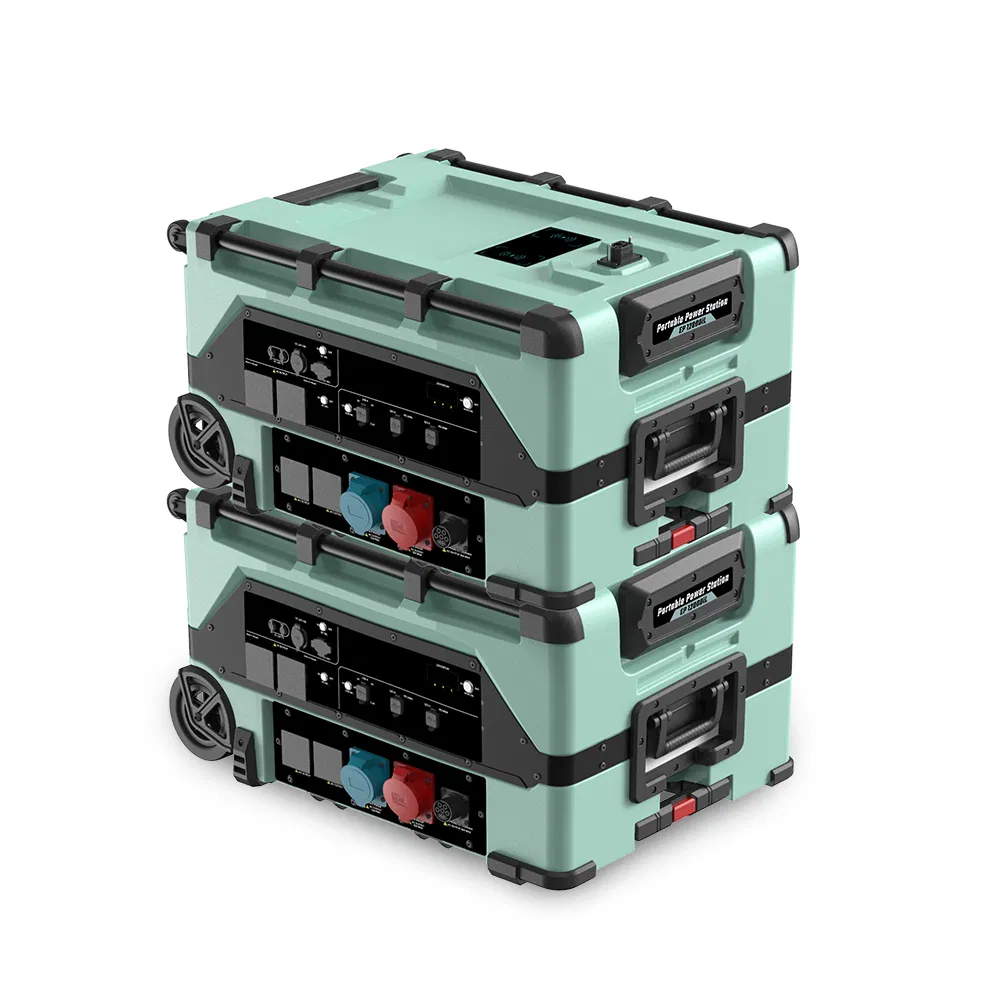

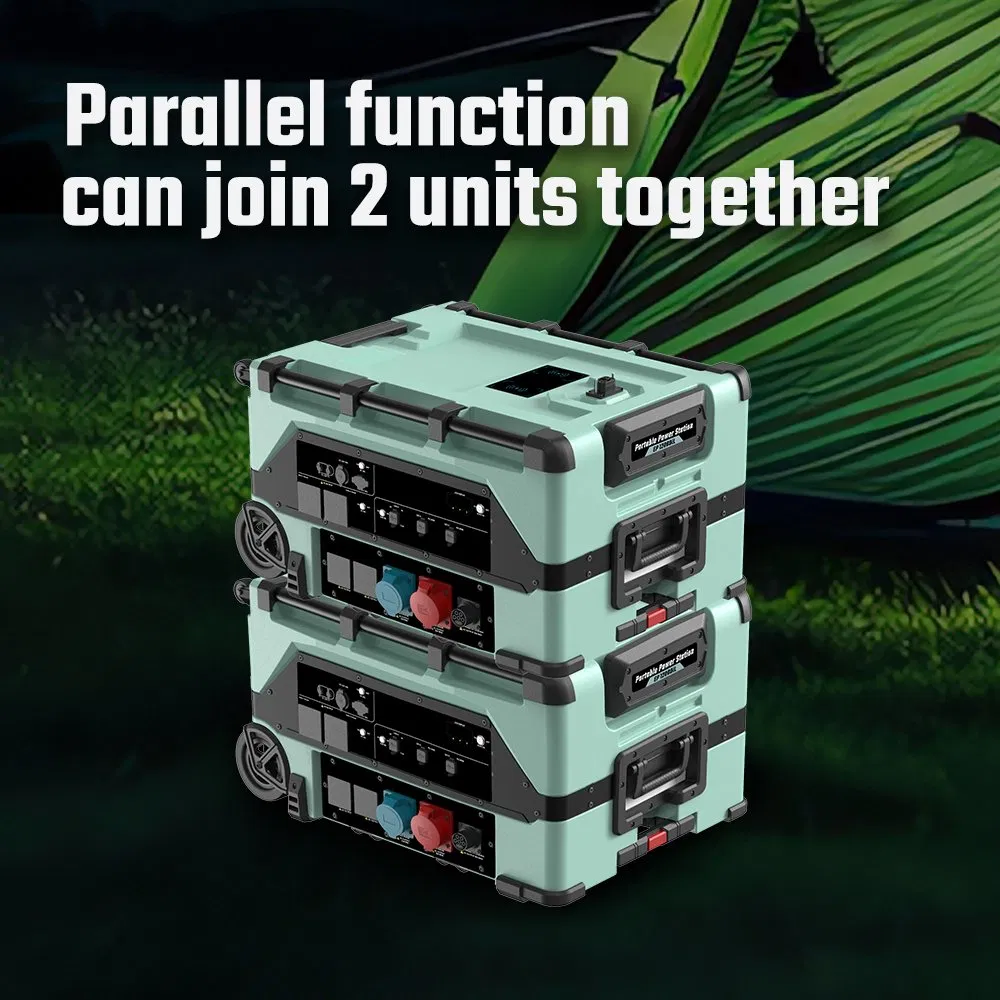

Patented stacked parallel technology: Join 2 units for a 24kW continuous output.
Built-in EV charger: Can replace charging stations to charge vehicles up to 22kW.
Durability: Unit IP53 and Battery Pack IP66 protection grade with V-0 level flame-retardant casing.
Intelligent control and monitoring via smartphone APP.

Technical Parameters

Feature Main Unit (EP12000iL) Extra Battery (EP12000B)
Battery Details LiFePO4, 7680Wh, 150Ah (51.2V), 3000+ Cycles LiFePO4, 7680Wh, 150Ah (51.2V)
AC Output Power 12000VA (3-Phase) / 11000VA (1-Phase) N/A
Peak Power 24000VA / 22000VA N/A
Transfer Time ≤10ms (Typical) N/A
DC Output XT90 (12V/30A), Cigarette (12V/10A), 5521 (12V/6A) N/A
USB Ports USB 3.1A, QC3.0 18W, Type-C PD 140W N/A
Solar Input (HV) Max. 2×9000W PV Input, 7500W Charging N/A

Product Gallery

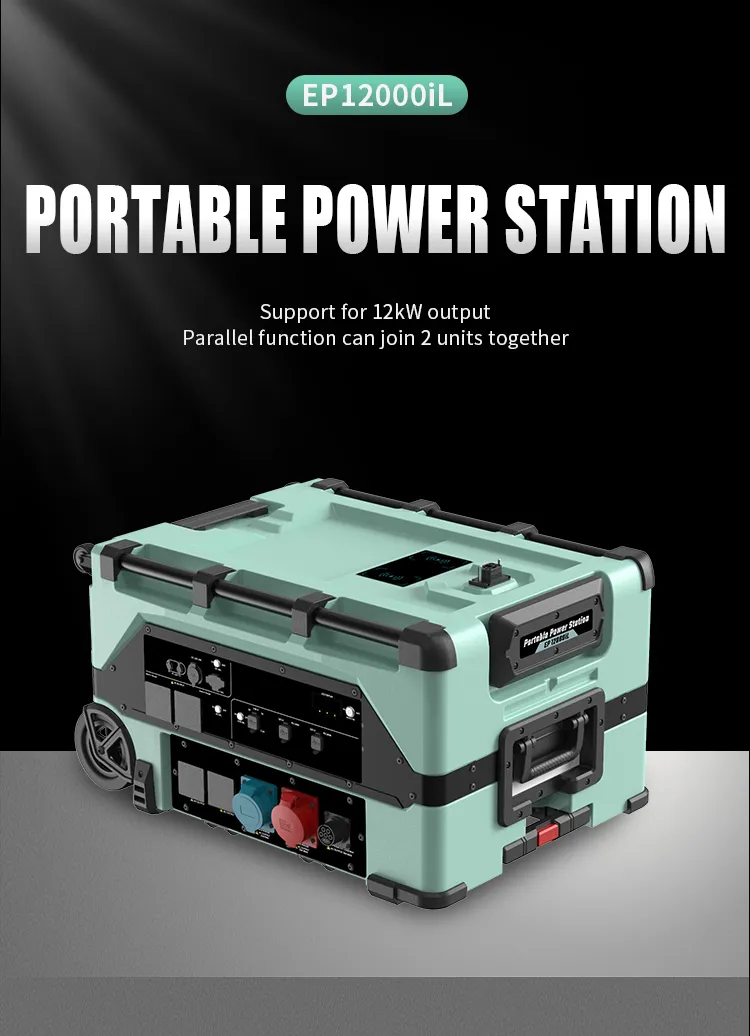

Solar Power Station 1

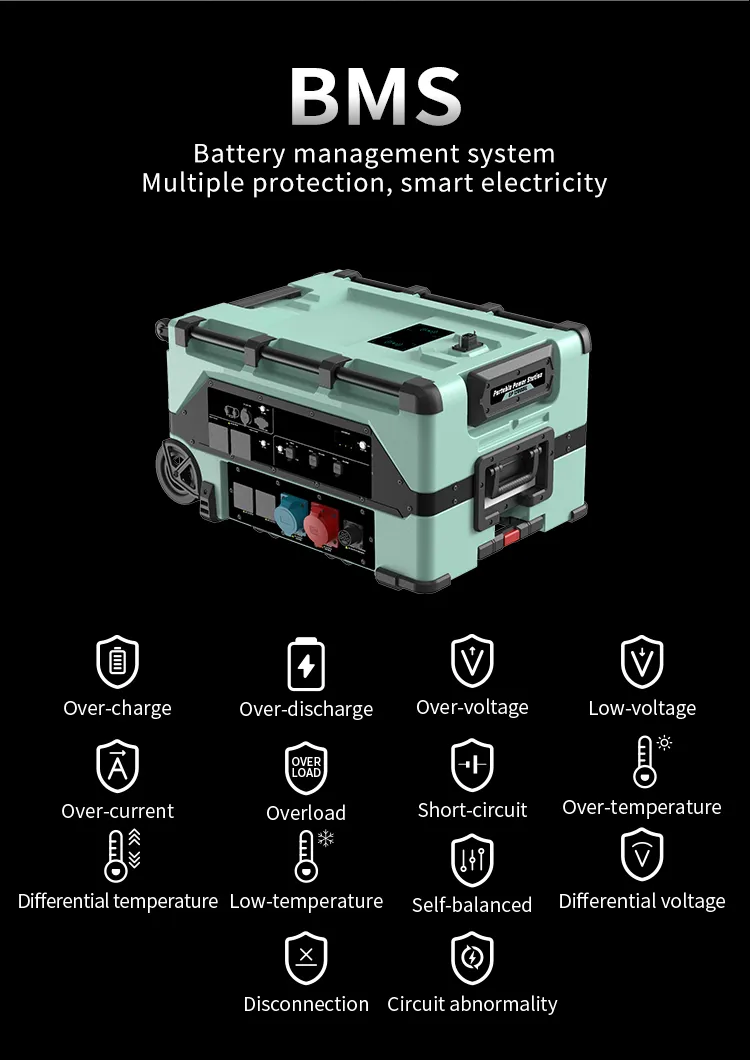

Solar Power Station 2

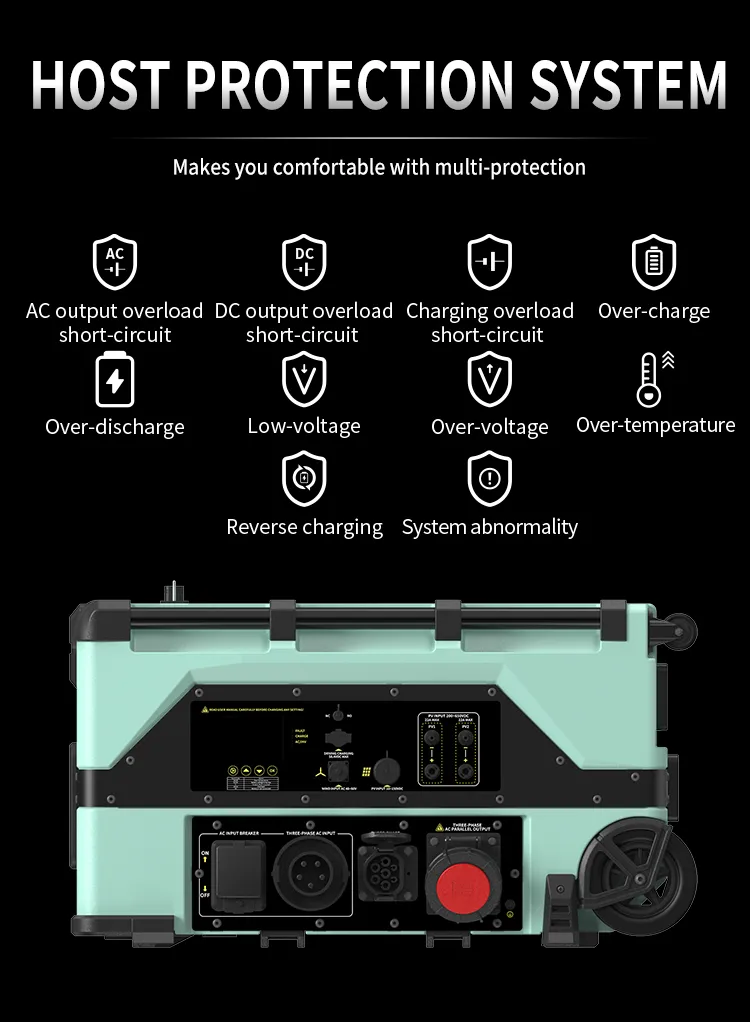

Solar Power Station 3
Solar Power Station 4

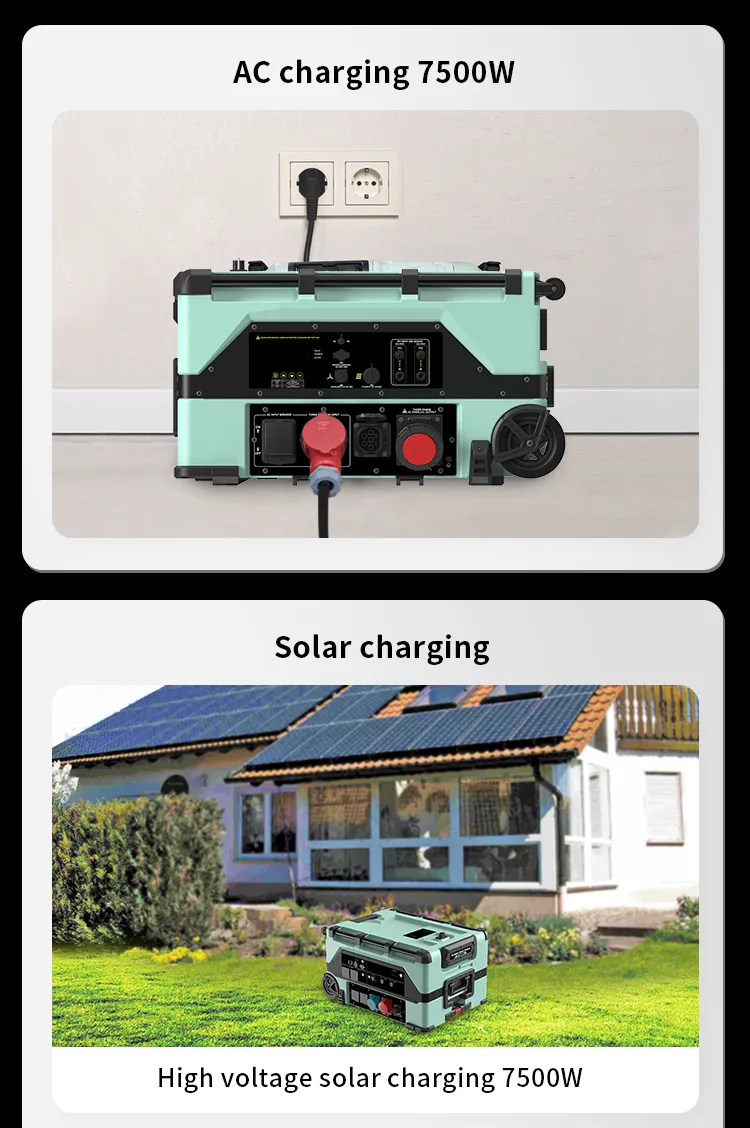

Solar Power Station 5
Solar Power Station 6

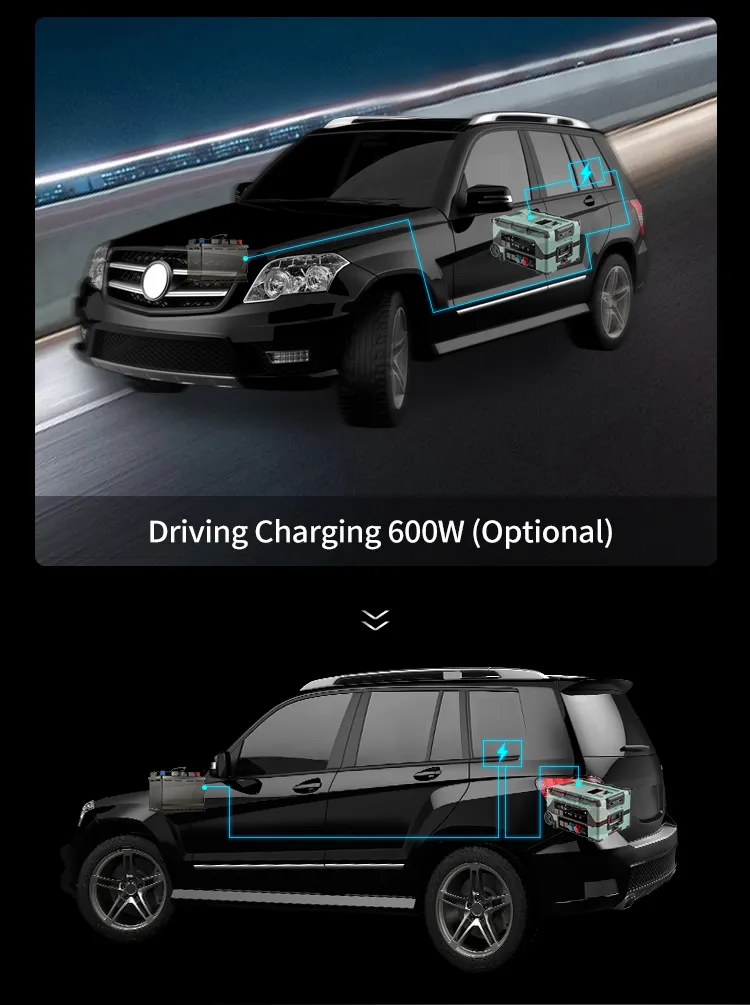

Solar Power Station 7

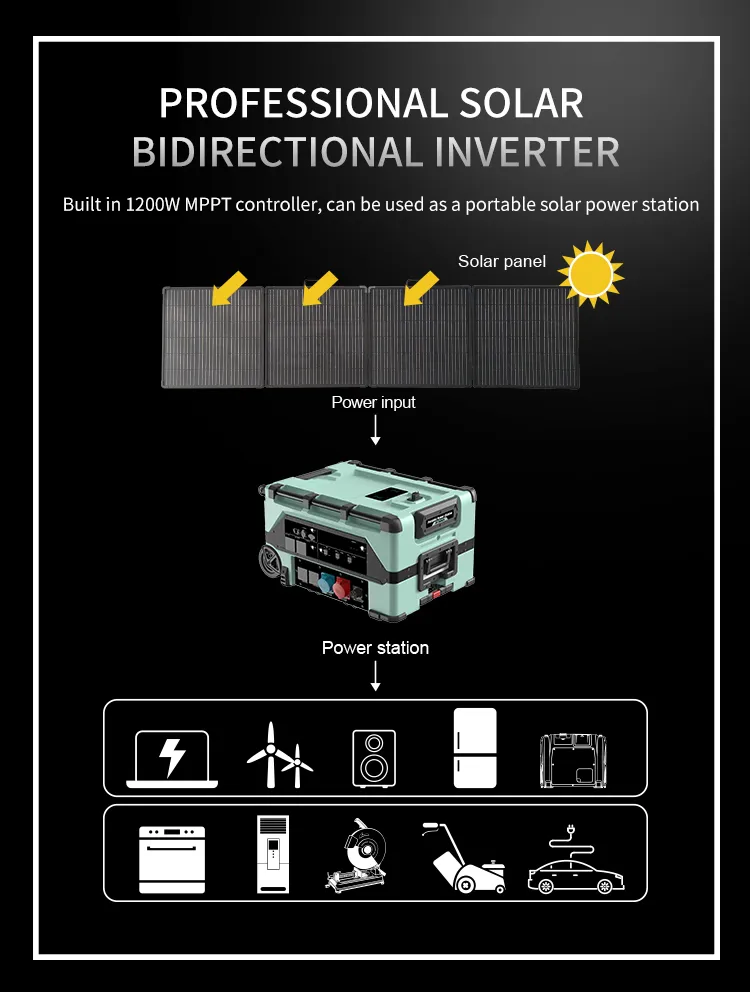

Solar Power Station 8
Solar Power Station 9

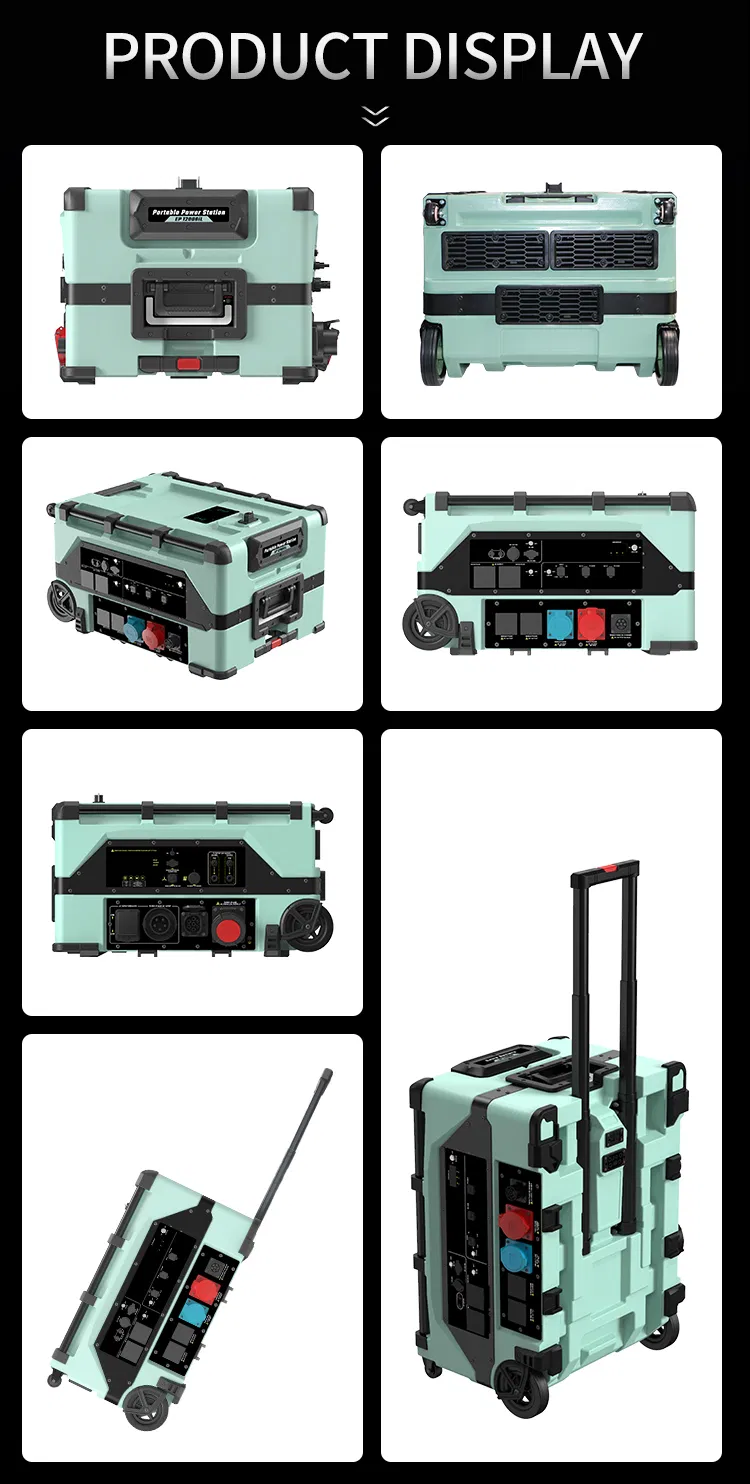

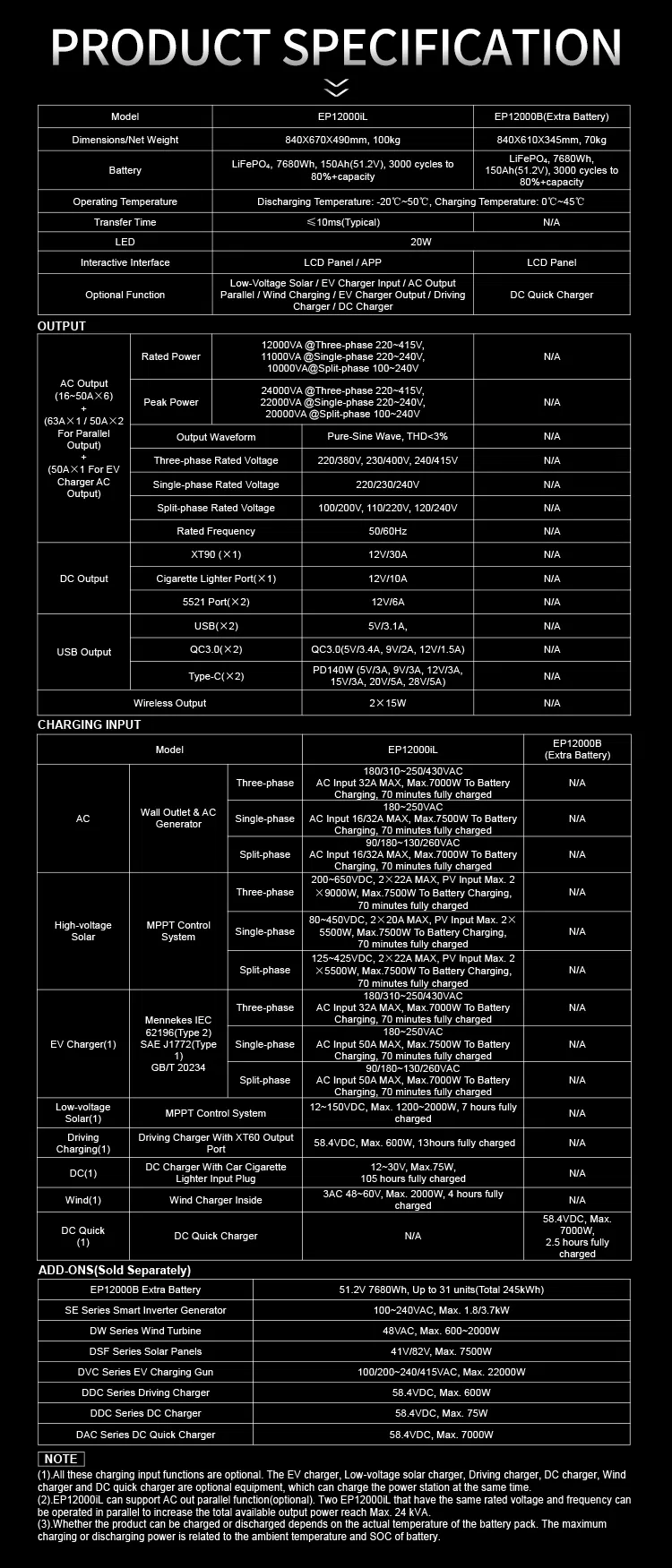

Detailed Specs 1 Detailed Specs 2 Detailed Specs 3
Application 1
Application 2
Application 3

Frequently Asked Questions

What is the battery capacity and type used in the EP12000iL?
The unit features a 7680Wh high-power Lithium Iron Phosphate (LiFePO4) battery, known for its safety and long life cycle (3000+ cycles to 80% capacity).
Can this power station be used to charge electric vehicles (EVs)?
Yes, it includes a built-in electric vehicle charger that can output up to 22kW, making it a portable alternative to fixed EV charging stations.
How many expansion batteries can I connect?
You can stack and connect up to 31 extra batteries (EP12000B), reaching a massive total capacity of 245kWh.
What are the main charging options available?
It supports a wide variety of inputs including standard AC wall outlets, high/low-voltage solar panels, EV chargers, car driving charging, AC generators, and wind turbines.
Is the device suitable for outdoor or harsh environments?
Yes, the main unit is rated IP53 and the battery packs are rated IP66. It also features a V-0 level flame-retardant casing and anti-collision rubber pads.
How fast can the unit be fully charged?
Using AC or solar fast charging methods, the EP12000iL can reach a full charge in approximately 70 minutes.
