12kw Portable Three-Phase Solar Power Station with Wireless Charging and Stackable

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Info.
Model NO.EP12000iL
Weight100kg
Warranty5 Years
Charging MethodAC, Solar, EV Charger, DC, Wind
Battery ExpansionYes, Max 245kwh
Fast ChargingYes, 70mins Fully Charged
CertificatesCE RoHS IEC62619 Un38.8 MSDS
Cell TypeLithium LFP
OutputAC/DC/USB/Type C
PortabilityDrawbar & Wheels
📦 Packaging & Delivery
Package Size95.00cm * 78.00cm * 60.00cm
Package Gross Weight100.000kg
⚡ Product Advantages
  • Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

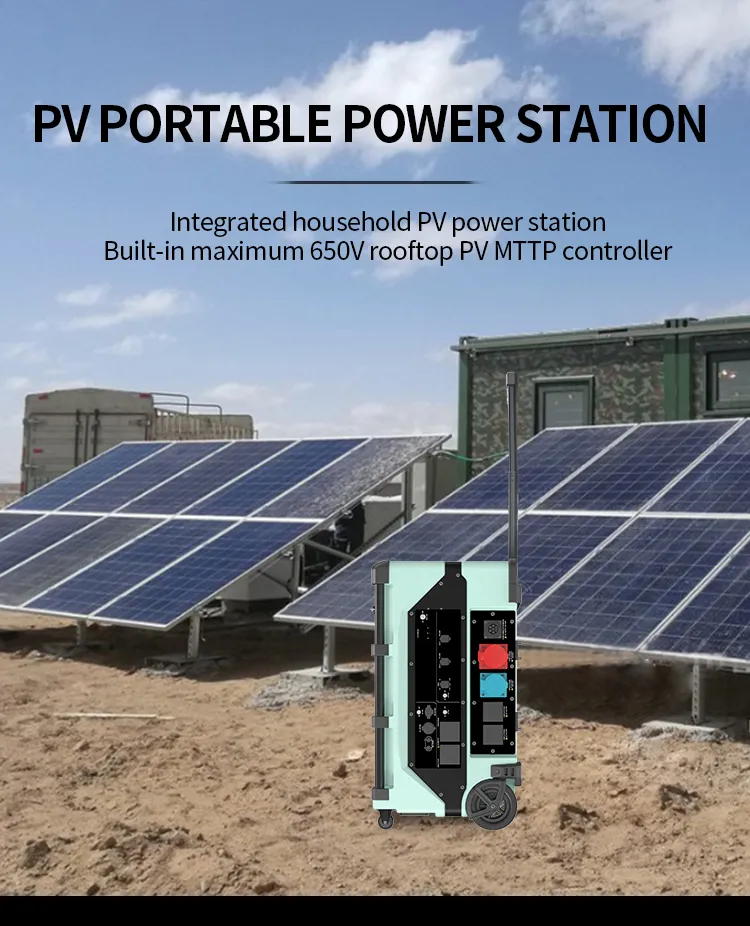

  • Support various fast charging methods: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

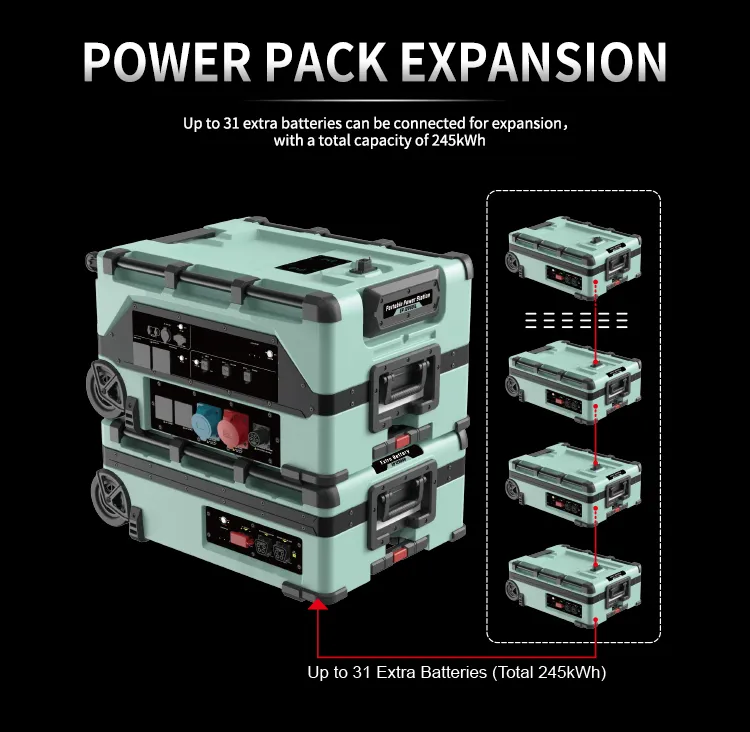

  • Up to 31 extra batteries can be stacked for expansion, with a total capacity of 245kWh.

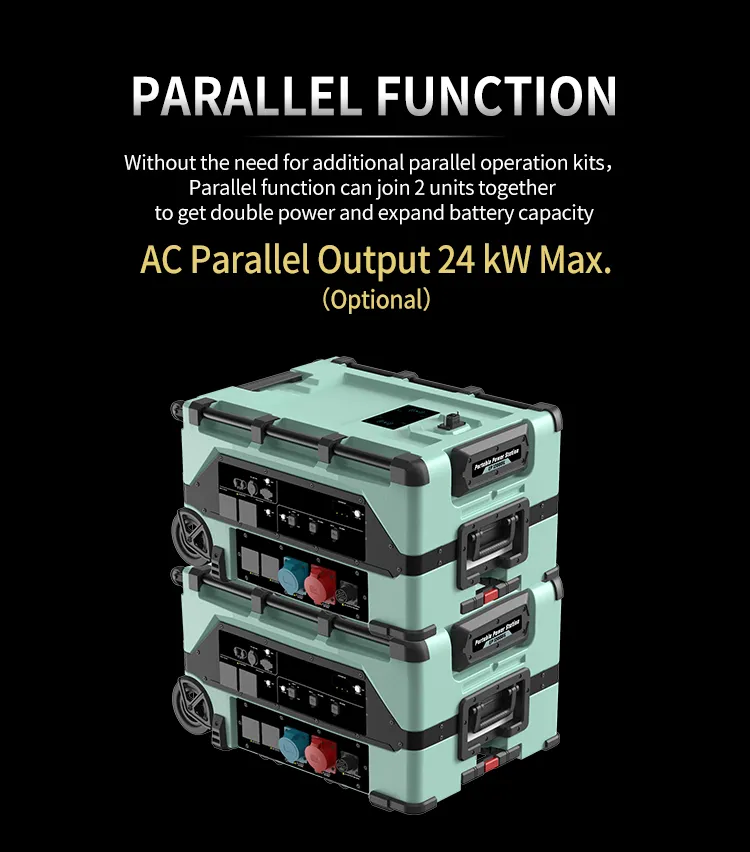

  • Stacked parallel technology allows joining 2 units for 24kW continuous output.
  • Built-in electric vehicle charger, can charge cars up to 22kW.
  • Four-wheel chassis and large-diameter wheel design for easy transport.
  • High protection grade: Unit IP53 and Battery Pack IP66.

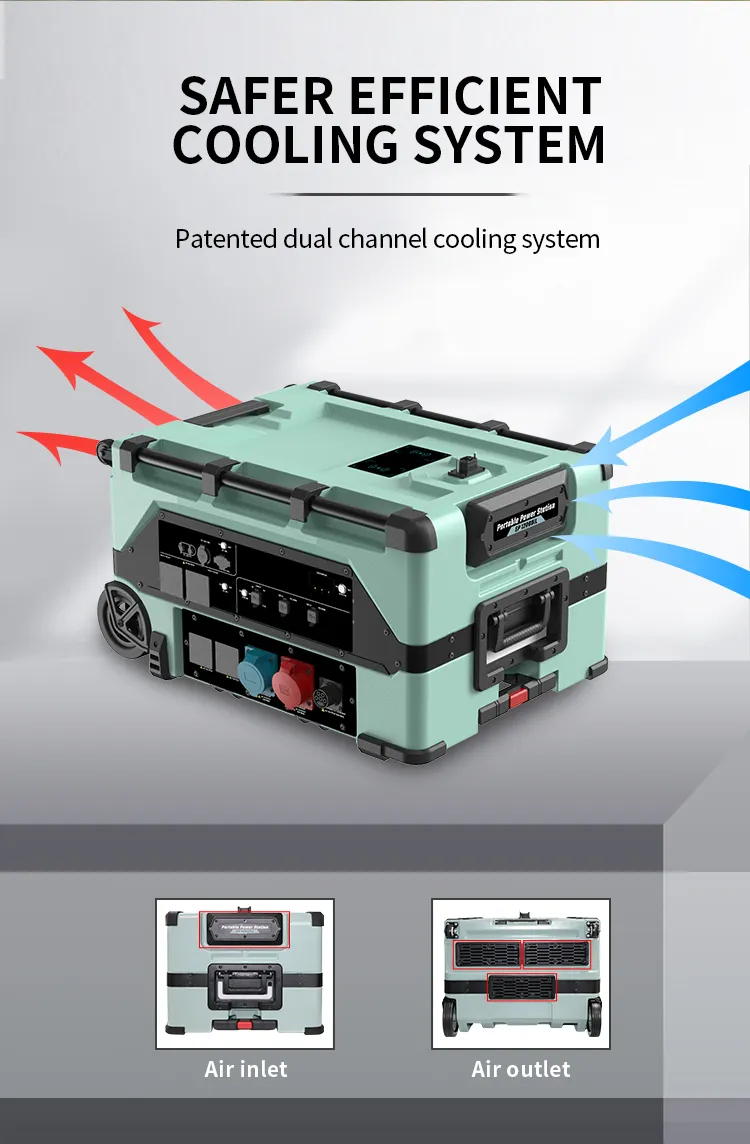

  • Patented dual channel cooling system.
  • Integrated handles and anti-collision rubber pads.
  • V-0 level flame-retardant and fire-resistant casing.
  • Intelligent control and monitor via smartphone APP.
  • Conformed to EU and US security certification.
  • 5 years warranty for peace of mind.
📷 Detailed Photos

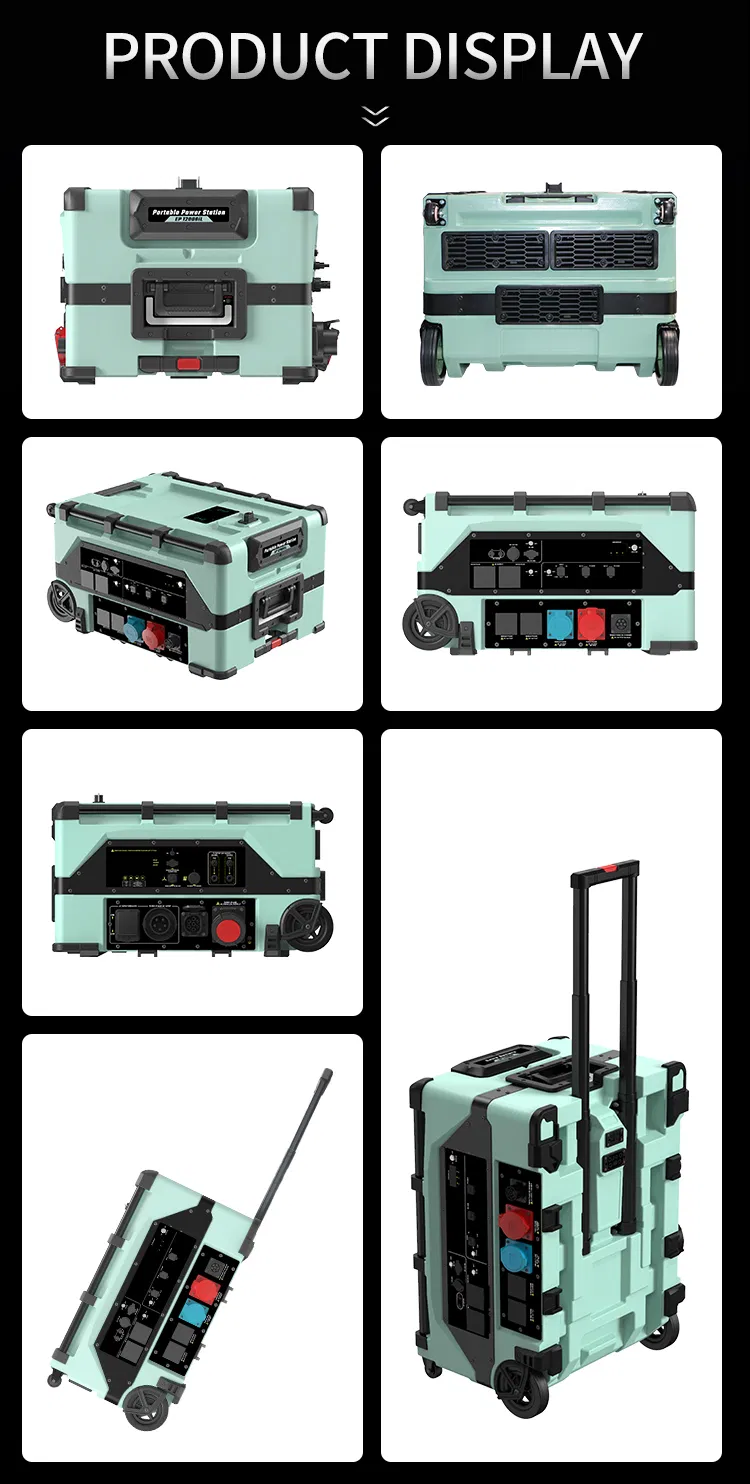

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21
🏢 Company Profile

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of Things, power equipment, automation equipment, and electrical products. We insist on independent research and development, possessing more than 70 critical patents in the power equipment and intelligent controller fields.

Our products enjoy a strong reputation in Europe and North America, offering superior quality and value compared to global competitors. We are committed to bringing innovative products to customers worldwide and promoting advanced manufacturing excellence.

Factory 1 Factory 2 Factory 3 Factory 4

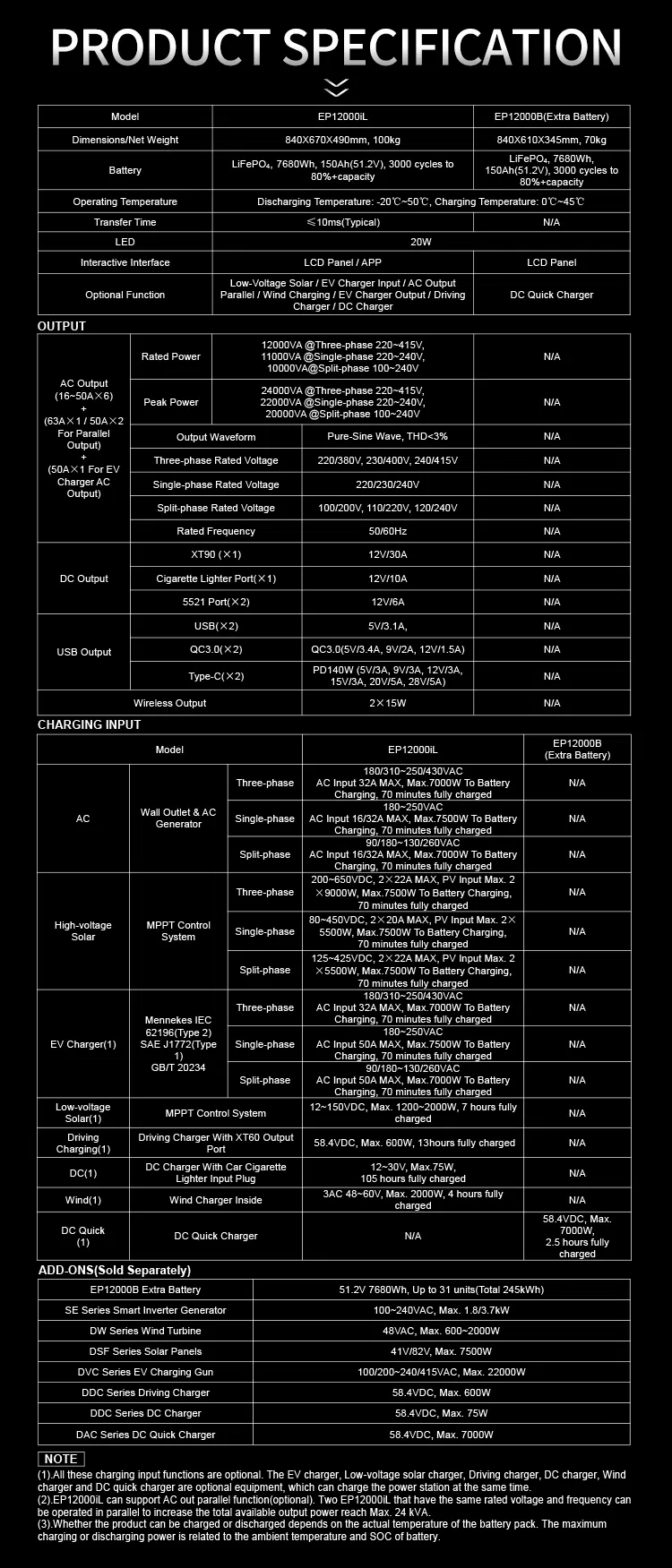

⚙️ Product Parameters
Model EP12000iL EP12000B (Extra Battery)
Dimensions / Weight 840x670x490mm / 100kg 840x610x345mm / 70kg
Battery LiFePO4, 7680Wh, 150Ah(51.2V) LiFePO4, 7680Wh, 150Ah(51.2V)
Cycles 3000+ to 80% capacity 3000+ to 80% capacity
Op. Temperature Discharging: -20ºC~50ºC / Charging: 0ºC~45ºC
AC Output Rated Power Peak Power
Three-phase 12000VA (220~415V) 24000VA
Single-phase 11000VA (220~240V) 22000VA
Split-phase 10000VA (100~240V) 20000VA
Charging Input Max Input Power Charging Time
AC Wall Outlet 7000W - 7500W 70 minutes
High-voltage Solar 2x9000W (Max 7500W to Battery) 70 minutes
Wind Turbine 2000W 4 hours
EV Charger Gun 7000W - 7500W 70 minutes
❓ Frequently Asked Questions
1. What is the maximum expandable capacity of this power station? The system supports connecting up to 31 extra battery packs (EP12000B), reaching a total capacity of 245kWh.
2. How fast can the EP12000iL be fully charged? Using AC fast charging or high-voltage solar input, the unit can be fully charged in approximately 70 minutes.
3. Can it be used to charge electric vehicles? Yes, it features a built-in EV charger and supports charging guns up to 22kW, making it a portable alternative to charging stations.
4. What is the protection rating for outdoor use? The main unit is rated IP53, and the battery pack is rated IP66, providing excellent resistance against dust and water.
5. Does it support parallel connection for higher power? Yes, with patented stacked parallel technology, two units can be joined to achieve a continuous AC output of 24kW.
6. What kind of batteries are used and what is their lifespan? It uses high-safety LiFePO4 (Lithium Iron Phosphate) cells with a lifespan of over 3,000 cycles to 80% capacity.
