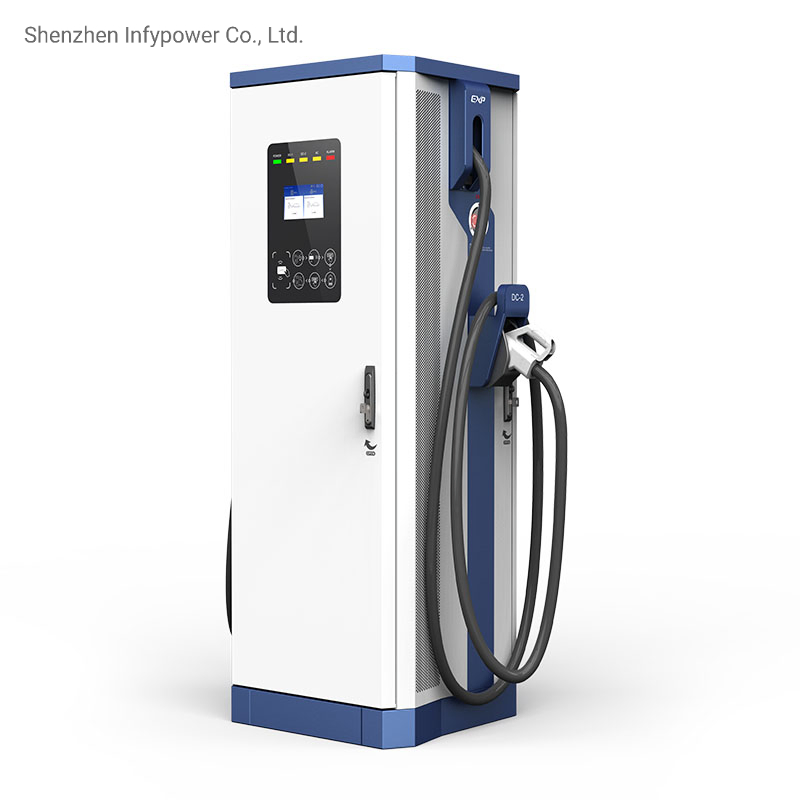

DC 180kw AC 22kw Fast EV Charger for Electric Trucks and Buses Wholesale OEM Public Charging Station

🔹 Overview - Basic Info

Model NO.

EXP180K2-FT

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Weight

130+21*Nkg

Standard

CCS / Chademo / Gbt / AC Type 2

DC Output Voltage

150VDC-1000VDC

DC Output Current

600A/300V, 360A/500V, 180A/1000V

Charging Connector

2 DC Plus 1 AC

Warranty

24 Months

Certification

CE, UL, EMC Class B

Production Capacity

10000PCS Per Year

📝 Product Description

EXP180K2-FT is a bestselling electric vehicle DC fast charger qualified with CCS, CHAdeMO, GBT, and optional Type 2 standards. It features an IP55 protection rating, a 7" LCD touch screen, and supports a maximum output of 180kW with a wide voltage range from 150Vdc to 1000Vdc.

Main Features:

CCS1/CCS2, CHAdeMO, and GBT configuration support.
IP55 design for high reliability in harsh environments.
Smart charging and power management support.
CoolRing technology for power transfer between chargers (up to 360kW).
Power transfer between two charging connectors.
180kW capacity with 300A max current and 150Vdc-1000Vdc range.
Tempered glass 7'' TFT capacitive touch screen LCD.
Modes: Auto, Amount, Energy, and SOC basis.
Distribution: Stand alone, Current switch, Plug Switch, Full hold.
High precision AC and DC energy meters.
LAN/LTE support, OTA updates, RFID, and Mobile App payment.

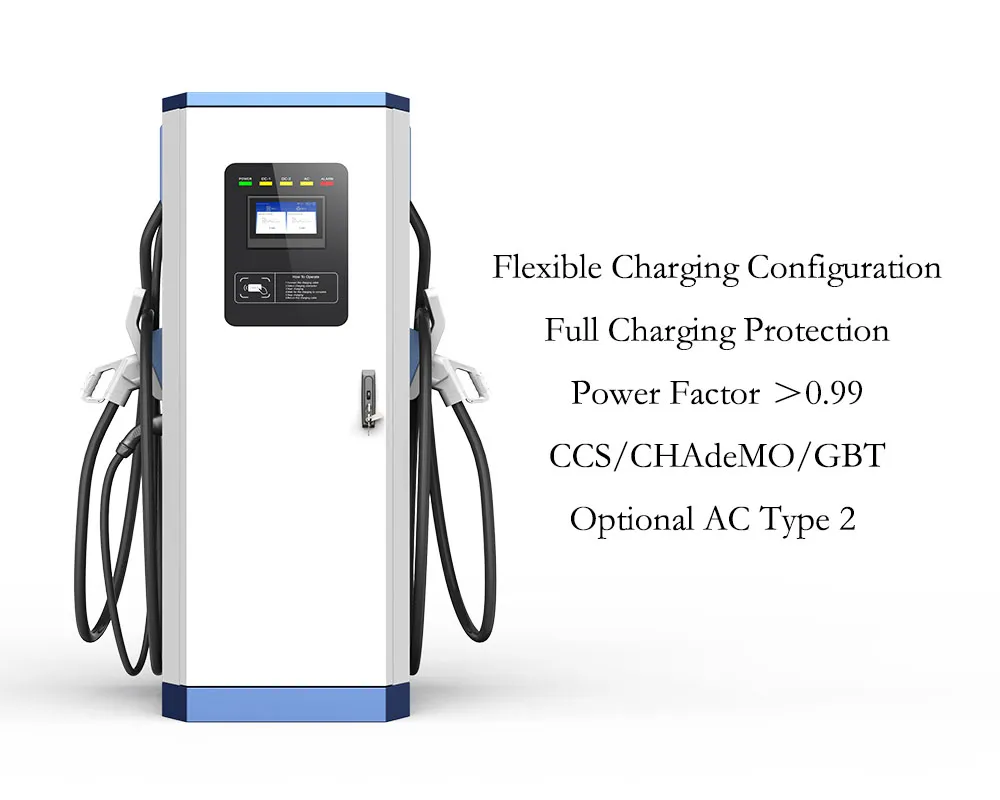

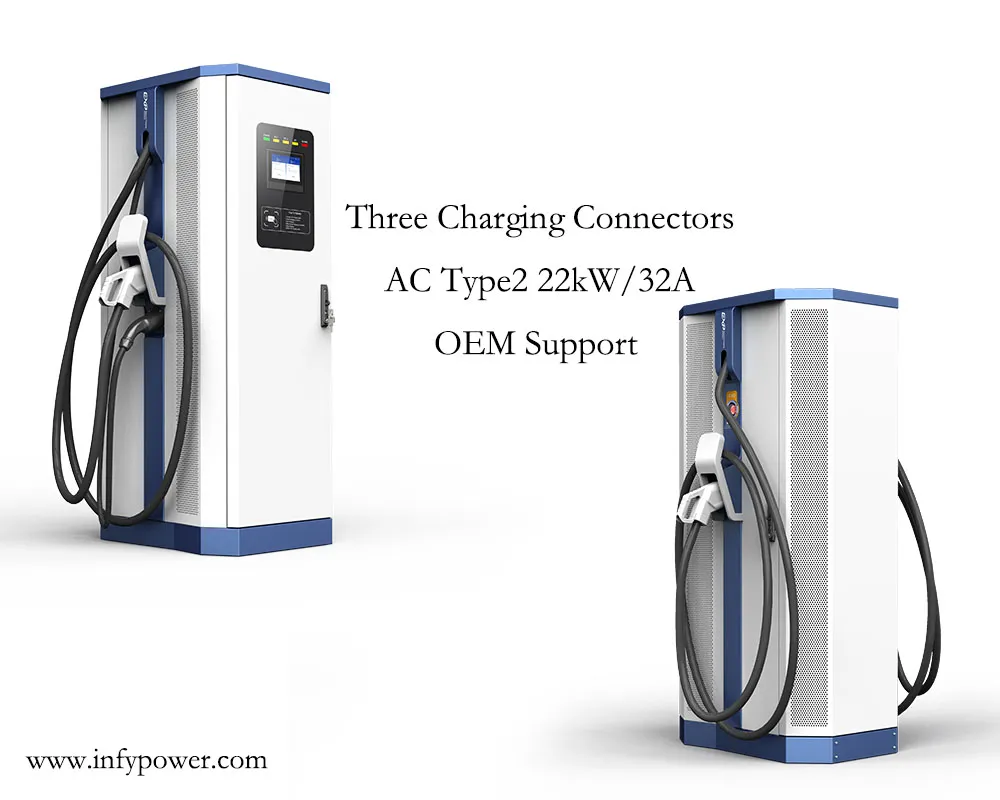

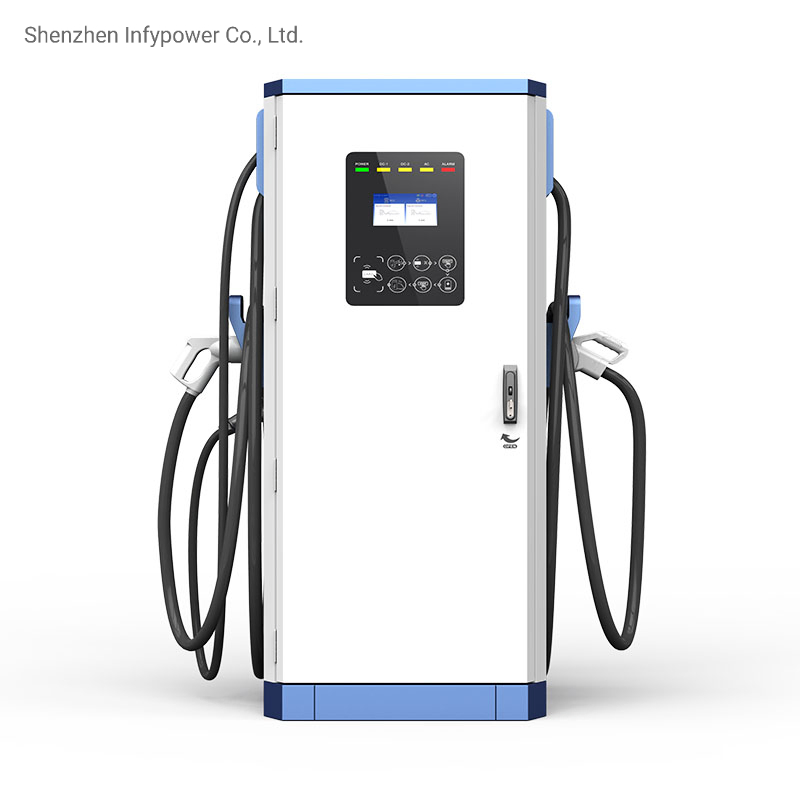

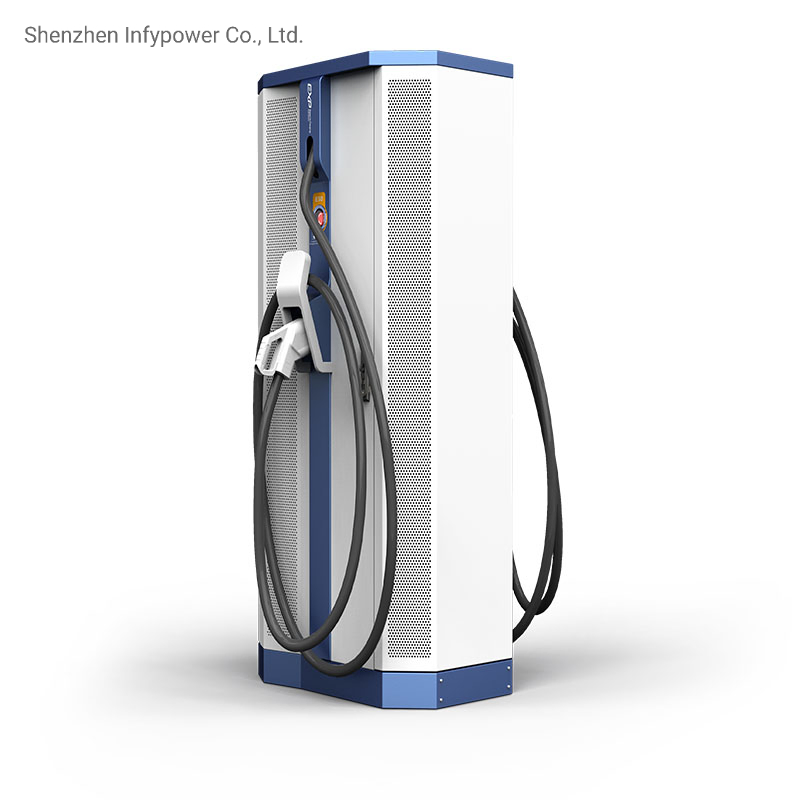

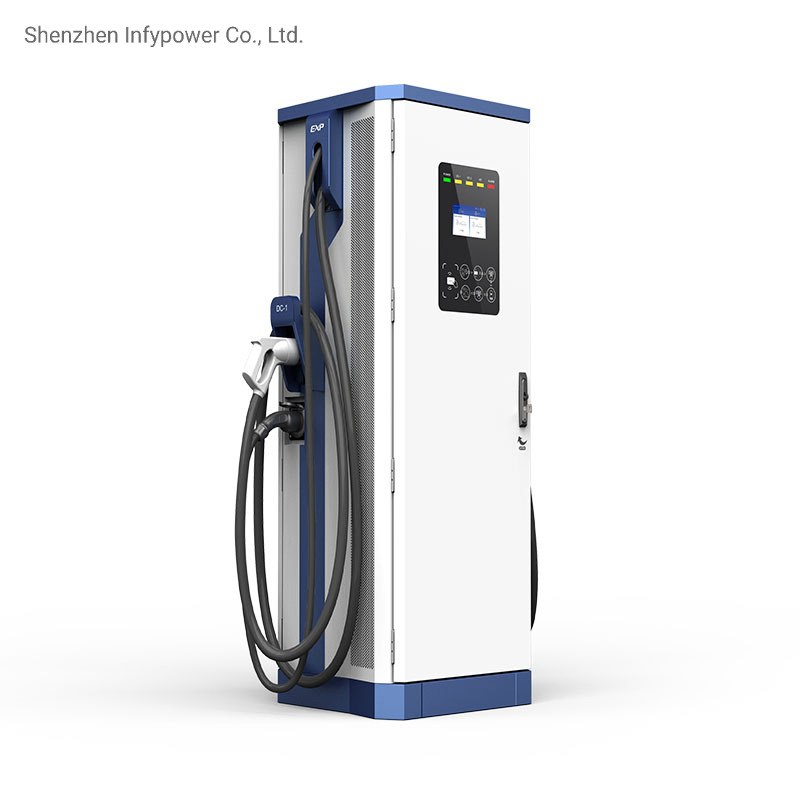

📷 Detailed Photos

📊 Product Parameters

Parameter	Specification
Rated Power	DC 180kW
AC Side	3-phase+N+PE, 260Vac-530Vac, AC output Type 2 22kW/32A
DC Voltage	150Vdc-1000Vdc
Max DC Output Current	180A/1000V, 360A/500V, 600A/300V
Charging Standard	CCS, GBT, CHAdeMO
Certification	TUV CE
Dimension & Weight	700mm1750mm750mm / 130+21*Nkg

📦 Packaging & Shipping

🏢 Company Profile

We are a high-tech company professionally engaged in power modules and power system solutions. With abundant experience in power electronics and intelligent control technology, we specialize in electric vehicle charging solutions and energy storage solutions.

Our products cover a wide range of power modules, energy storage converters, and charger solutions. With over 70% R&D members, we prioritize steady and rapid technological development, holding more than 150 authorized patents.

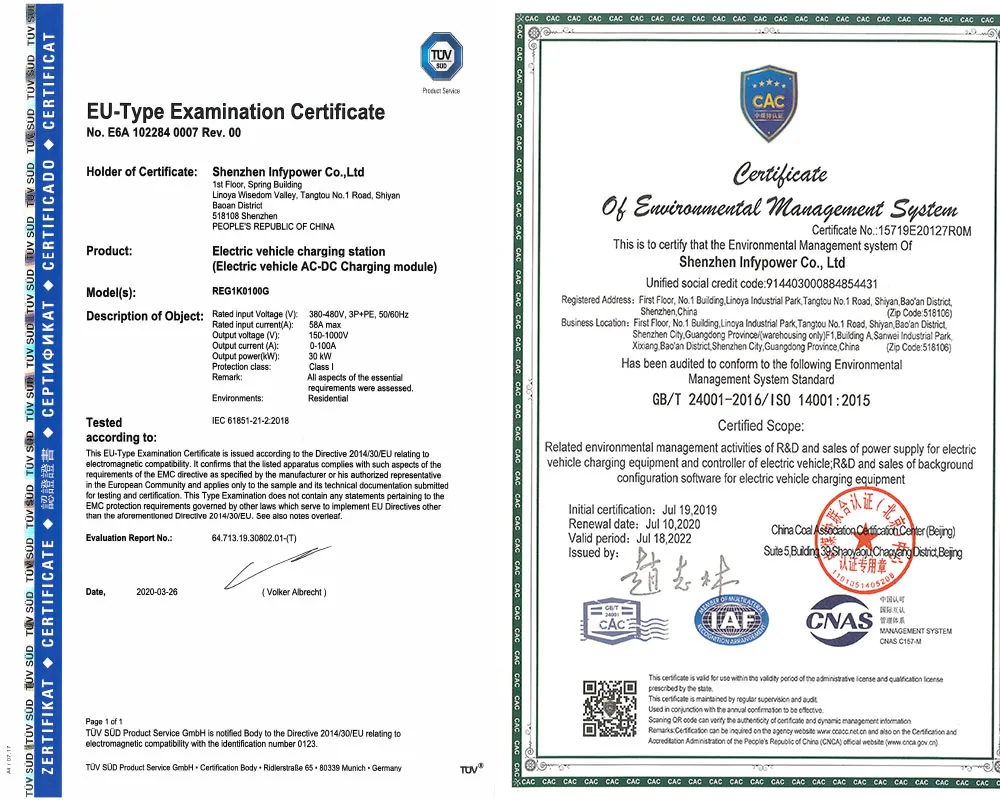

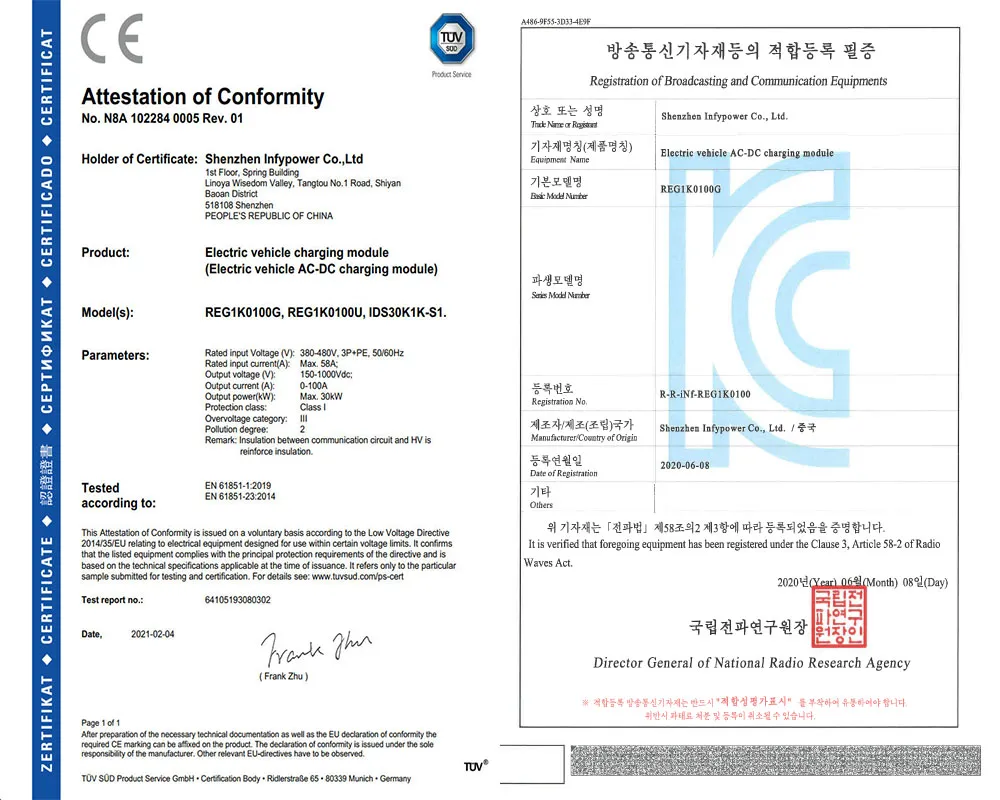

📜 Certifications & Exhibitions

❓ Frequently Asked Questions

How do you handle shipments for the EV chargers?

For small orders, we use express services like FedEx, DHL, or UPS door-to-door. For large shipments, we utilize sea or air freight in containers. Customers are also welcome to use their own forwarders.

What is the typical delivery time for an order?

Normally, it takes about 30 days to prepare the goods. For large-scale or customized orders, the shipment timeline may be slightly longer.

What are your standard payment terms?

Our standard term is 100% TT advance with the order. However, terms are negotiable for long-term strategic partners.

Do you offer customized OEM or ODM services?

Yes, we provide flexible and professional customized services based on extensive experience with OEM and ODM projects. Minimum order quantities vary by requirement.

What is the warranty period for the charging stations?

Our products come with a 24-month warranty upon receipt under normal operating circumstances. We provide one-on-one technician support for any after-sales requests.

What international certifications do your products hold?

Our chargers are qualified for major global markets with certifications such as CE for Europe, UL for the United States, and KC for South Korea.
