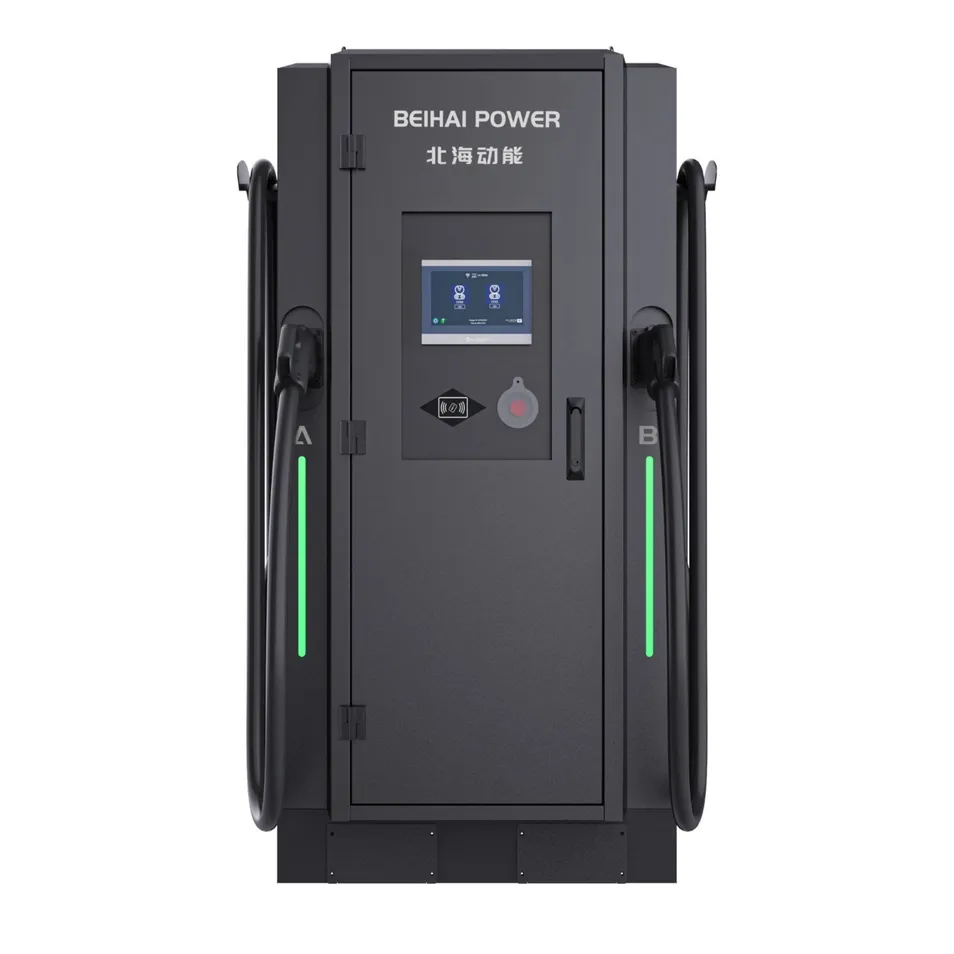

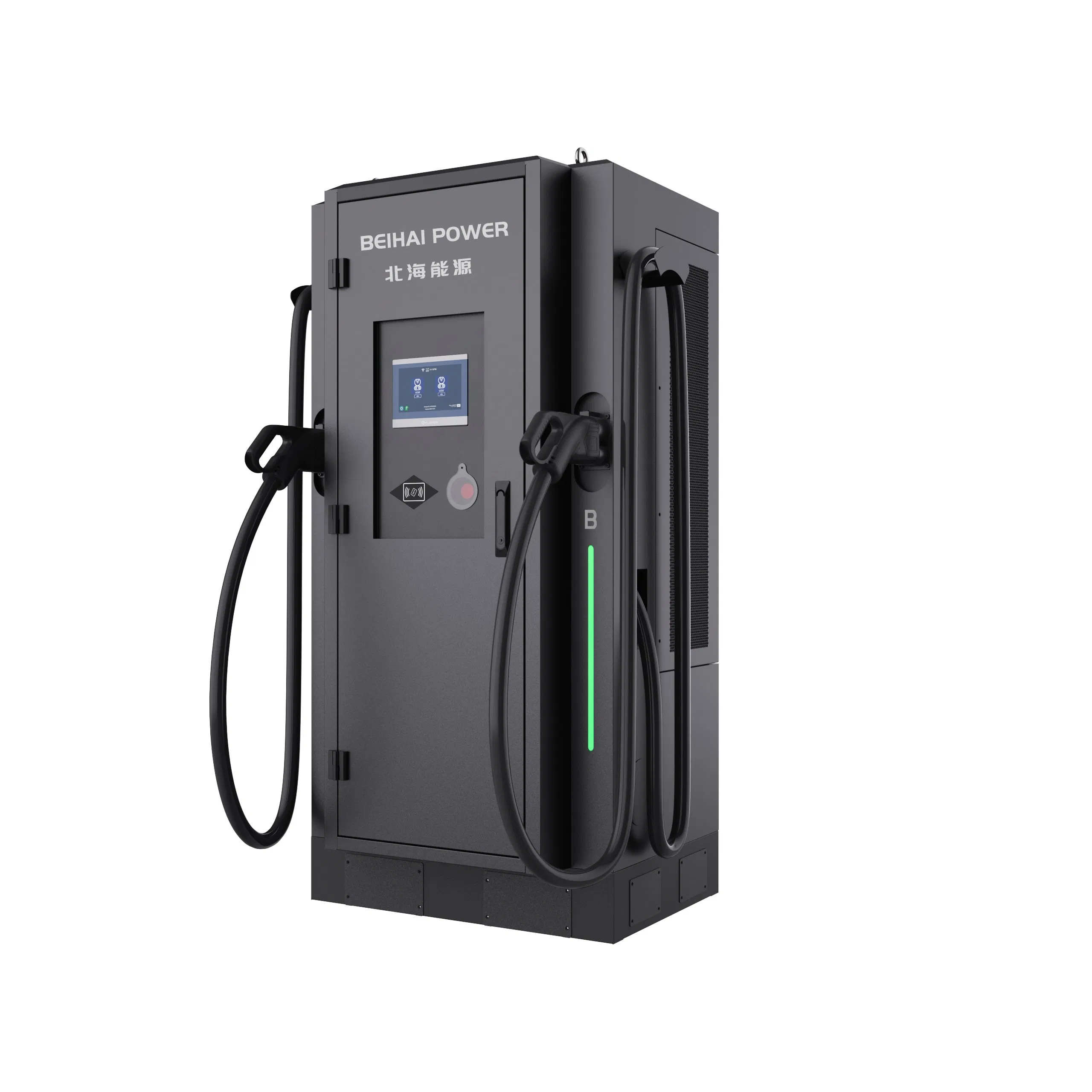

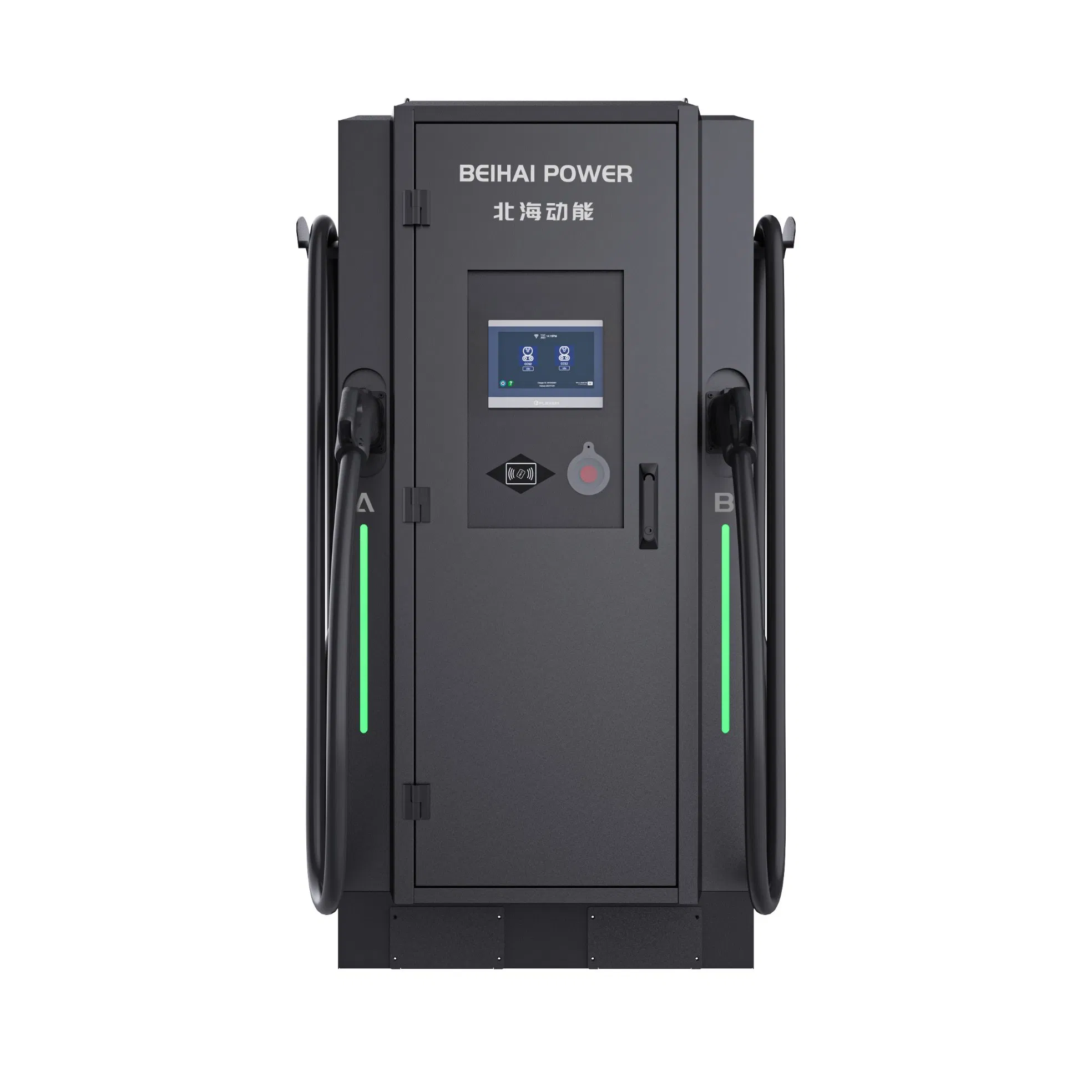

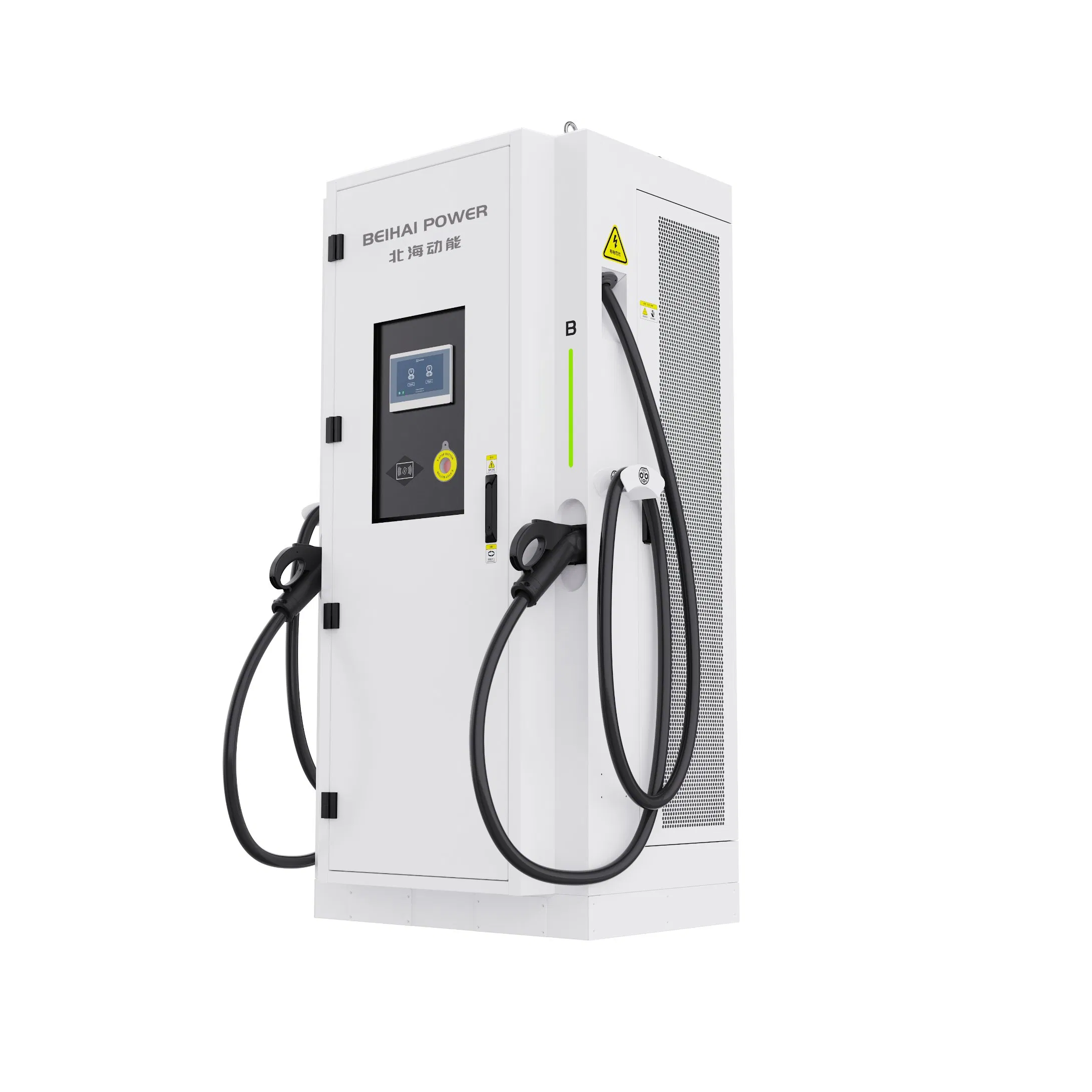

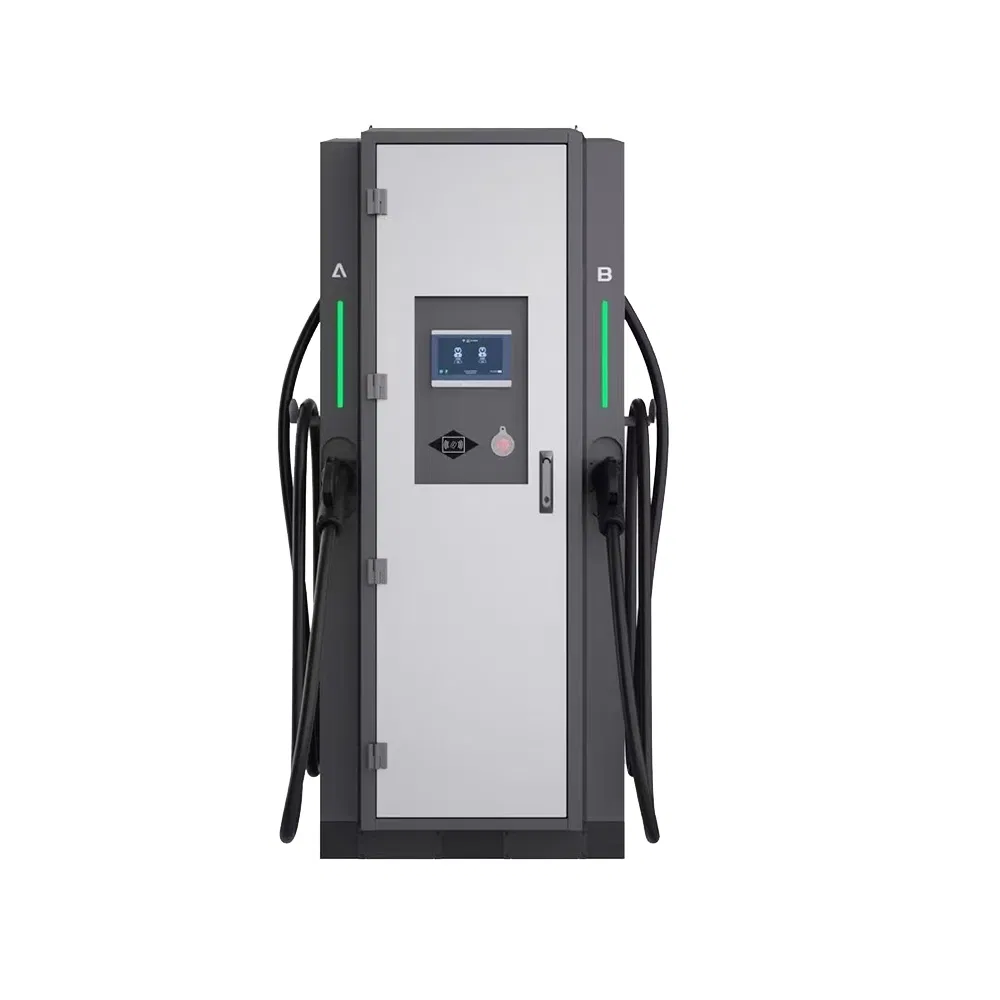

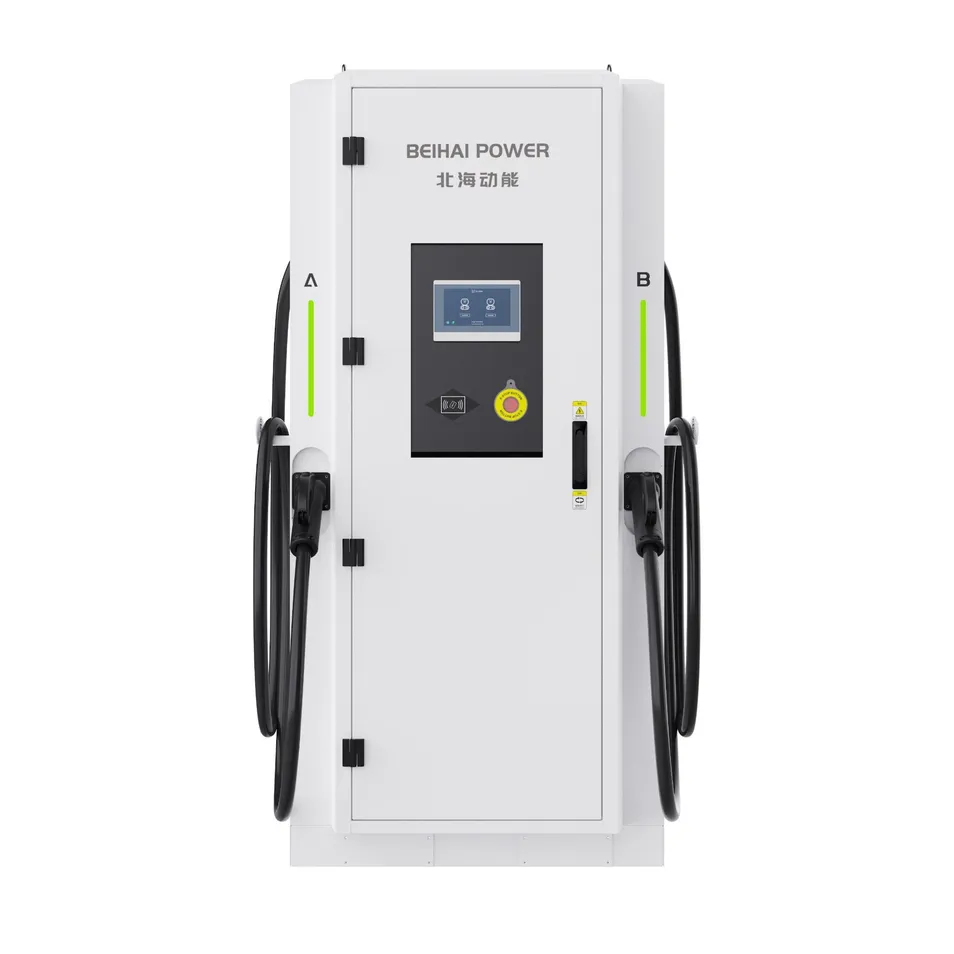

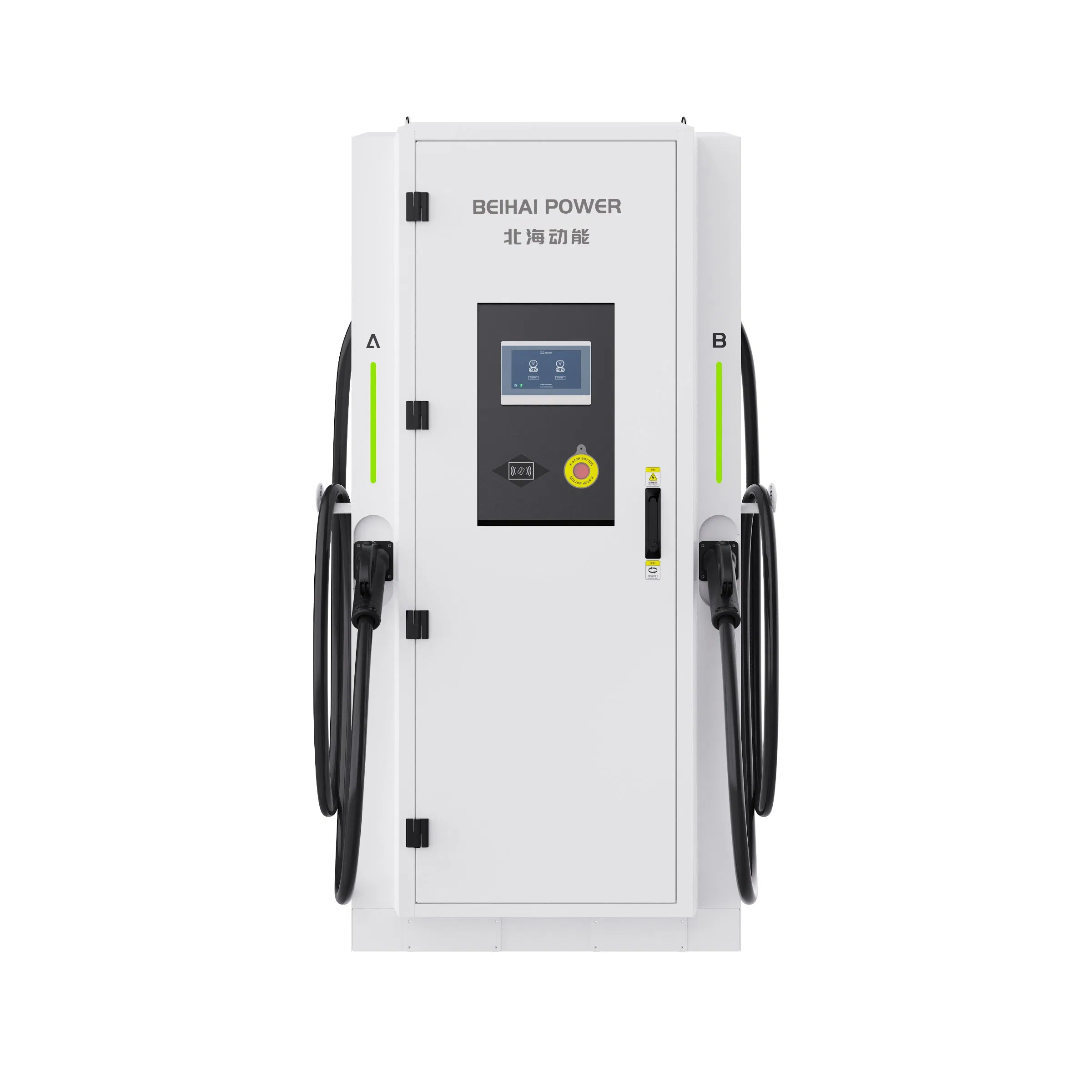

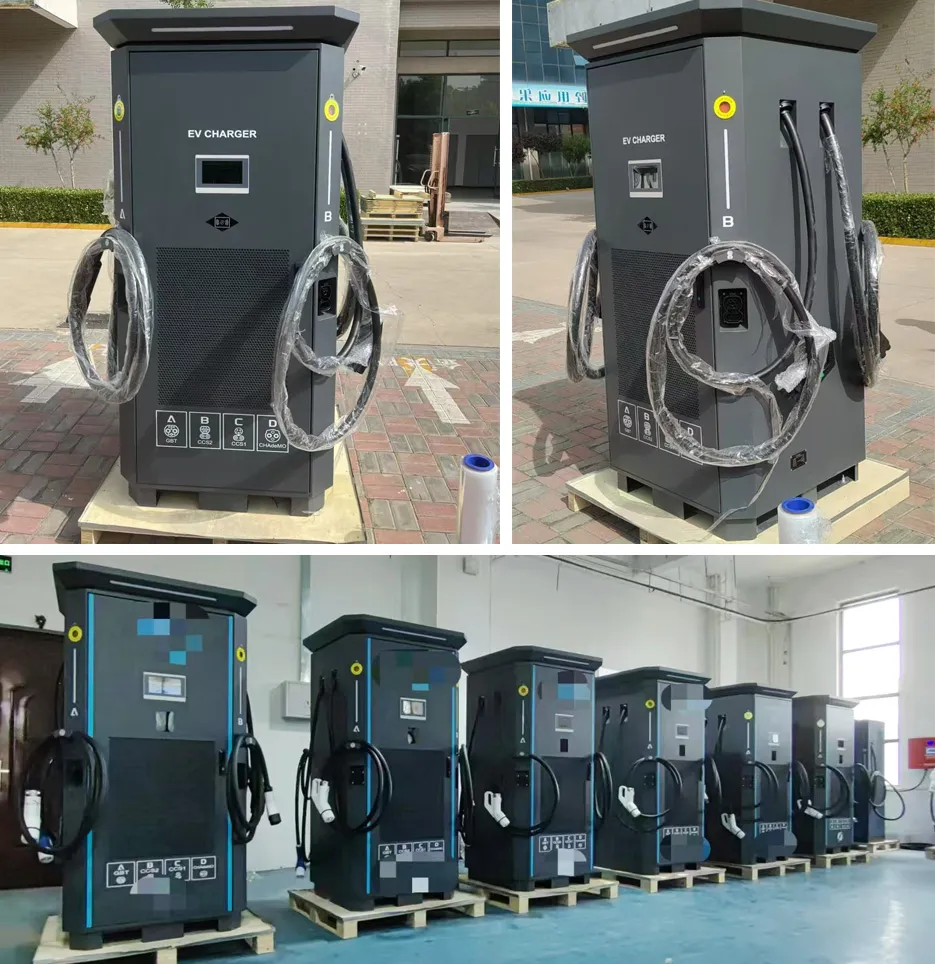

240KW Dual Gun Commercial DC EV charger
This series of EV DC fast charging piles boasts a rugged design and can be scaled up to 240kW (liquid cooled DC electric car charging pile 480KW). The charging piles feature fast charging speeds and support dual-gun charging, enabling quick charging for high-power, large-battery-capacity vehicles.
The product is equipped with an advanced control system and communication module, supporting functions such as intelligent scheduling, remote monitoring, and fault diagnosis. Through connection to the cloud platform, operators can monitor the real-time operating status and perform remote maintenance and upgrades.
Our High-Speed 240kW DC Electric Car Charger is defined by its power, elegant design, and adherence to international quality and safety standards. This commercial DC EV Charging Pile is fully certified, demonstrating commitment to reliability and global market access.
| Category | Specifications | Data Parameters |
|---|---|---|
| Appearance | Dimensions | 900mm x 700mm x 1900mm |
| Weight | 400kg | |
| Cable Length | 5m | |

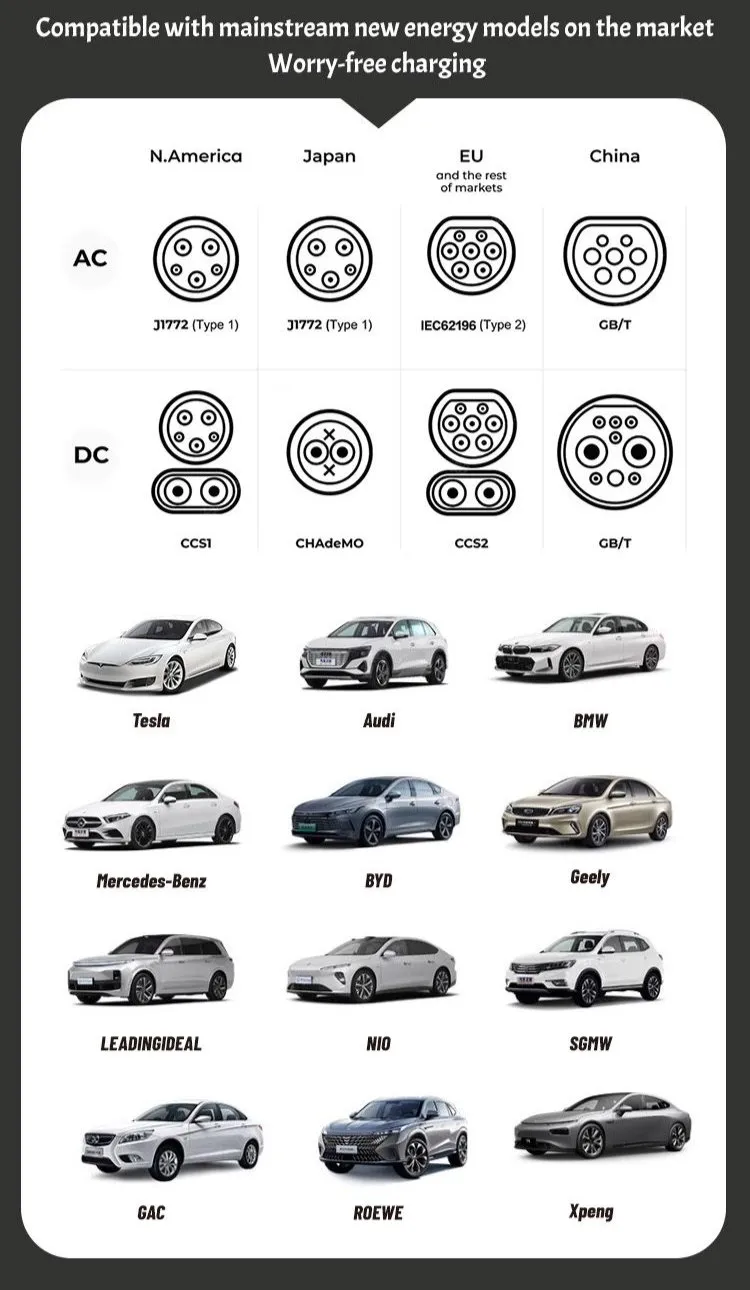

| Connectors | CCS1 / CCS2 / CHAdeMO / GBT / NACS | |
| Electrical | Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC | |
| Rated Power | 240-480kW | |
| Efficiency | ≥94% at nominal power | |
| Protocol | OCPP 1.6J | |
| Environment | Operating Temp | -30 °C to 55°C |
| Protection | IP54 || IK10 |

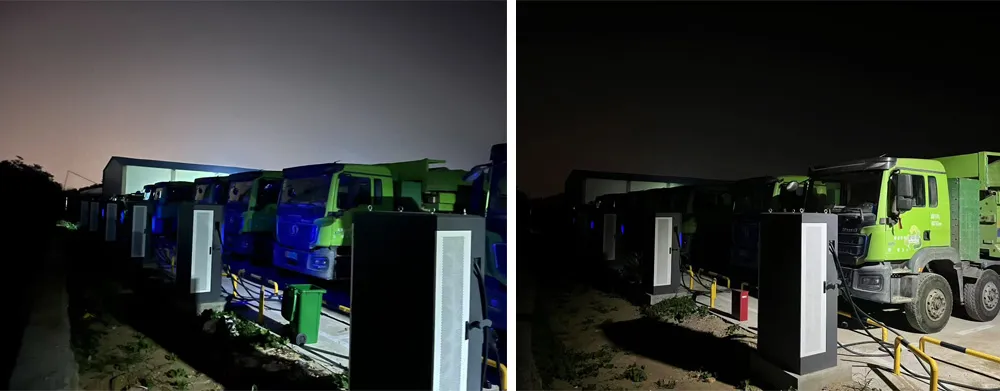

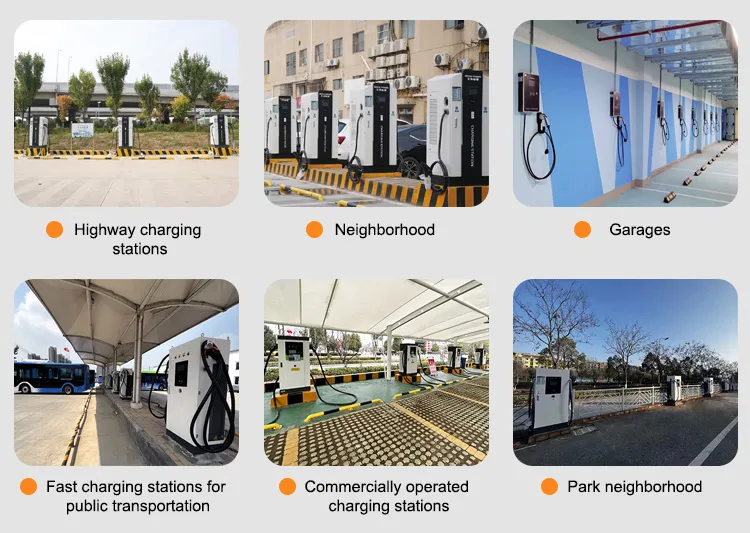

DC charging piles are widely used across various commercial and public sectors:
