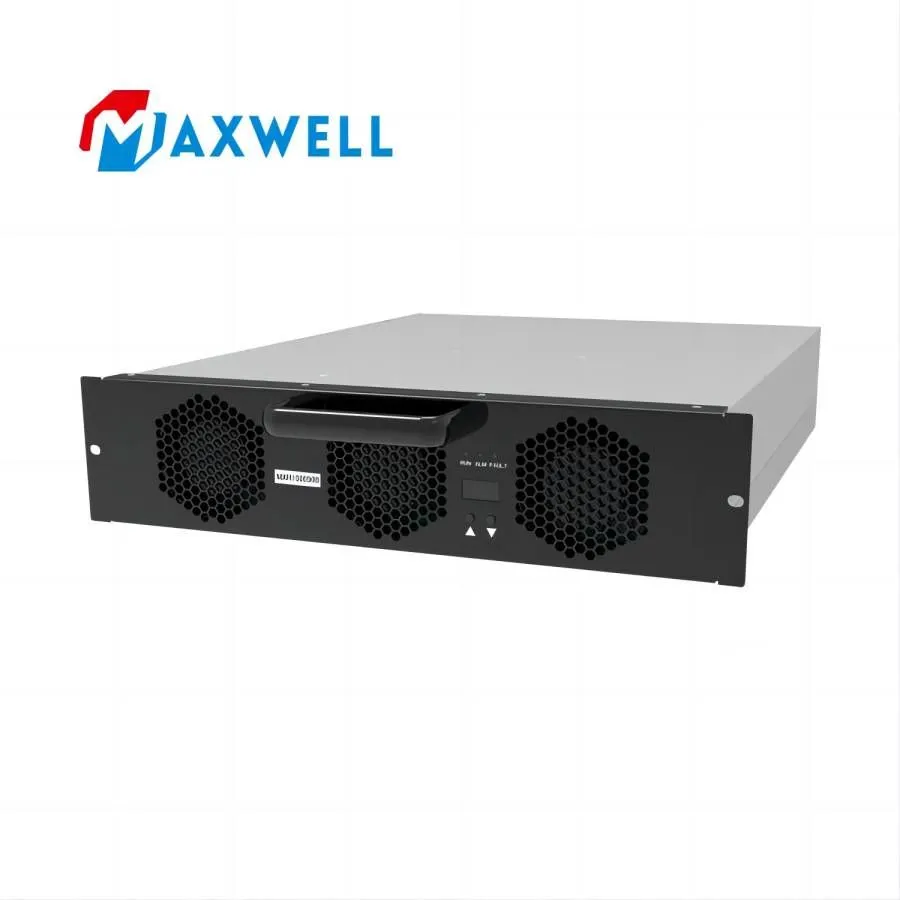

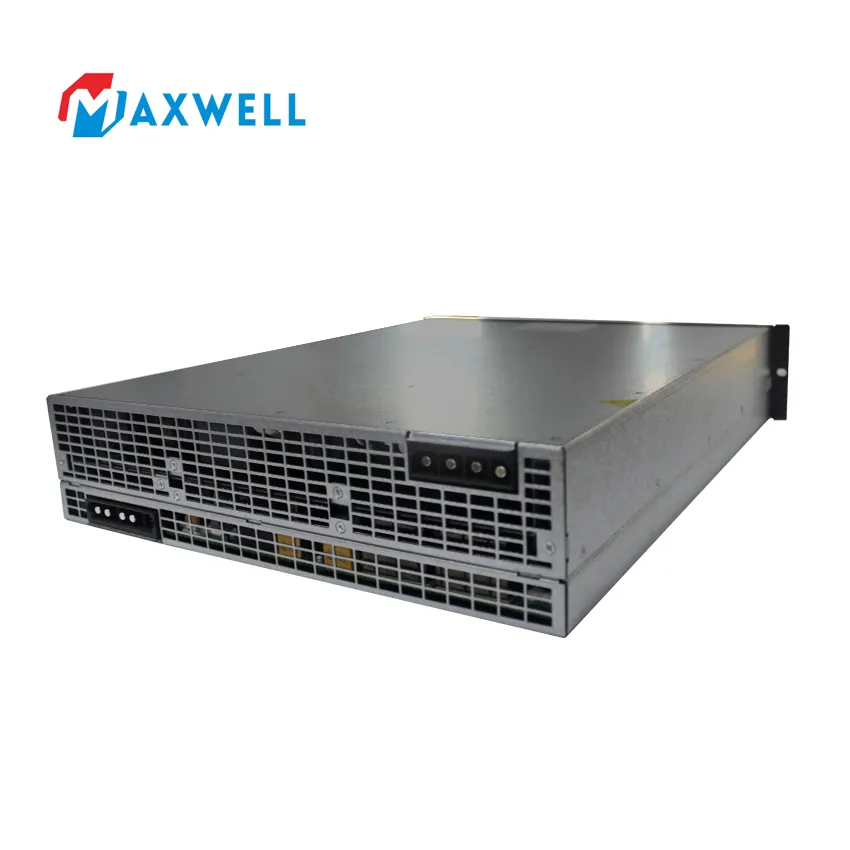

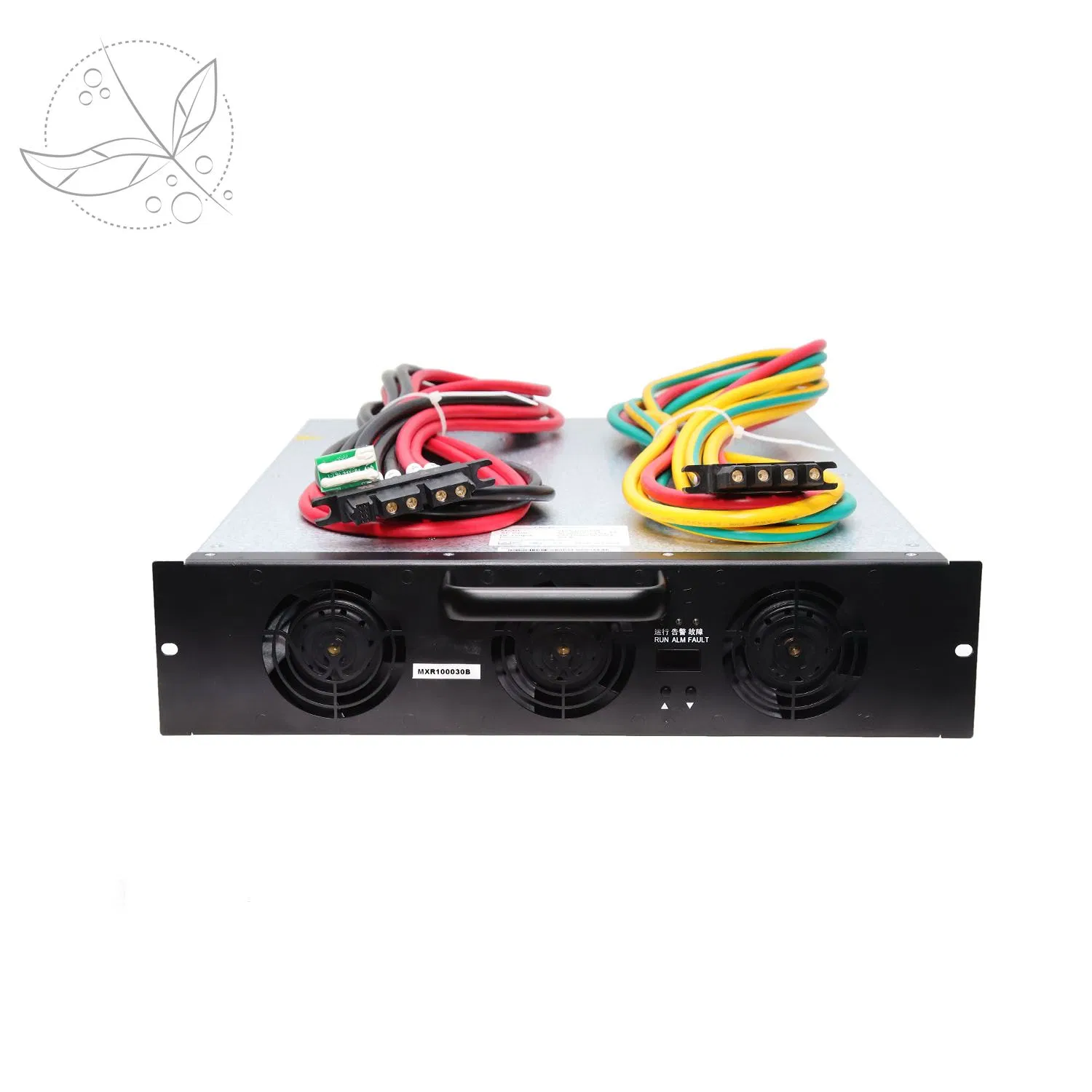

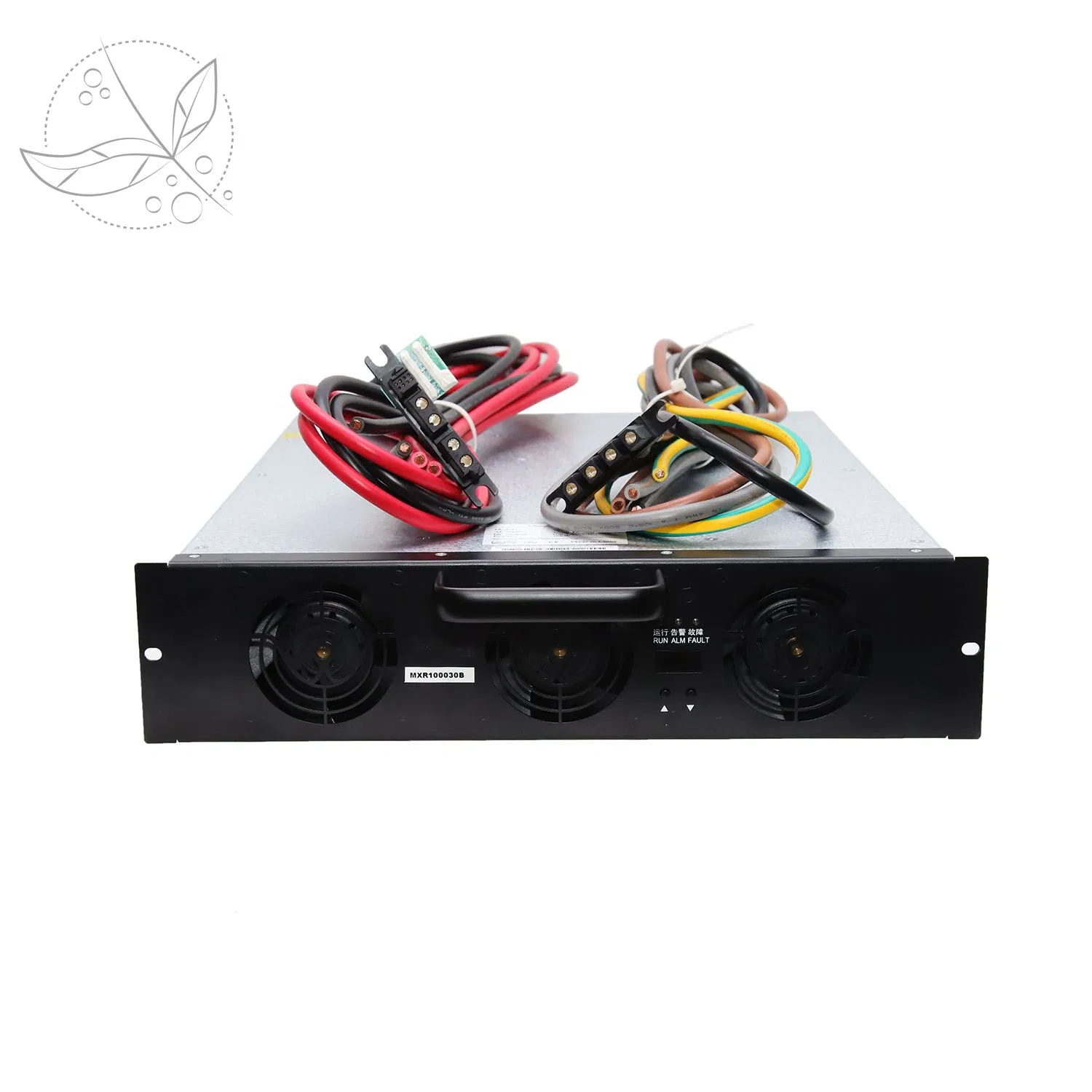

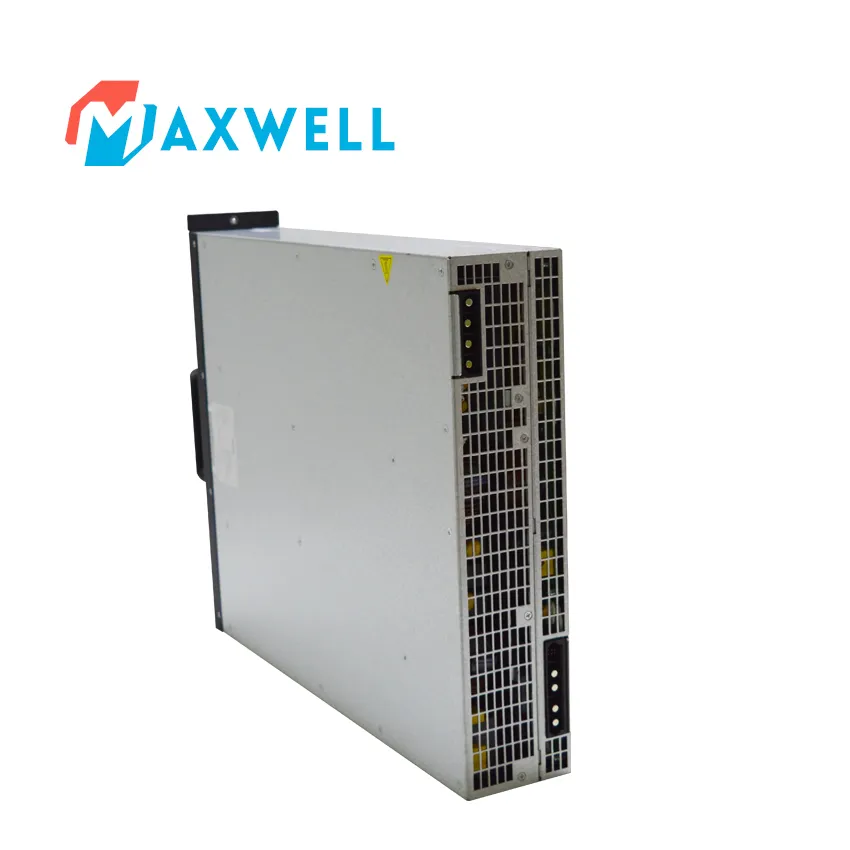

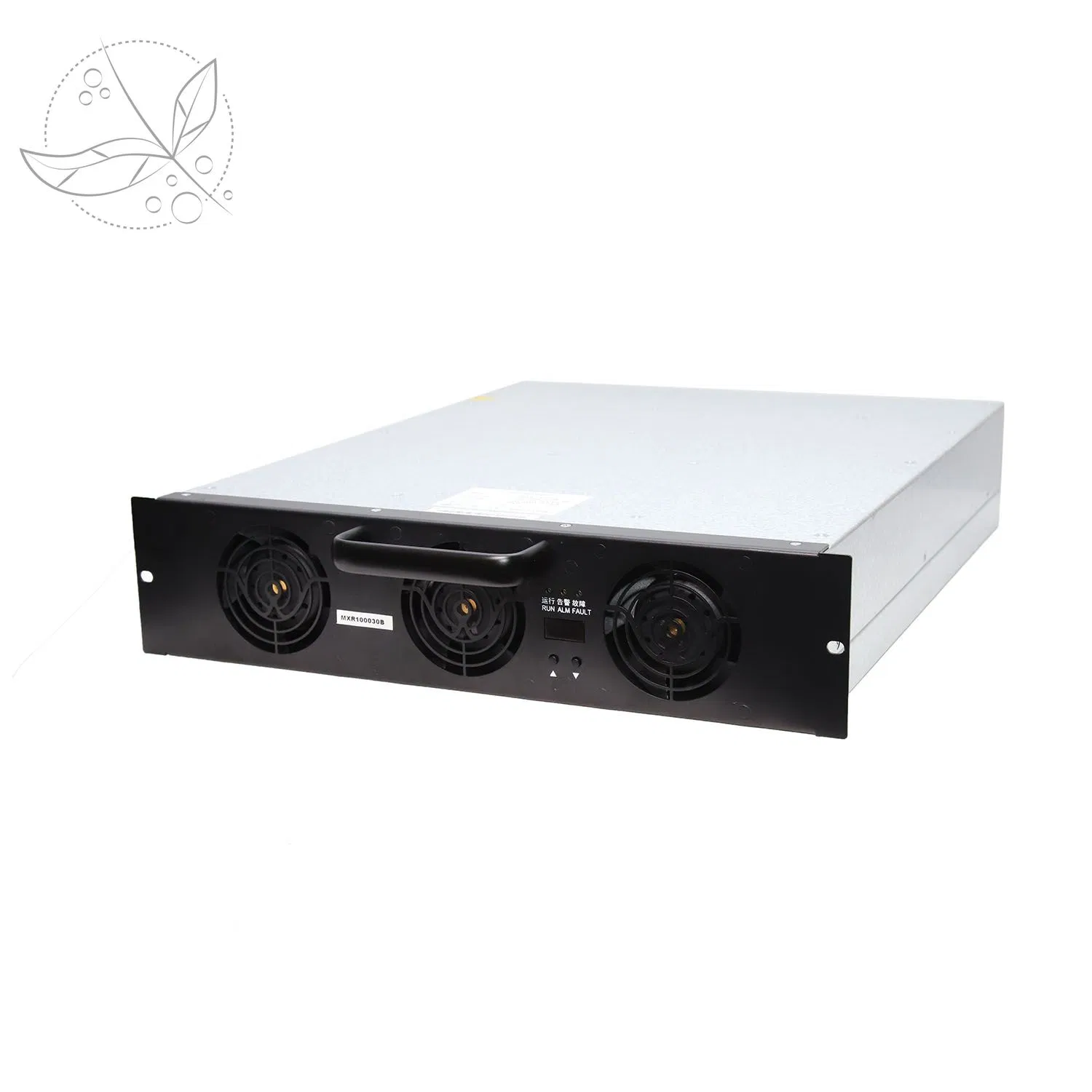

Irvion Charger
1 / 5

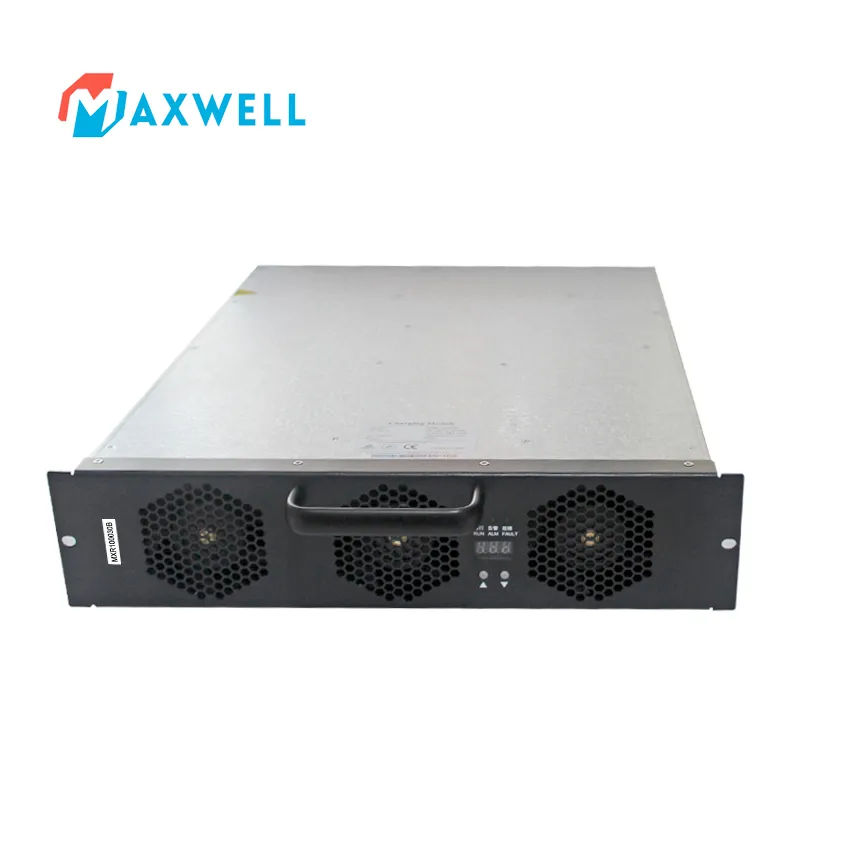

| Model NO. | MXR100030B |
| Efficiency (Full Load) | ≥95.5% |
| Input Current | 60A |
| Output Current | 0~100A |

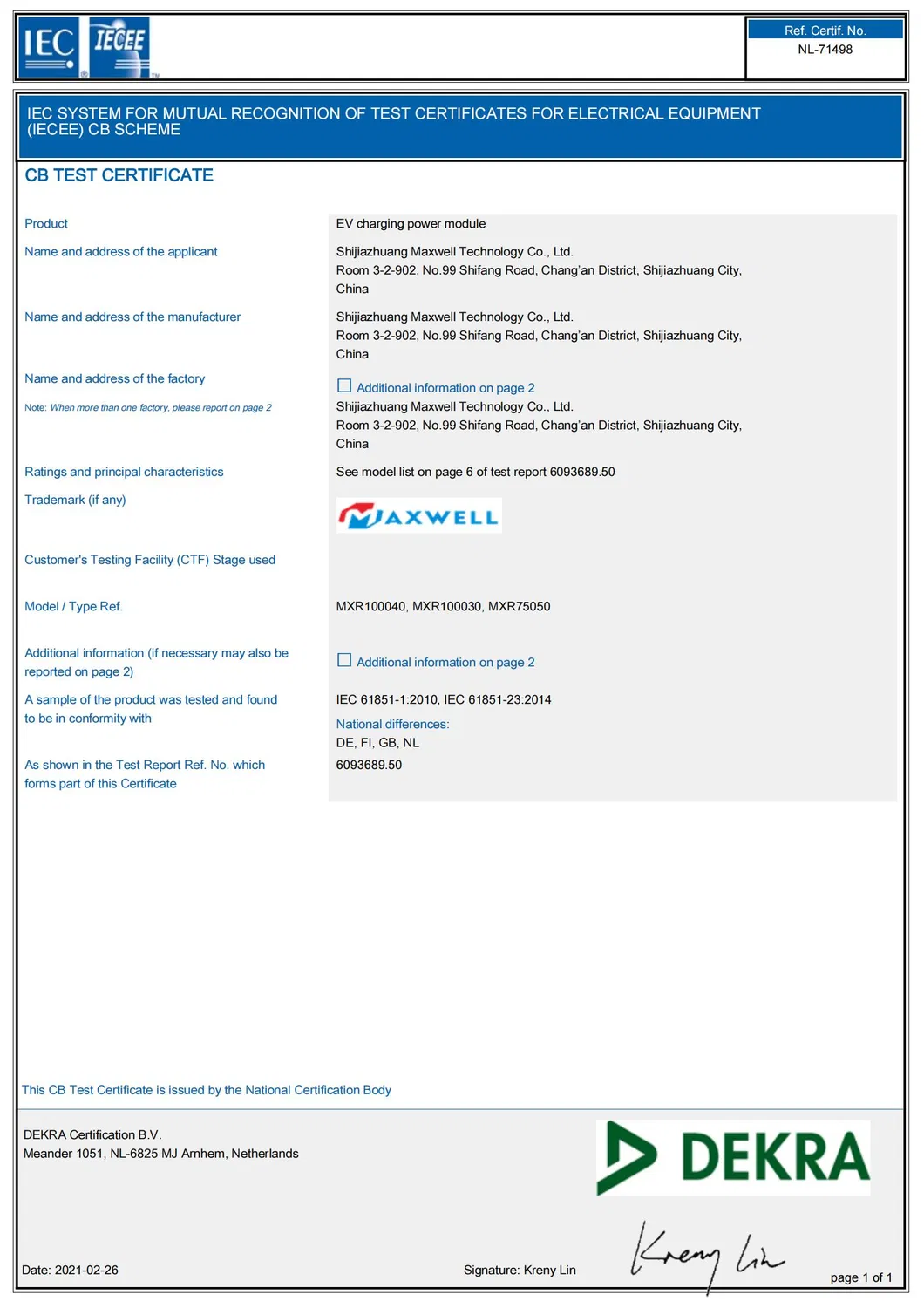

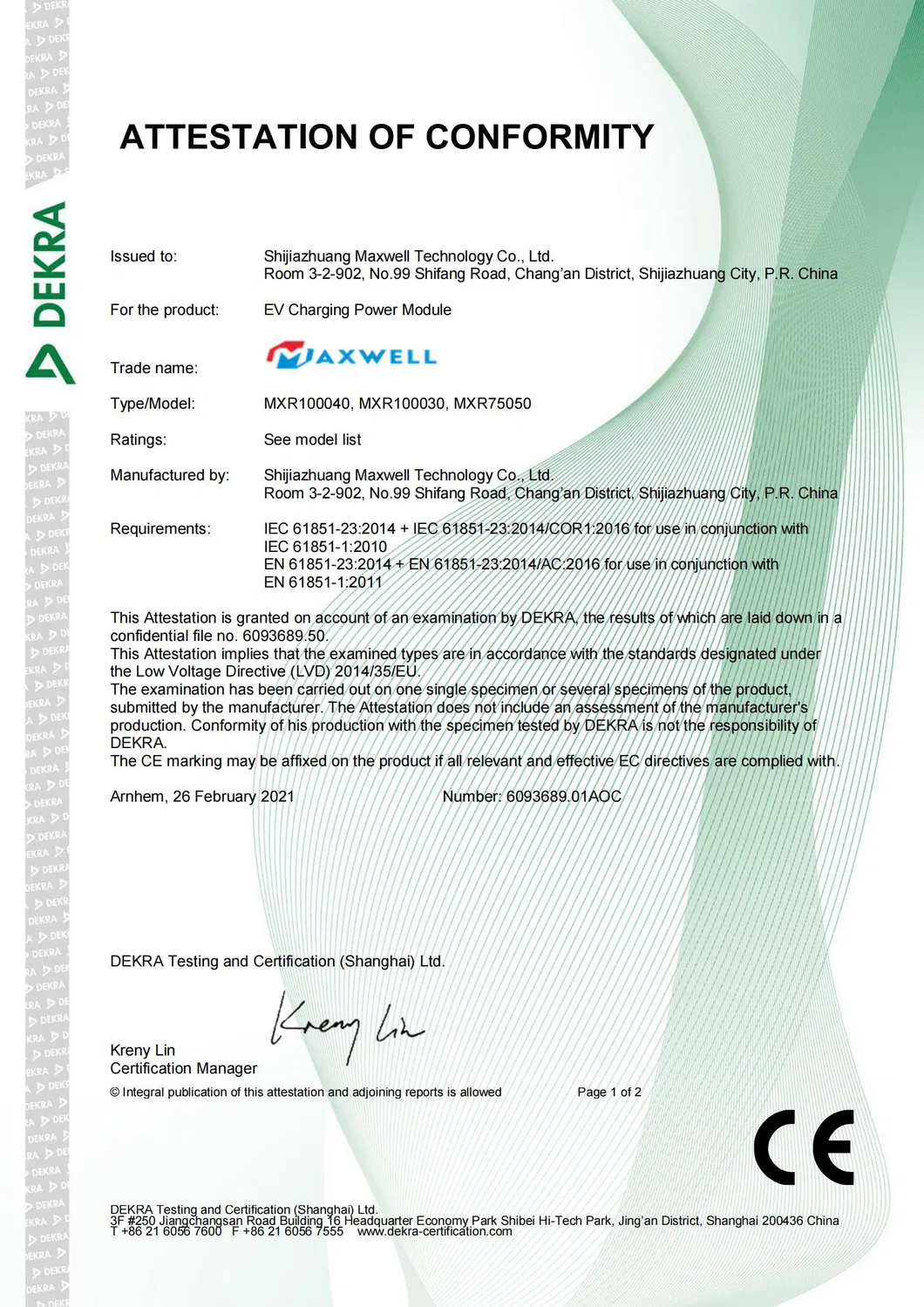

| Certification | CE, ISO, TUV, RoHS |

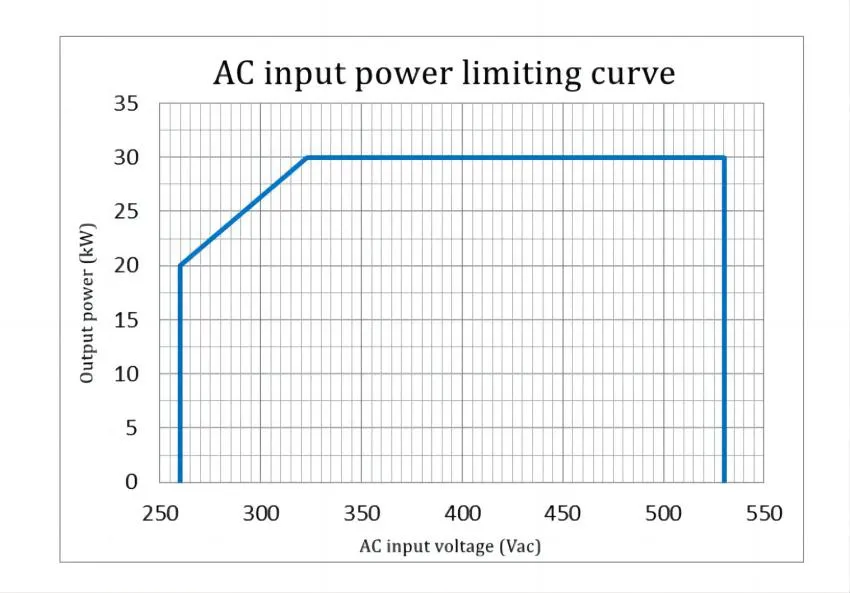

| Input Voltage | 260 Vac~530 Vac, 3 phase+PE |

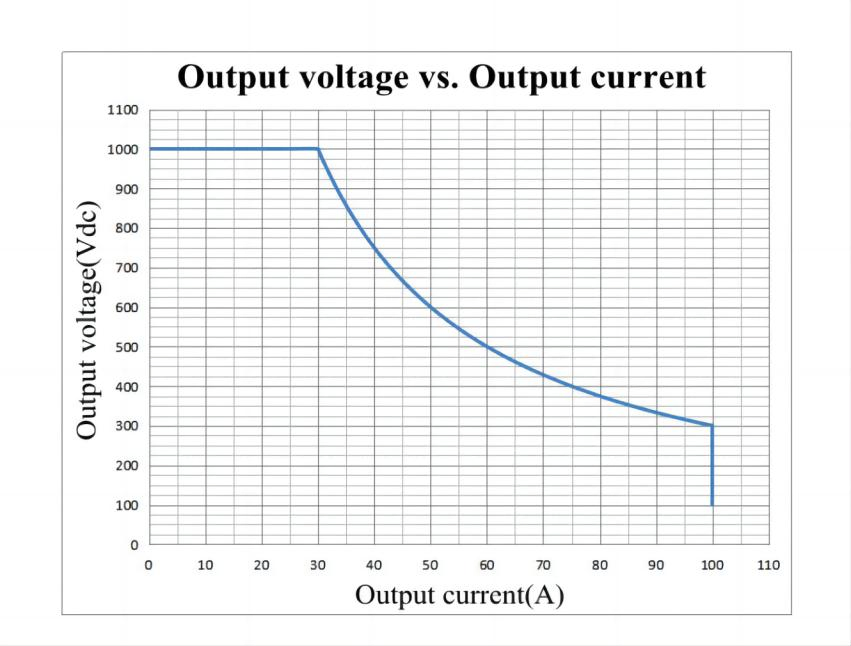

| Output Voltage | 100 Vdc~1000 Vdc |
| Communication Protocol | CAN bus |
| Cooling Mode | Fan Cooling |
| MTBF | 500,000 Hours |
| Dimensions | 85mm * 360mm * 459mm |

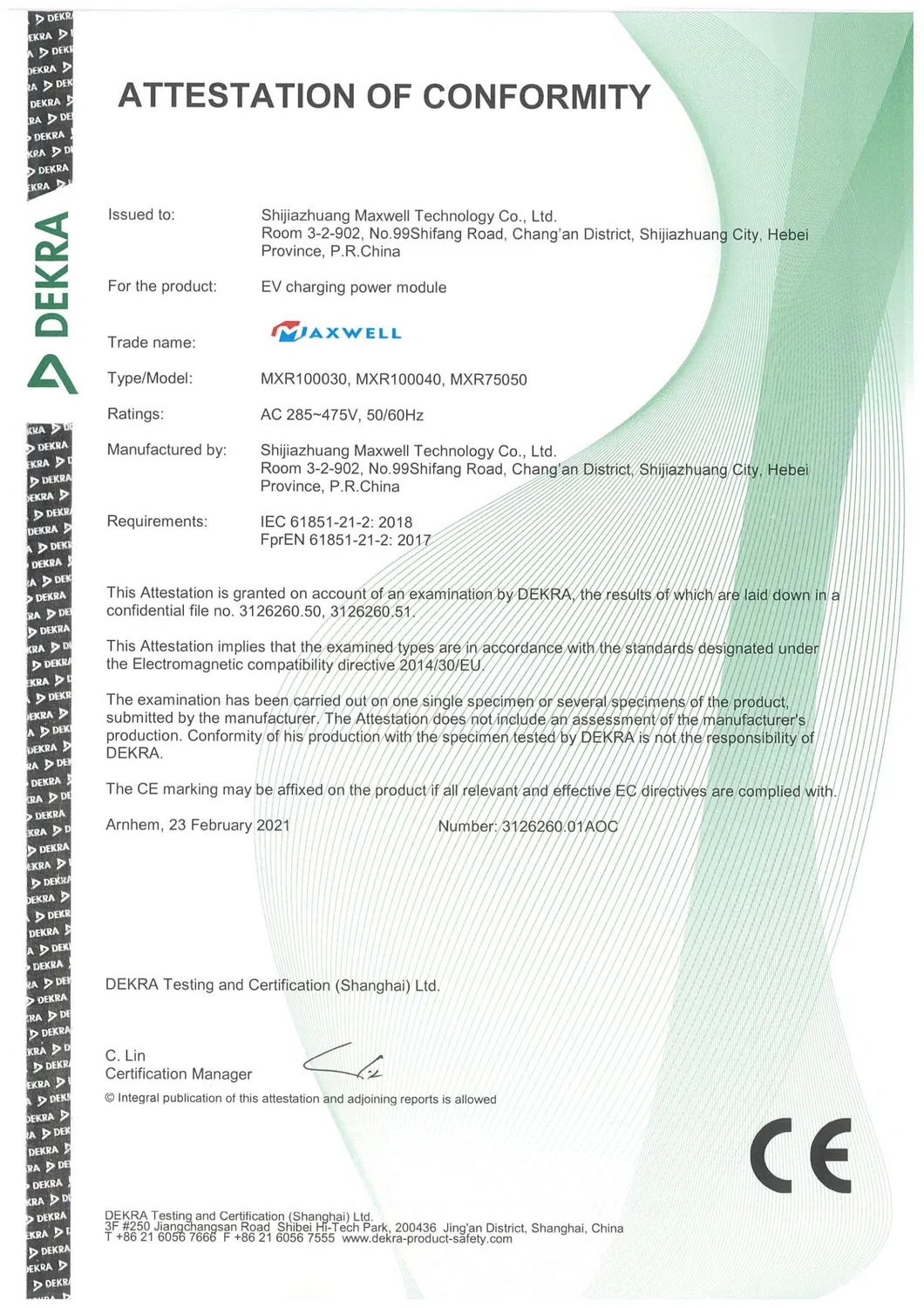

| CE / TUV / EMC | EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021 |

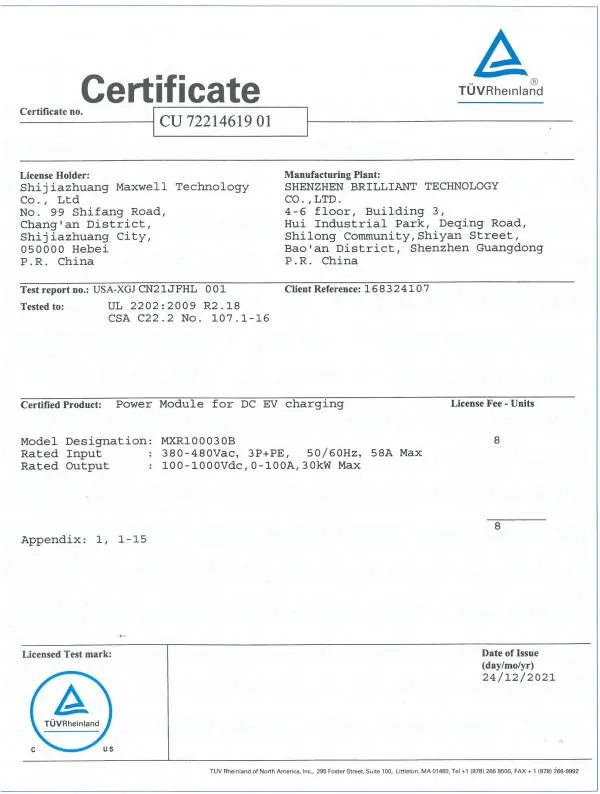

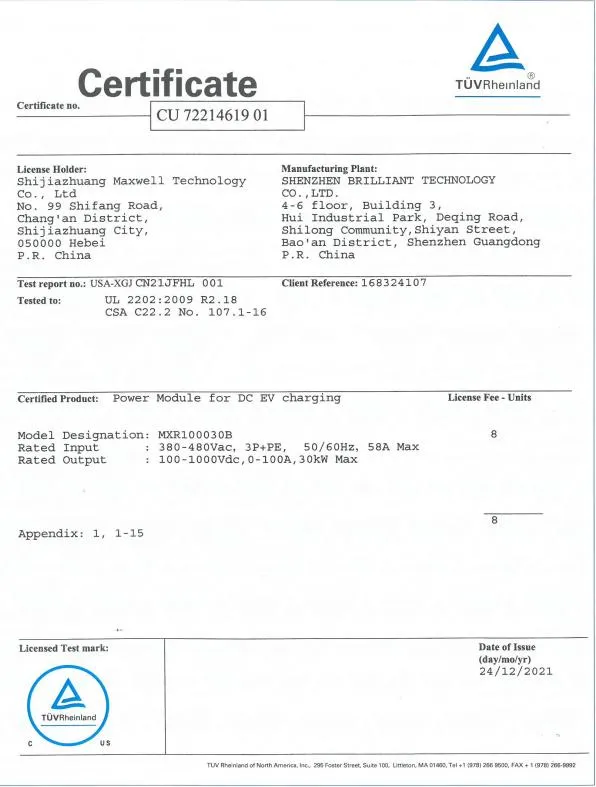

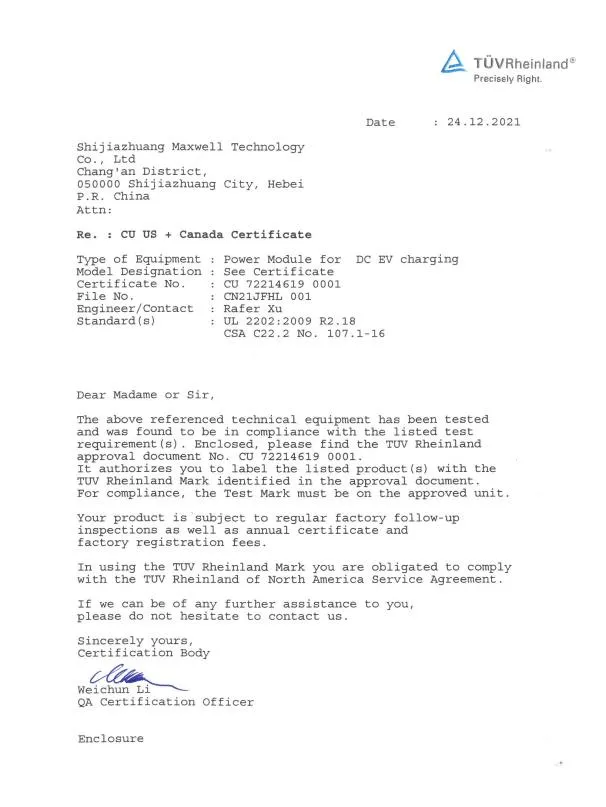

| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Package Dimensions: 59.00cm * 47.00cm * 33.00cm
Gross Weight: 29.300kg
Packaging Type: Protective Wooden or Kraft Carton for maximum safety during transport.
1. Material Procurement: Sourcing from qualified suppliers with strict raw material warehouse management and environmental controls.
2. Production Stages: SMT, manual plug-in/wave soldering, anti-spray coating, assembly, debugging, and rigorous aging toaster testing.
3. Traceability: Every product is logged in the management system from procurement to delivery, ensuring full lifecycle traceability.
• First 6 Months: Free replacement for non-human damage (Shared freight costs).
• Second 6 Months: Free repair services for non-human damage.
• Technical Support: Engineering assistance available for all testing and integration processes.
