The Acrel-2000MG Enterprise Microgrid Energy Management System is a comprehensive monitoring and management solution. This system is designed to meet the rigorous requirements for integrating photovoltaic systems, wind power generation, energy storage systems, and charging piles.
It conducts data collection and analysis 24/7, monitoring the operation status and health of renewable energy assets. The system aims to optimize economic operation while ensuring safety and stability. By promoting the application of renewable energy and improving power grid stability, it effectively implements demand-side management, eliminates peak-valley differences, and reduces power supply costs for enterprise microgrids.
Applicable Business Scenarios:
| Item | Value |
|---|---|
| Place of Origin | China (Shanghai) |
| Model Number | Acrel-2000MG |
| Core Function | Monitoring and controlling PV, EV, and Grid systems |
| Interface | GLAN; USB; COM |
| Memory | 8G |
| Hard Disk Support | GLAN; USB; COM |
| Operating System | Windows 10, Ubuntu 18.04, CentOS 7 |

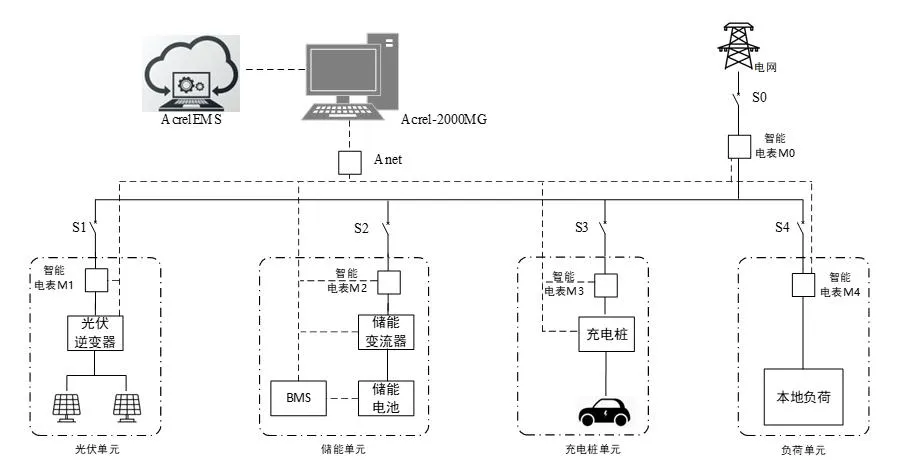

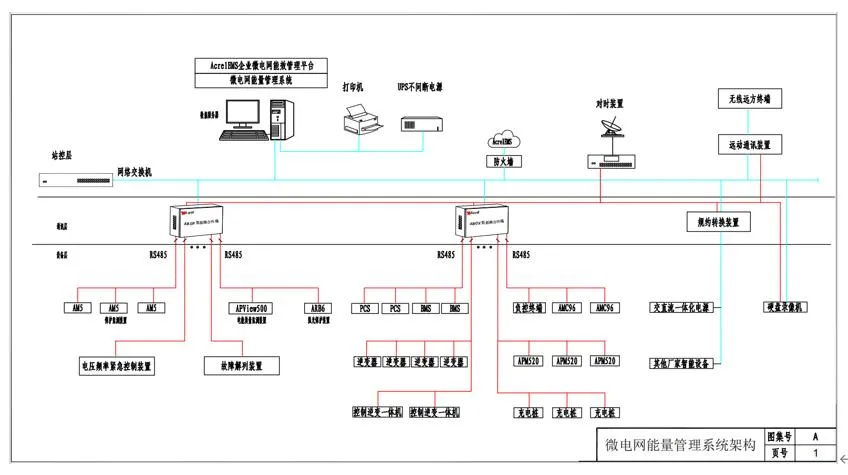

The microgrid energy management system adopts a hierarchical distributed structure, physically divided into three distinct layers: the Equipment Layer, Network Communication Layer, and Station Control Layer.
The station-level network utilizes standard Ethernet and TCP/IP protocols. Supported physical media include optical fiber, network cables, and shielded twisted pairs. The system is highly compatible, supporting a wide array of communication protocols including:
