Split 480kw Ultra Fast Electric Vehicle Charging Station Multi EV DC Charger

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

i

Basic Information

Model NO.:INFYSOLUTION2

Location:Public Use

Charging Interfaces:One Pile with Multiple Charges

Start Mode:Credit Card, Mobile Remote, RFID

Weight:About 878kg

Charging Standard:CCS/Chademo/Gbt

DC Output Voltage:150VDC-1000VDC

DC Output Current:Up to 960A

Type:Fast EV Charging Station

Certification:CE

Warranty:24 Months

Specification:1000mm*2000mm*800mm

★

Product Description

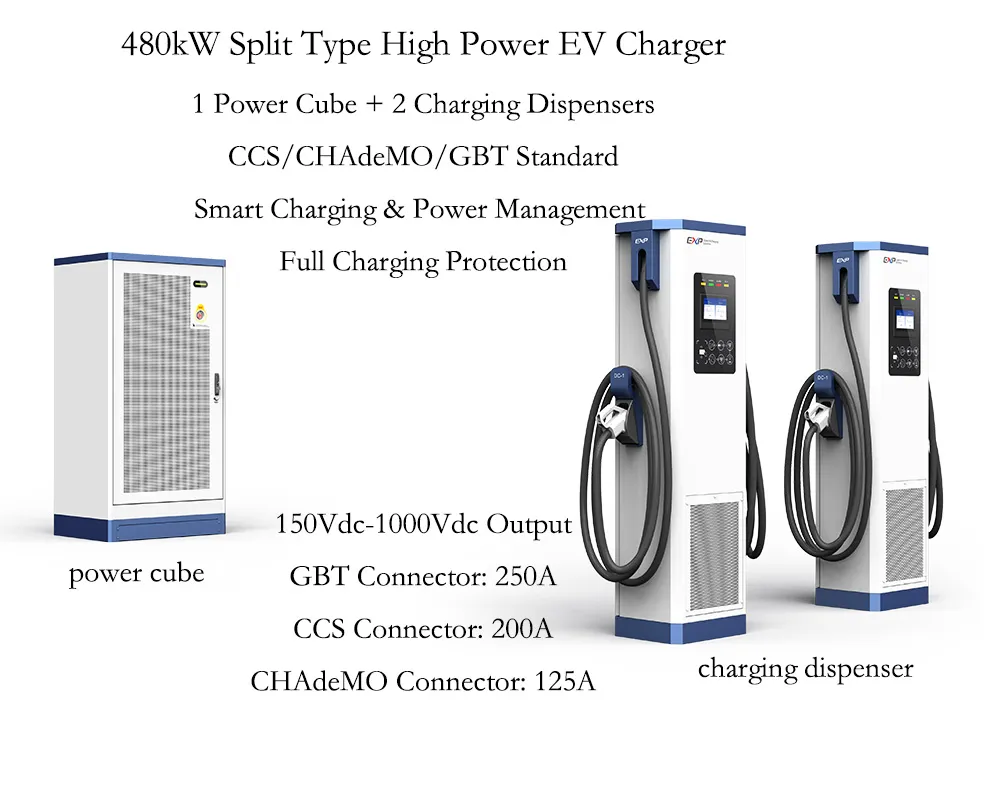

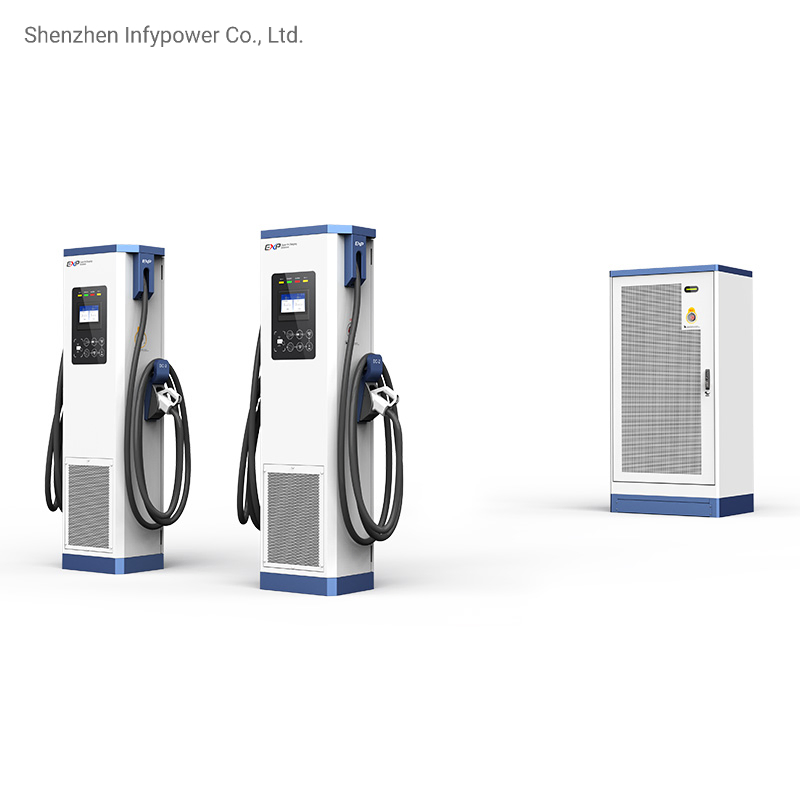

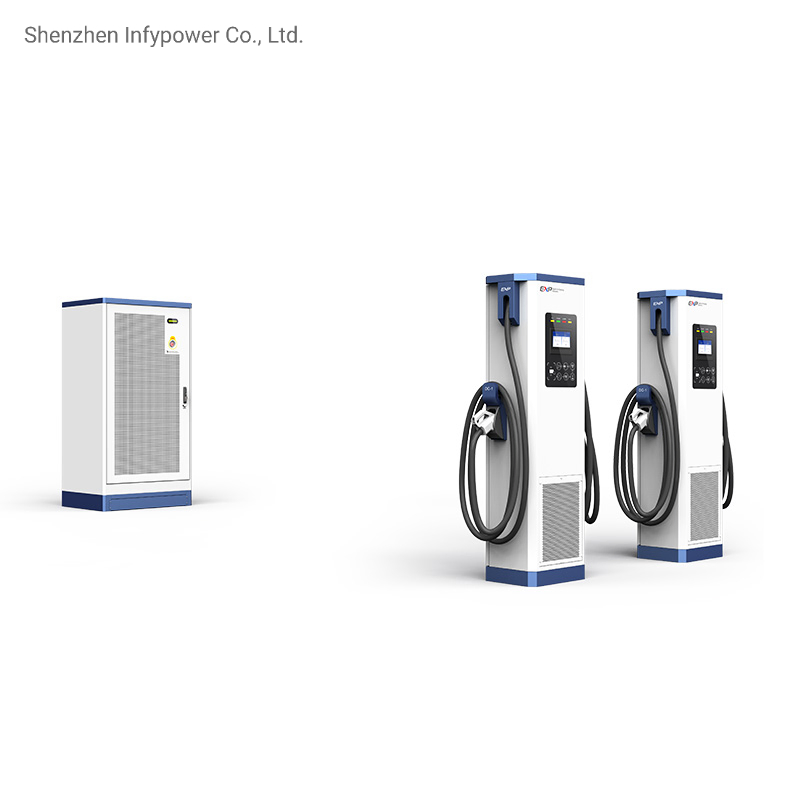

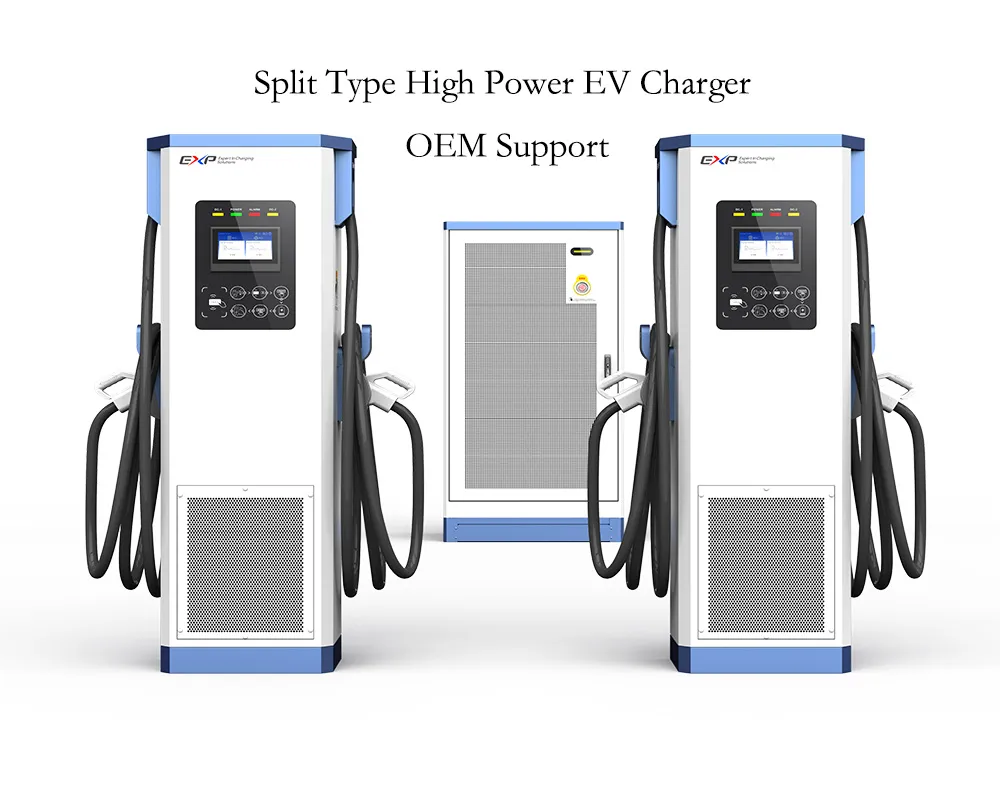

EXP480K2-FFR&LDC is a split type super power EV charger especially designed for multi-EV charging demand with CCS, CHAdeMO and GBT charging standard. The combined EV charging station is equipped with one 480kW power cube and 2 charging dispensers which support 4 electric vehicles to be charged simultaneously. It efficiently supports maximum 480kW charging power at one connector by a special technology called CoolRing net power transfer.

Main Features

✔CCS1/CCS2, CHAdeMO and GBT charging standards support.
✔Smart charging and power management support.
✔Ring net power transfer strategy guarantees max 480kW output for one connector.
✔IP54 for power cube and IP55 for dispenser protection.
✔500A liquid cooling charging solution available with AnyCooling technology.
✔User friendly 7'' TFT capacitive touch screen LCD with tempered glass.
✔Internal high precision AC and DC energy meters.
✔LAN and optional LTE wireless support, RFID and Mobile App payment.

📷

Detailed Photos

📋

Product Parameters

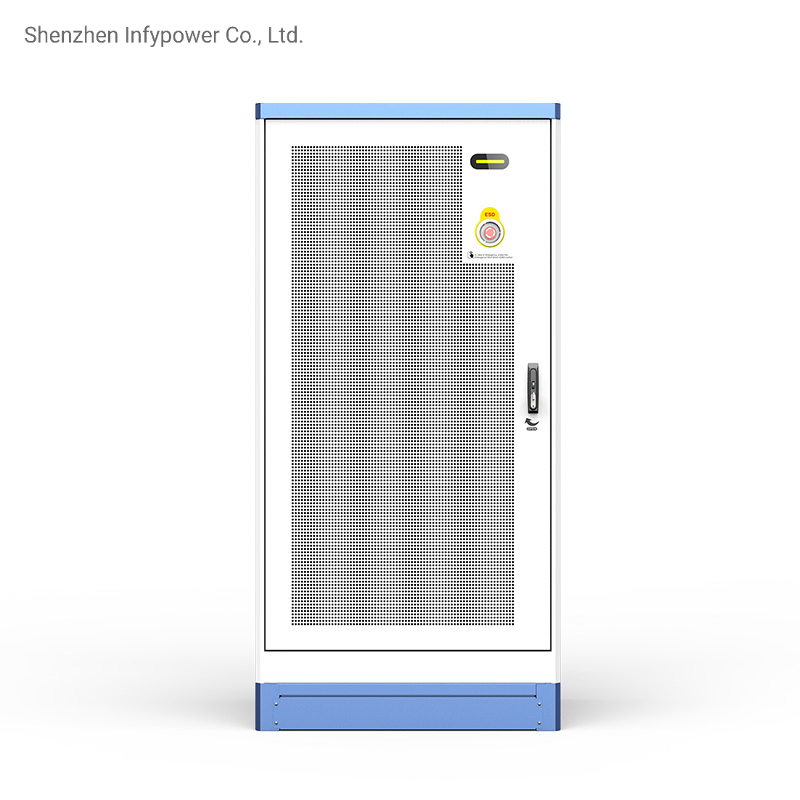

Power Cube Specifications

Parameter	Value
Rated Power	DC 480kW @ 300V-1000V
AC Input	Max input current 2*431A with RCDA breaker
DC Output Range	150Vdc-1000Vdc, efficiency over 95%
Max Output Current	1600A @ 300V, 480A @ 1000V
Dimensions & Weight	1000mm2000mm800mm / 558kg

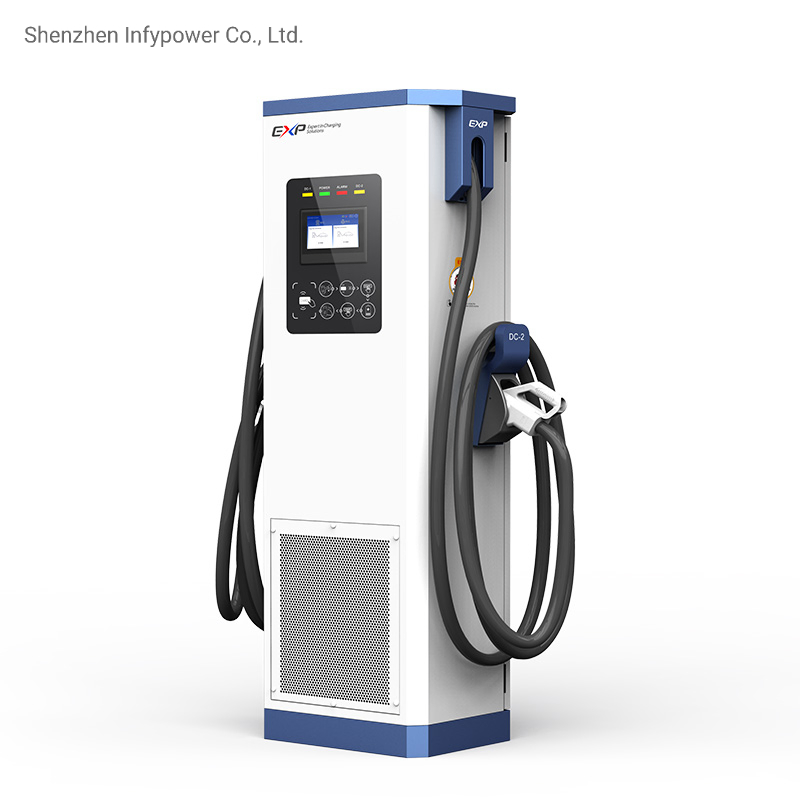

Charging Dispenser Specifications

Parameter	Value
Rated Power	DC 480kW
DC Input	150V-1000V, 2-channel DC bus
Max Output Current	Up to 960A @ 500V
Charging Standard	CCS, GBT, CHAdeMO
Dimensions & Weight	500mm1750mm350mm / 160kg

📦

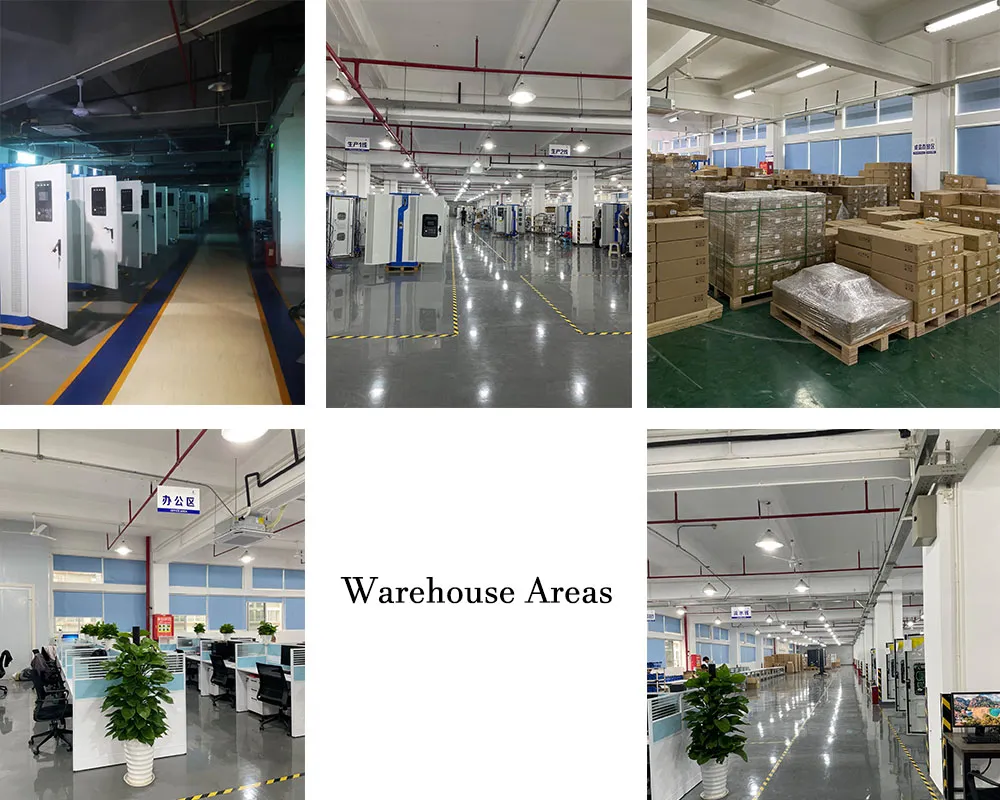

Packaging & Shipping

🏢

Profile Overview

We are a high-tech company professionally engaged in power modules and power system solutions. We have gained abundant experience in power electronics and intelligent control technology with specialty lying on electric vehicle charging solutions and energy storage solutions. Our products cover a wide range of power modules, energy storage converters, and charger solutions. With over 70% R&D members, we attach great importance to the steady and rapid development of technology, holding more than 150 authorized patents.

📜

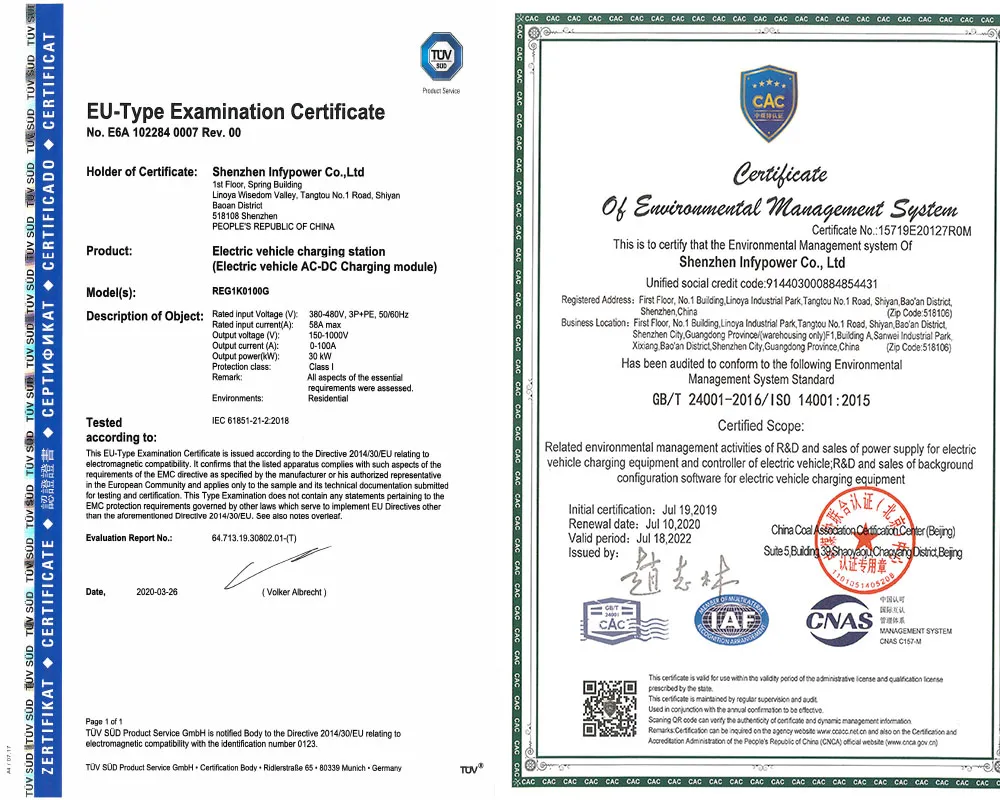

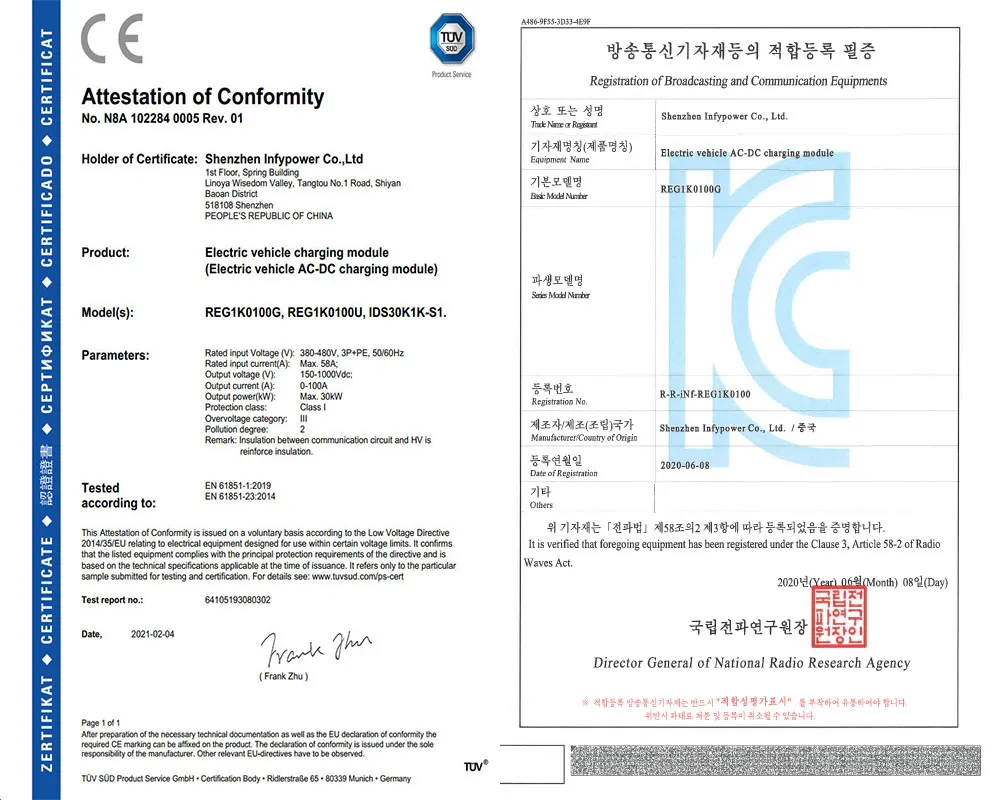

Certifications & Exhibitions

?

Frequently Asked Questions

Q: How do you handle shipments?

A: For small orders, we use express services like FedEx, DHL, or UPS on a door-to-door basis. Large shipments are sent by sea or air in containers. Customers are also welcome to use their own forwarders.

Q: What is your standard delivery time?

A: Typically, it takes about 30 days to prepare the goods. Large-scale or customized orders may require a slightly longer lead time.

Q: What payment terms do you offer?

A: Our standard term is 100% TT advance with the order. However, terms are negotiable for long-term strategic partners.

Q: Can you provide customized OEM/ODM services?

A: Yes, we have extensive experience in OEM and ODM projects. We offer flexible professional customization based on your specific requirements.

Q: What kind of warranty and after-sales support do you provide?

A: We offer a 24-month warranty. For any after-sales requests, we assign a dedicated technician to provide timely online support.

Q: Are your products certified for international markets?

A: Yes, our products are qualified with international certifications such as CE for Europe, UL for the USA, and KC for South Korea.
