Optional Bluetooth and App control for convenient operation and scheduling from your smartphone.
Equipped with an embedded mechanical emergency stop switch and ten integrated protection functions.
Reserved RS485 and Ethernet interfaces facilitate professional remote management and status tracking.
Simplified installation and maintenance processes designed with the end-user in mind.

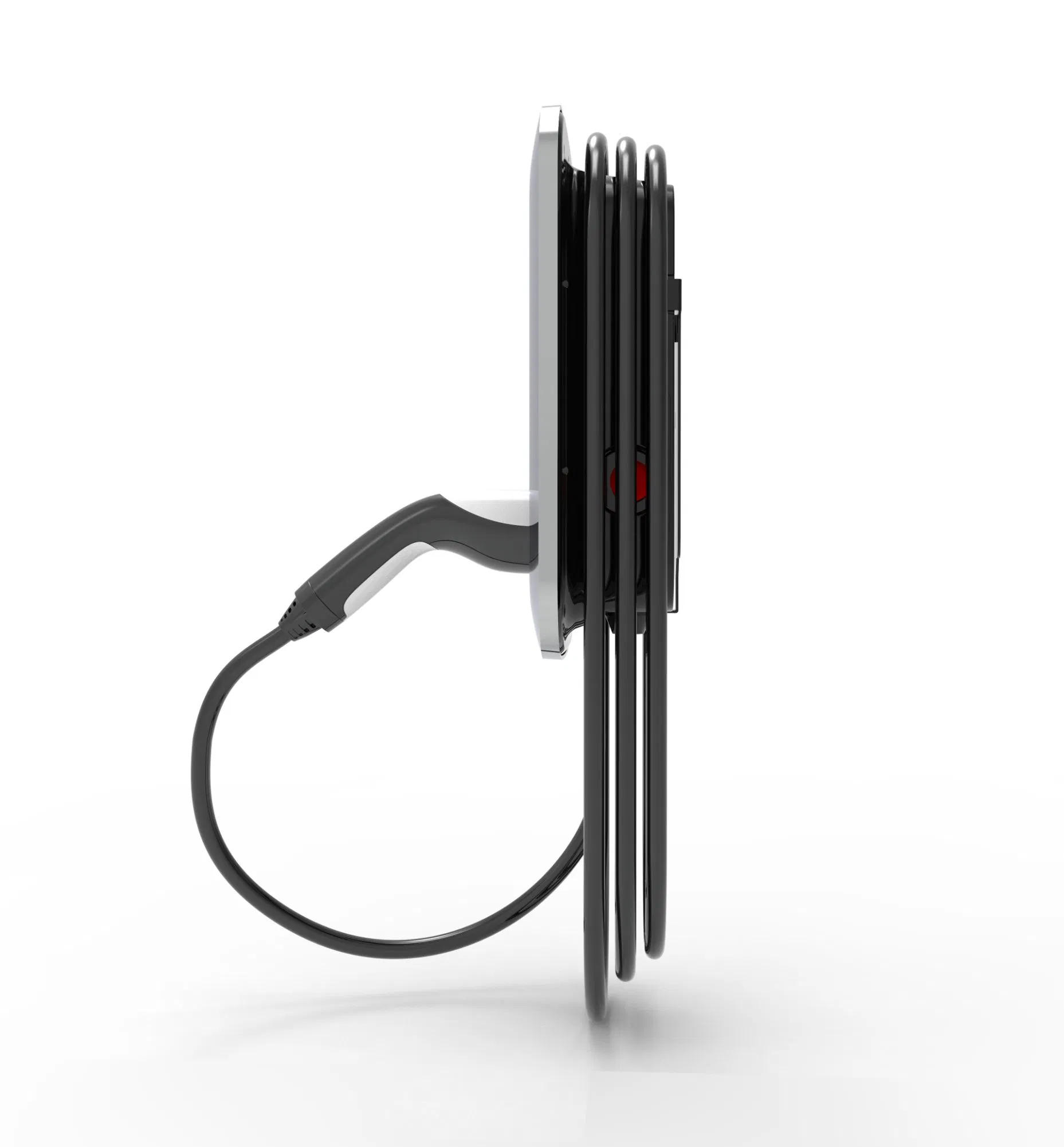

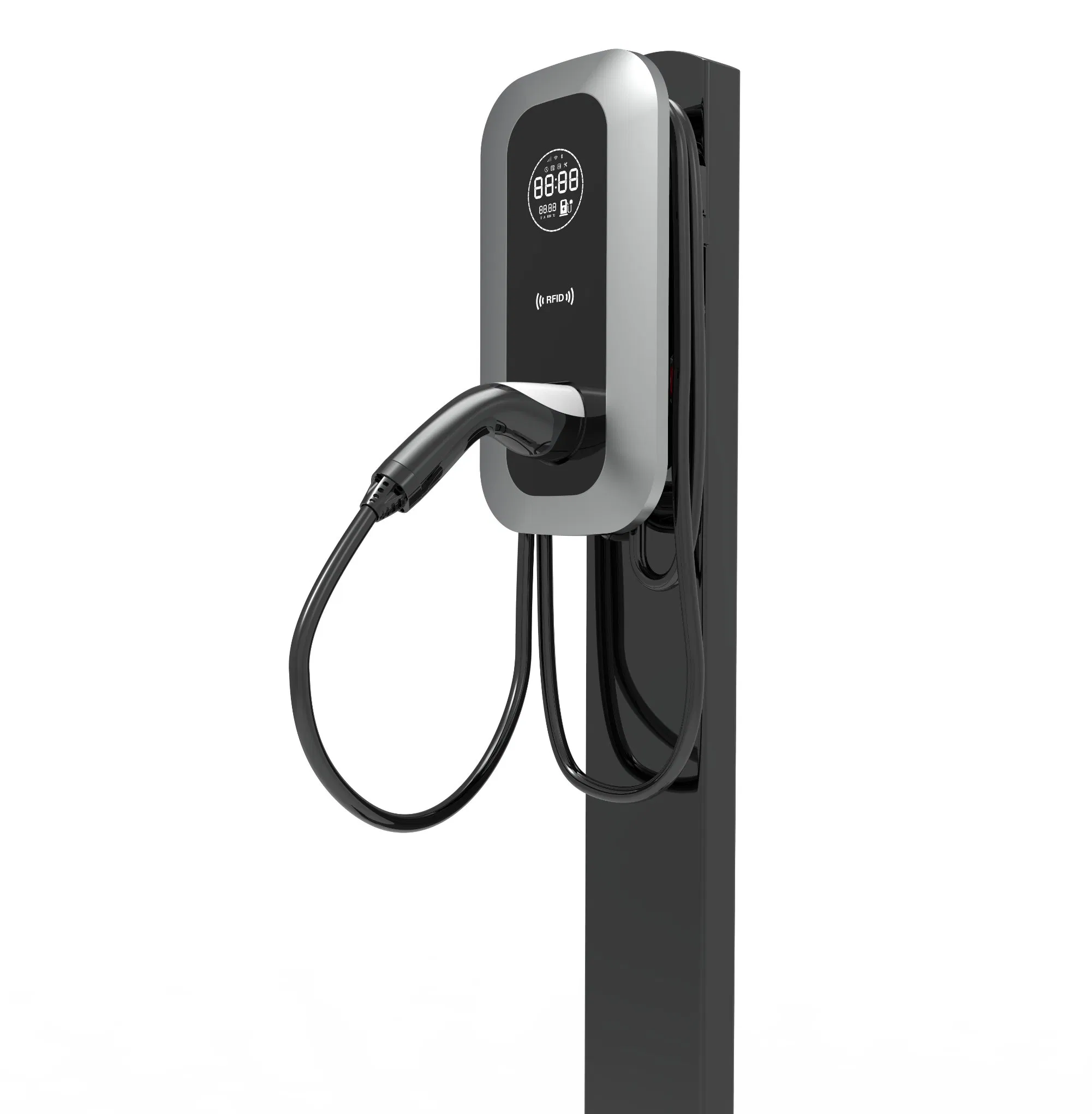

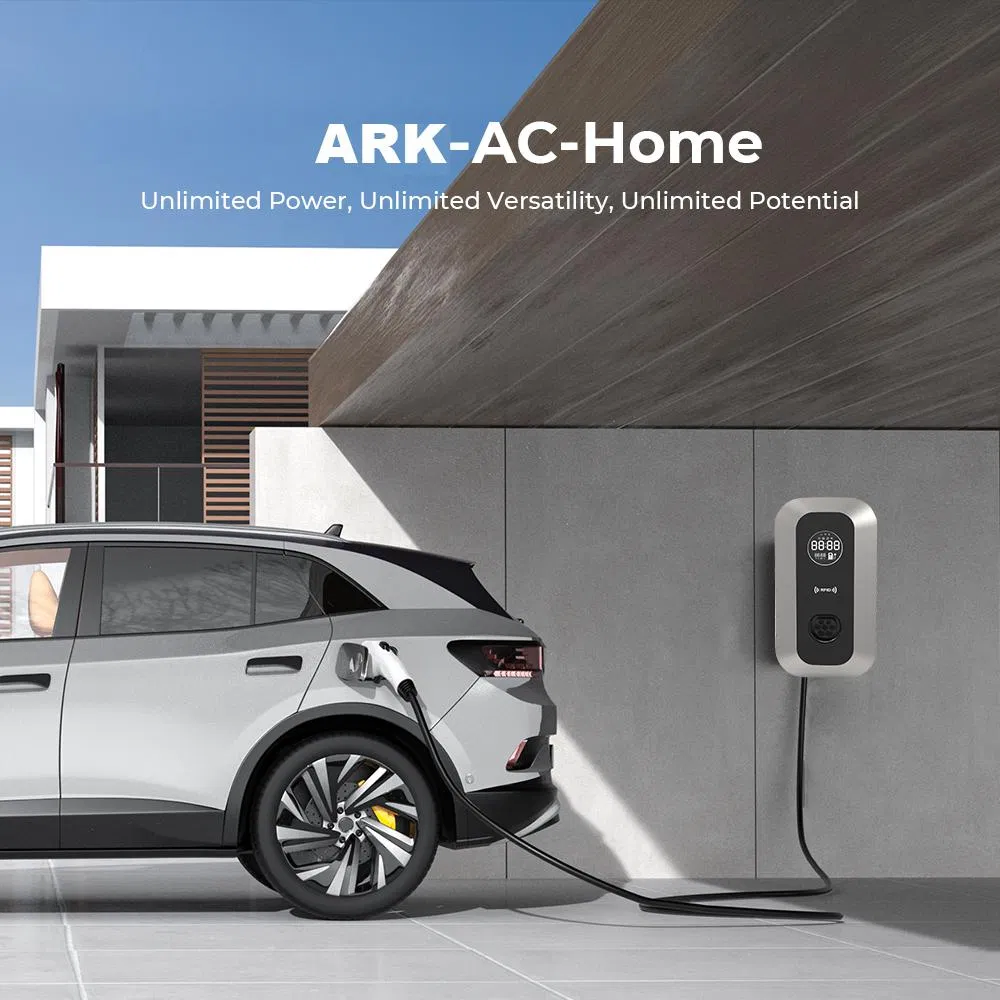

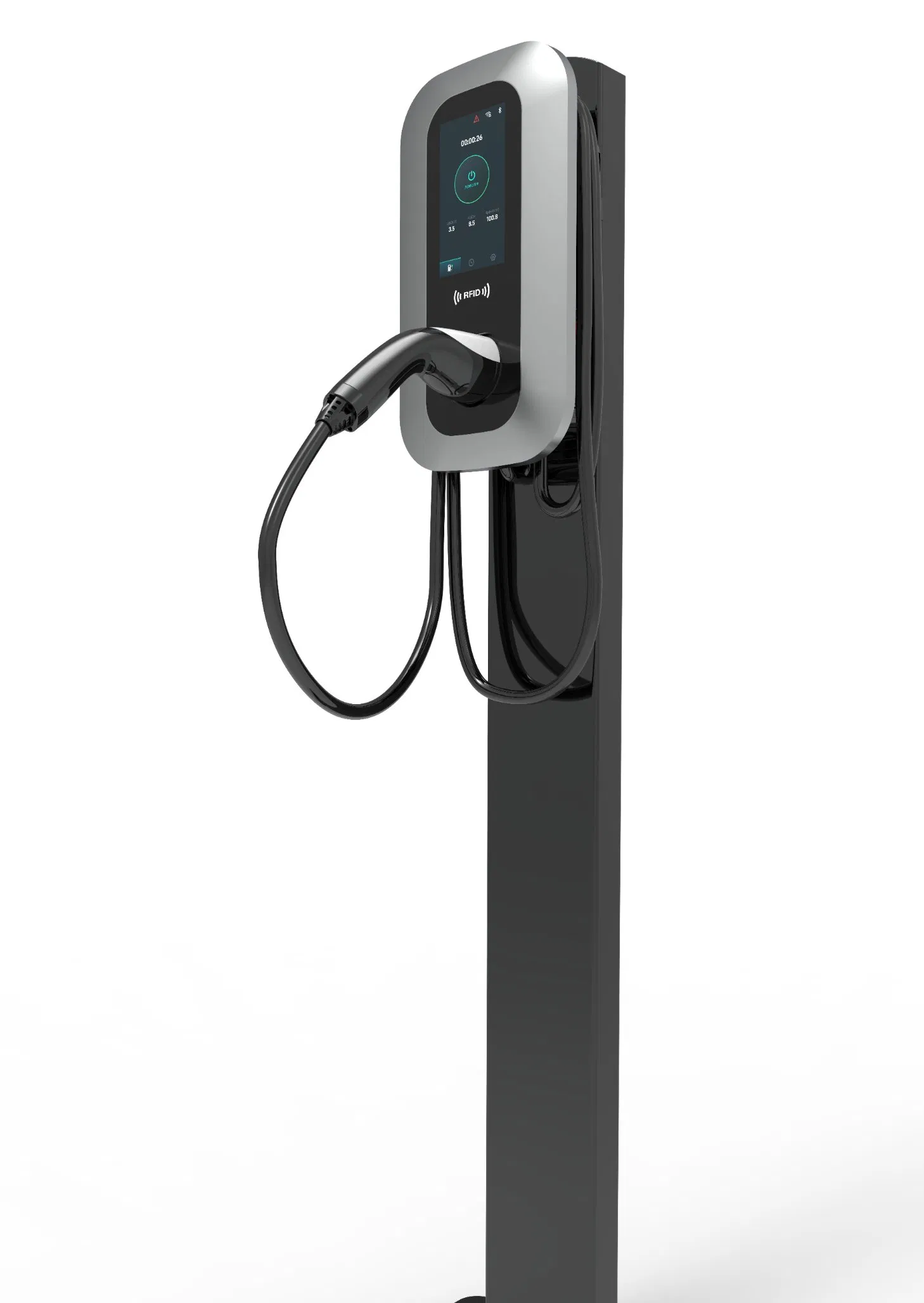

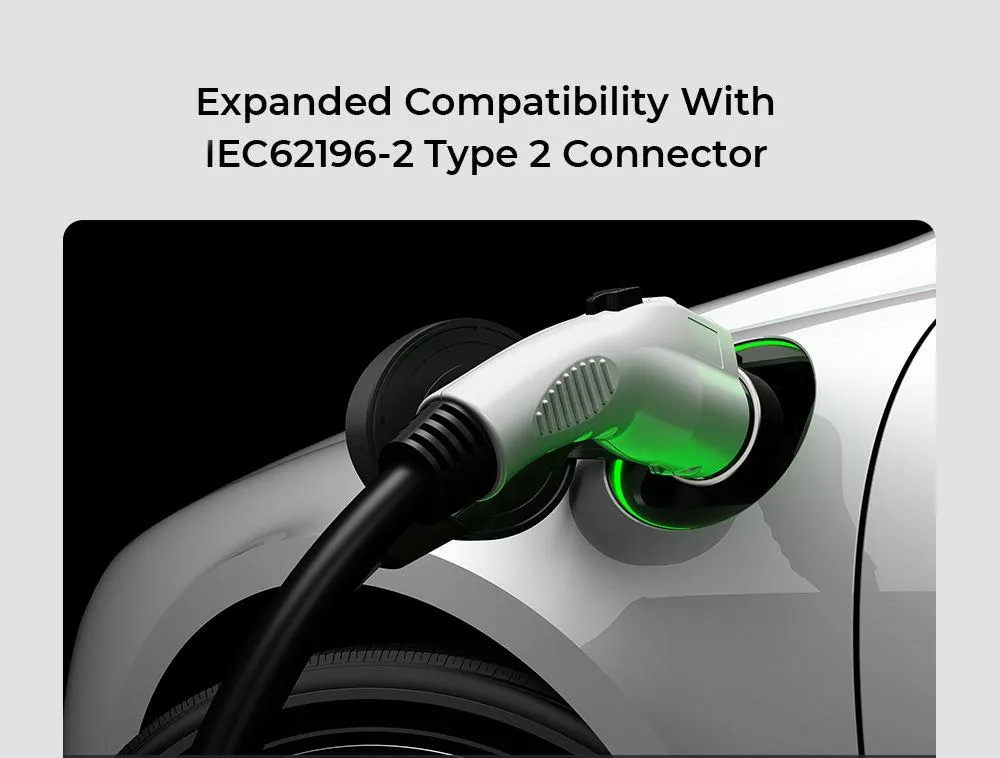

The AMP07 is compatible with most European AC electric vehicles via the IEC62196-2 Type 2 standard. It allows charging during off-peak periods through app-scheduling, helping users save on electricity bills while monitoring real-time data.
| Category | Feature | Specification |
|---|---|---|
| System Configuration | ||
| System | Charging Type | Mode 3 |
| System | Dimension | 222 x 104 x 405mm |
| System | Protection | IP65 / IK10 |
| System | Weight | 3.62kgs |
| Input & Output | ||
| Input | Input Voltage | 200Vac - 240Vac, 50/60Hz |
| Input | RCCB | Type-A + 6mA DC |
| Output | Max Power | 7kW |
| Output | Max Current | 32A |

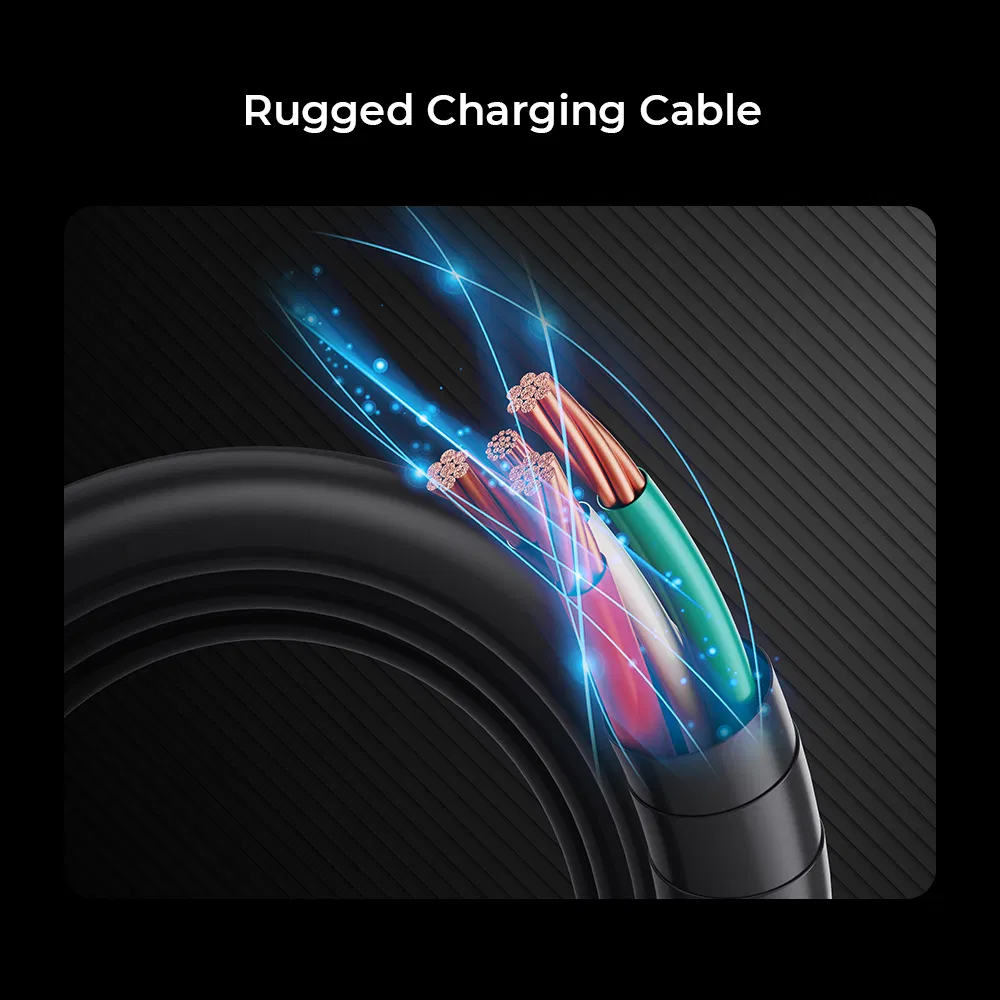

| Output | Outlet | IEC 62196 Type-2 Cable (5m) |
| User Interface & Environment | ||
| Interface | Authentication | App Interface |

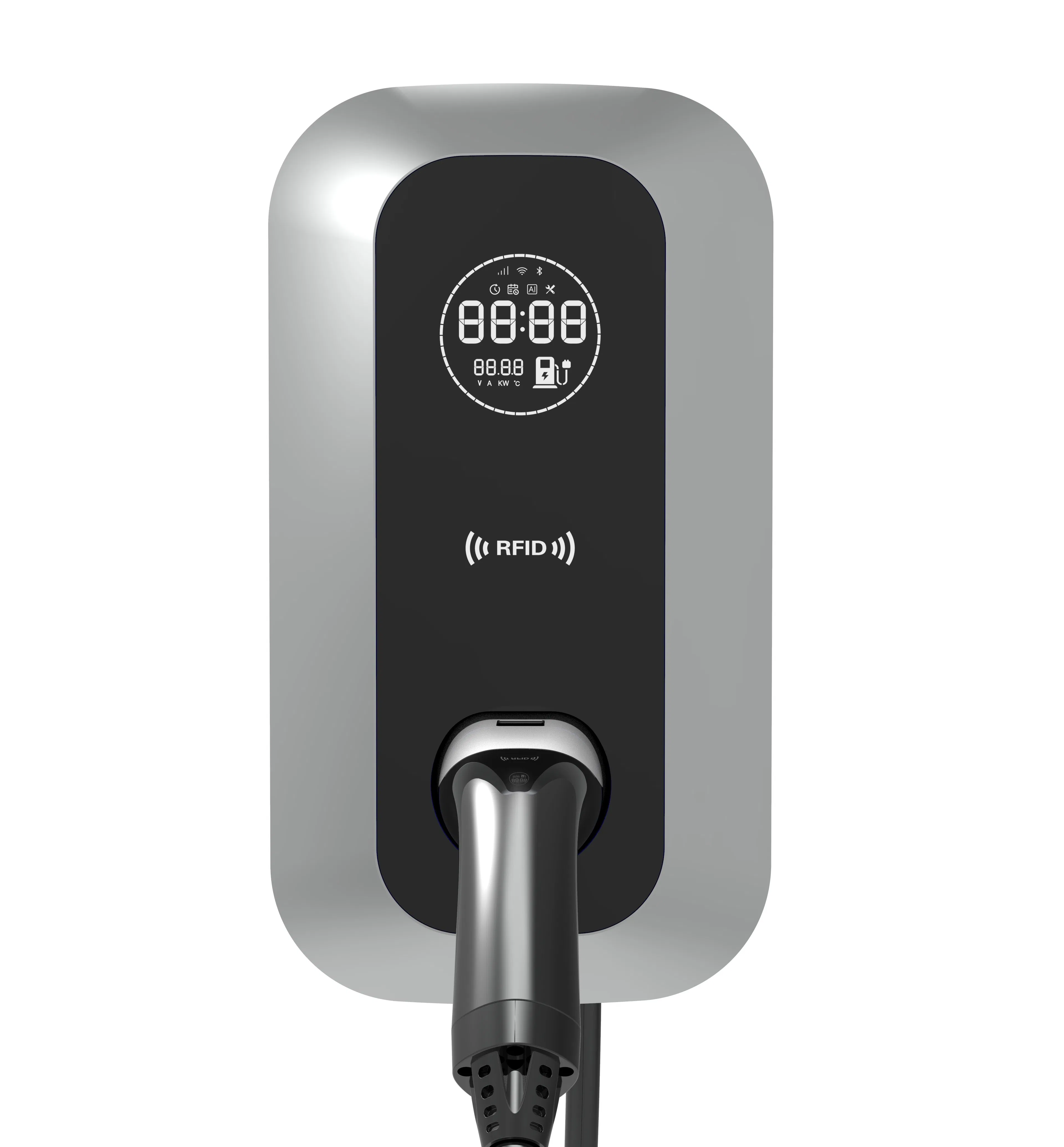

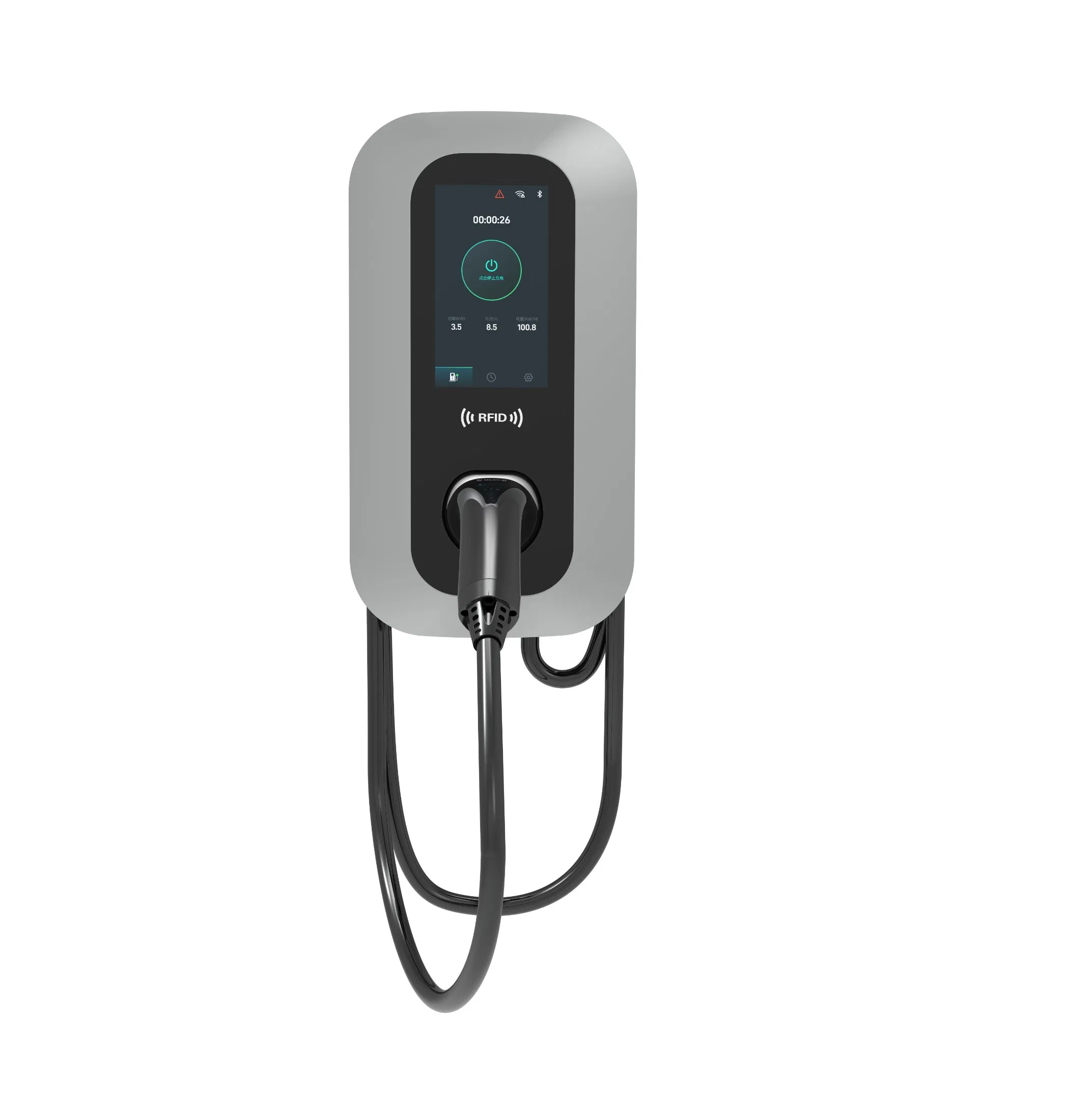

| Interface | Display | LCD or 7-inch TFT display |
| Environment | Temp Range | -25°C to +50°C |
| Environment | Cooling | Natural Cooling |
Our chargers feature telecom-level modular design, wider voltage input/output ranges, and superior temperature adaptation. We provide professional technical support and products that meet international safety standards like CE and UL.

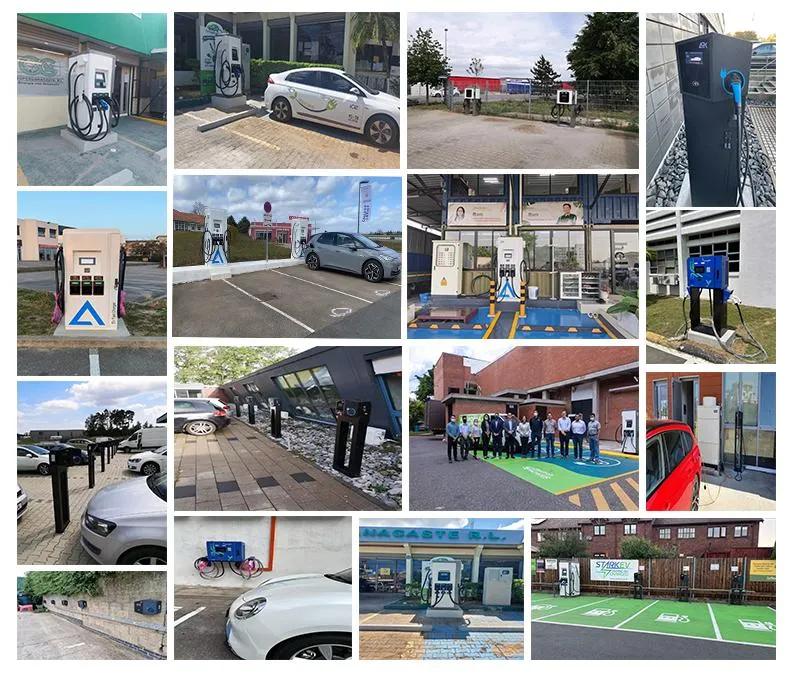

Yes, we have implemented projects globally, including integrating EV chargers with PV systems in the UK and installing DC fast chargers along major highways from LA to San Francisco.
Our hardware supports all major global standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China).
Not necessarily. Charging speed is often limited by the vehicle's battery management system. However, high-power chargers are future-proof and can support dual-connector charging for two vehicles simultaneously.
We provide comprehensive technical training, including manuals and videos. For urgent requirements, professional technicians are available to provide support for maintenance and parts replacement.
Yes, the App Control mode allows you to set specific charging times to take advantage of off-peak electricity rates, saving money on your utility bills.
