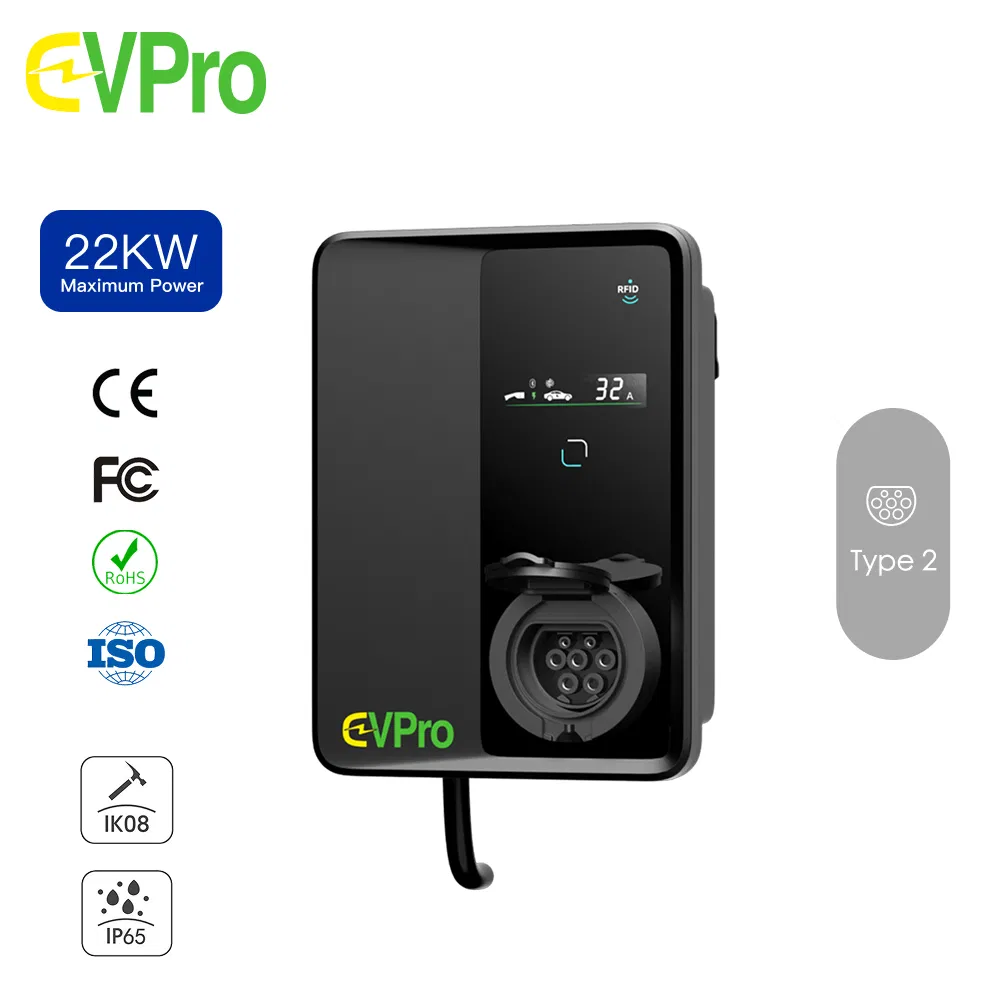

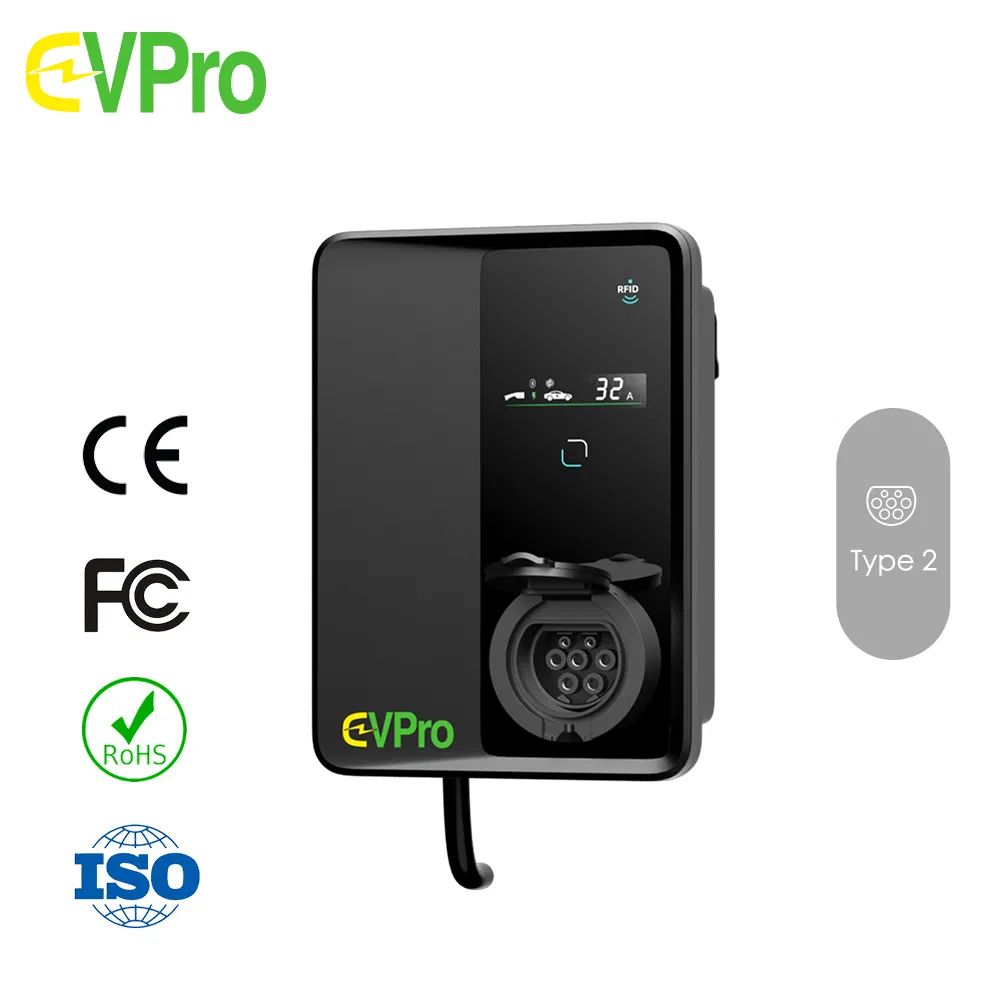

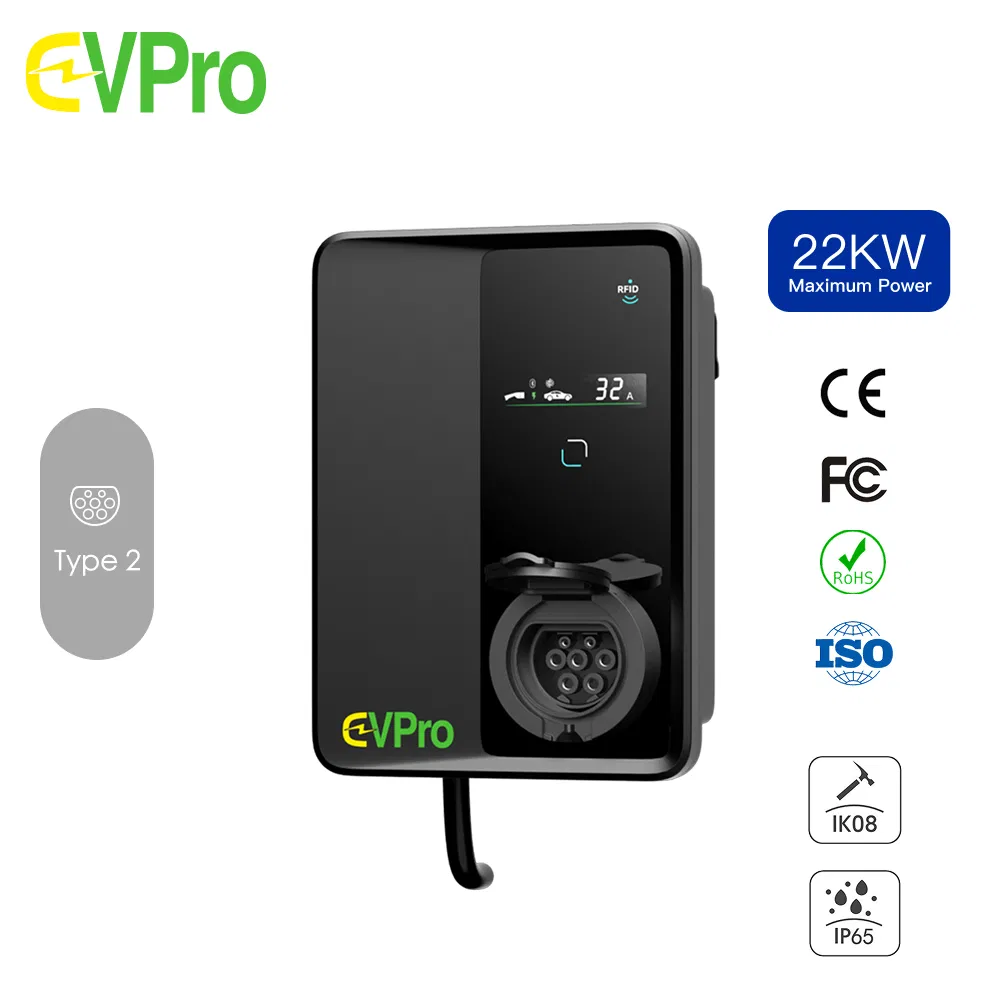

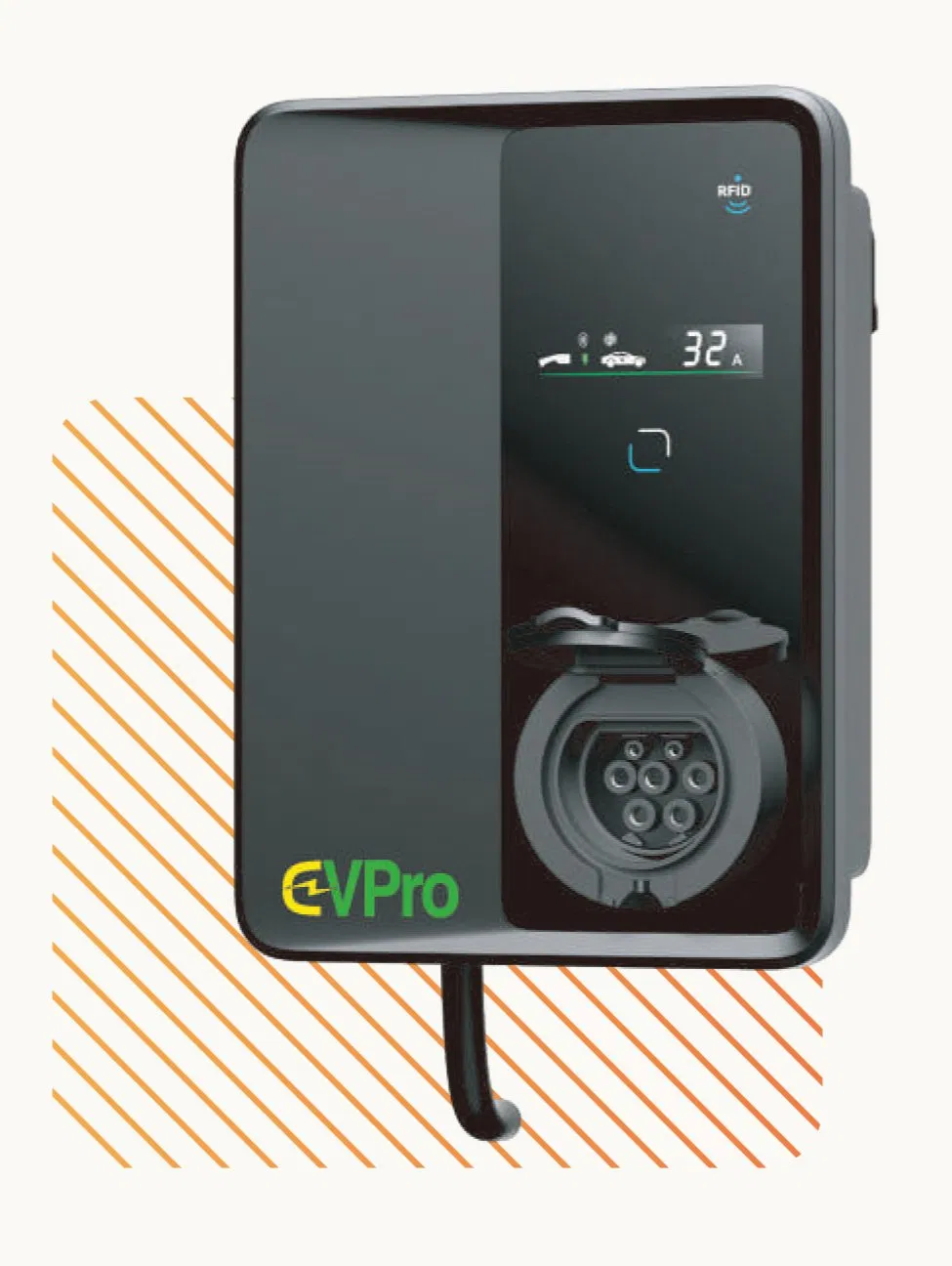

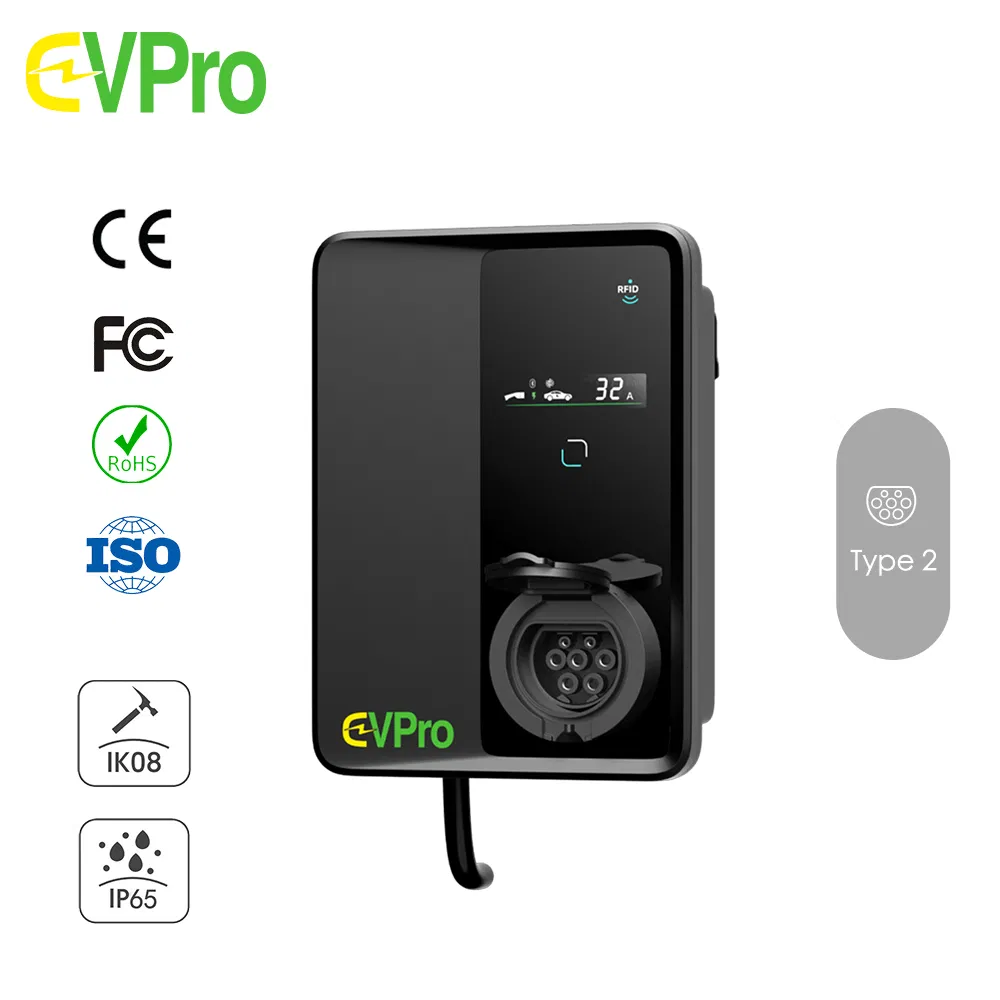

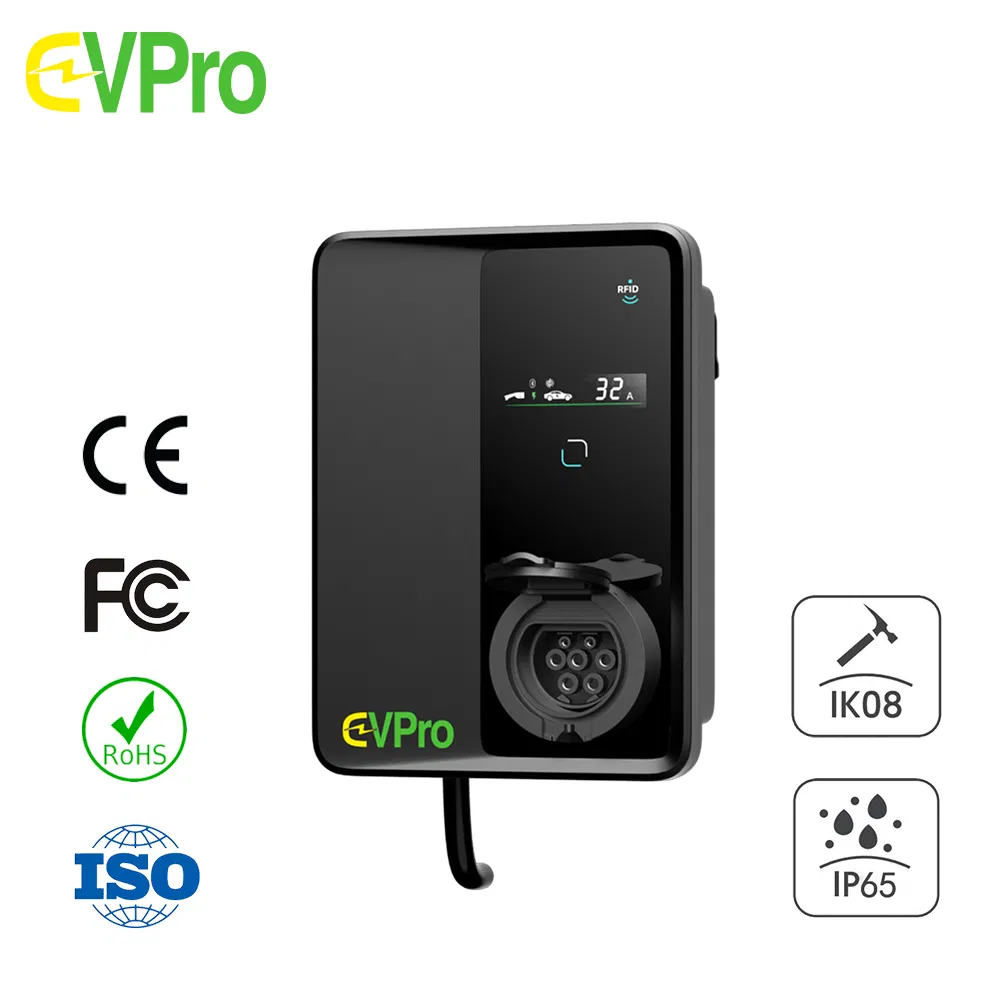

The EVD02 WALLBOX EV AC Charger boasts an innovative and intelligent design. It supports 7kW/11kW/22kW charging power, with an impact protection level of IK08 and a waterproof level of IP65. It enables RFID/APP access, supports WiFi, 4G, and Ethernet connection, is compatible with OCPP 1.6J, and meets certifications like IEC 62196, IEC 61851, and EN50620/EC62893.
| Category | Data Parameters |
|---|---|
| Input/Output Voltage | Single Phase 230VAC |
| Input/Output Current | Single Phase 32A |
| Max. Power | 22kW |
| Standby Power | ≤ 6W |
| Storage Humidity | 5%-95% without condensation |
| Cooling Method | Natural Cooling |
| MTBF | 50,000 Hours |
| Activate Method | Plug and Play / RFID / Offline Payment |
| Output Port | Type 2 socket / Type 2 gun with 5M cable |
| Electrical Safety | Over Voltage, Under Voltage, Over Current, Missing Ground, Short Circuit |
| Temperature Sensors | Charge Coupler and Power Electronics |

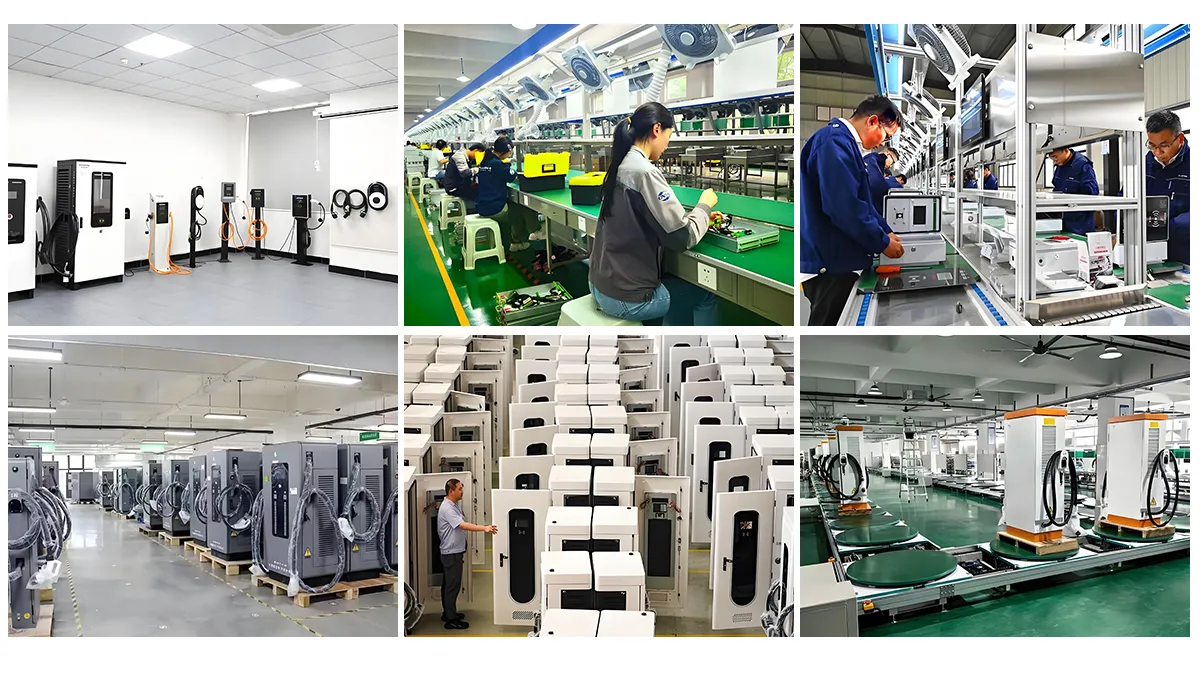

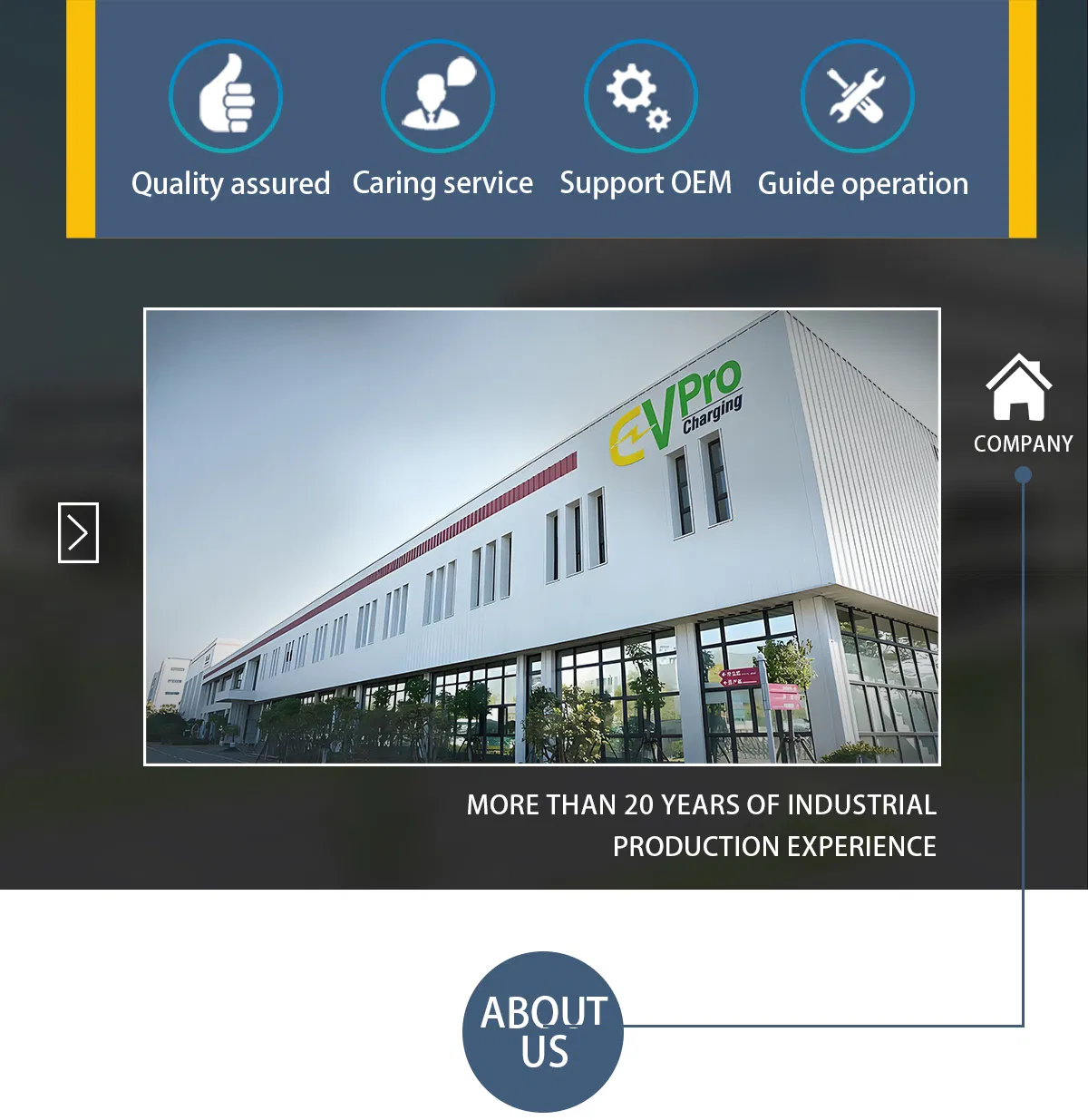

As a fully integrated provider, every stage of the EV charging ecosystem is controlled to deliver superior quality and cost-competitive solutions. Operating a dedicated manufacturing facility, both AC and DC chargers are produced with custom hardware configurations and rigorous quality control standards. All products are compliant with IEC 61851 and IEC 62196 standards.
At the core of our innovation is a smart, interconnected system that harnesses solar energy during daylight hours while utilizing artificial intelligence to dynamically manage power flows between solar panels, the electrical grid, and building loads. V2G capabilities transform EVs into mobile energy storage units that can feed power back into buildings or the grid when needed most.
