Irvion Charger
1 / 5
| Model NO. | QSCDD |
|---|---|
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |

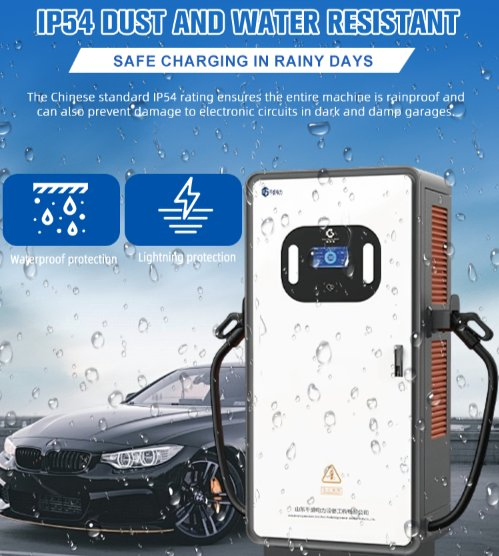

| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load); ≥0.92 (Light Load) |
| Service Life | 8 Years; 10 Years |
| Harmonic Distortion | ≤5% (Total Harmonic Distortion); ≤3% |
| Payment/Networking | Customized Supported |
| Package Size | 120.00cm * 45.00cm * 155.00cm |
| Gross Weight | 60.000kg |

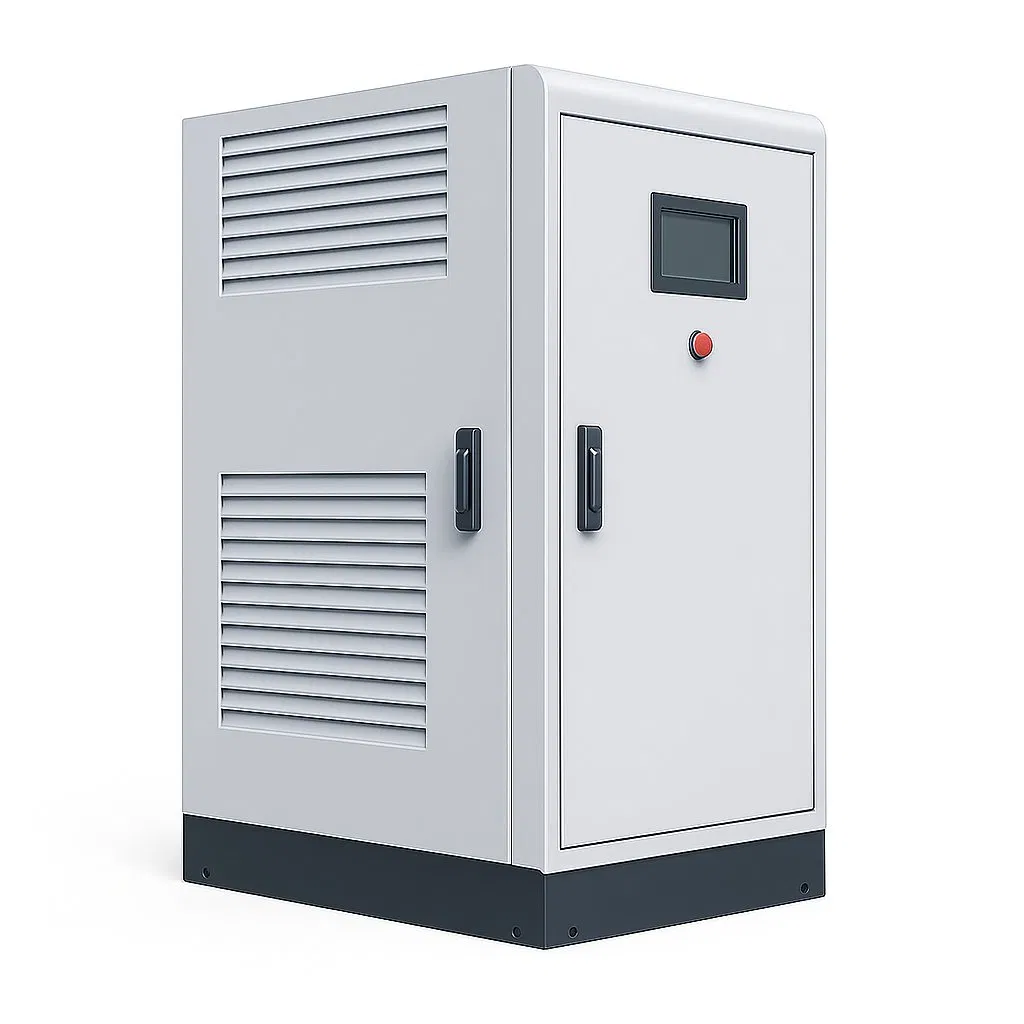

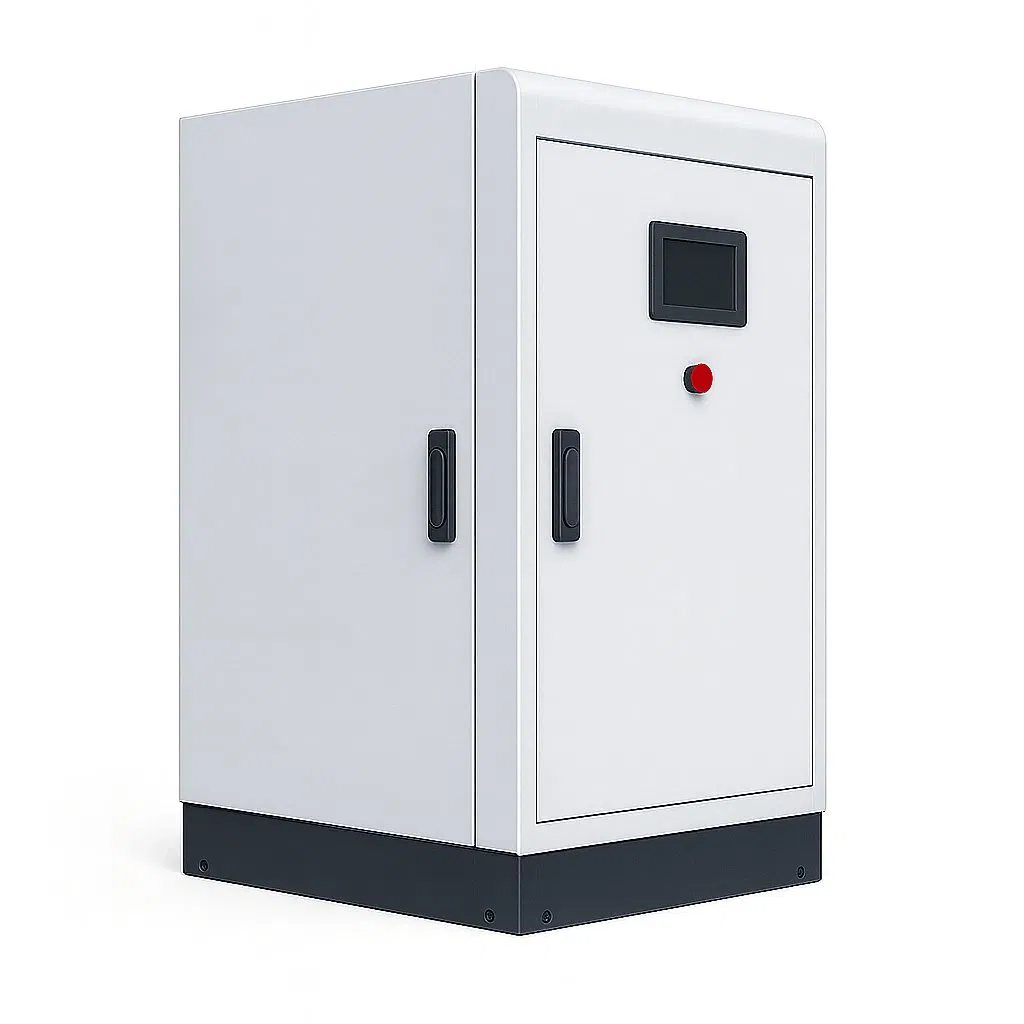

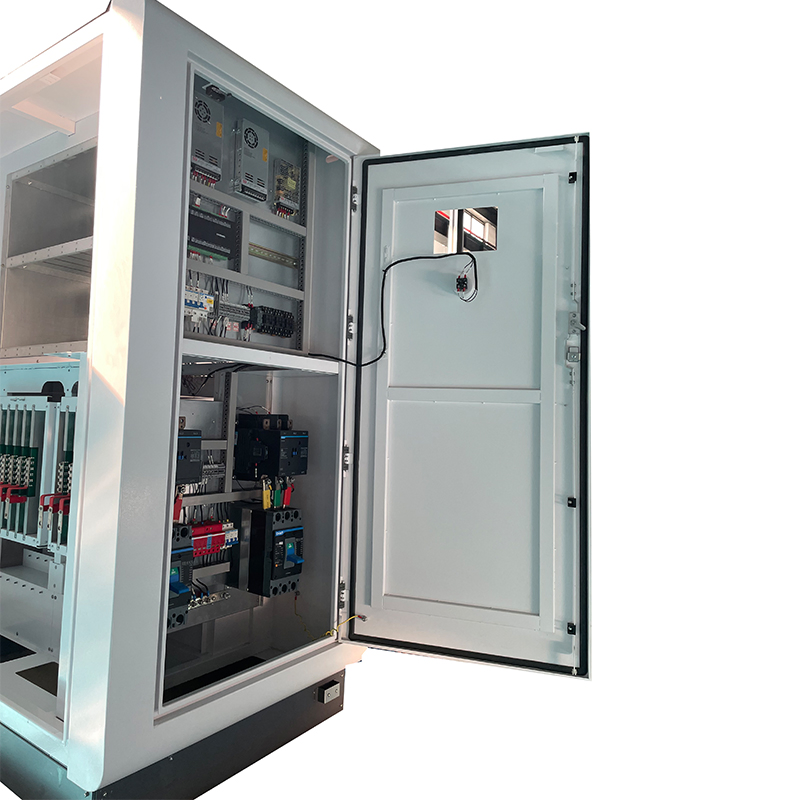

Advanced Charging Pile Solutions

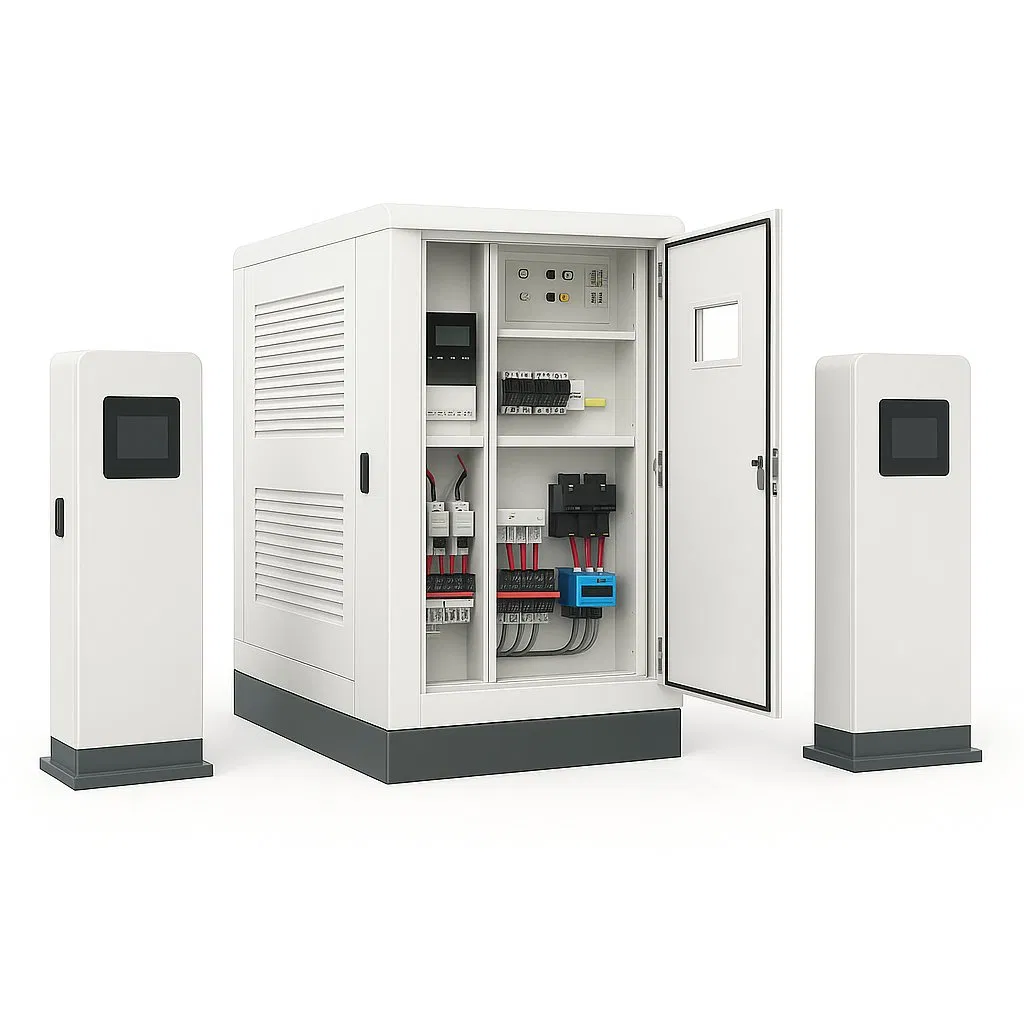

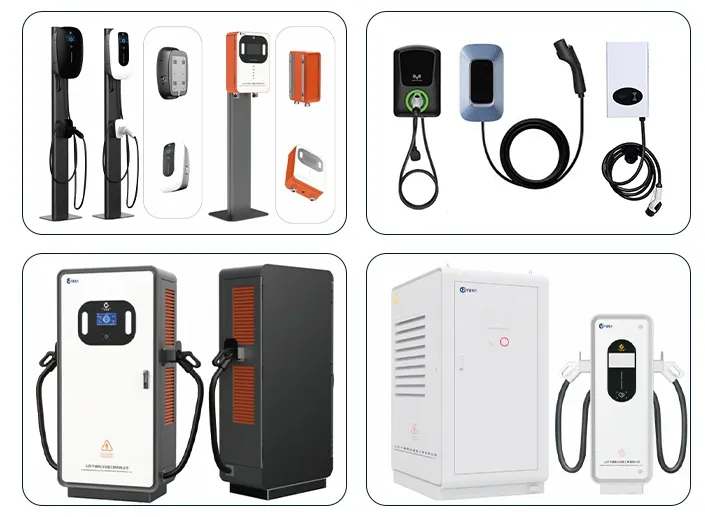

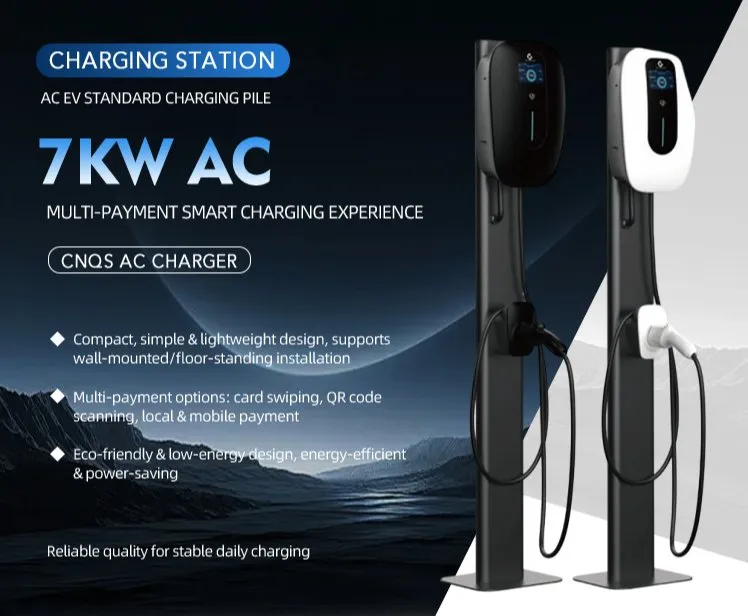

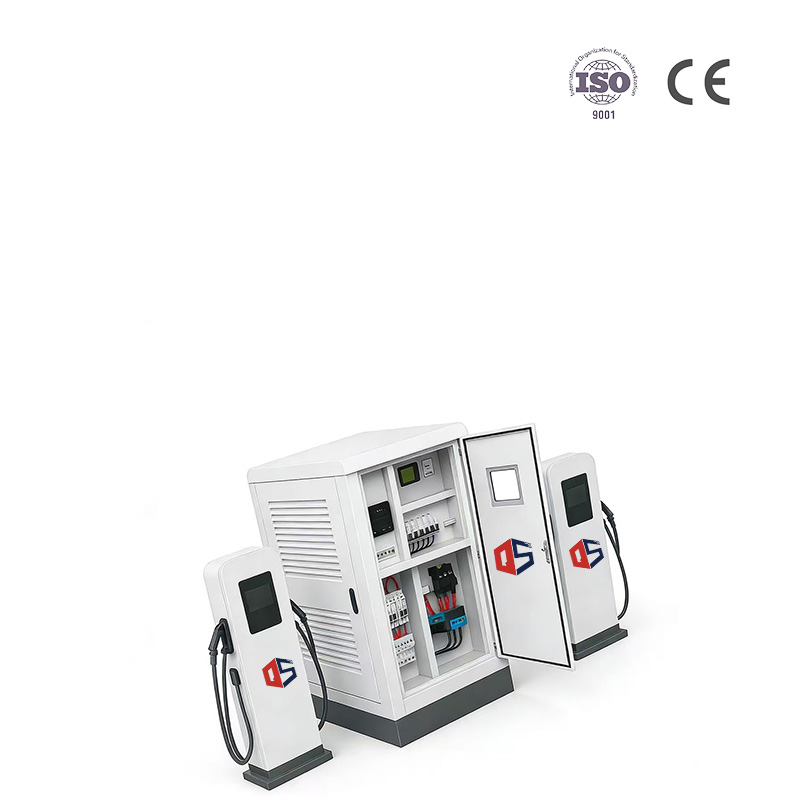

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. All of these have stylish designs, stable frameworks, and complete functionality. Flexible customization through modular power configuration makes them easy to maintain - wall mounted models save space, while floor standing models offer faster charging speeds. Very suitable for residential and commercial use.
| Type | EV charging station |
|---|---|

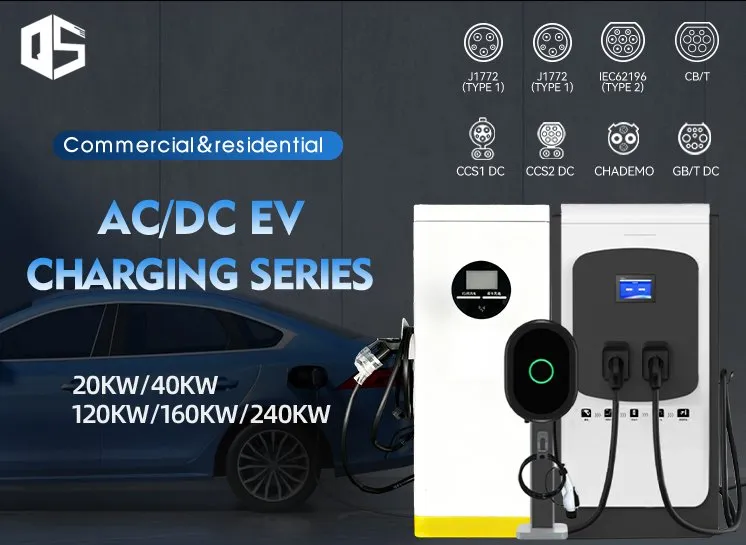

| Power Options | 20KW / 40KW / 120KW / 160KW / 240KW |
| Input Rating | 110V/220V/380V±15% |
| Working Frequency | 50/60±10% |
| Output Voltage | 200~1000V |

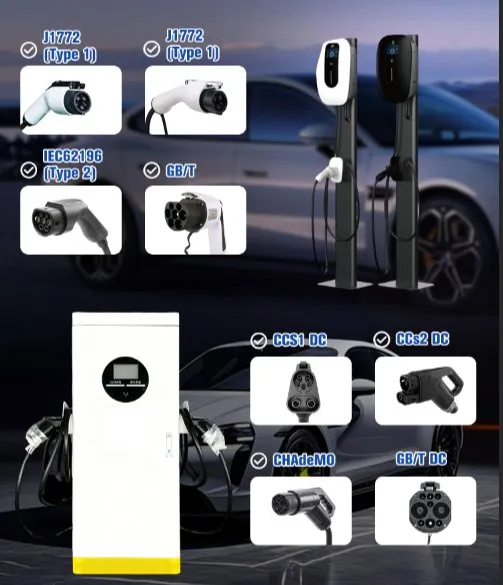

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Communication | 4G / Ethernet / OCPP1.6J (OCPP2.0 upgradable) |
| Protection | IP55 / IP65 |
| Temperature | Operating: -20℃~+50℃; Storage: -20℃~+70℃ |
• Compatible with global certifications (CE/UL/PSE/KC), covering major markets.
• Supports ISO 15118-20 standard + PNC Plug & Charge.
• Compliant with V2G vehicle-to-grid protocol for revenue increase.
• MID/UL 2735 metrology certification, billing accuracy ±0.5%.
• 80% power replenished in 30 mins, suitable for household and commercial.
• IP65 dustproof & waterproof; wide temperature adaptation (-30℃ to 60℃).

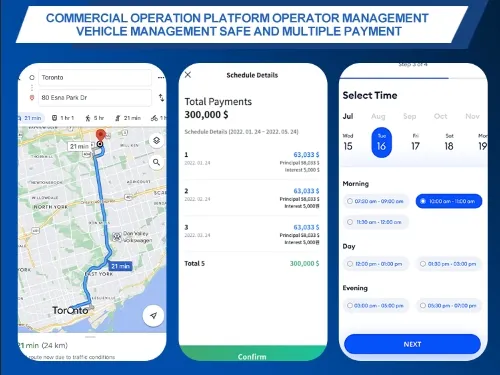

• Supports Apple Pay/Google Pay/credit card payment.

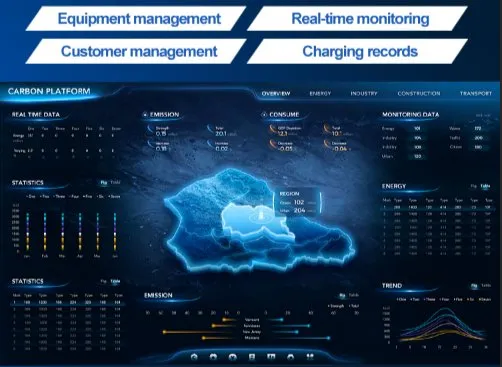

• Remote diagnosis of 40 core parameters, 24-hour response.
• Dual-gun simultaneous charging + modular design.
• 120kW: 300+km range replenished in 30 mins.
• 240kW ultra-fast charge: 80% battery in 15 mins.
• Dynamic power allocation, industrial-grade protection.
We use professional wooden box packaging to ensure the safety of high-power charging equipment during international transit. Each unit is secured and protected against vibration and moisture.

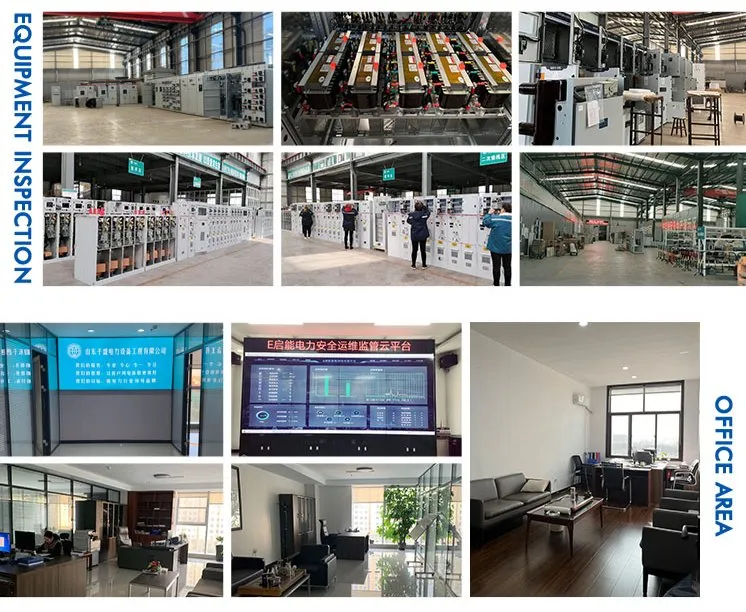

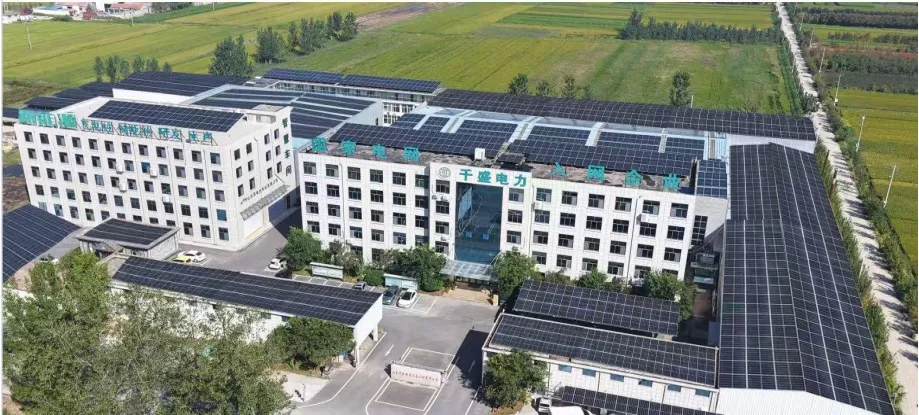

With over 20 years of industry expertise, we serve global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs a highly skilled technical team.
Certifications: ISO9001:2000, Environmental Management System, CCC, CQC, and Occupational Health and Safety certifications.
