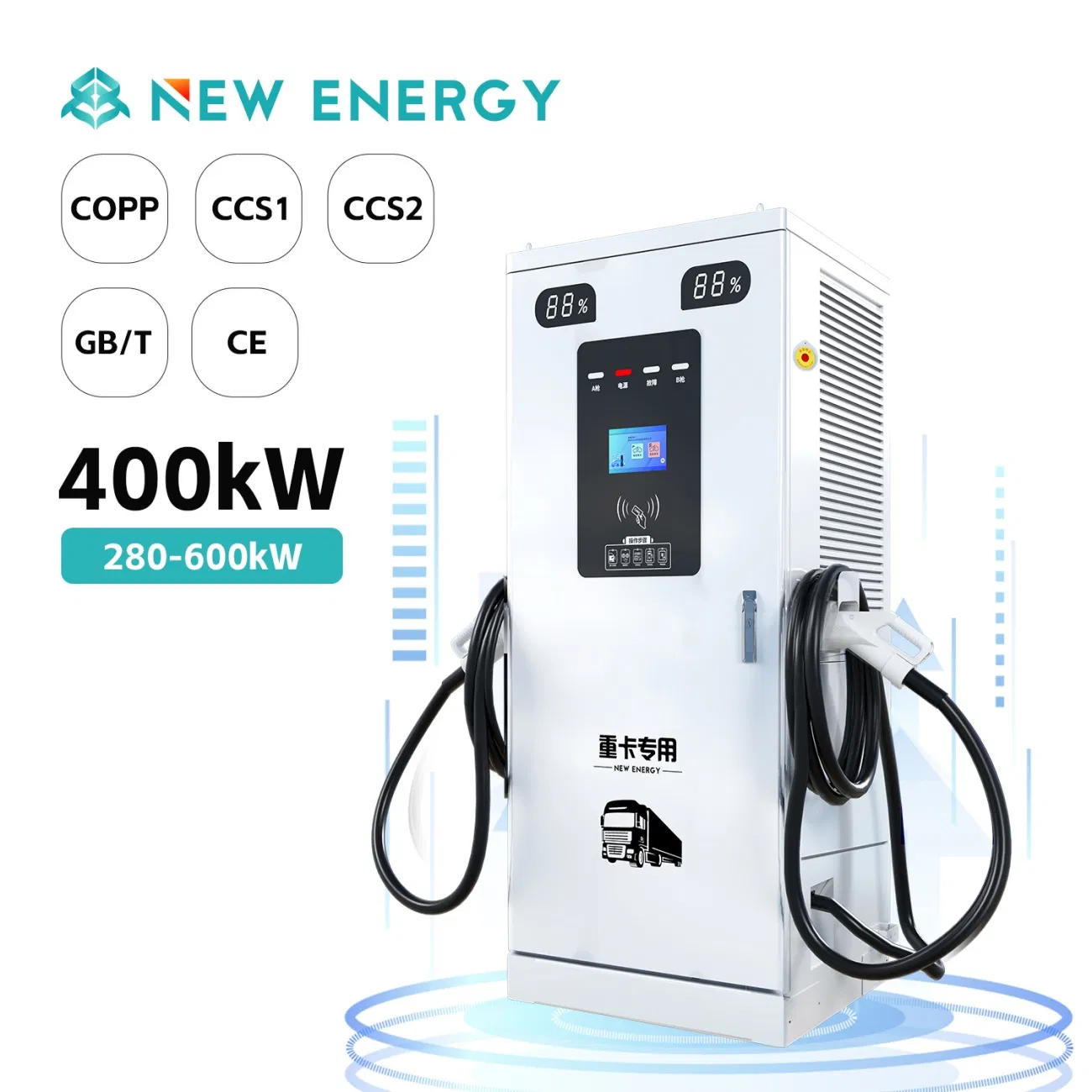

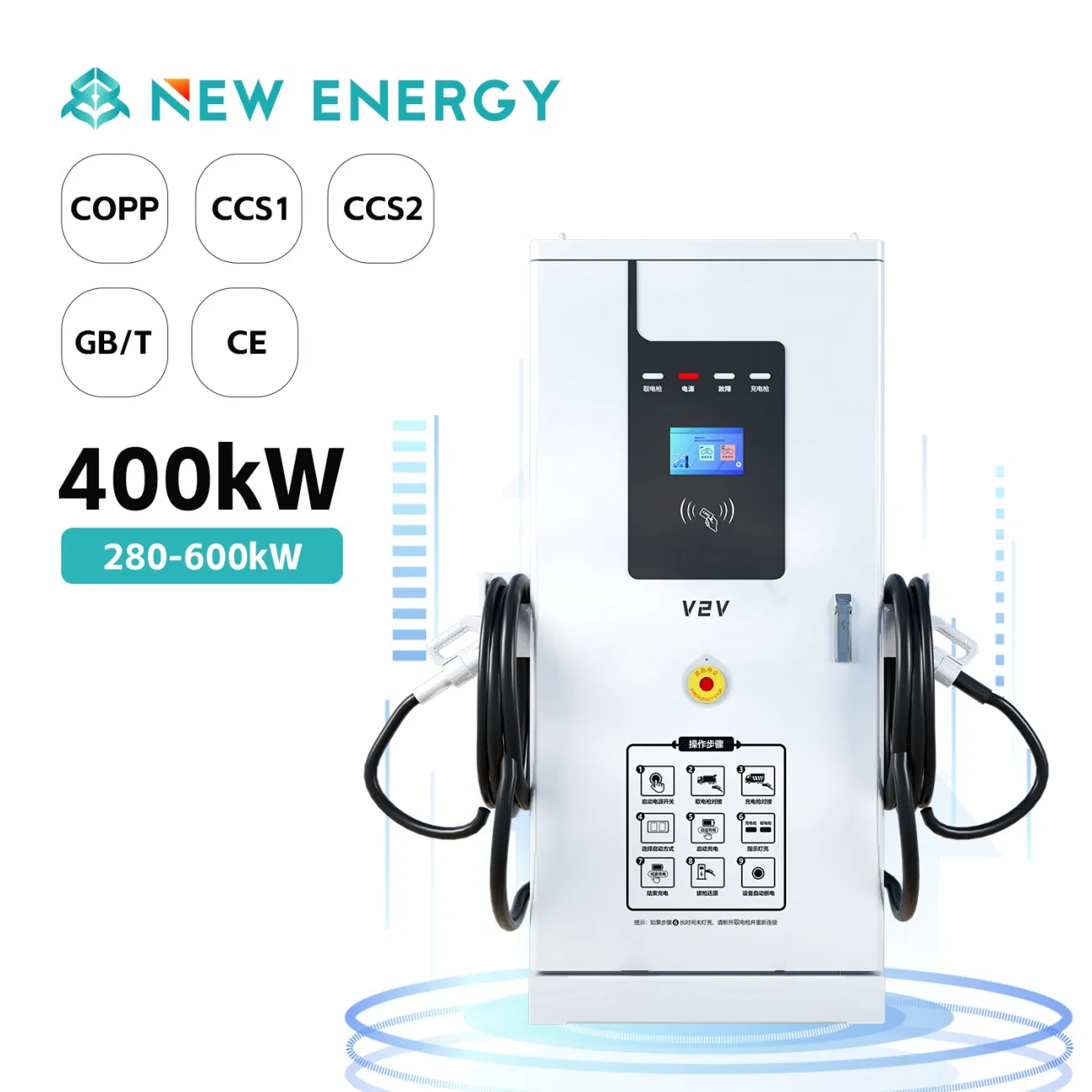

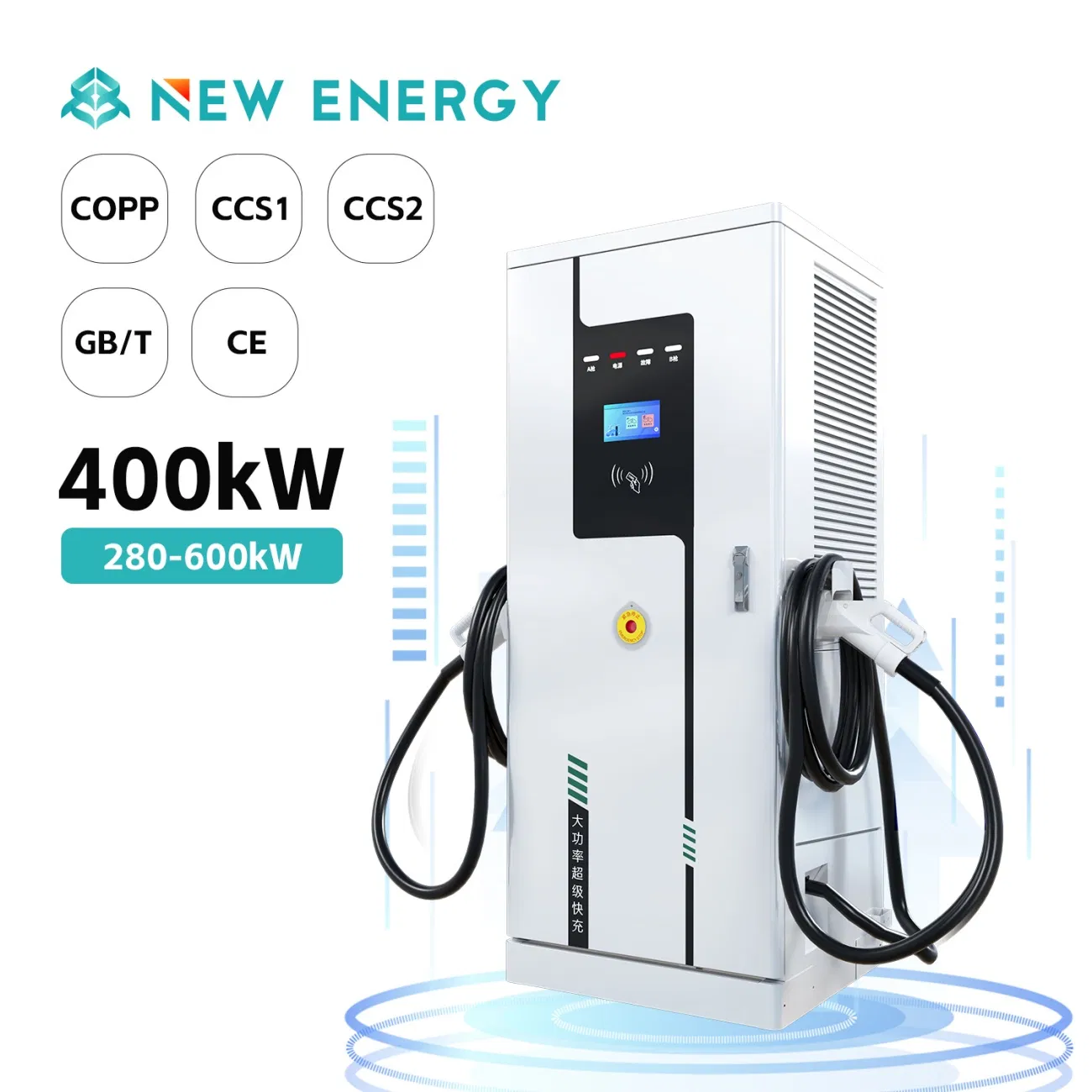

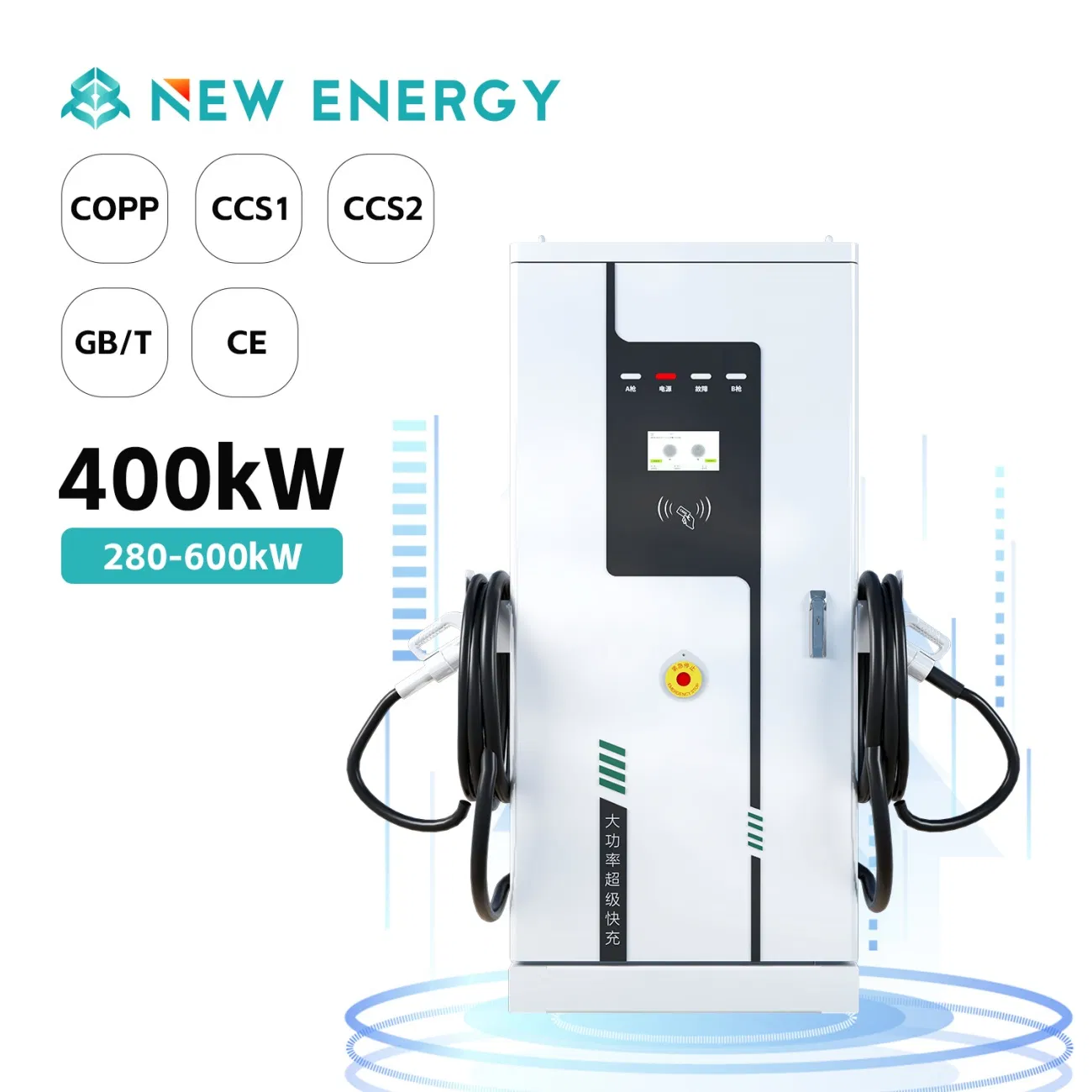

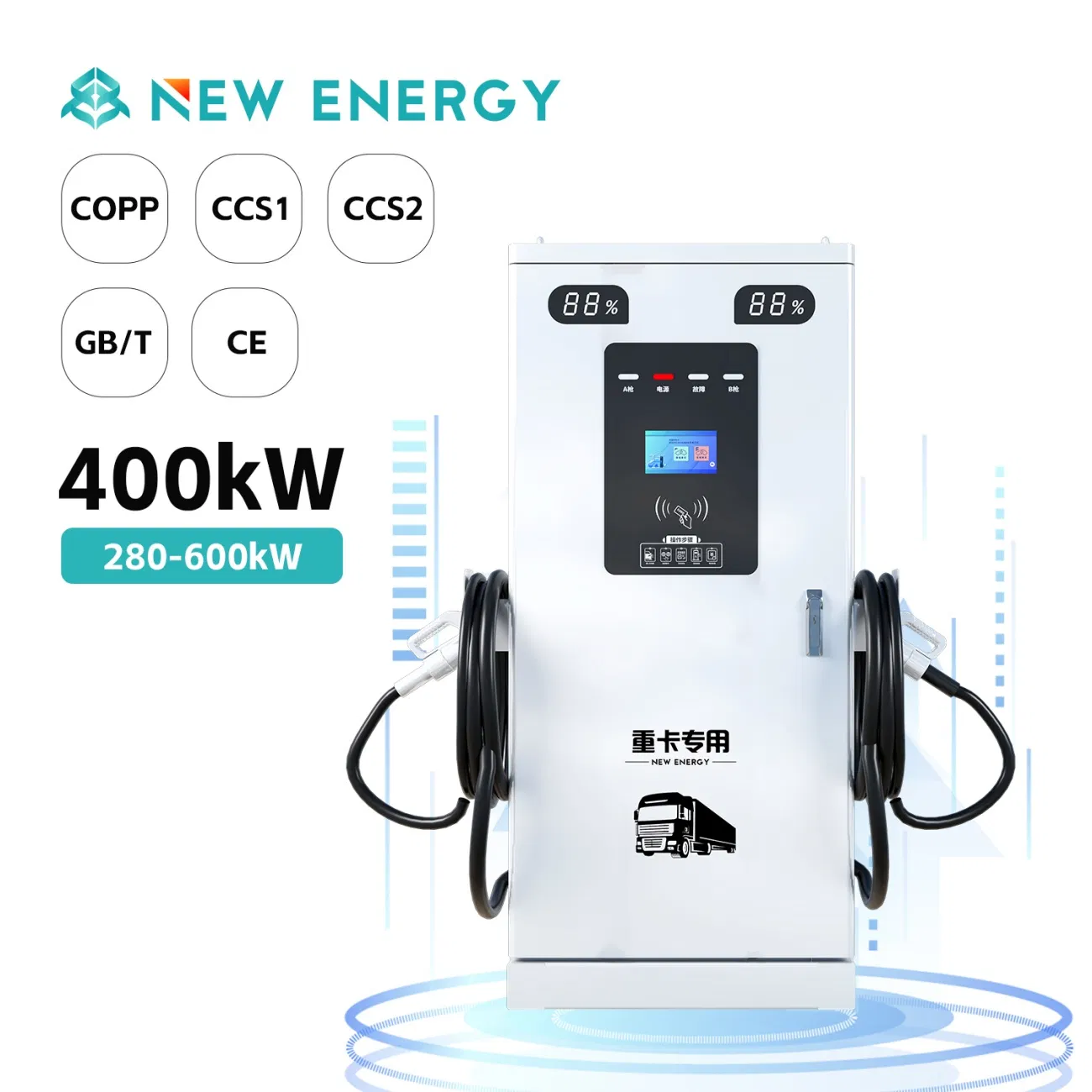

EV Gentle Charging Process Battery Storage Remote Management Charger DC Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

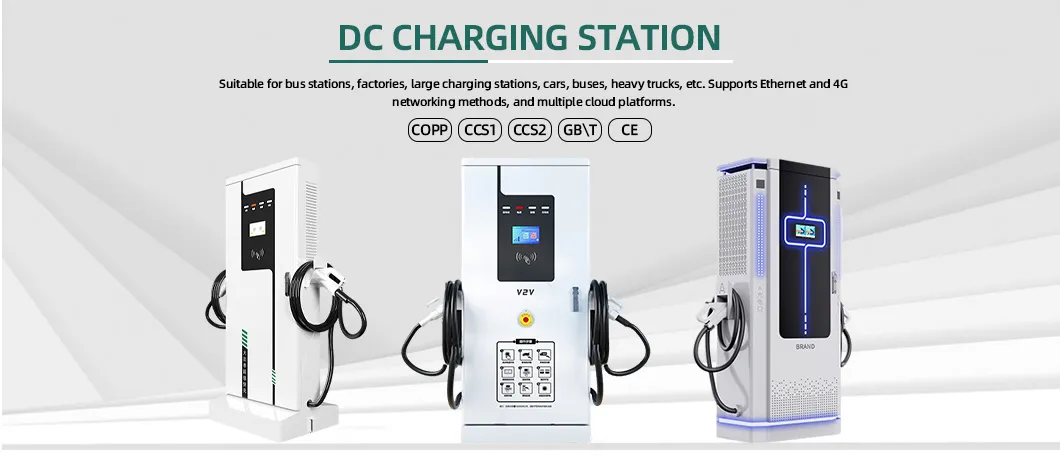

EV DC Charging Station Overview
DC Charging Process
1

Product Introduction

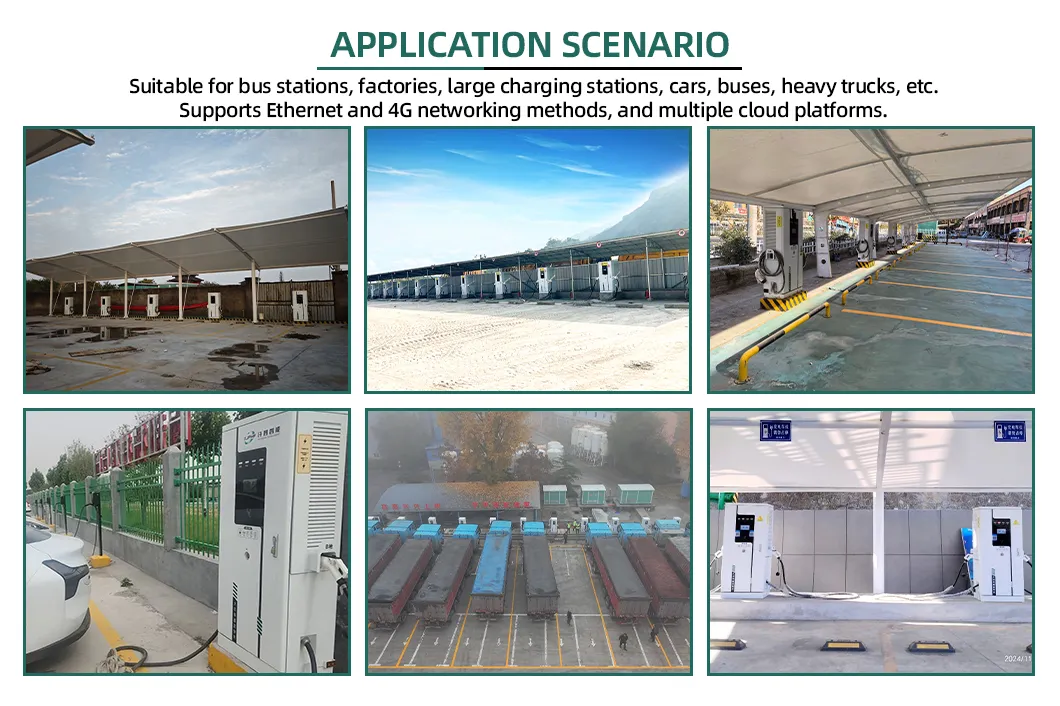

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

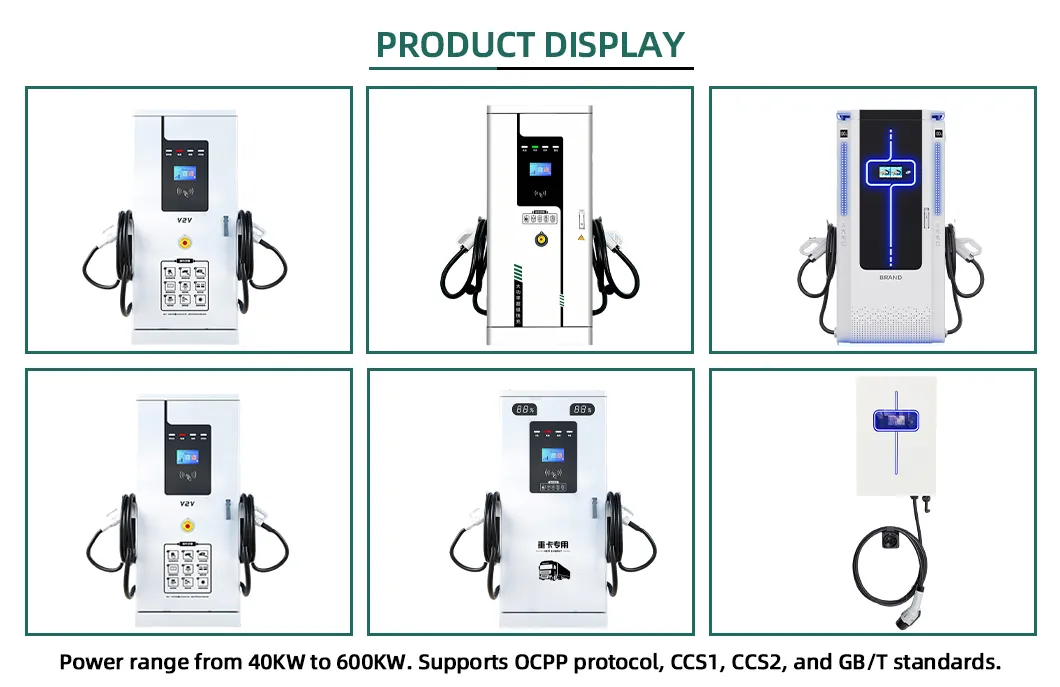

DC Charger Details
2

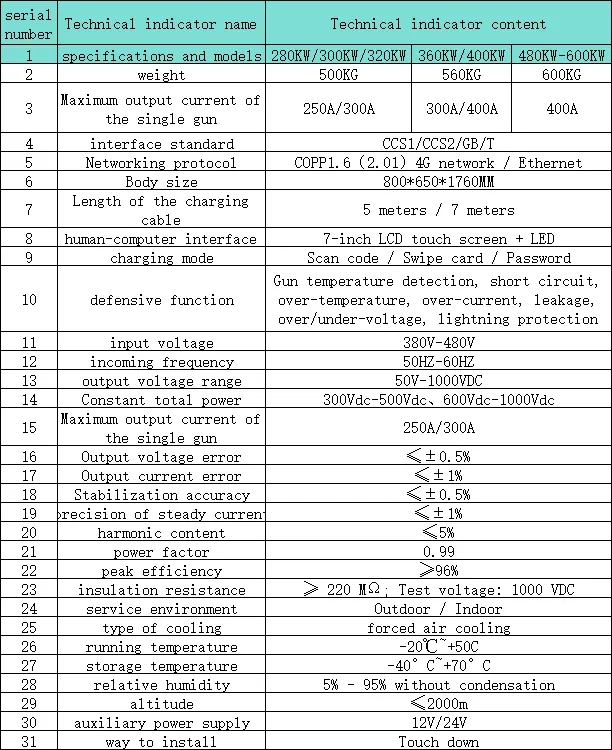

Technical Specifications

Model 80KW-600KW External Dimension 750x410x1700(mm)
Rated Power 40KW-600KW Weight 194KG-274KG
Design Criterion CCS1, CCS2, GB/T Gun Barrel Length 5 Meters
Charging Guns 2 Individual HMI Interface 7-inch LCD Touch Screen + LED
Protection Level IP54 Connection 4G All-Network / Ethernet
Charging Mode Scan Code, RFID Card, VIN Code Safety Functions Over-temp, Short Circuit, Lightning Protection
EV Charger Inner Structure
Charging Interface
3

Product Video Demonstration

4

Professional Certification

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale international exhibitions and have established partnerships with numerous renowned enterprises.
Certification Chart
Industrial Certificates
Factory Testing
5

Packaging & Logistics

We adopt packaging methods that are sufficient to protect the equipment during transit. Our logistics support sea transportation, air transportation, and land transportation to ensure global delivery safety.
Safe Packaging
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a manufacturer. You are welcome to visit our production facility at any time to see our processes firsthand.
What types of EV chargers do you provide?
We offer Wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), and mobile chargers with energy storage.
Can I customize the products with my own logo?
Yes, we provide OEM/ODM services. We can incorporate your specific design and place your logo on the equipment and packaging.
What is the typical delivery time for an order?
Generally, delivery takes between 7 to 35 days after receiving advance payment, depending on the specific items and order quantity.
What are your standard payment terms?
We usually require a 30% deposit via T/T, with the remaining 70% paid before delivery. We provide photos of products and packaging before final payment.
Do you test the equipment before it leaves the factory?
Yes, we conduct a rigorous final inspection and functional testing of all goods before they are dispatched to ensure they meet quality standards.
