Guhe OEM Smart Double Gun 40kw EV Car Public Charging Station Solution Ocpp Commerical CCS2 CCS1 40kw DC Fast Charger

1 / 5

Guhe OEM Smart Double Gun 40kw EV Car Public Charging Station Solution Ocpp Commerical CCS2 CCS1 40kw DC Fast Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

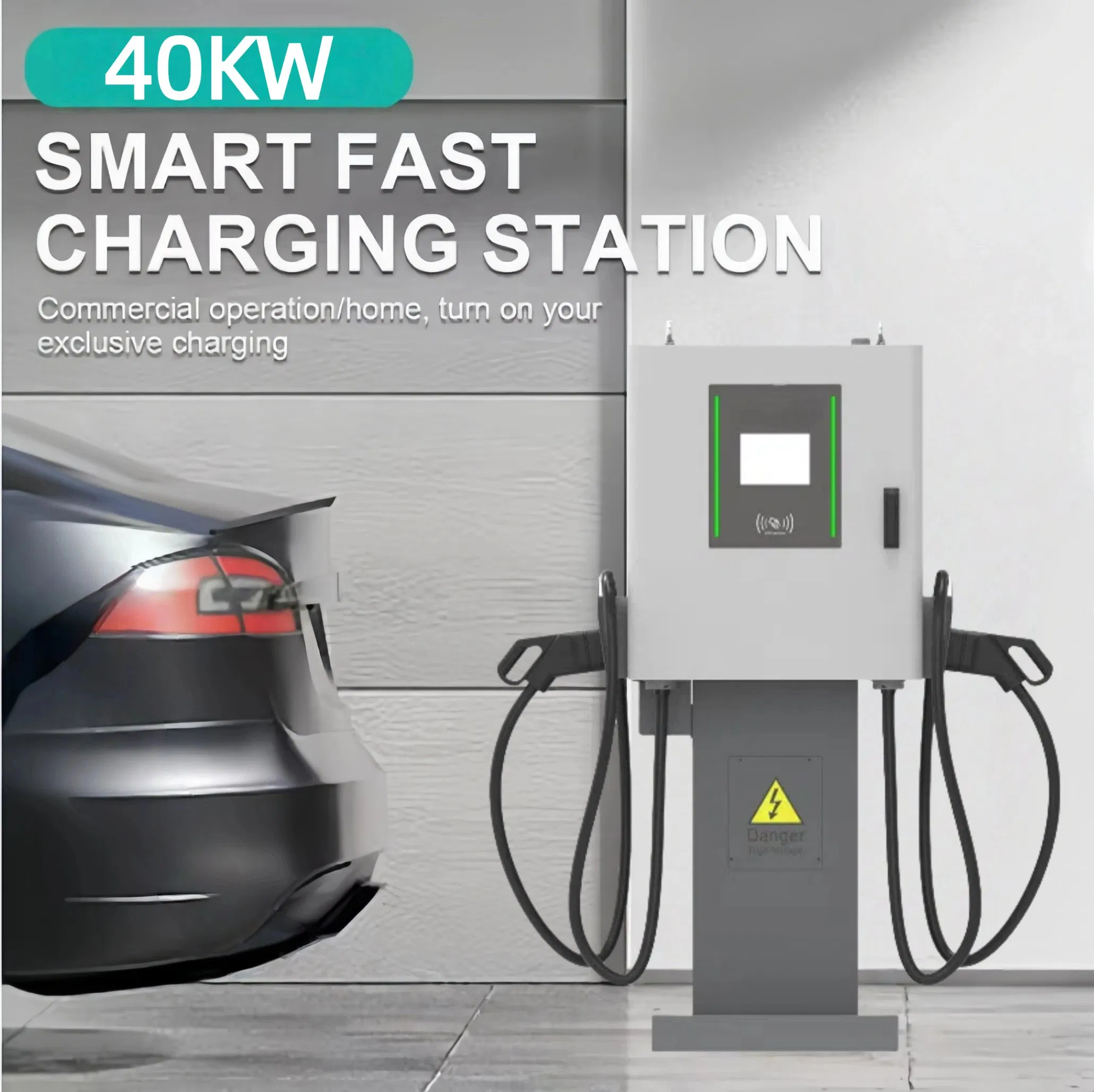

40kW 8 Inches LCD Screen DC CCS2 Smart Charger

Key Features: 200A, 40kW Smart Fast Charging solution for Residential or Commercial applications with OCPP 1.6J support.

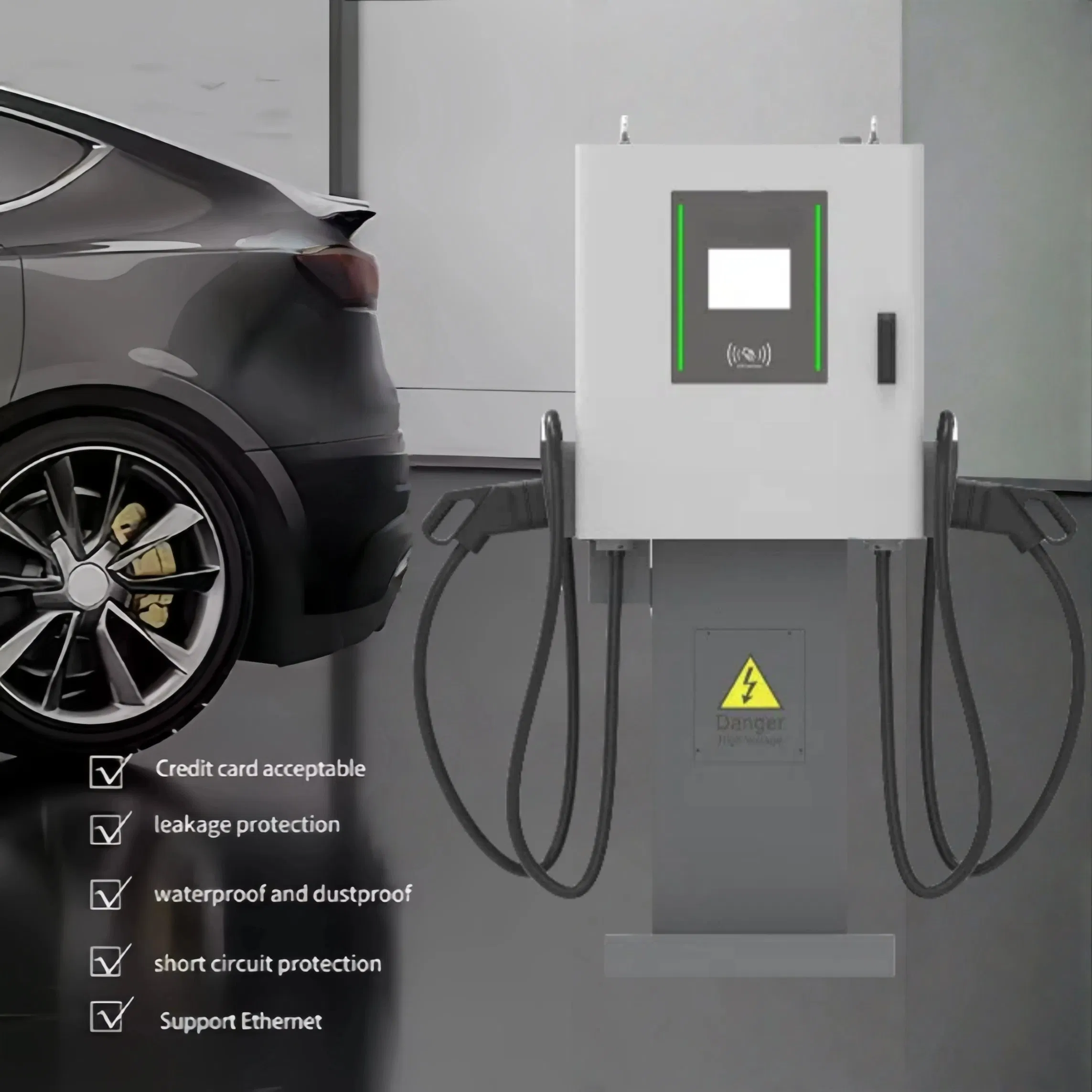

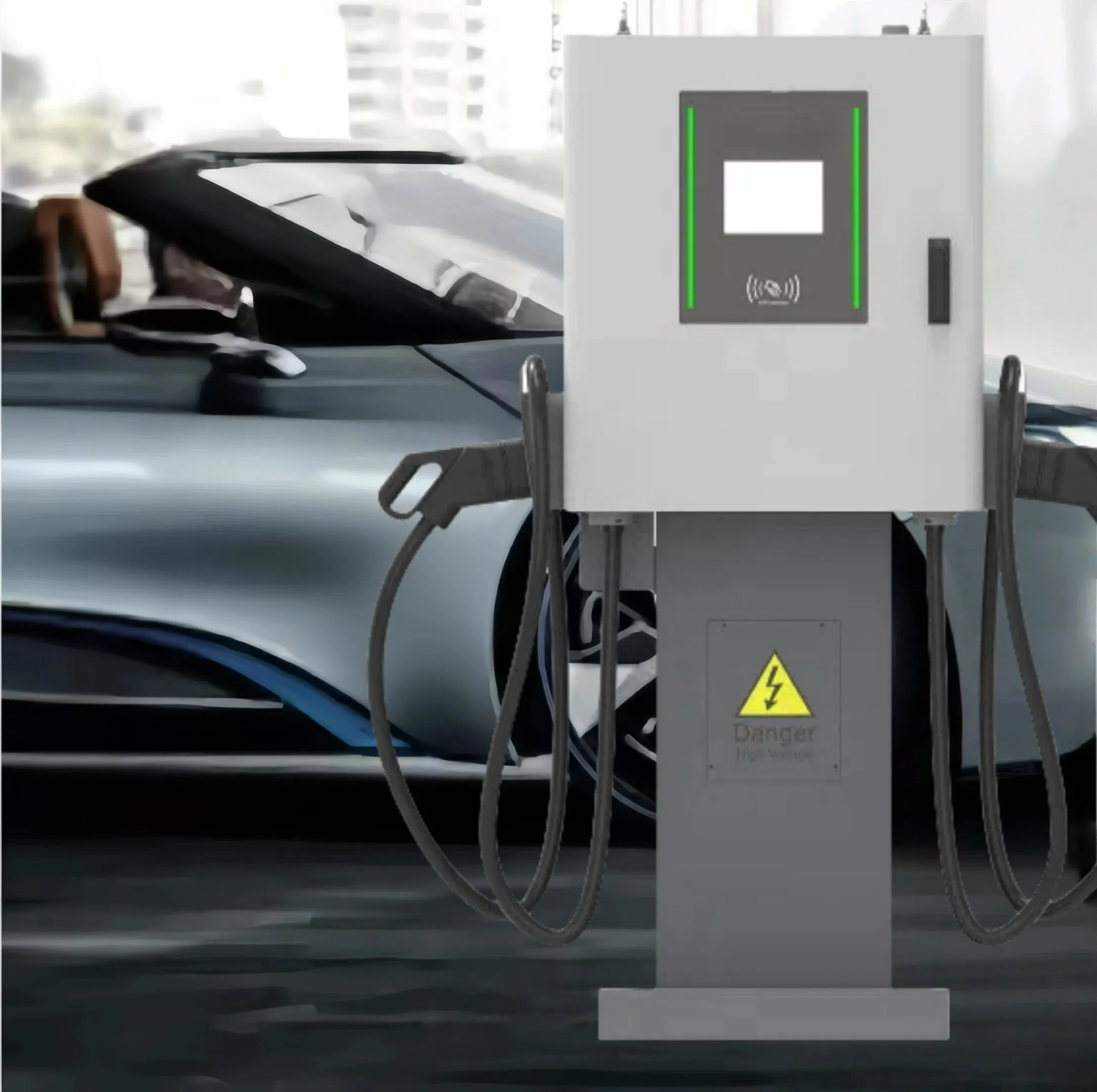

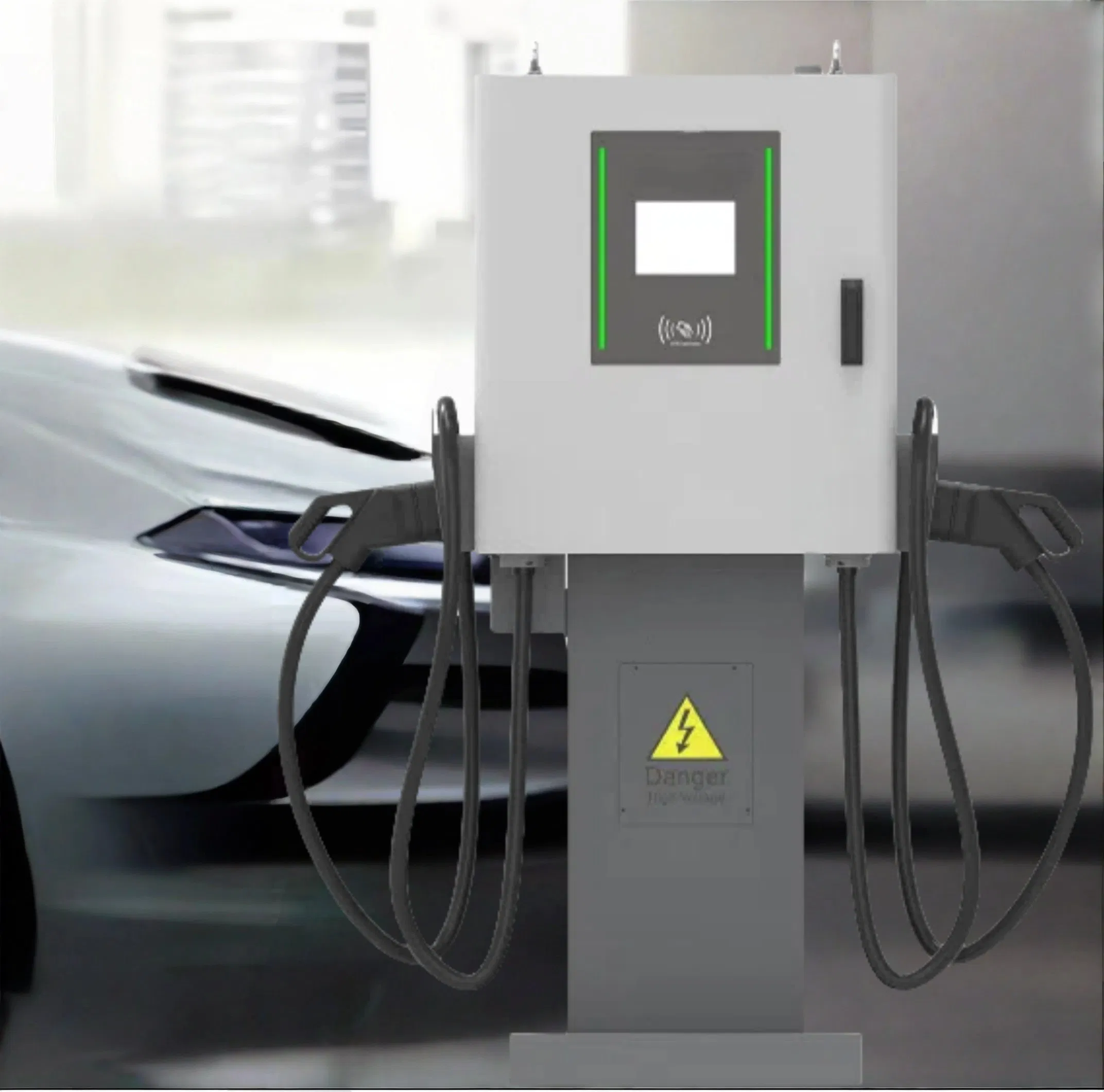

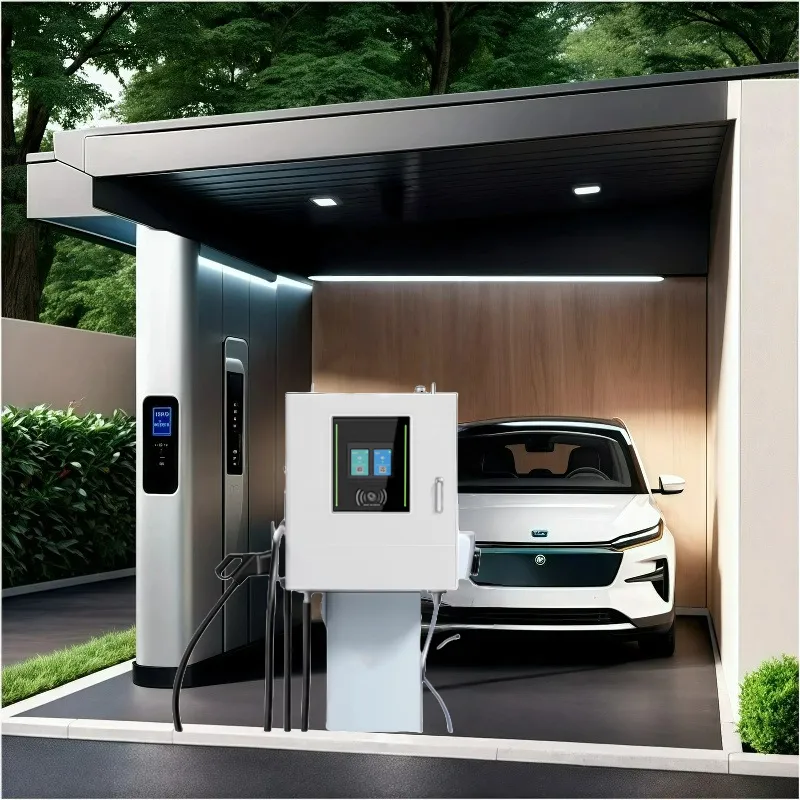

Smart Double Gun 40kw EV DC Fast Charger

Basic Specifications

Model NO.	GHDC40K-J-L2
Location	Private & Public
Charging Interfaces	One Pile with One Charge
Start Mode	Credit Card Payment, Mobile Remote Operation, RFID Authentication
Packaging	Carton Box
Origin	China
HS Code	8504409990

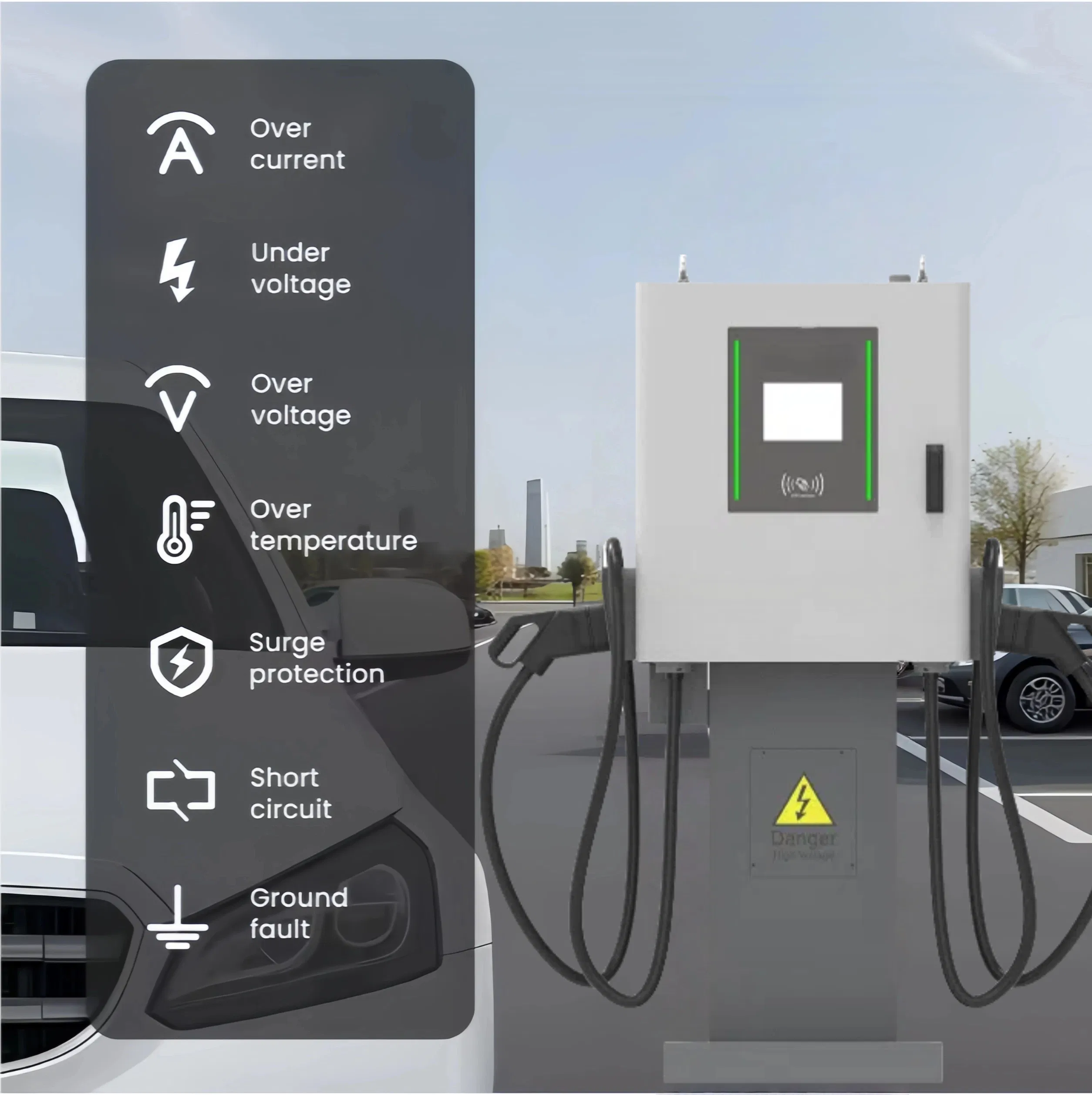

Protection & Control System

🛡️

Multiple Protections:
IP54 Outdoor Rated, Emergency Stop, Leakage, Over/Under Temperature, Lightning Protection, Over Current, Over/Under Voltage, Short Circuit Protection.

📱

Control Options:

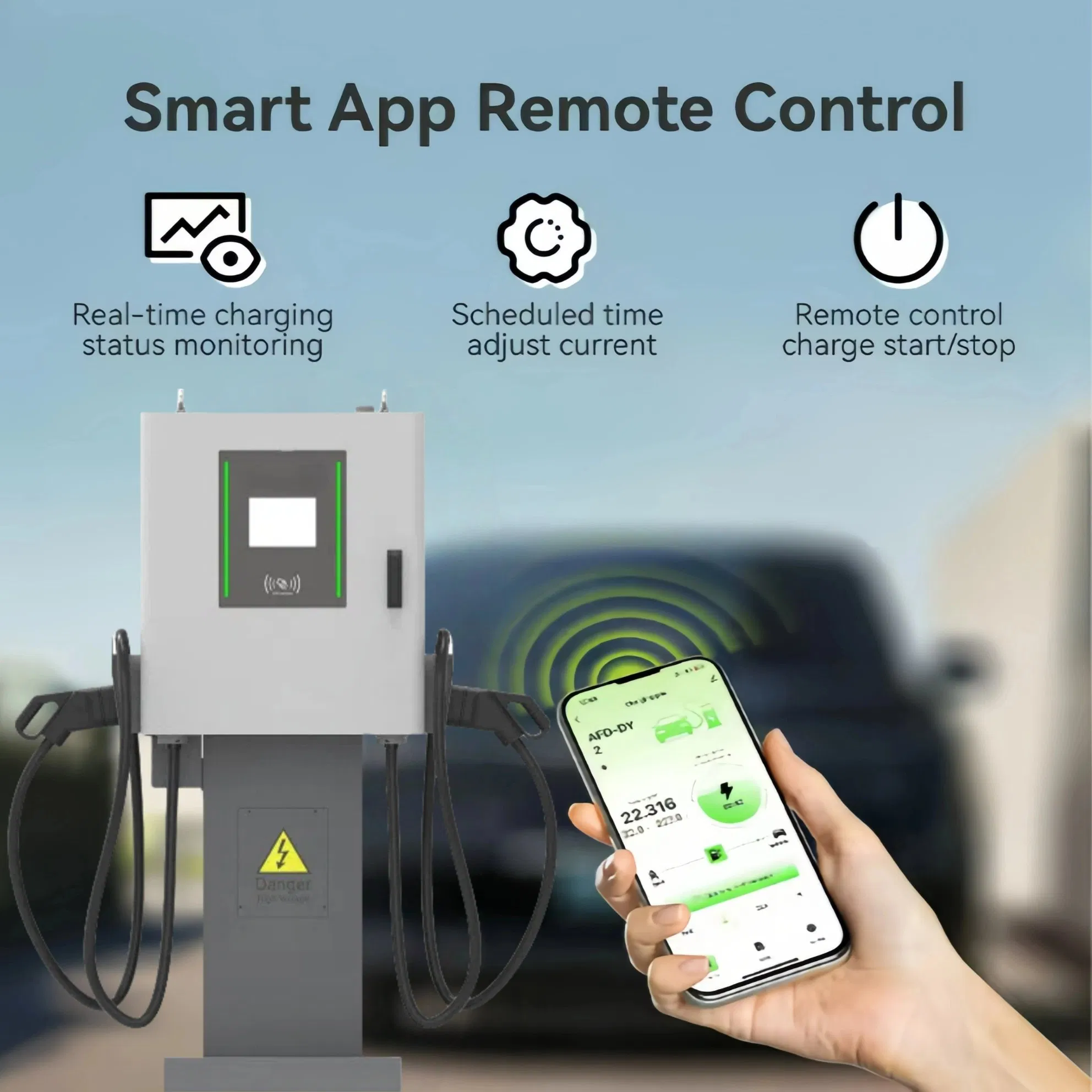

App Remote Control (WiFi/Bluetooth), RFID Card Control, POS Payment Integration.

Technical Specification

Power Options	30kW, 40kW, 60kW
Input Voltage	AC 400V ±15% (30kW); AC440V±10% (40kW); AC480V±10% (60kW)
Operating Frequency	45~65Hz
Phase	Three Phases
Input Power Factor	≥0.99
Max Output Current	125A (30kW), 200A (40kW), 200A (60kW)
Output Voltage Range	DC 150-1000V
Max Efficiency	≥94%
Communication	OCPP1.6 JSON, LAN / 4G (Optional)
Interface	8 inches Touch LCD Screen + LED Indicators
Cable Length	Standard 5m (Single or Double Gun)
Operating Temp	-30℃ to +50℃
Dimensions	6903571686mm (30-40kW)

Service & Support

✅

24-Month Warranty
Comprehensive coverage against manufacturing defects.

⚙️

Core Components
Free replacement for essential charging modules.

🛠️

Technical Support
Lifetime free technical guidance on working days.

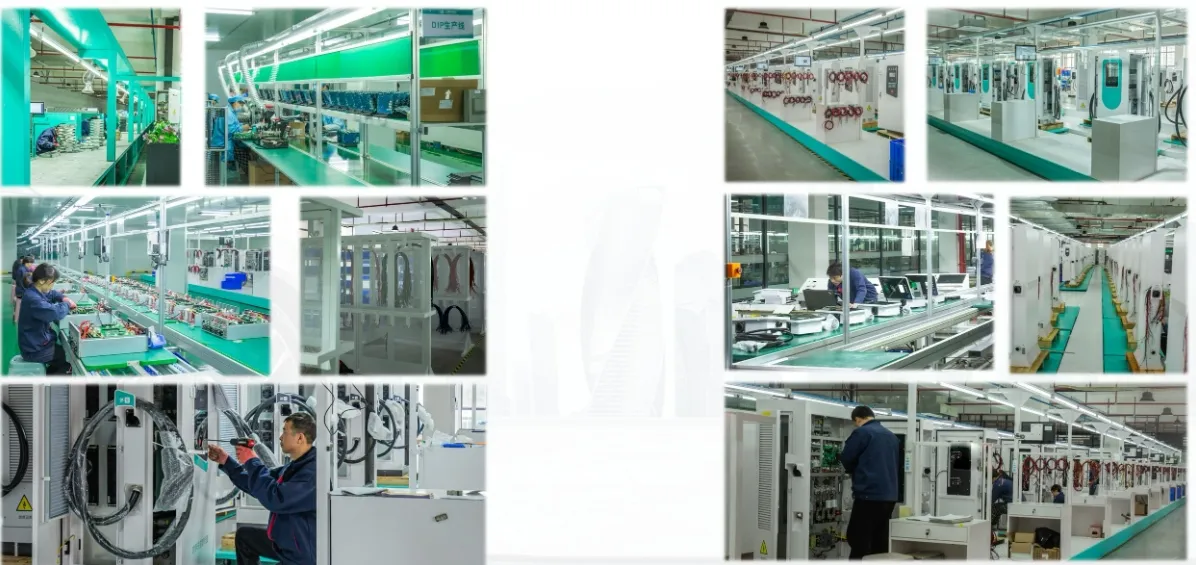

Manufacturing Excellence

Production Capacity: 5,000 units/month
Quality Standards: ISO 9001, ISO 45001, IATF 16949 Certified Factory.

International Certifications

ISO9001

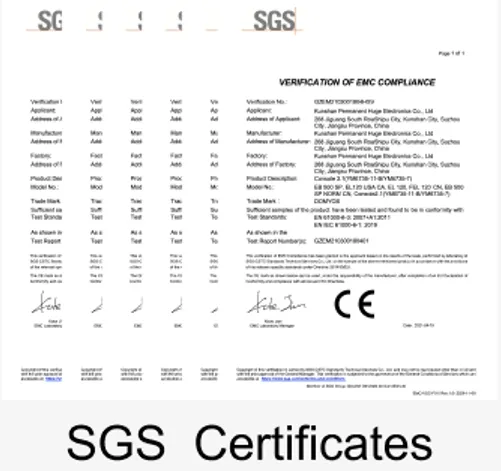

SGS Certificates

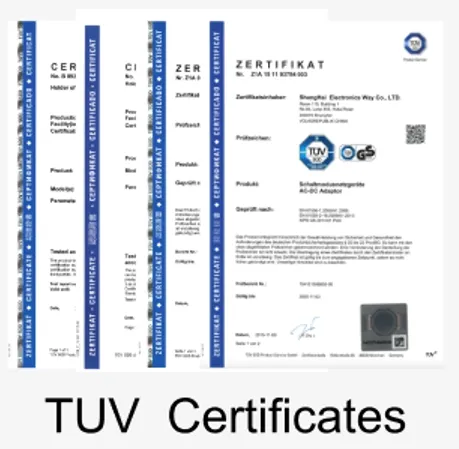

TUV Certificates

Frequently Asked Questions

Q: How long is the standard charging cable?

A: The standard length is 5 meters, but we offer customization for 7 meters, 10 meters, or longer based on your requirements.

Q: Can I customize the charger with my own branding?

A: Yes. We support full customization including housing color, logo placement, RFID card design, and customized App interfaces.

Q: What are the shipping options?

A: Due to the weight of the equipment (approx. 200kg), we primarily ship via sea freight to ensure the most cost-effective delivery.

Q: Does the charger support OCPP for commercial management?

A: Yes, it supports OCPP 1.6 JSON, allowing you to connect to most global charging station management platforms.

Q: What is the operating temperature range?

A: The charger is designed to operate reliably in environments ranging from -30℃ to +50℃.

Q: What is the warranty period for this DC charger?

A: We provide a 24-month warranty against manufacturing defects and offer free replacements for core components during this period.
