Irvion Charger
1 / 5
| Model NO. | QSCDD |
|---|---|
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |
| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Shell Material | Customized |
| Service Life | 8 Years; 10 Years |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load); ≥0.92 (Light Load) |
| Harmonic Distortion | ≤5% (Total Harmonic Distortion); ≤3% |
| Functions | Voice Broadcast, Remote Control, Networking (Customized) |
| Transport Package | Wooden Box |

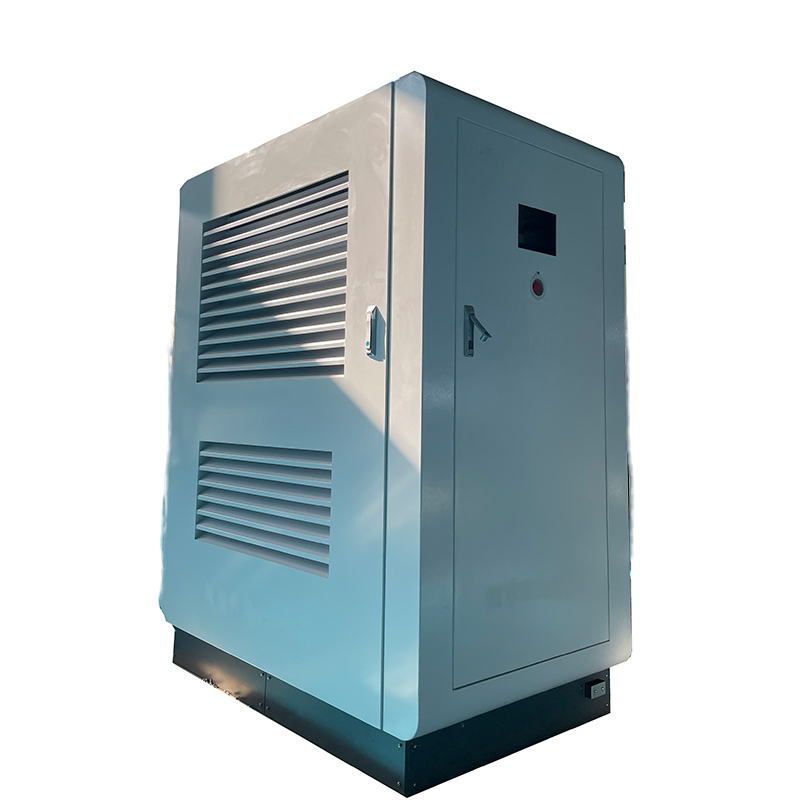

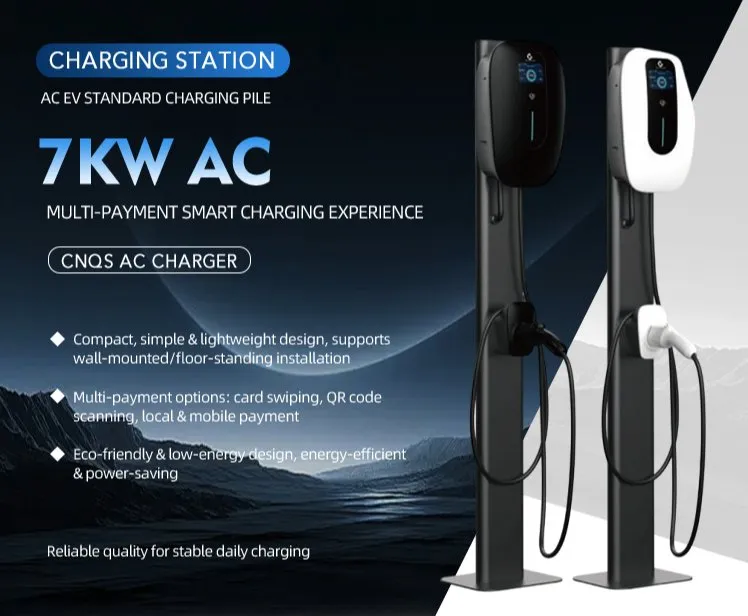

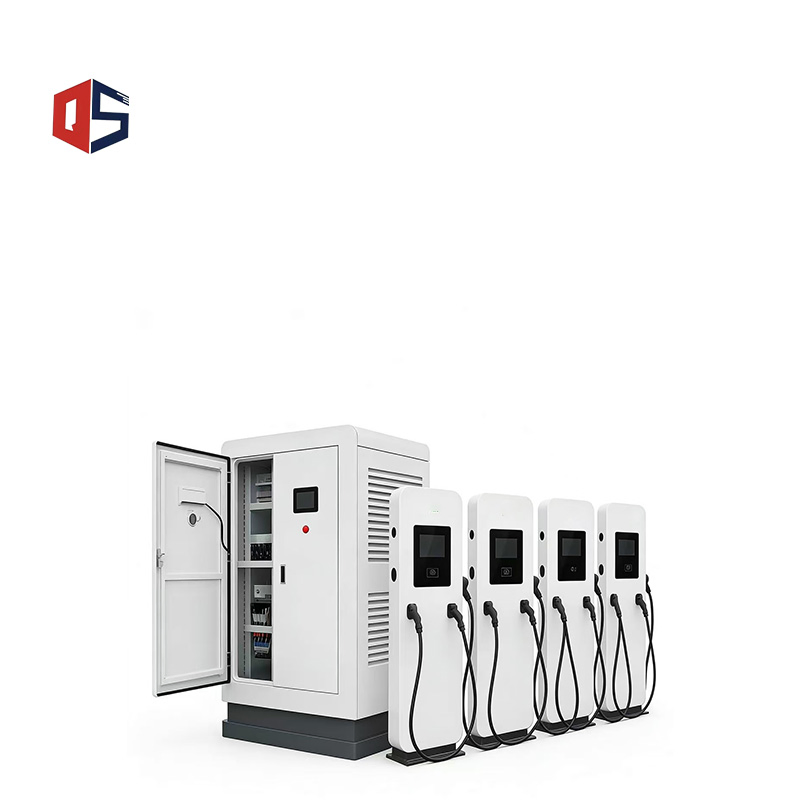

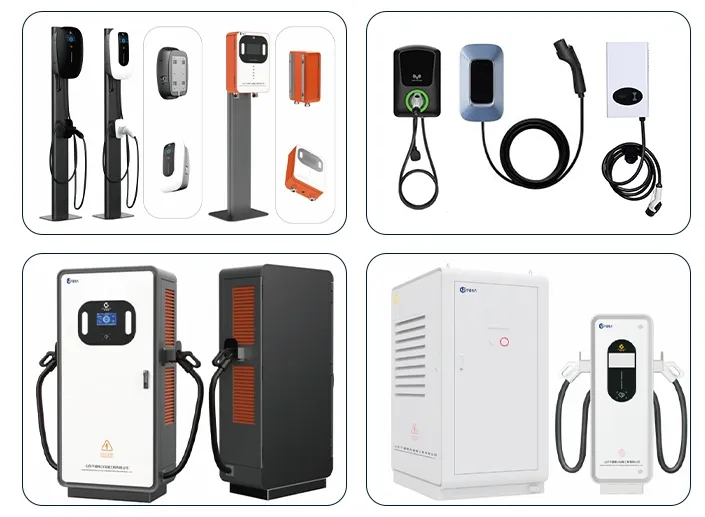

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. All of these have stylish designs, stable frameworks, and complete functionality. Flexible customization through modular power configuration makes them easy to maintain.
| Parameter | Value |
|---|---|
| Type | EV charging station |
| Power | 20KW 40KW 120KW 160KW 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Working Frequency | 50/60±10% |
| Output Voltage | 200~1000V |

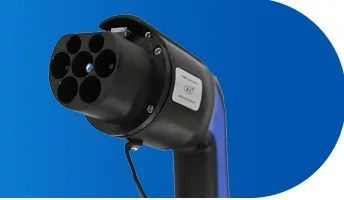

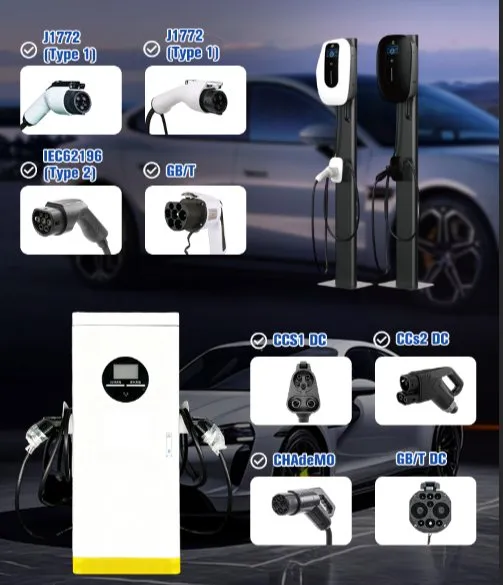

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet / OCPP1.6J |
| Protection | IP55 / -20℃~+50℃ Operating Temp |
• Global certifications (CE/UL/PSE/KC), 100% compliance rate.
• ISO 15118-20 standard + PNC Plug & Charge.
• V2G vehicle-to-grid protocol supported.
• Billing accuracy ±0.5%.
• 80% power replenished in 30 mins.
• IP65 dustproof & waterproof (-30℃ to 60℃).

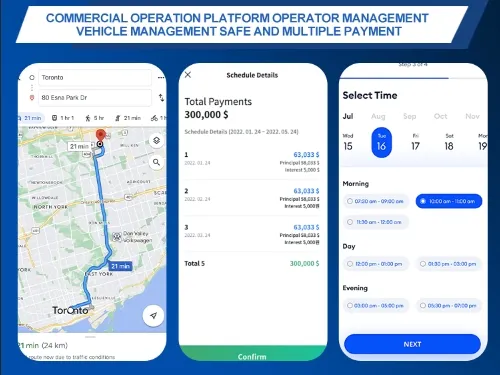

• Supports Apple Pay/Google Pay.

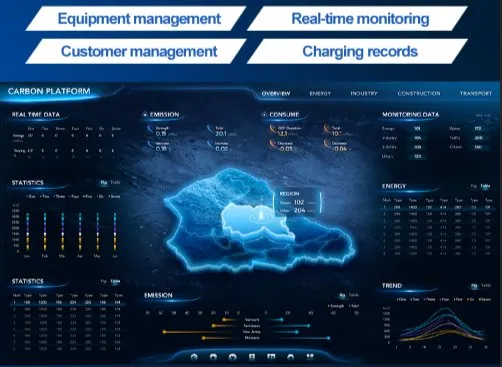

• Remote diagnosis of 40 core parameters.

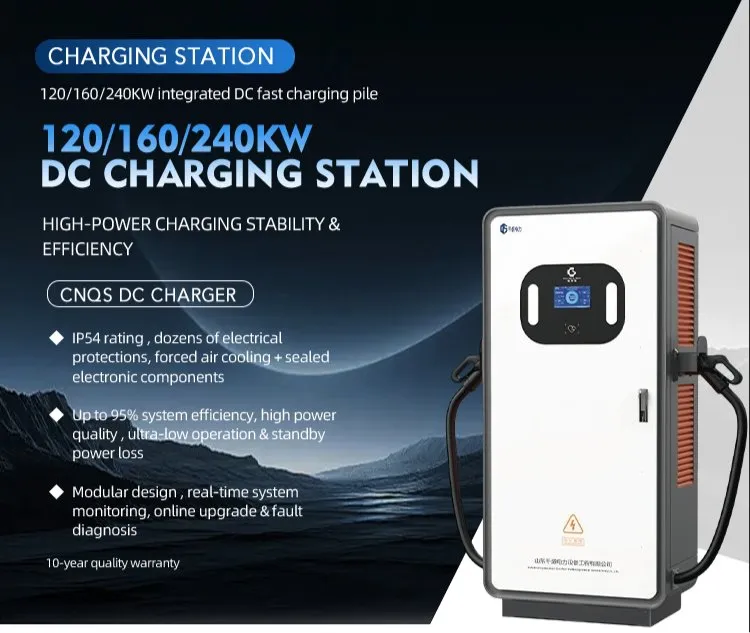

• 120kW: 300+km range in 30 mins.
• 160kW: 80% battery in 25 mins.
• 240kW: Ultra-fast 15 min charge to 80%.
• Dual-gun simultaneous charging + modular design.
| Package Size | 120.00cm * 45.00cm * 155.00cm |
| Gross Weight | 60.000kg |
| Standard | Heavy-duty Wooden Box Export Grade |

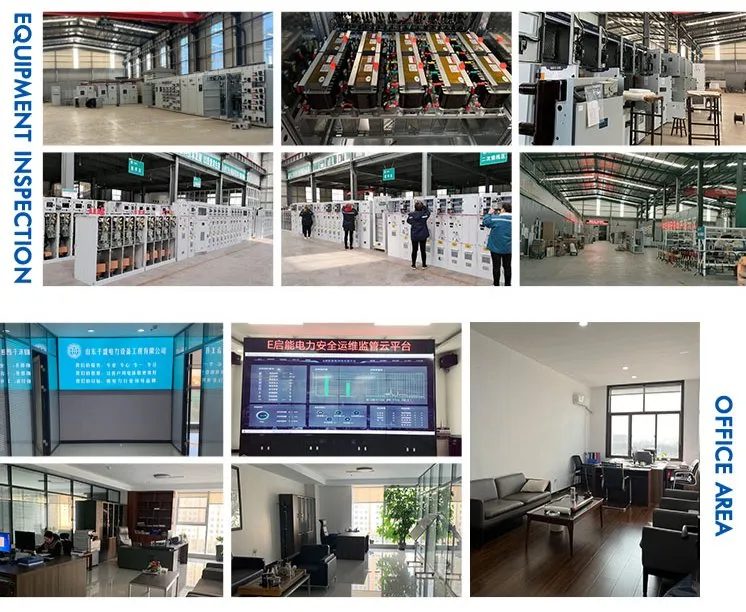

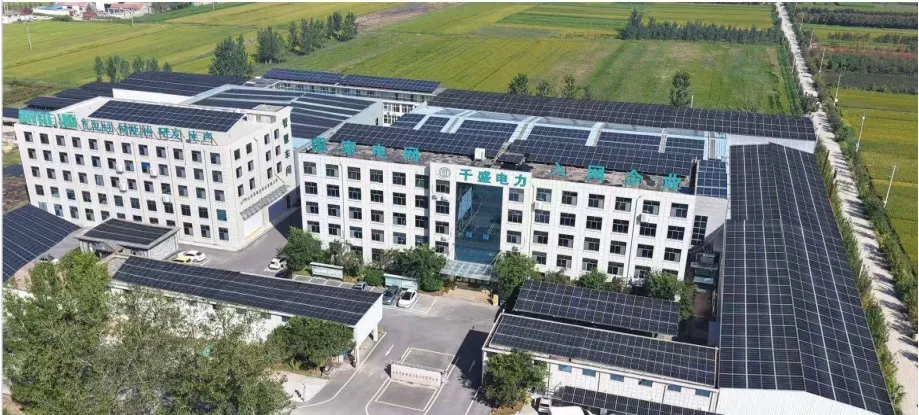

Established amid rapid economic growth, our facility covers over 16,000 stere and employs nearly 100 professional staff. With 20+ years of expertise, we serve global markets with reliable power distribution and new energy solutions.
Certifications: ISO9001:2000, ISO14001, CCC, CQC, and CE/UL/PSE compliance for international markets.
