Basic Info
Interfaces
One Pile with One Charge
Start Mode
RFID, Credit Card, Mobile Remote
Dimensions
570mm X 210mm X 470mm
Standard
GB/T, CCS2, CCS1, CHAdeMO, NACS
Input Voltage
400VAC (3P+N+PE)
Output Voltage
200 - 1000VDC
Product Description

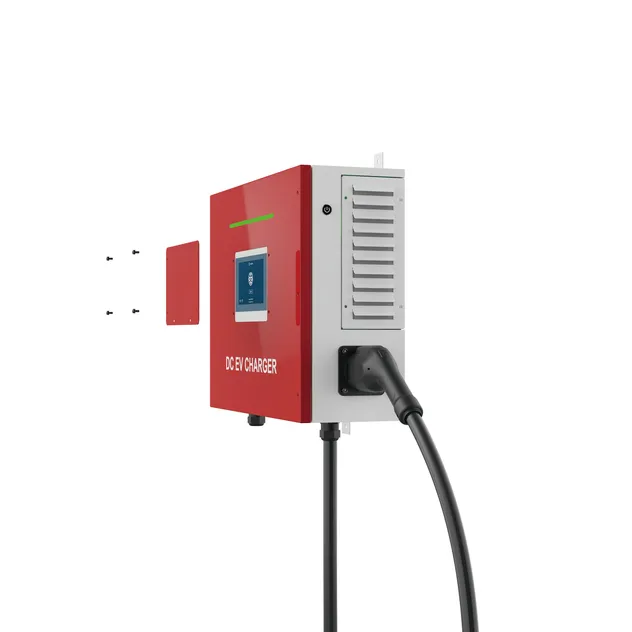

20kW-40kW wall-mounted DC charging

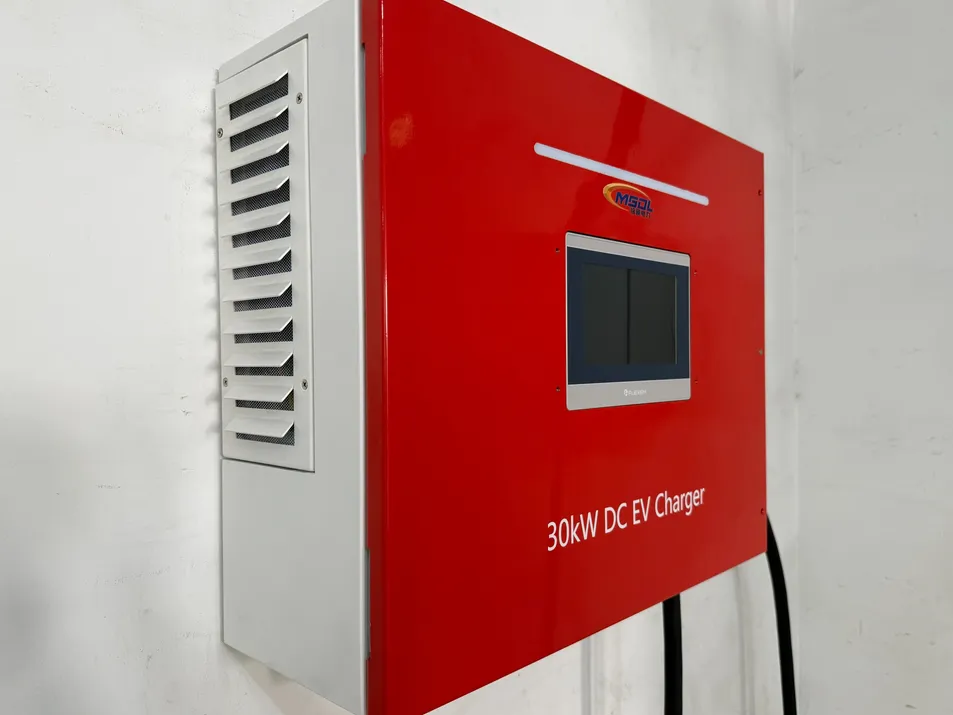

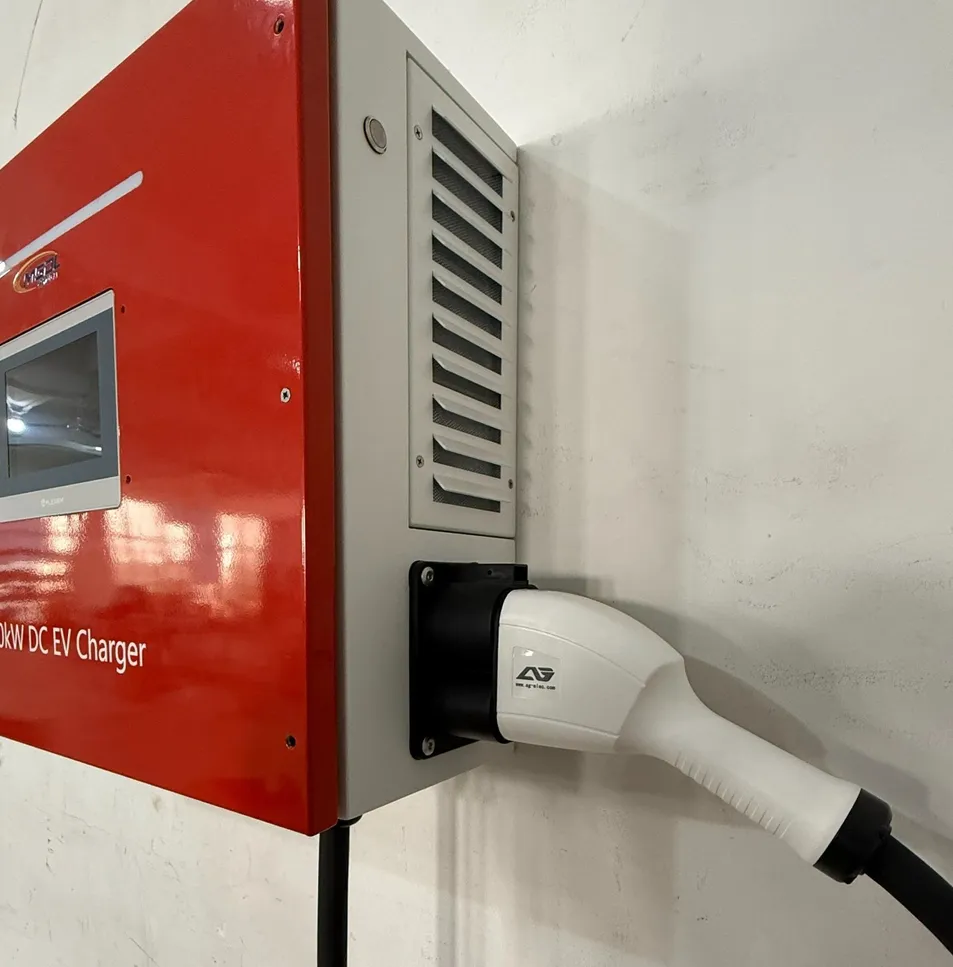

This 20/30/40kW series wall-mounted DC EV charger features a "minimalist and non-redundant" design, combining high cost-effectiveness with practical adaptability. The body comes with pre-drilled installation holes and can be quickly deployed with matching expansion screws, requiring minimal space for installation—suitable for community parking lots, shop exteriors, or home parking spaces. The whole unit adopts an IP54 waterproof design, which can adapt to outdoor or semi-outdoor usage scenarios in various environments.
In terms of performance, it offers three power options with an output voltage range of 200-1000VDC and a peak efficiency of 96%. Equipped with air-cooled heat dissipation technology, it operates stably in a wide temperature range of -30°C to 75°C. It also features a 7-inch touch screen and supports the OCPP protocol, compatible with mainstream operating platforms for intuitive operation and easy management.
Technical Specification
| Category |
Parameter |
Details |
| Structure |
Dimensions (L x D x H) |
570mm x 210mm x 470mm |
| Weight |
40kg (wall-mounted) |
| Cable Length |
3M |
| Connectors |
GBT, CCS2, CCS1, CHAdeMO, NACS |
| Electrical |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
| Output Voltage |
200 - 1000VDC |
| Rated Power |
20-40kW |
| Peak Efficiency |
≥96% |
| Functional |
Display |
7’’ LCD with touch screen |
| Communication |
OCPP, WIFI, Ethernet, 4G (Optional) |
| Environment |
Operating Temp |
-30°C to 75°C |
| Protection |
IP54 || IK10 |
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 8 years.
What is the warranty period for the DC charger?
The warranty is 12-60 months. During this period, we supply technical support and replace parts free of charge.
What are your terms of packing?
Standard wooden box packaging or standard carton packaging are used to ensure product safety.
What is the expected delivery time?
Generally, it takes 5 to 25 working days after receiving advance payment, depending on the item and quantity.
Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before delivery to ensure quality.
What is the difference between a Movable Charger and a Wallbox?
The main difference is application. Portable chargers are for mobility and temporary top-ups, while wallboxes are fixed installations for designated parking spaces.
