Large Capacity Battery Three-Phase Portable Solar Generator Power Station with Wireless Charging.

1 / 5

Large Capacity Battery Three-Phase Portable Solar Generator Power Station with Wireless Charging.

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.EP12000iL

Weight100kg

Warranty5 Years

Charging MethodAC, Solar, EV Charger, Driving Charging, DC, Wind

Battery ExpansionYes, Max 245kwh

Fast ChargingYes, 70mins Fully Charged

CertificatesCE RoHS IEC62619 Un38.8 MSDS

Cell TypeLithium LFP

Battery Cycle Life>3000 Cycles to 80%+ Capacity

PortabilityDrawbar & Wheels

Product Advantages

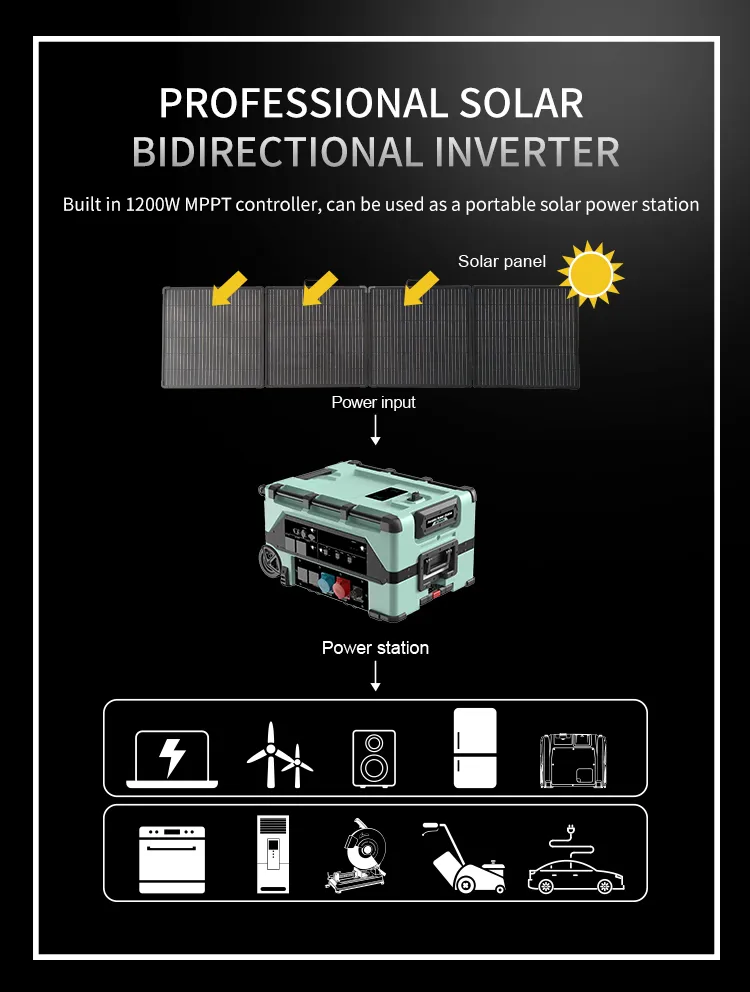

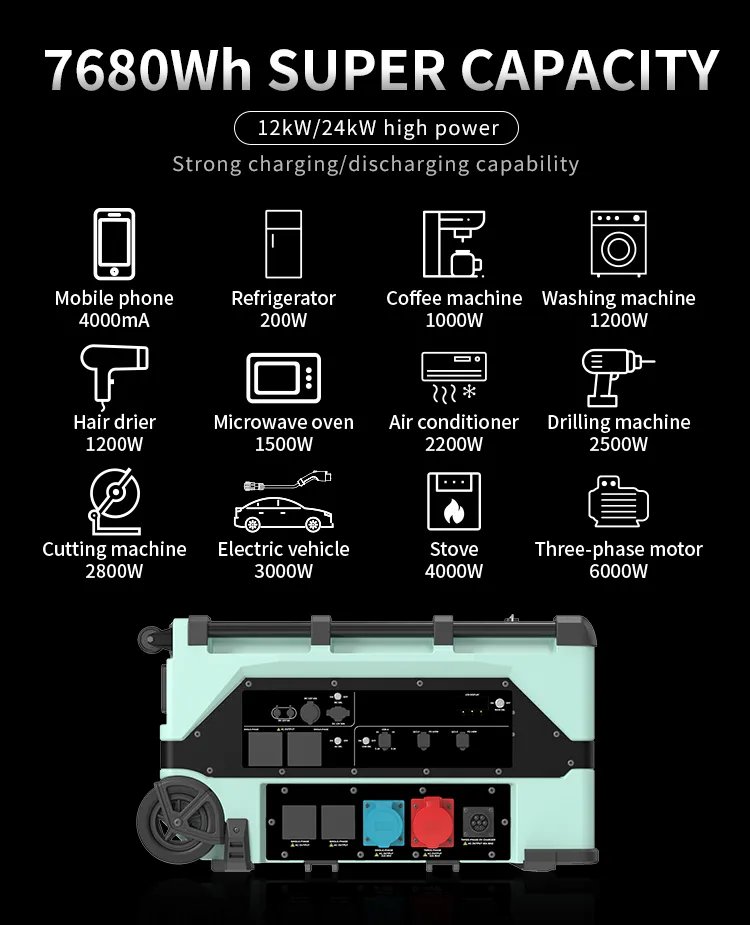

✓Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for superfast 8.5kW charging speed.

✓Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

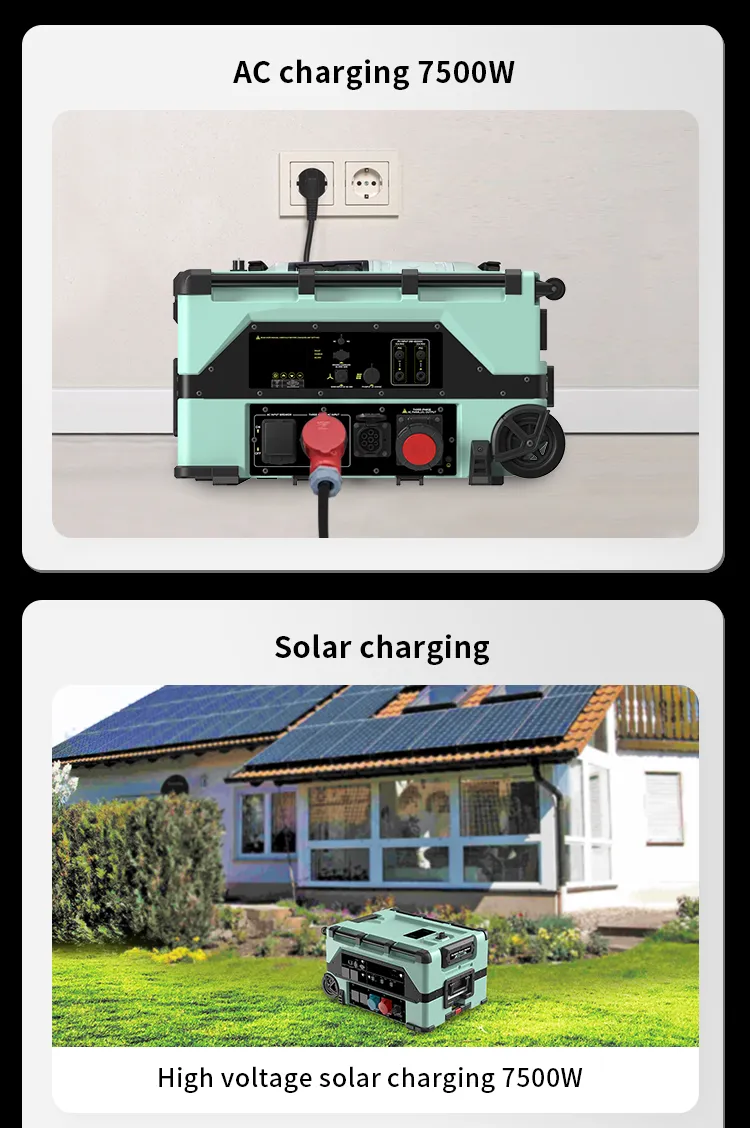

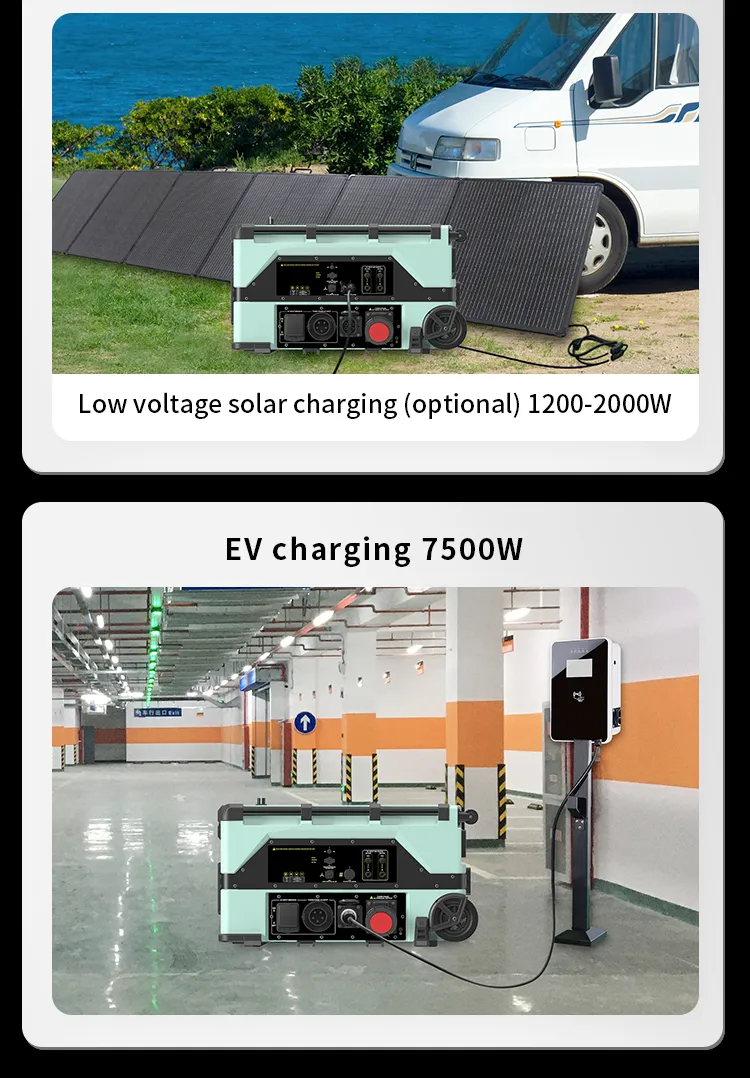

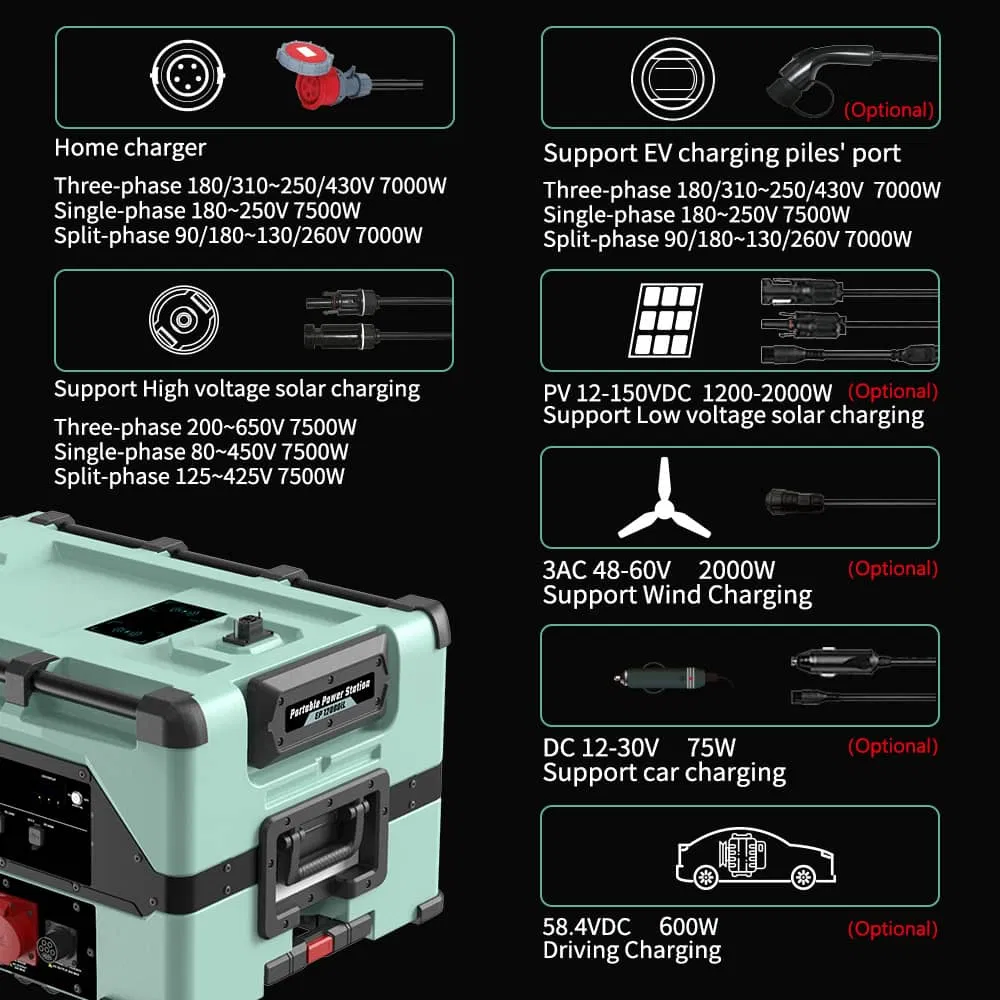

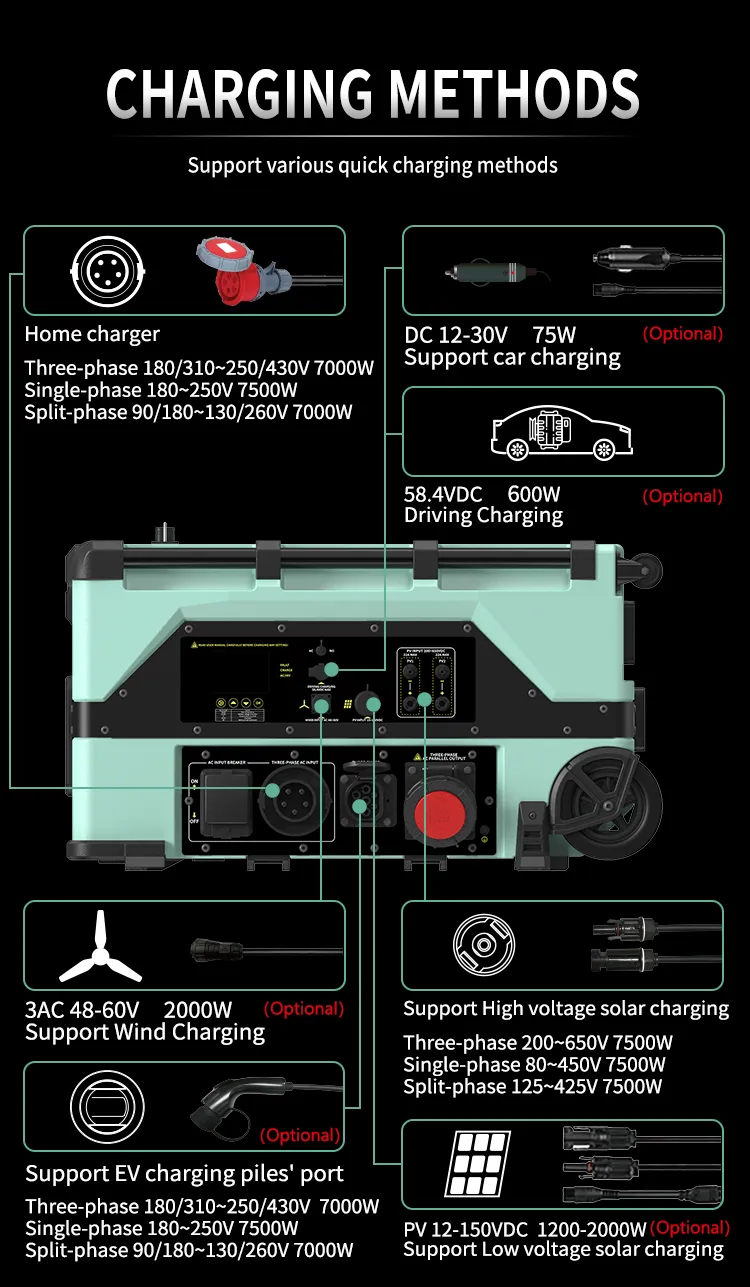

✓Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

✓Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

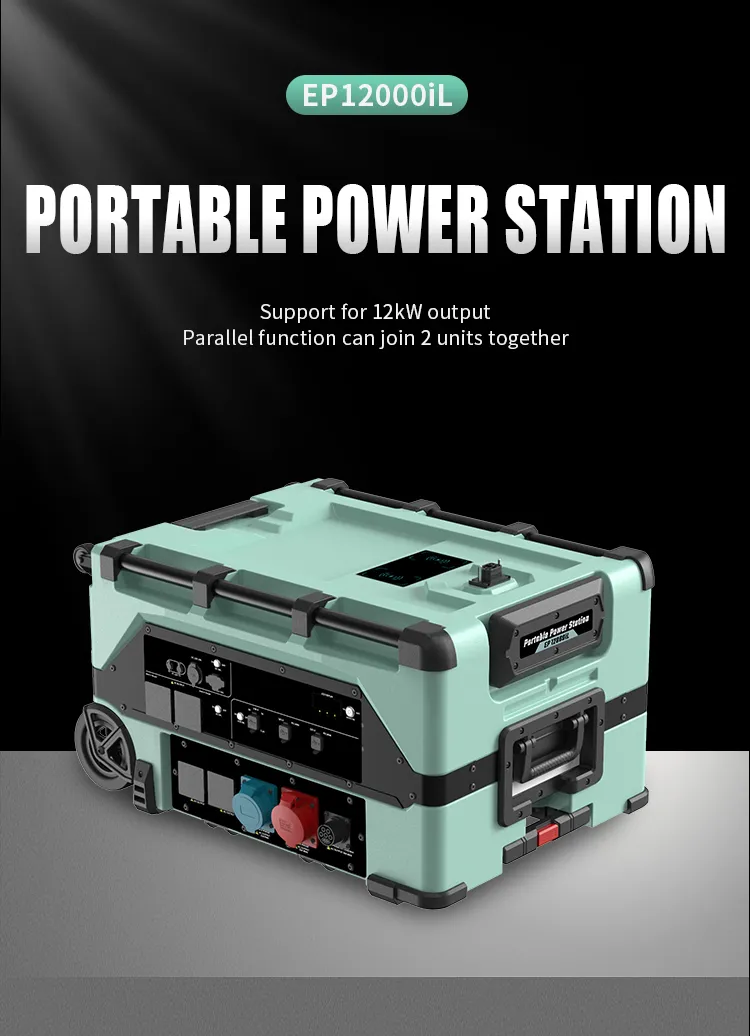

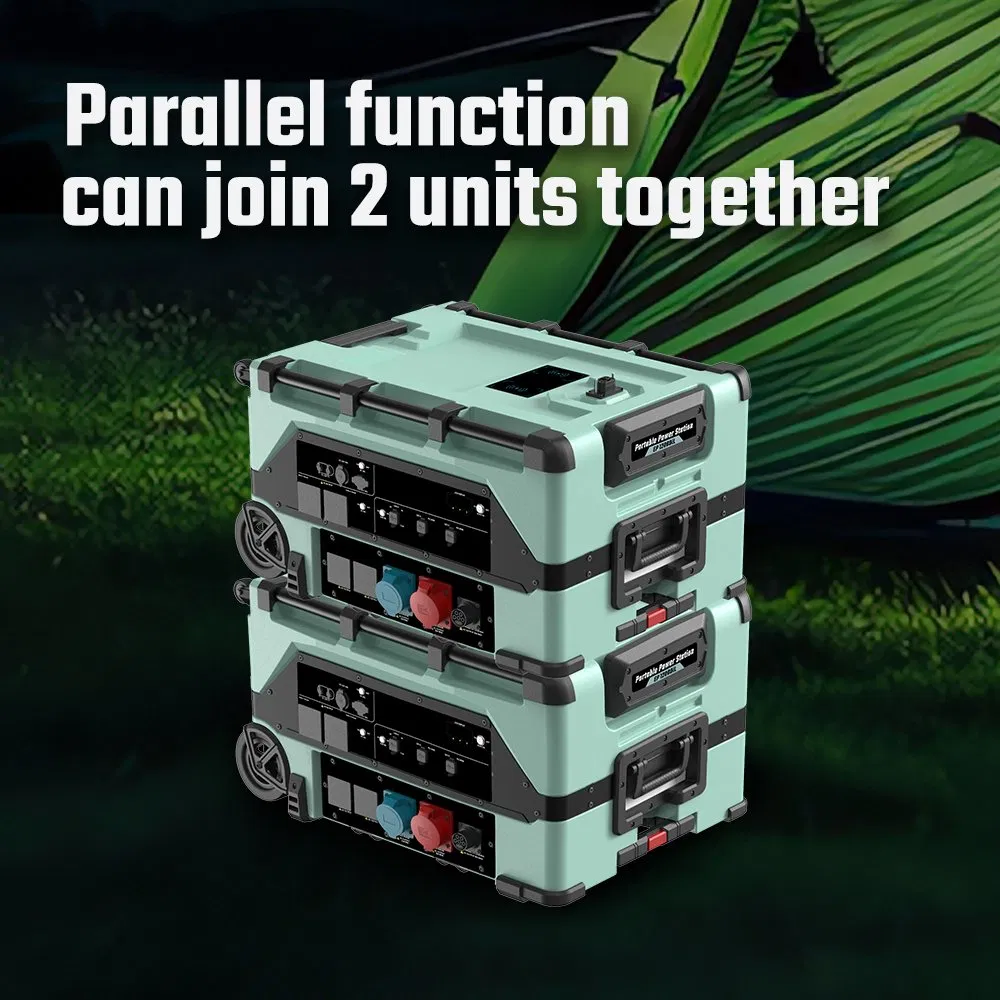

✓Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW.

✓Built-in electric vehicle charger, can charge cars up to 22kW.

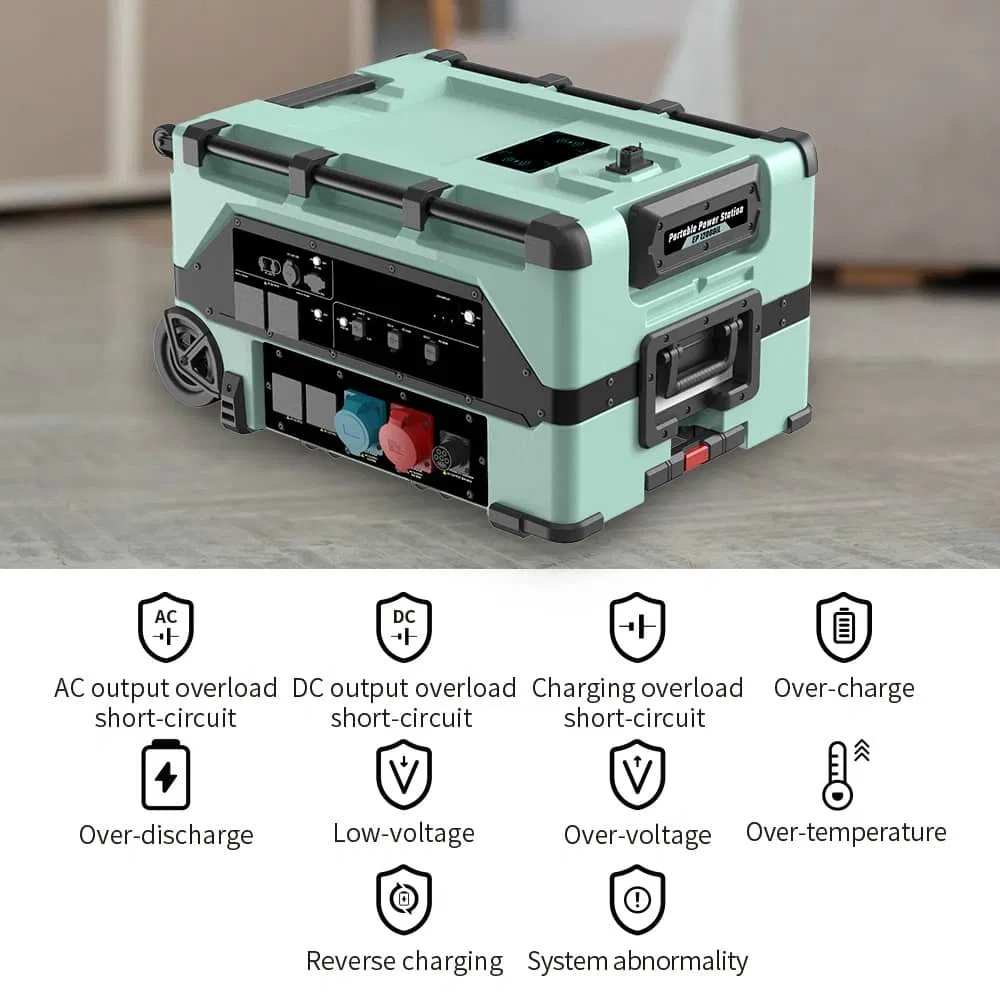

✓Unit IP43 and Battery Pack IP66 protection grade.

✓V-0 level flame-retardant and fire-resistant casing.

✓Intelligent control and monitor by smartphone APP.

Technical Parameters

Feature	EP12000iL Specification
Dimensions	840X670X490mm
Battery Capacity	LiFePO4, 7680Wh, 150Ah(51.2V)
Operating Temp	Discharging: -20ºC~50ºC / Charging: 0ºC~45ºC
Transfer Time	≤10ms (Typical)
AC Output Rated Power	12000VA (Three-phase) / 11000VA (Single-phase)

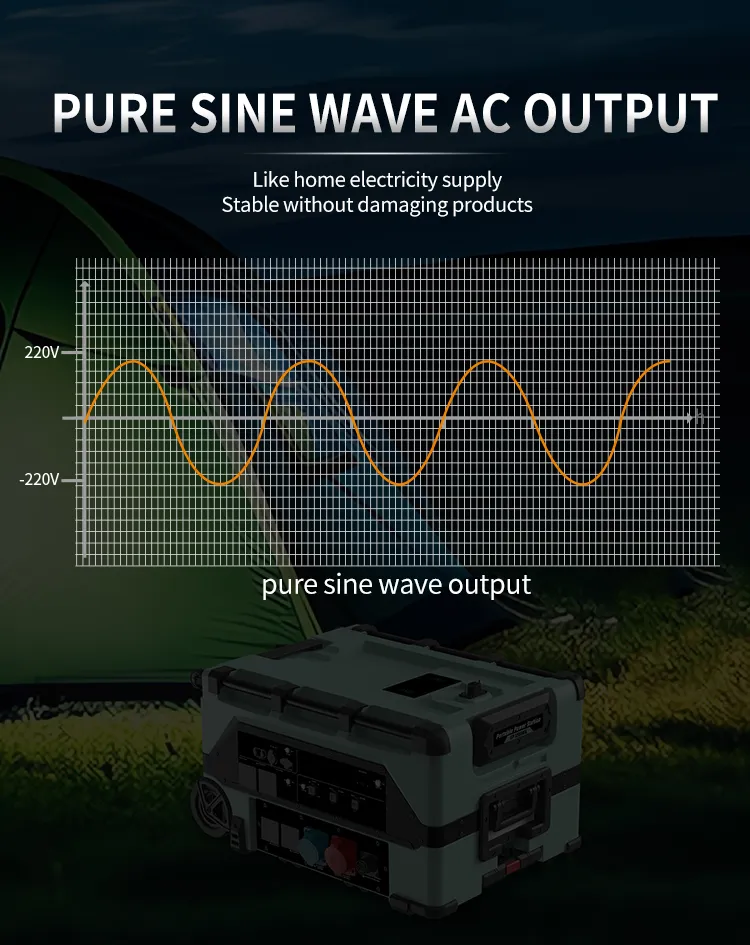

Waveform	Pure-Sine Wave, THD < 3%

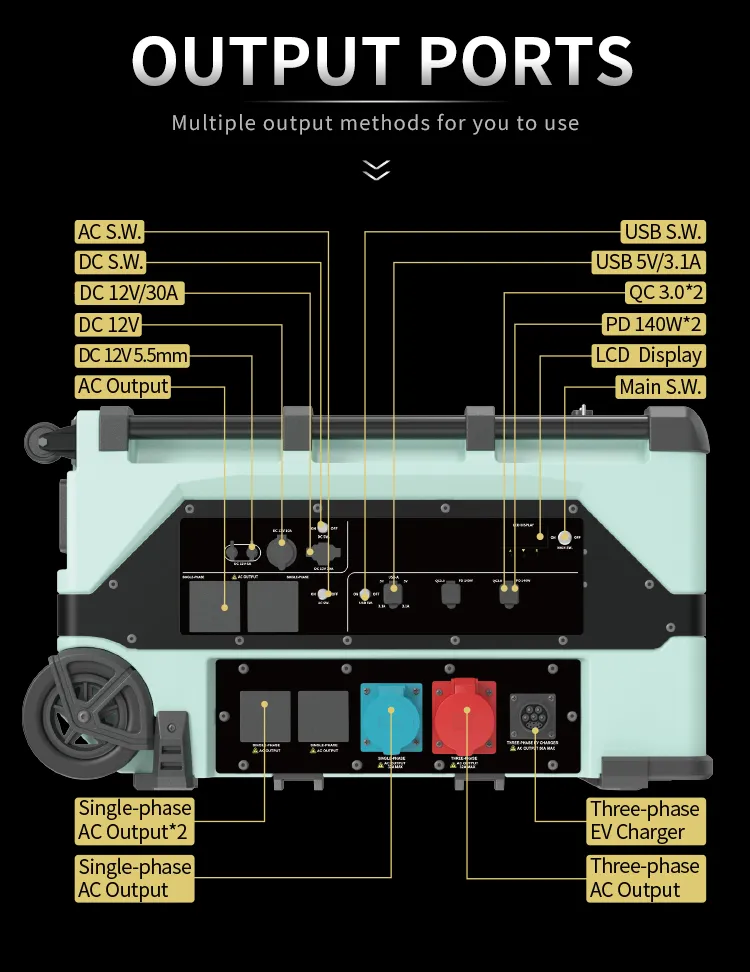

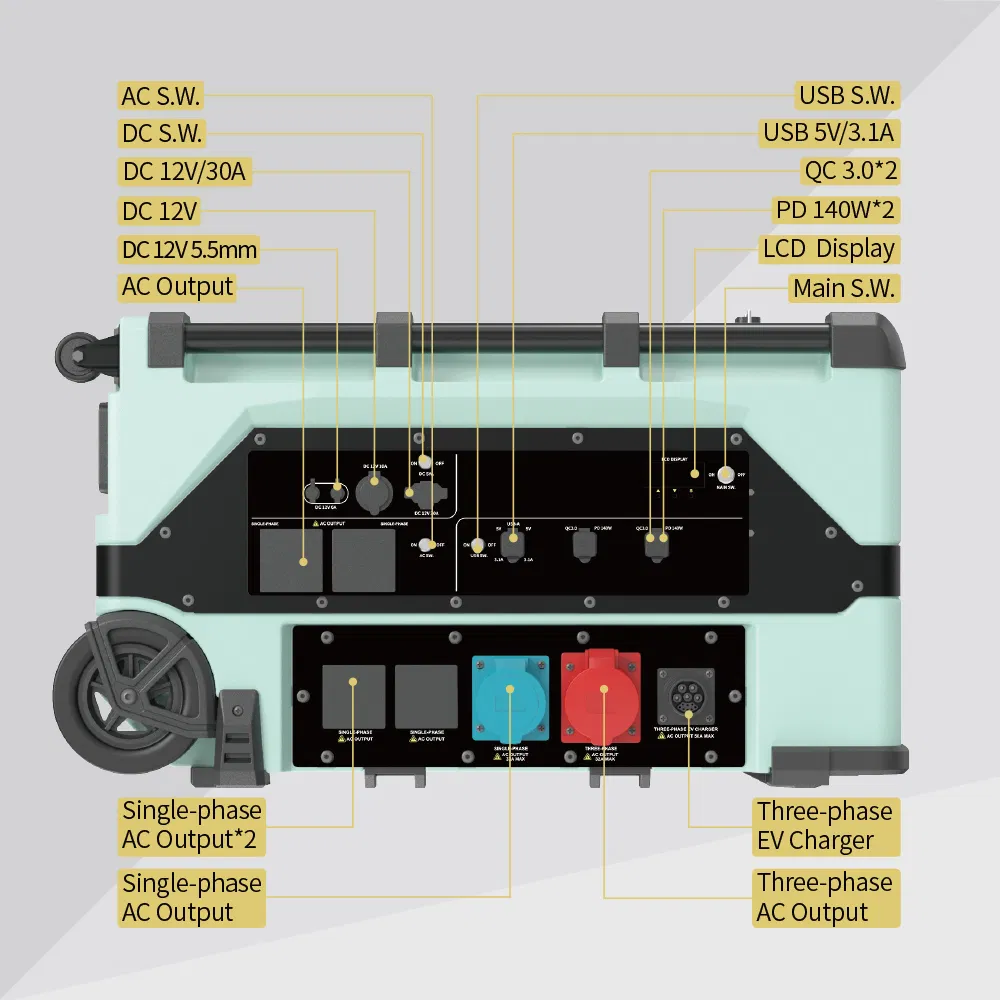

DC Output	XT90 (12V/30A), Cigarette Lighter (12V/10A), 5521 Port
USB Output	USB 3.1A, QC3.0, Type-C PD 140W

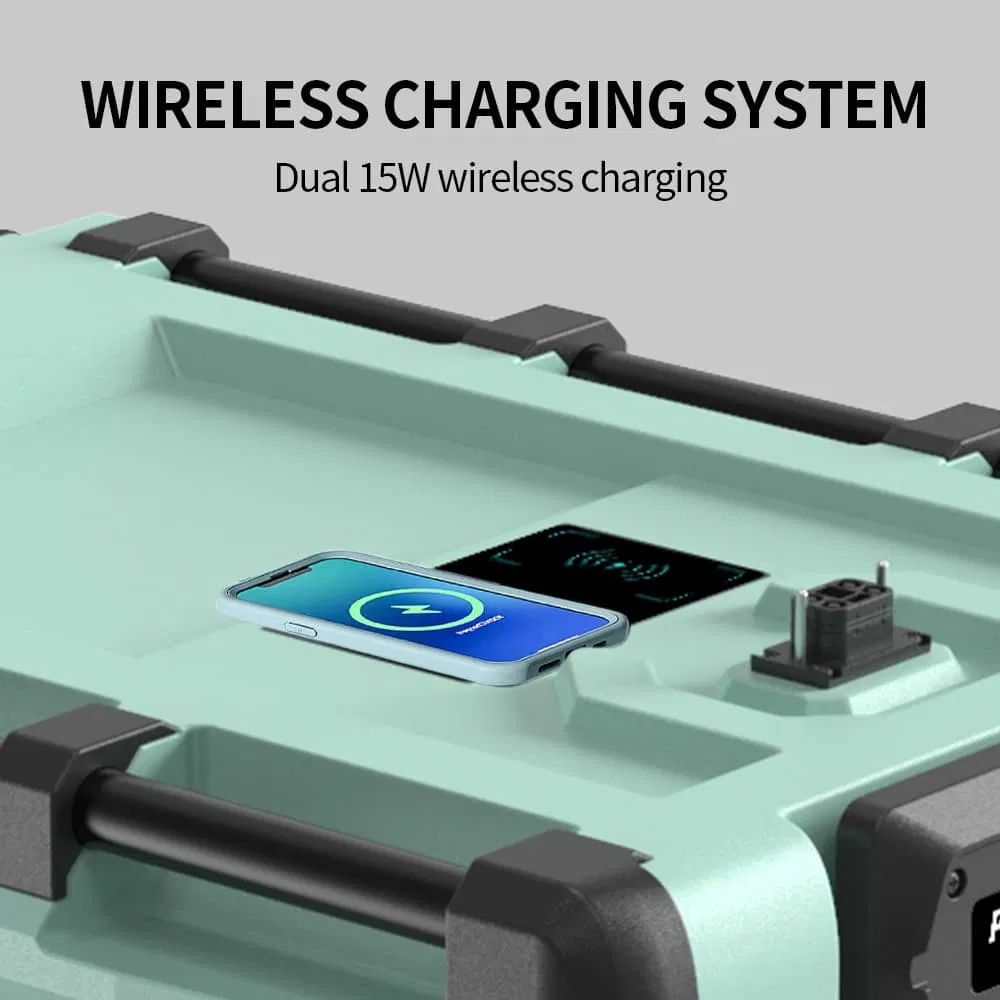

Wireless Output	2 x 15W

Detailed Product Photos

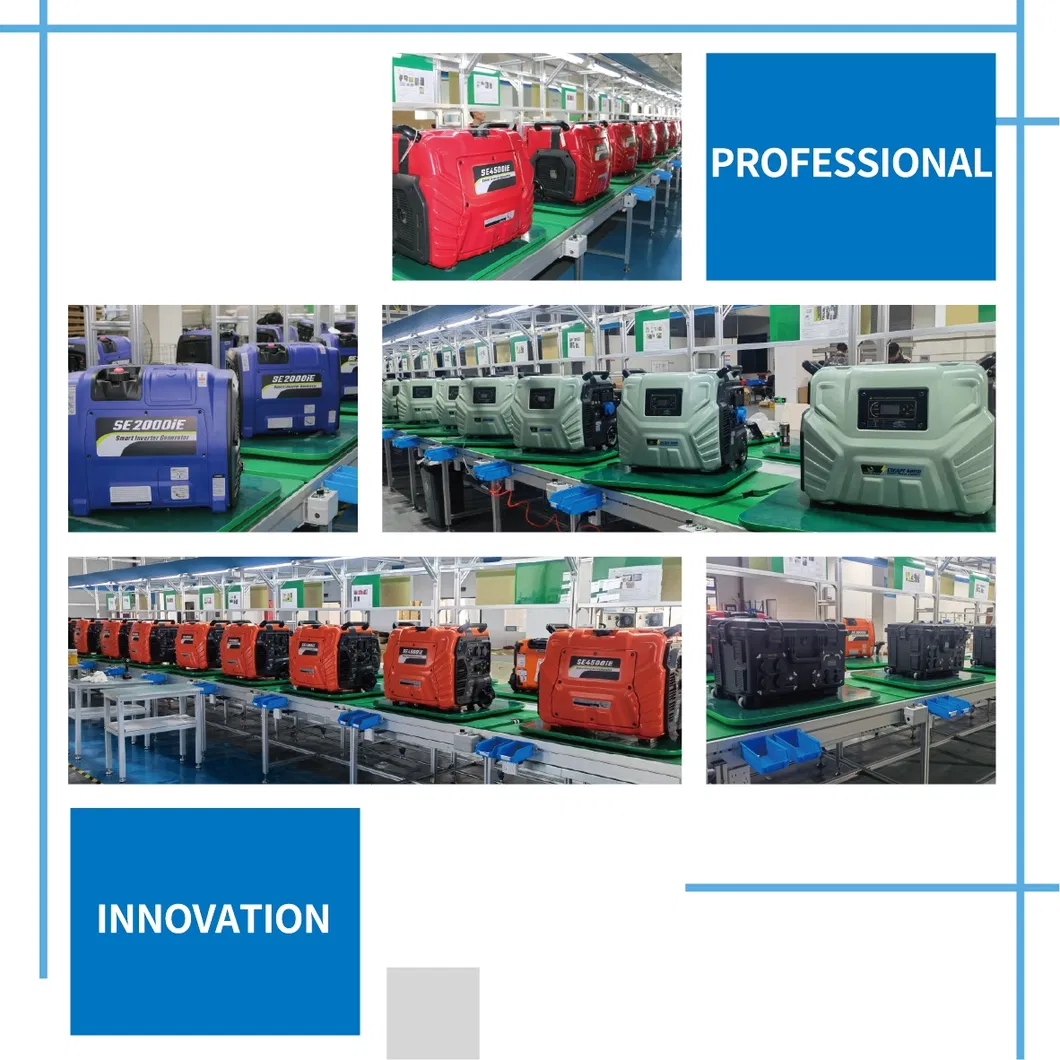

Workshop & Exhibition

Certifications & Shipping

Frequently Asked Questions

Q1: What is the maximum expansion capacity of the EP12000iL?

A: The EP12000iL supports up to 31 extra batteries connected in parallel, reaching a total maximum capacity of 245kWh.

Q2: How fast can this power station be charged?

A: It supports superfast charging speeds up to 8.5kW. It can be fully charged in approximately 70 minutes using high-power AC or solar input.

Q3: Does it support charging electric vehicles (EVs)?

A: Yes, it features a built-in electric vehicle charger that can charge cars with an output of up to 22kW.

Q4: What are the primary output phases supported?

A: The unit supports 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split-phase outputs.

Q5: Is the unit suitable for outdoor use?

A: Yes, the main unit has an IP43 protection grade and the battery pack is rated at IP66, making it highly durable for various environments.

Q6: What is the warranty period for this product?

A: We provide a 5-year warranty for the product, ensuring long-term reliability and support.
