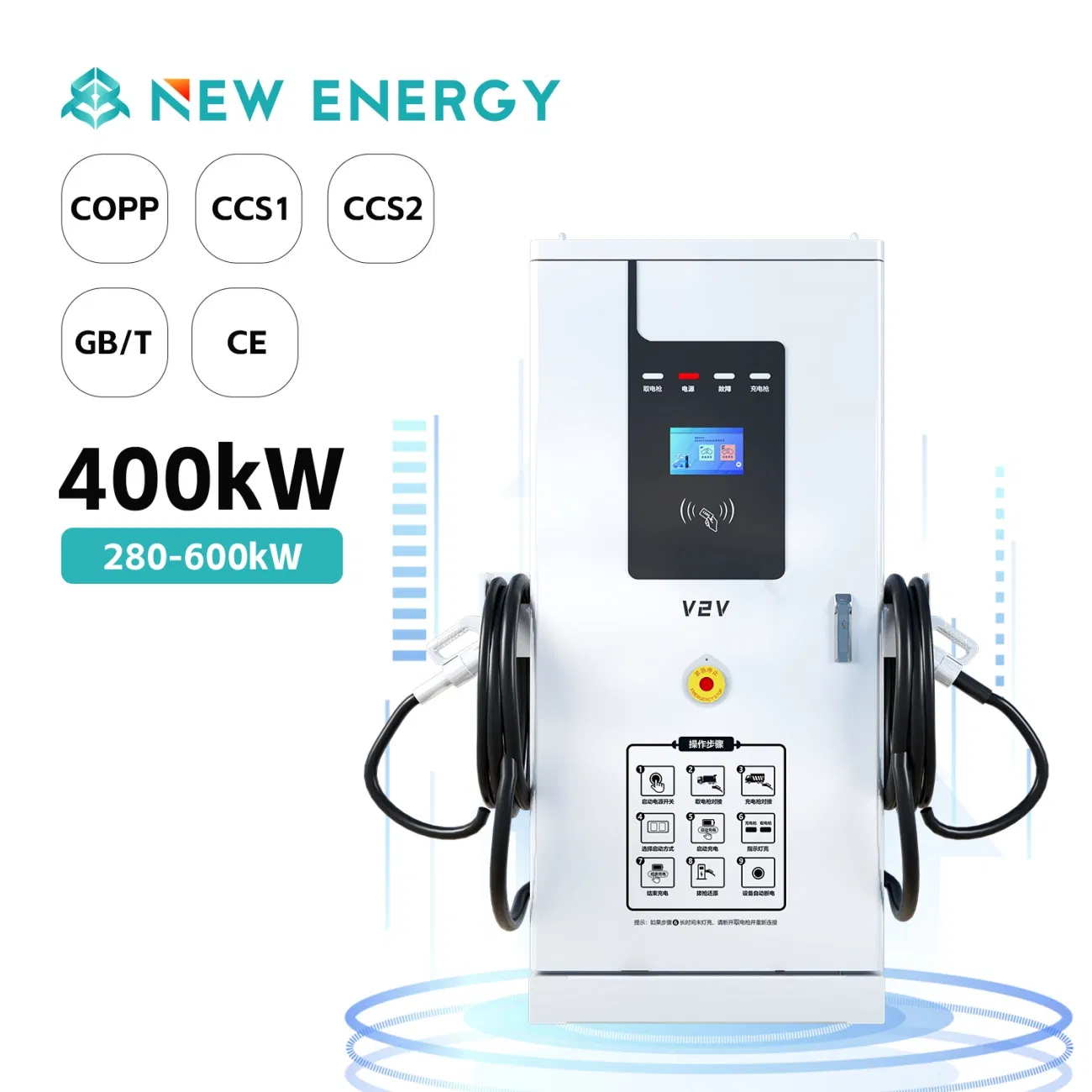

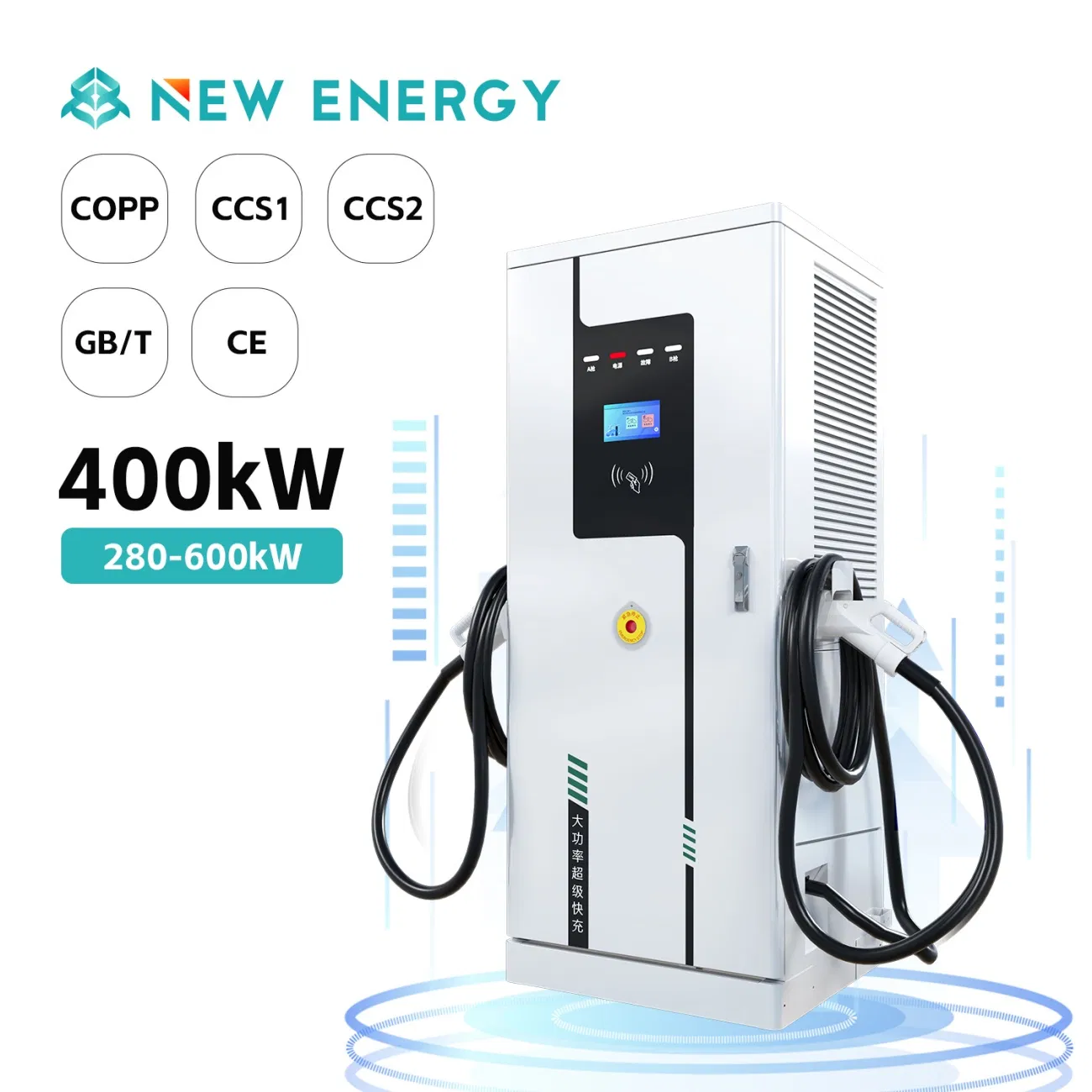

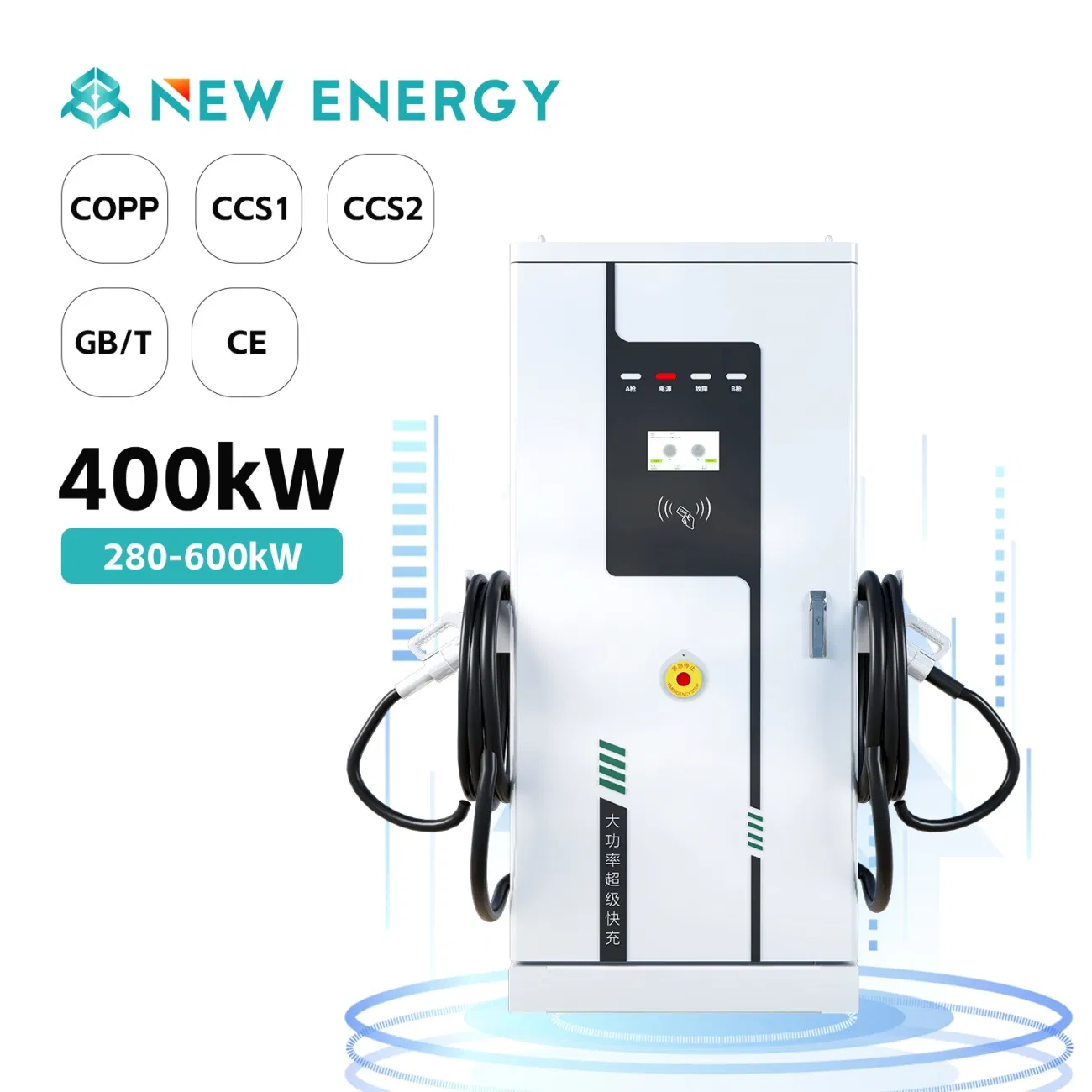

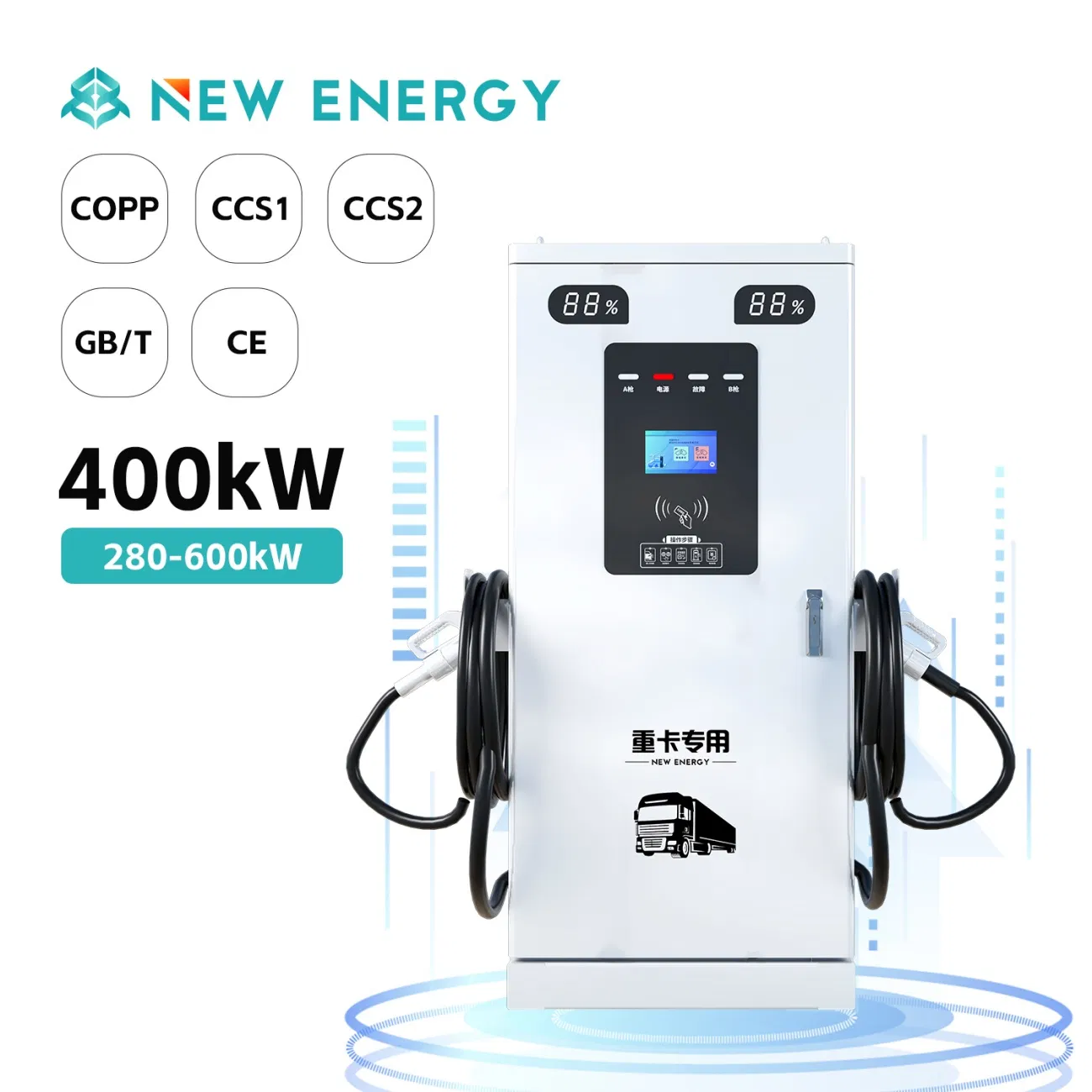

Remote Management Public Transportation and Charging Network EV DC Charging Station

Still deciding? Get samples of $ !
Request Sample

Product Description

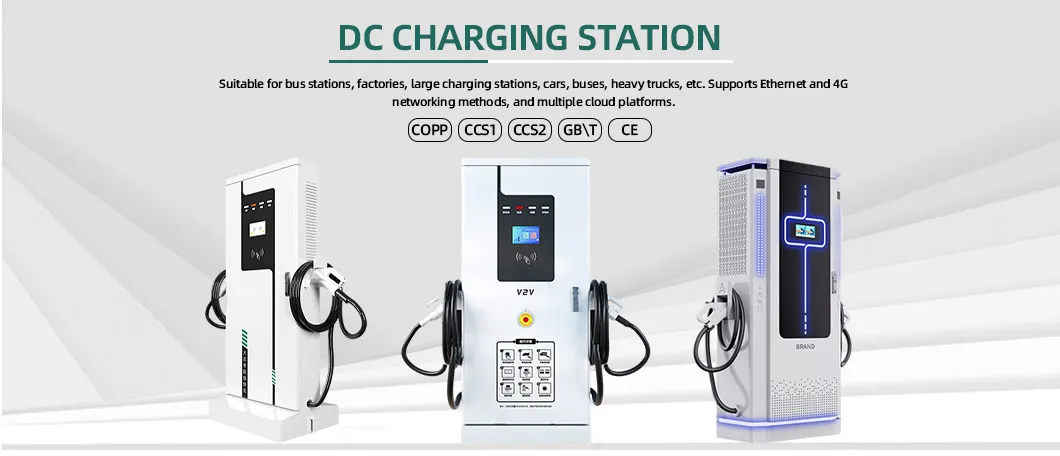

EV DC Charging Station Banner

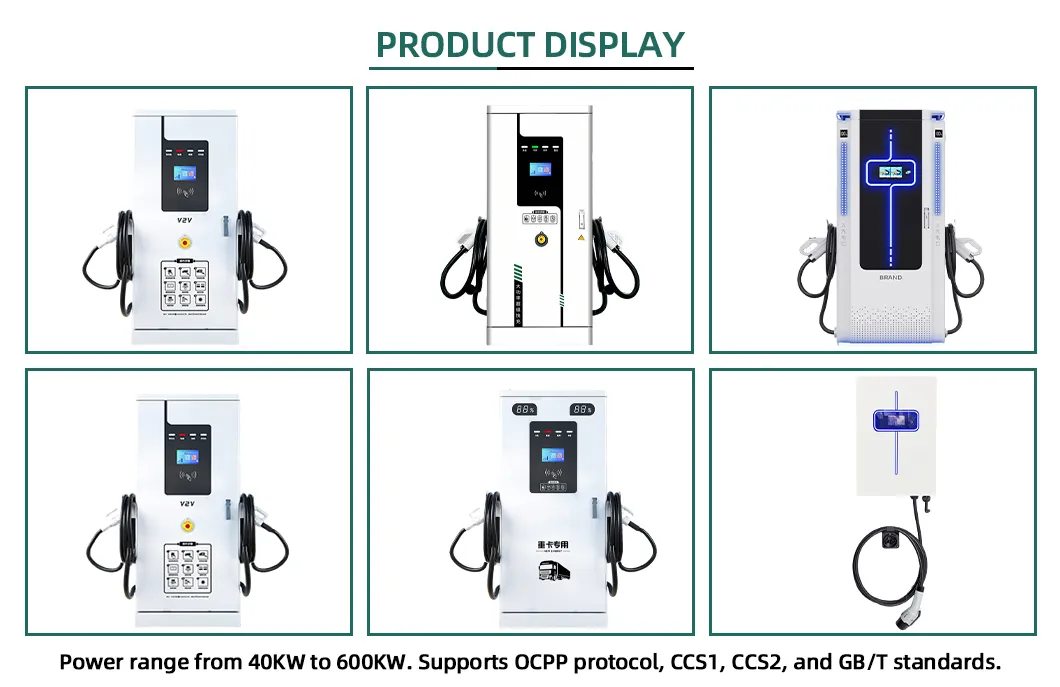

Charging Solution Display
⚡ Product Introduction

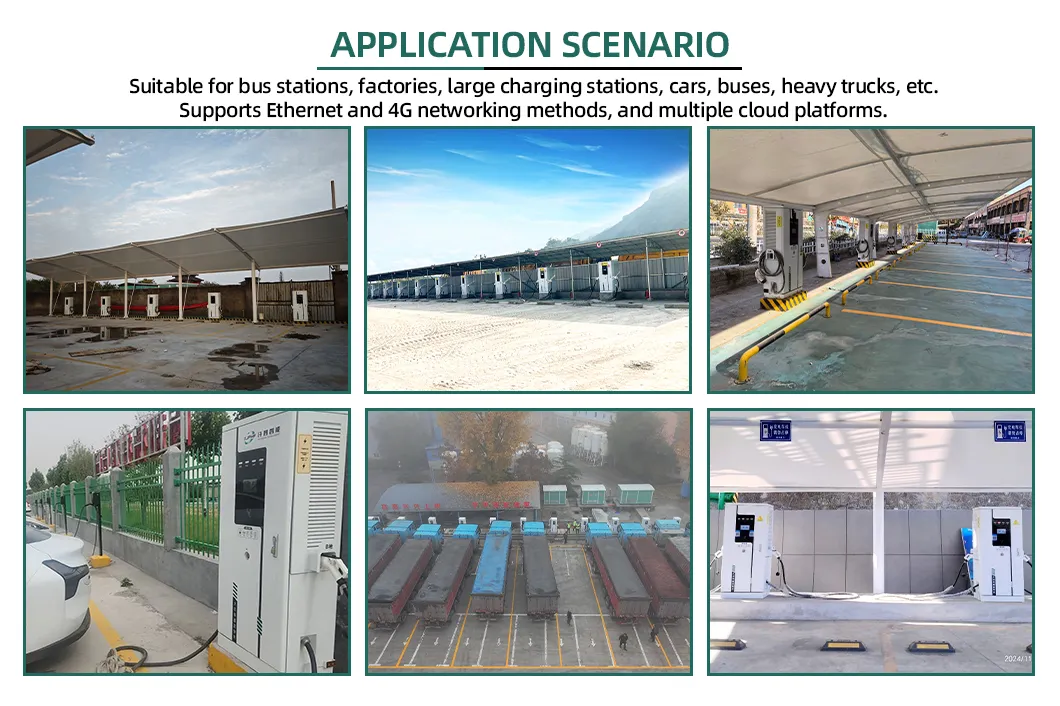

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

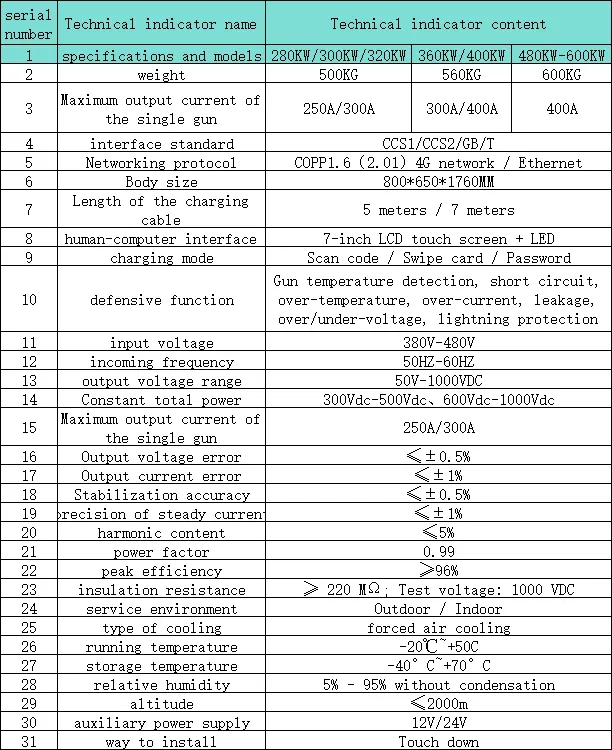

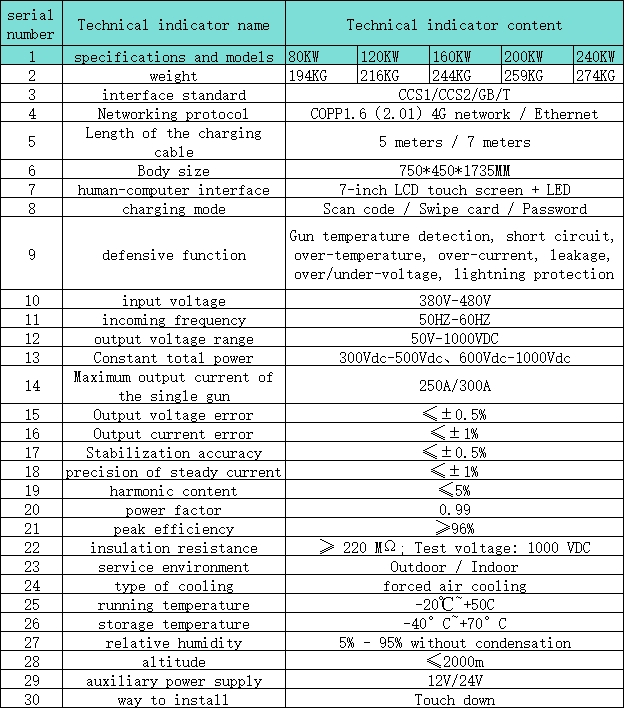

📋 Technical Specifications
Product Model 40KW-600KW External Dimension 750x410x1700(mm)
Rated Power 40KW-600KW Weight 194KG-274KG
Design Criterion CCS1, CCS2, GB/T Gun Barrel Length 5 Meters
Charging Guns 2 individual Interface 7-inch LCD Touch Screen + LED
Protection Level IP54 Connection 4G All-network / Ethernet
Charging Mode Scan code, Swipe card, VIN code, Password
Safety Functions Temperature detection, Short circuit, Over-temperature, Over-current, Leakage, Over/under-voltage, Lightning protection
🎬 Operation & Demonstration
🏢 Certification & Quality
Certifications
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment, ensuring high standards of reliability and performance.
📦 Packaging & Shipping
Packaging method
We adopt robust packaging methods to protect equipment during sea, air, and land transportation.
❓ Frequently Asked Questions
Q1: Are you a manufacturer? A: Yes, we are a professional manufacturer. You are welcome to visit our production facilities at any time.

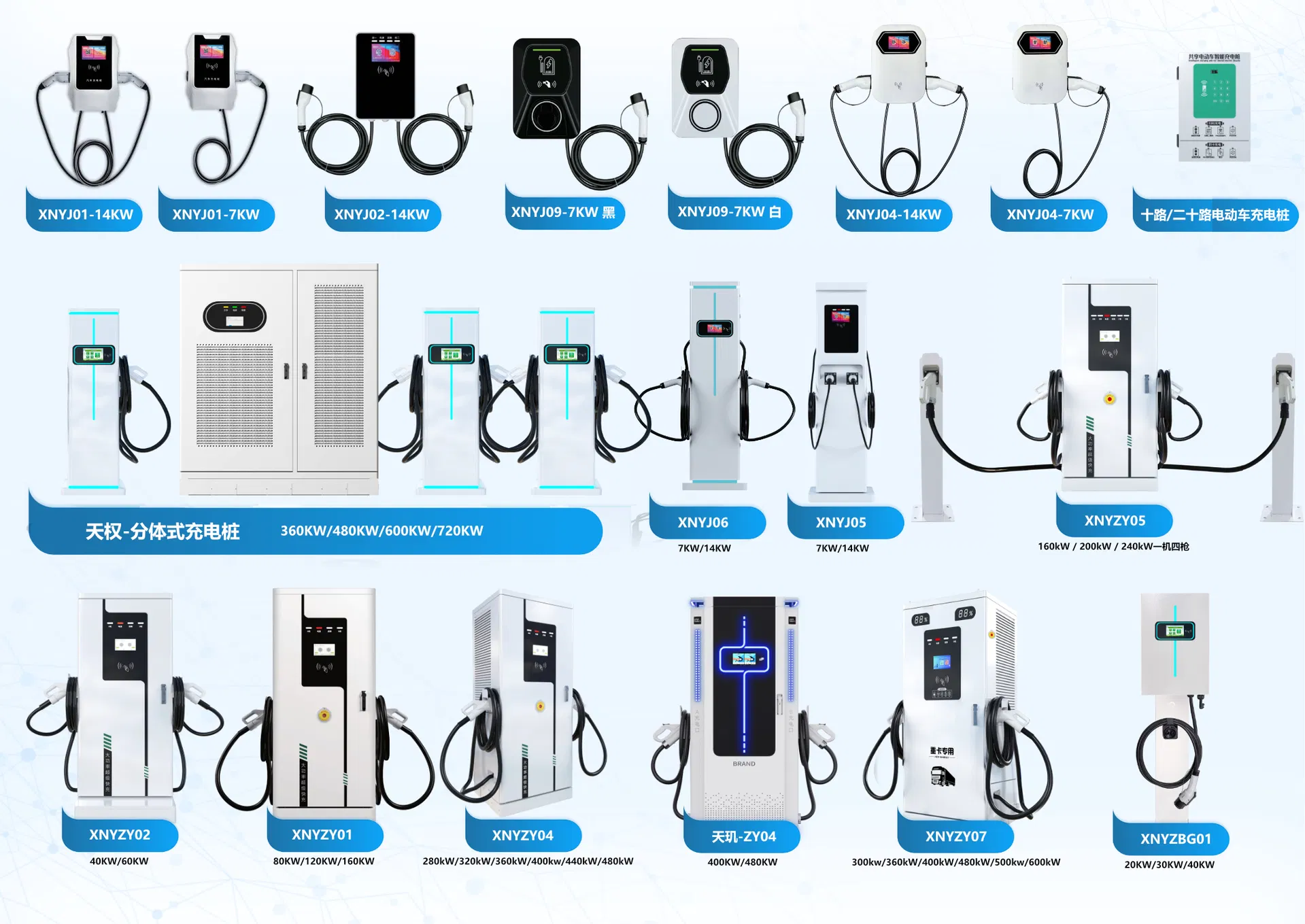

Q2: What range of EV chargers do you provide? A: We offer Portable AC chargers (3.5kw-44kw), Floor-mounted Fast DC Charging stations (30kw-480kw/600kw), Mobile energy storage chargers, and Solar System products.
Q3: Do you support OEM/Customization? A: Yes, we can accommodate your design requirements and place your logo on the products and customize packaging based on MOQ.
Q4: What are the payment terms? A: Typically T/T 30% as deposit and 70% before delivery. We provide photos of products and packaging before the final payment.
Q5: What is the estimated delivery time? A: Generally, it takes 7 to 35 days after receiving your advance payment, depending on the specific items and order quantity.
Q6: Is every unit tested before shipping? A: Yes, we conduct a comprehensive final inspection and testing on all goods before they leave the factory.
