Irvion Charger
1 / 5
| Model NO. | ZCF DC / Zcf300K4060 II |
| Total Power | 60-80kW / 120-160kW |
| Output Voltage Range | 50-1000V DC |
| Protection Class | IP 54 |

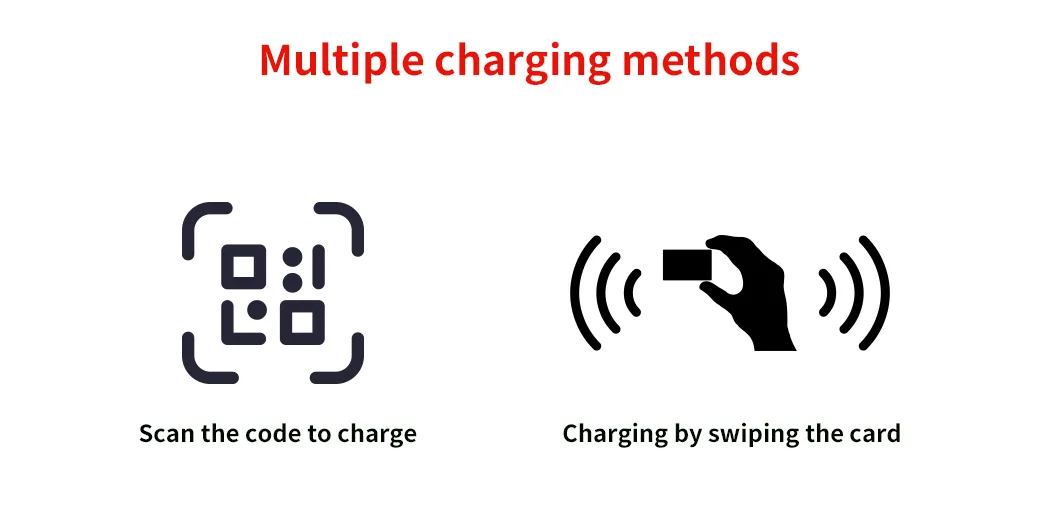

| Start Mode | Mobile Remote Operation, RFID Authentication |
| Communication | 4G, Bluetooth, WiFi, OCPP 1.6J |
| Certification | CE, ISO9001, ISO14001, ISO45001 |
| Warranty | 12 Months |
| Input Voltage | 380V(-25%, +25%) AC |
Rapid EV Charging: Delivering ultra-efficient power transfer for commercial hubs, highways, and public stations. Our DC fast charger is CE-certified for peak safety and performance.

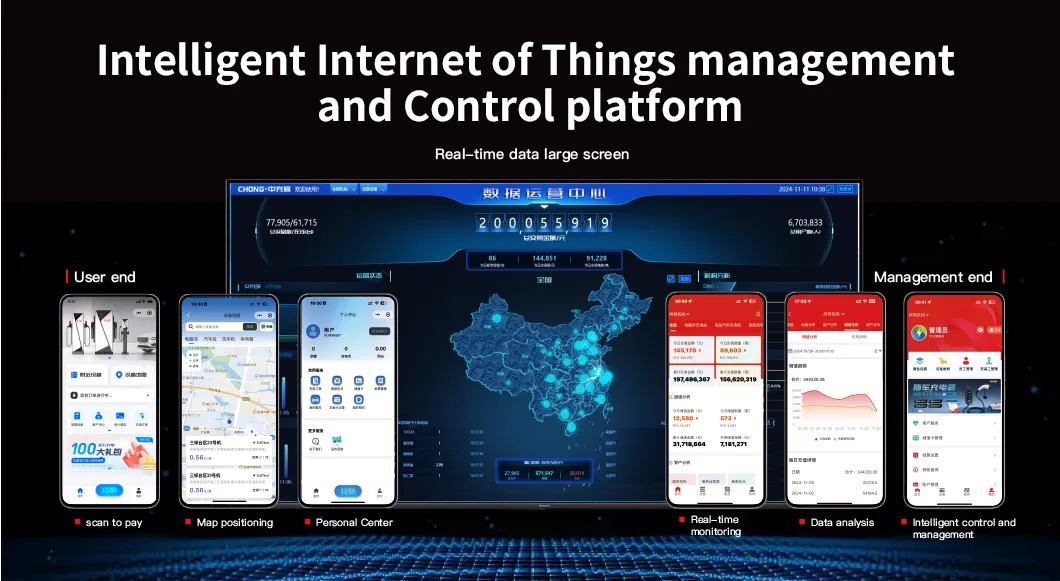

It supports multi-vehicle compatibility and dynamic load balancing. Integrated with RFID, 4G, Bluetooth, and WiFi connectivity. With OCPP 1.6J compliance and SaaS platform support, you can manage your charging infrastructure effectively with 24/7 fault diagnostics.
DC Charging Adapter
7/14 kW AC Charging Pile
7 kW Portable Charger
| Product Model | ZCF300K4120 II |
| Implementation Standards | GBT / CCS2 |
| Total Power | 120-160kW |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤0.5% |
| AC Input Frequency | 50Hz±10% |
| Dimensions | 750(W) x 650(D) x 1700(H) mm |
| Output Mode | Single/Dual Gun Average Distribution |
| Protection Functions | Overvoltage, Undervoltage, Short Circuit, Insulation Detection, Lightning Protection, Anti-backflow |
