Irvion Charger
1 / 5

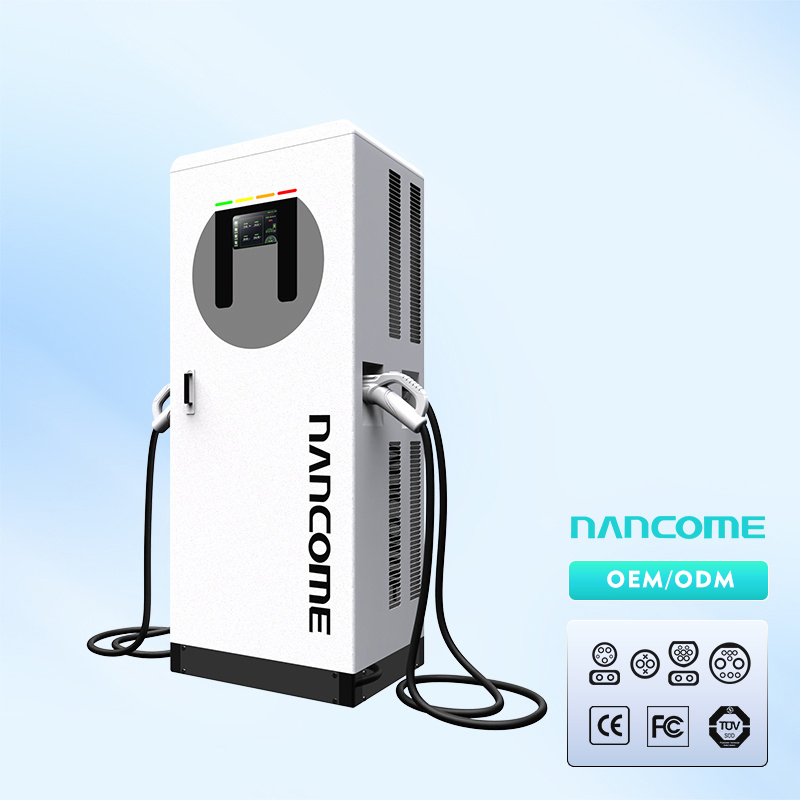

Boasting a versatile rated power range from a substantial 60kW to 180kW, this charger is built to service an assorted lineup of electric vehicles. Effortlessly matching power needs with its input voltage of AC380V±20% and catering to a wide breadth of charging requirements with an output of 200-1000VDC, it ensures that moments lost waiting for a charge are moments gained in movement.
Accuracy is critical, and with a class 1.0 measurement accuracy rating, this charger guarantees precision. The safeguarding features are formidable, with current limit protection at ≥110% rated value, stability accuracy within ≤±0.5%, and steady current precision at ≤±1%.
At the helm of the charger's functions is a 7-inch color touchscreen that stands as the gateway to fully customizable charging sessions. With a variety of charging modes—automatic full charge, fixed power, fixed quantity, and time-based charging—it addresses the needs of various users and their scheduling preferences.
| Parameters | 60kW | 120kW | 160kW | 240kW | |
|---|---|---|---|---|---|
| Equipment | Installation | Vertical | |||
| Input Voltage | AC380V±20% | ||||
| Output Voltage | 200-1000VDC | ||||
| Output Current | 0-100A | 0-200A | 0-200A | 0-200A | |
| Electrical | Efficiency | ≥95% | |||
| Power Factor | ≥0.98 (above 50% load) | ||||
| THD | ≤5% (above 50% load) | ||||
| Environment | Temperature | -20ºC~+50ºC | |||
| Protection | IP54 / Air-cooled | ||||
The suite of safety measures with this charger is extensive: Temperature detection on charge guns, combined with overvoltage, undervoltage, overload, and short-circuit protections, ensure the integrity of the charging process. Grounding, overtemperature, low-temperature, insulation monitoring, reverse polarity, and surge protections provide a shield of confidence. Emergency stop features and leakage protections emphasize the priority placed on safety.
