| Model NO. | BC-11KW | Type | Fast EV Charging Station |
|---|---|---|---|
| IP Degree | IP 66 | Certification | CE, TUV, RoHS |
| Weight | 8kg | Rated Voltage | 380V |
| Color | Black | Warranty | 12 Months |
| Specification | IEC 62196-2 | Origin | China |

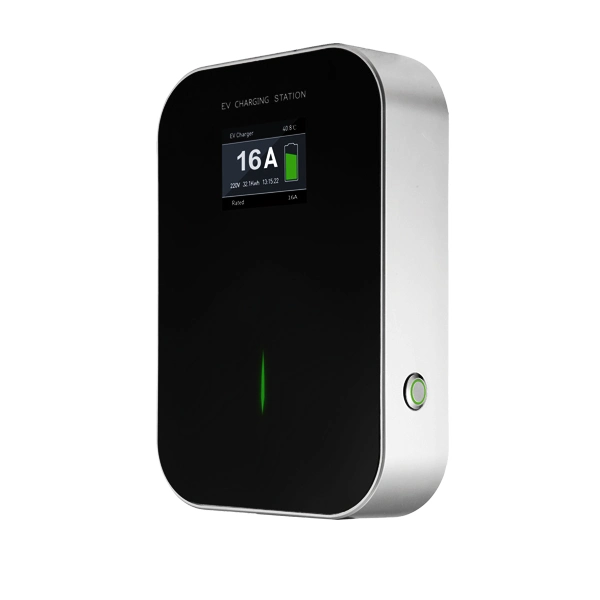

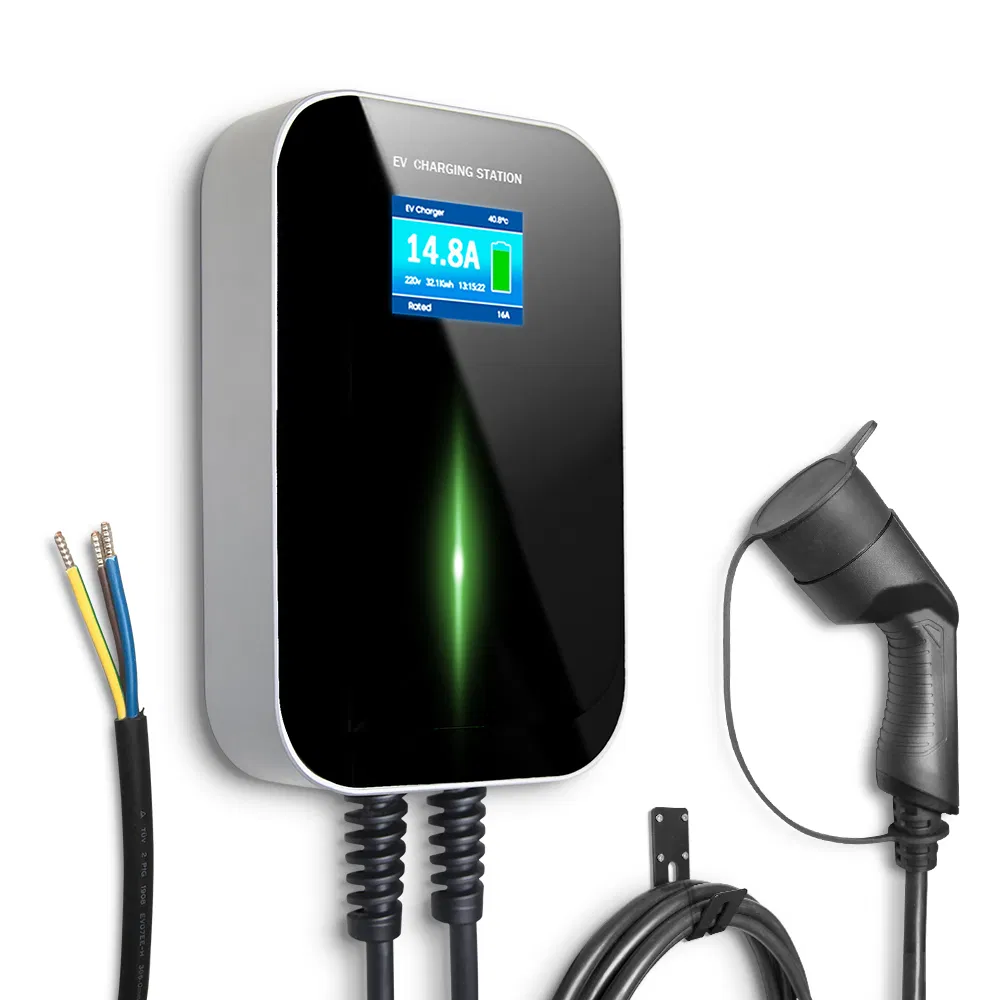

The BS20 series is a classic wallbox product designed to comply with multiple international standards including North American standard SAE J1772 (Type 1), European standard IEC 62196-2 (Type 2), and Chinese standard GB/T.
| Parameter | Details |
|---|---|
| AC Power Output | Max 22kW |
| AC Power Input | AC 110V~400V |
| Current Output | Max 40A Single Phase / 32A Three Phase |
| Connector Type | Type 1 (SAE J1772), Type 2 (IEC 62196-2), GB/T |
| Charging Cable | TPU 6.1m (20ft) |
| EMC Compliance | EN IEC 61851-21-2: 2021 |
| Safety Protection | Over current, Short circuit, Under voltage, Leakage, Over temperature, Lightning protection |
| RCD Type | Type A AC 30mA + DC 6mA |
| Operating Environment | Temp: -25ºC ~+55ºC | Humidity: 0-95% non-condensing |
| LCD Display | 3.5-inch Color Display |

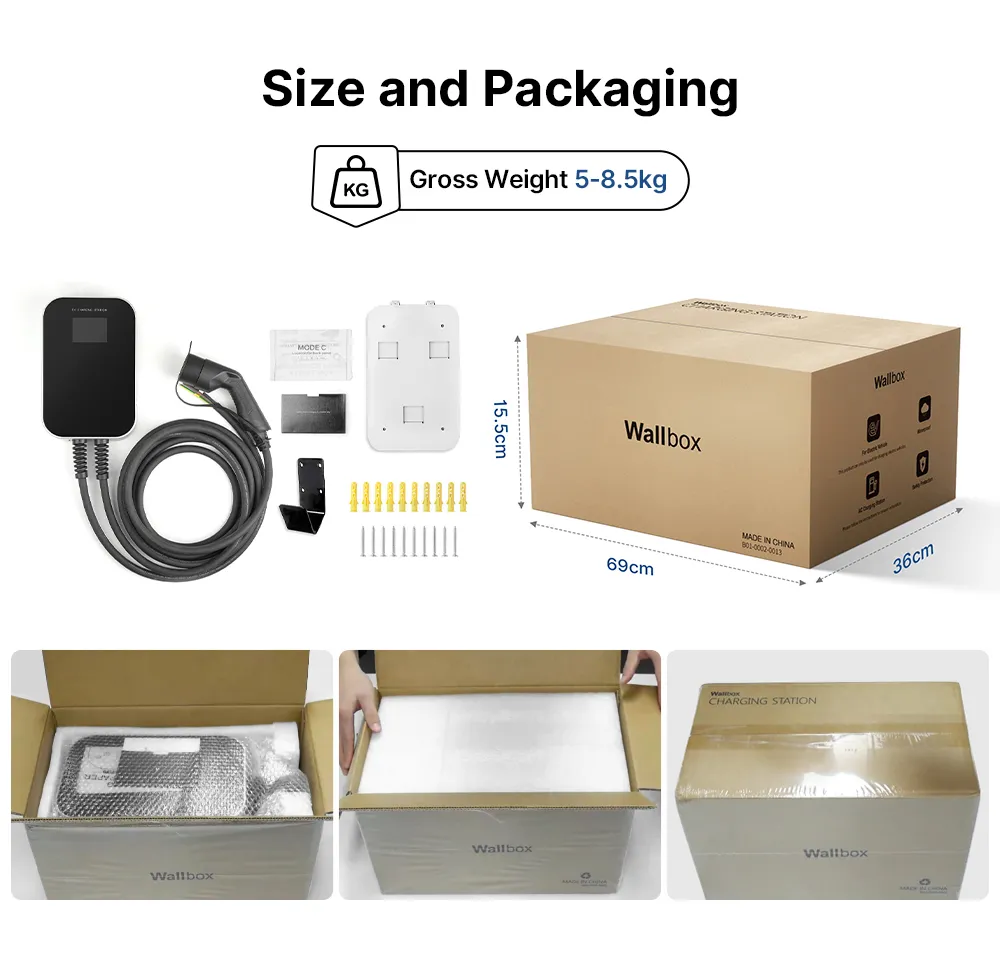

Our packaging is sturdy and compact, ensuring the product is protected during transportation. We offer customizable eco-friendly solutions.

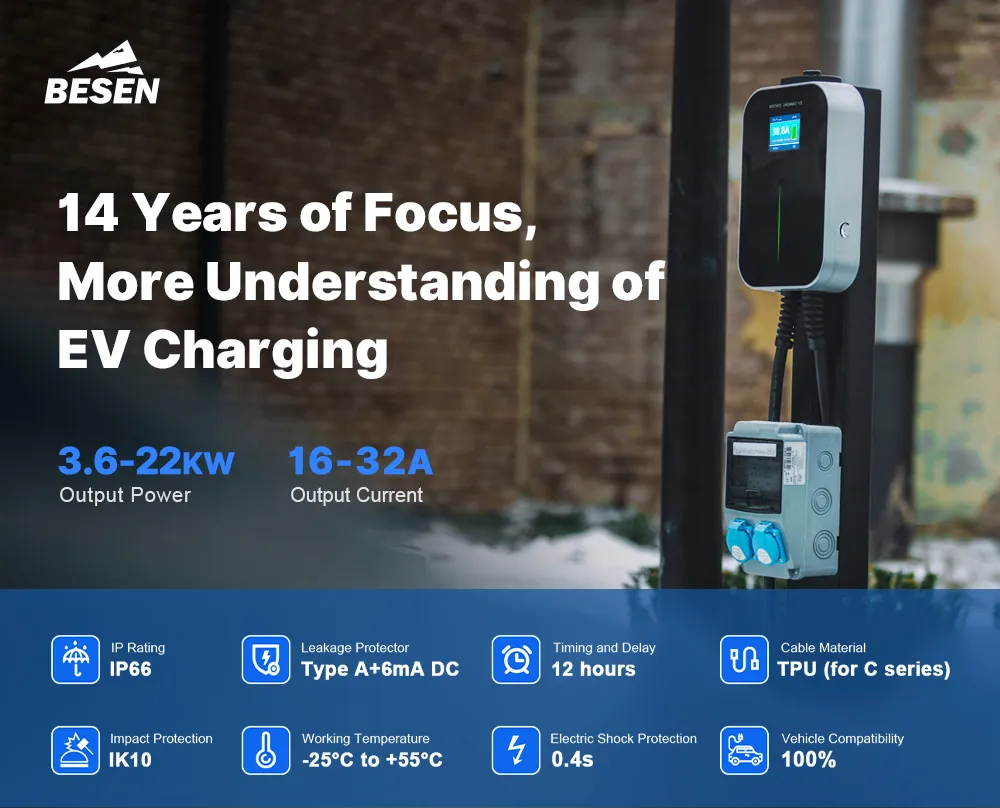

With 14 years of professional experience, we focus on providing smart charging solutions for homes. Our products are more stable and reliable in terms of compatibility and charging performance due to over a decade of continuous technology iteration.

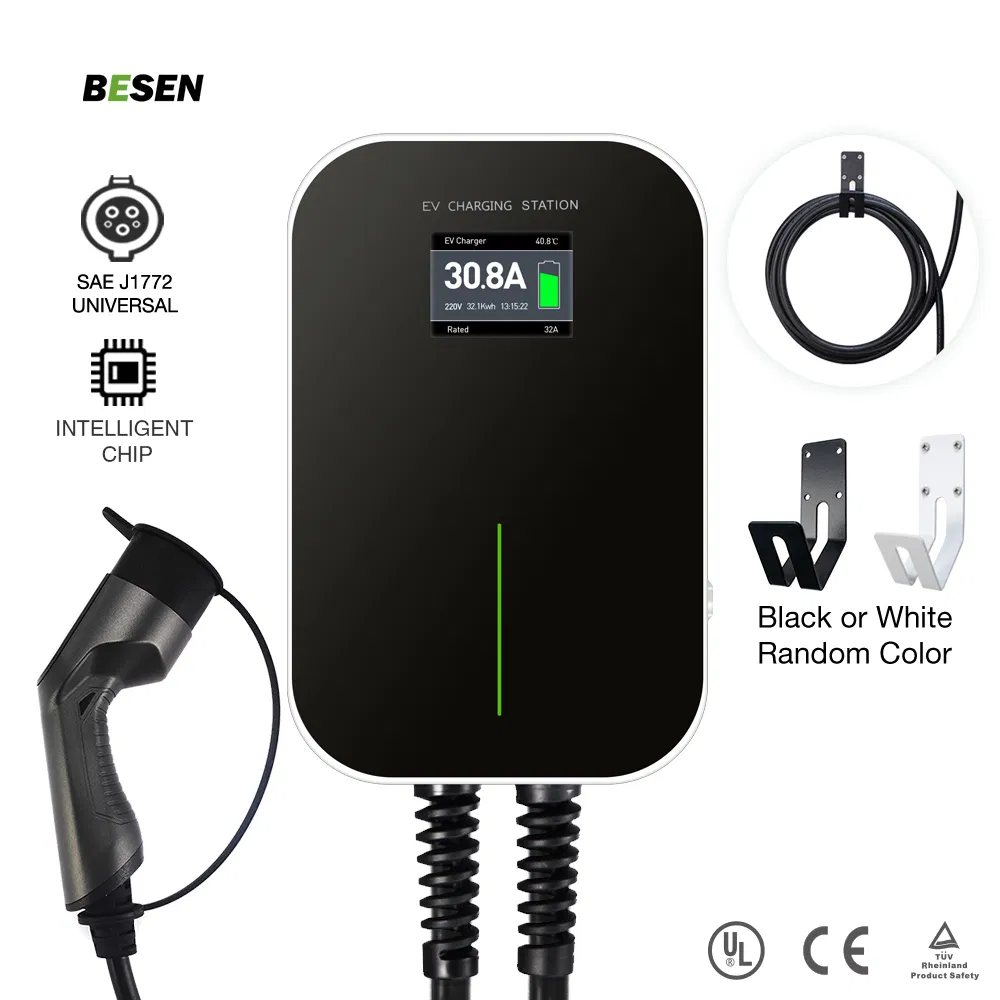

The BS20 series supports SAE J1772 (Type 1), IEC 62196-2 (Type 2), and GB/T standards, making it globally compatible.

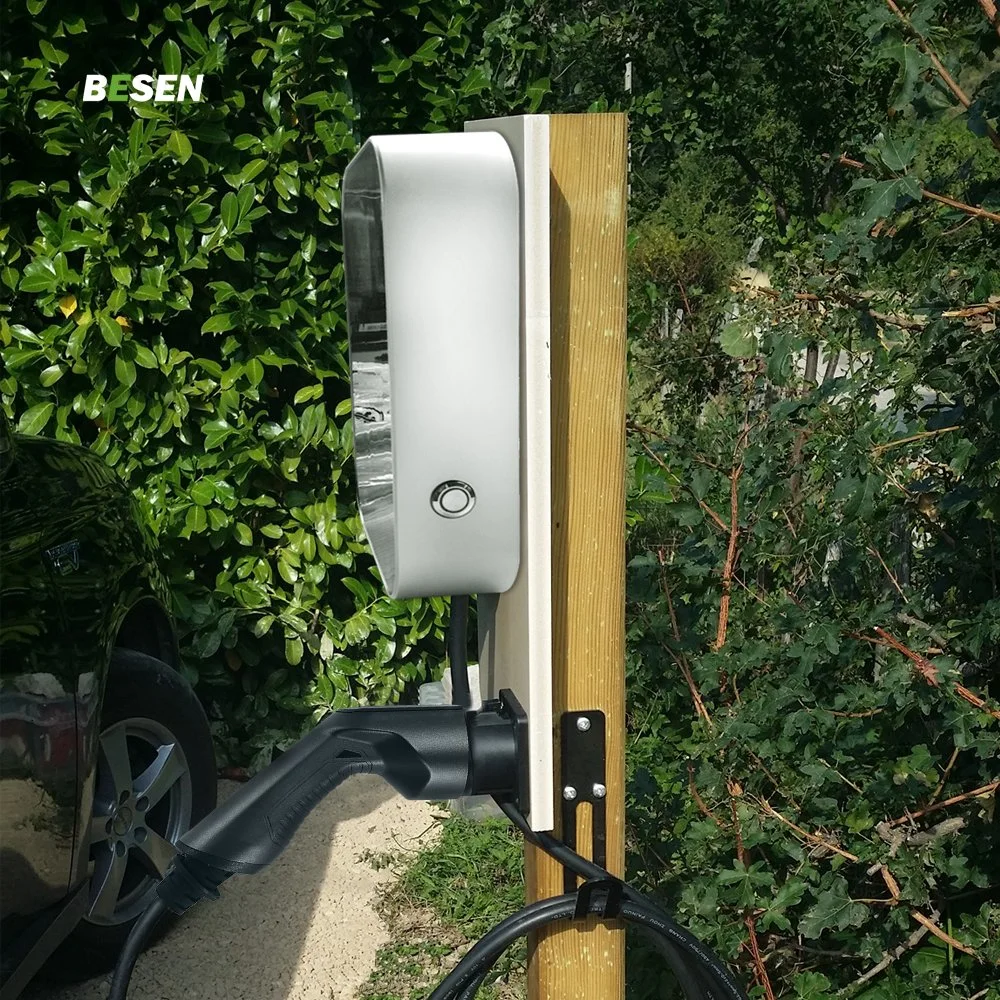

Yes, the station has an IP66 rating, which provides high-level protection against water and dust, making it ideal for outdoor use.
It includes over-current, short-circuit, under-voltage, leakage, over-temperature, and lightning protection, along with a Type A 30mA AC + 6mA DC RCD.

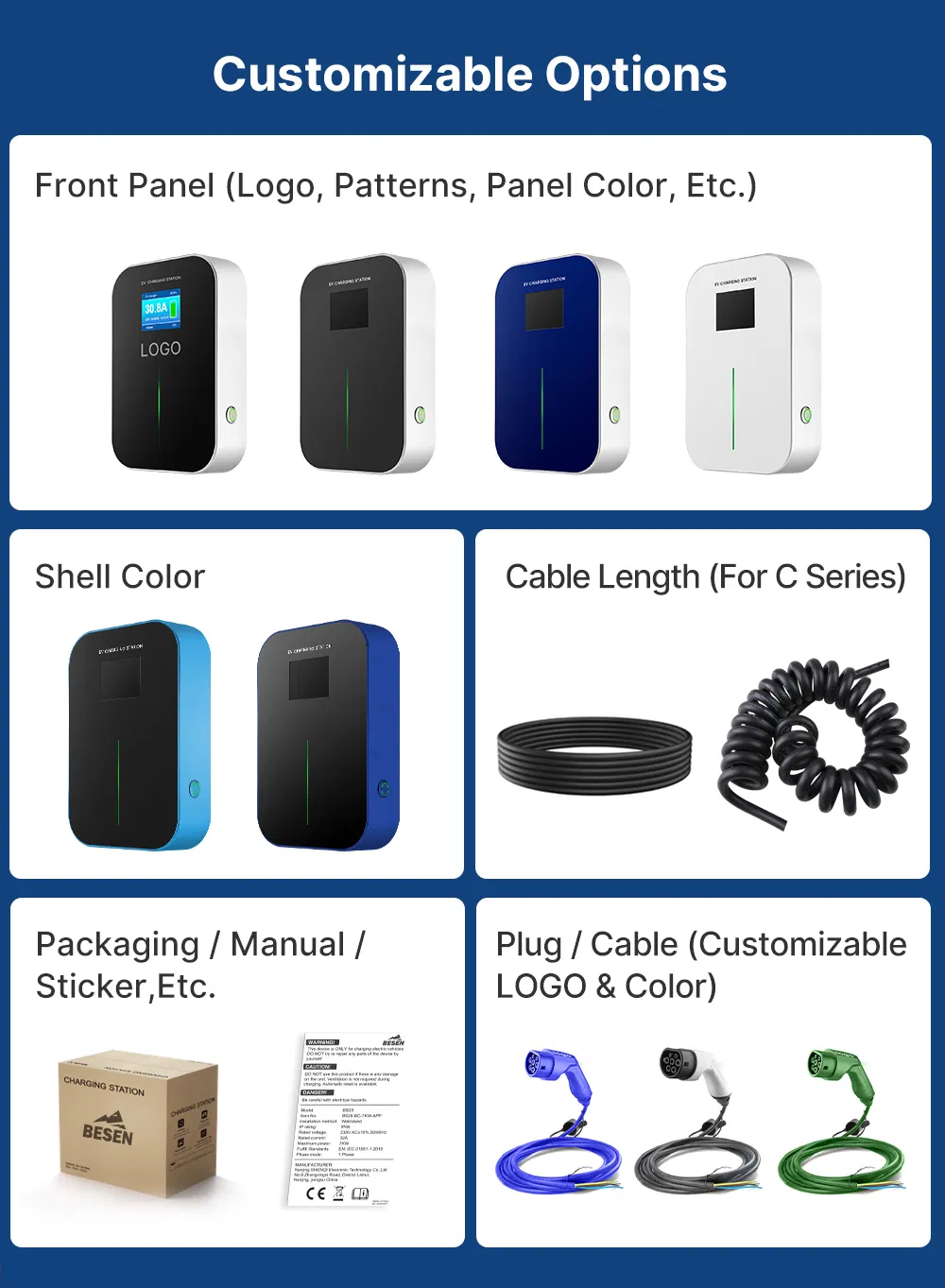

Yes, we support various customizations including cable length, cable color, front panel design, and branding options.
We use high-quality TPU cables, which offer superior environment friendliness, high-temperature resistance, and aging resistance compared to traditional PVC.

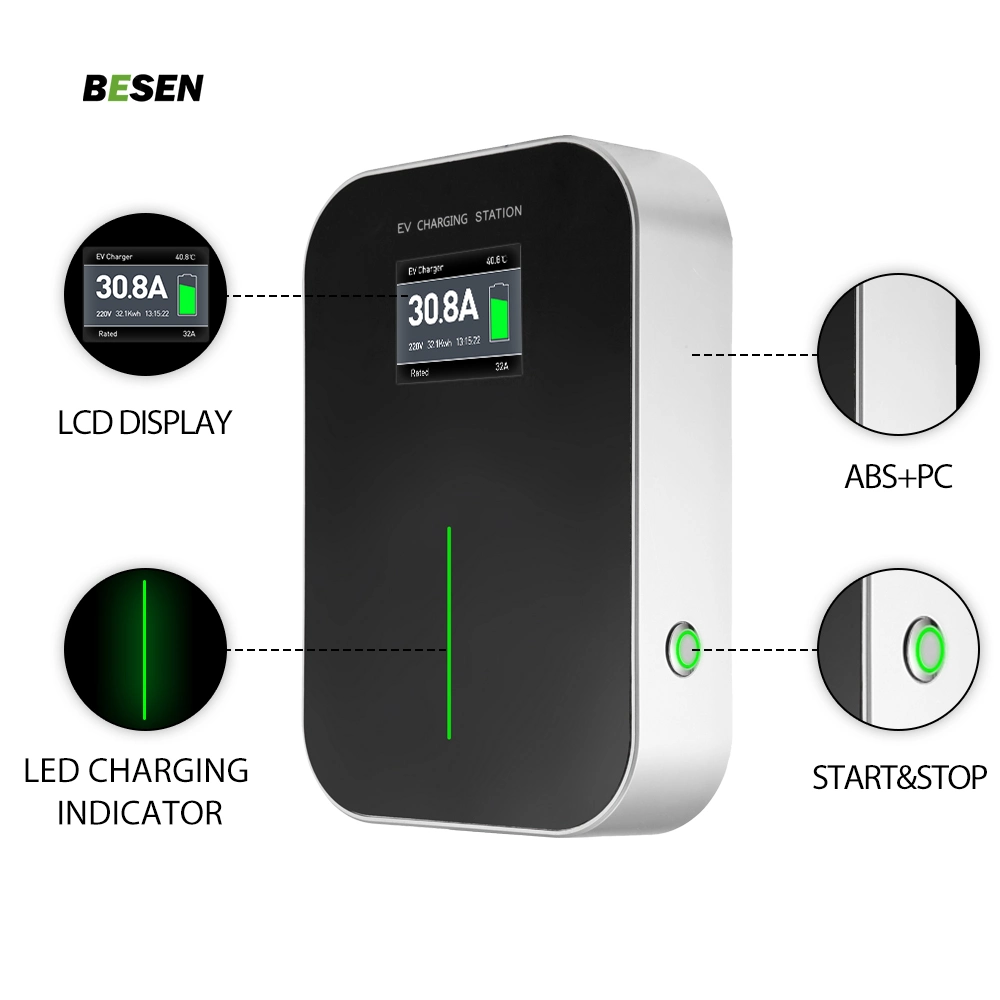

Yes, it features a 3.5-inch color LCD display that provides real-time data on charging status, current, voltage, and duration.
