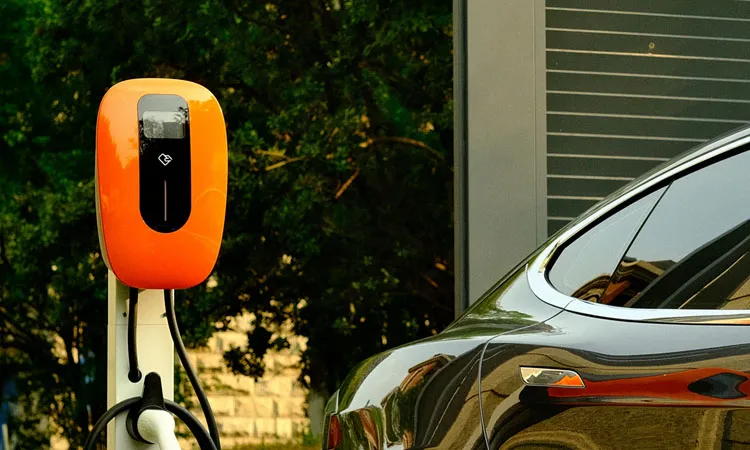

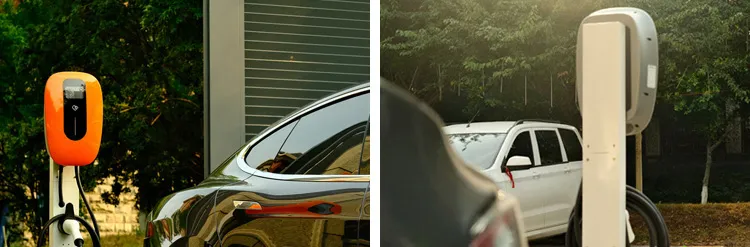

Irvion Charger
1 / 5
| Datasheet | Model: GS7-AC-B01 | Model: GS11-AC-B01 | Model: GS22-AC-B01 |
|---|---|---|---|
| Rated Power | 7kW | 11kW | 22kW |
| Rated Voltage | 230V AC | 400V AC | 400V AC |
| Rated Current | 32A | 16A | 32A |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Ingress Protection | IP65 / IK10 | ||
| Start Mode | Plug&Play / RFID card / App | ||
| Safety Protection | Over current, Residual current, Ground, Surge, Over/Under Voltage, Over Temperature | ||
Integrated CT in the PE conductor detects fault currents. If thresholds are reached, all conductors are switched off, isolating the load and dangerous PE from the supply.

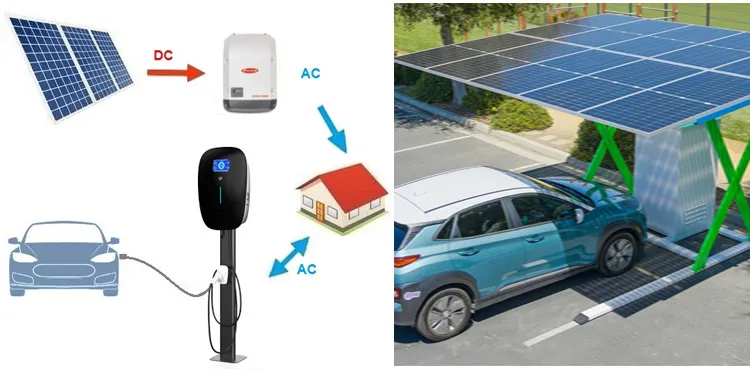

Safely balances energy usage between electric vehicle chargers and other home appliances. It ensures household priority while allowing the EV to charge as fast as possible without overloading the main fuse.
Manage your charging routine remotely: start/stop charging, set schedules, receive notifications, and track battery health status.
Charging Solutions For:
Residential • Workplaces • Gas Stations • Apartments • Commercial Parks • Charging Networks
