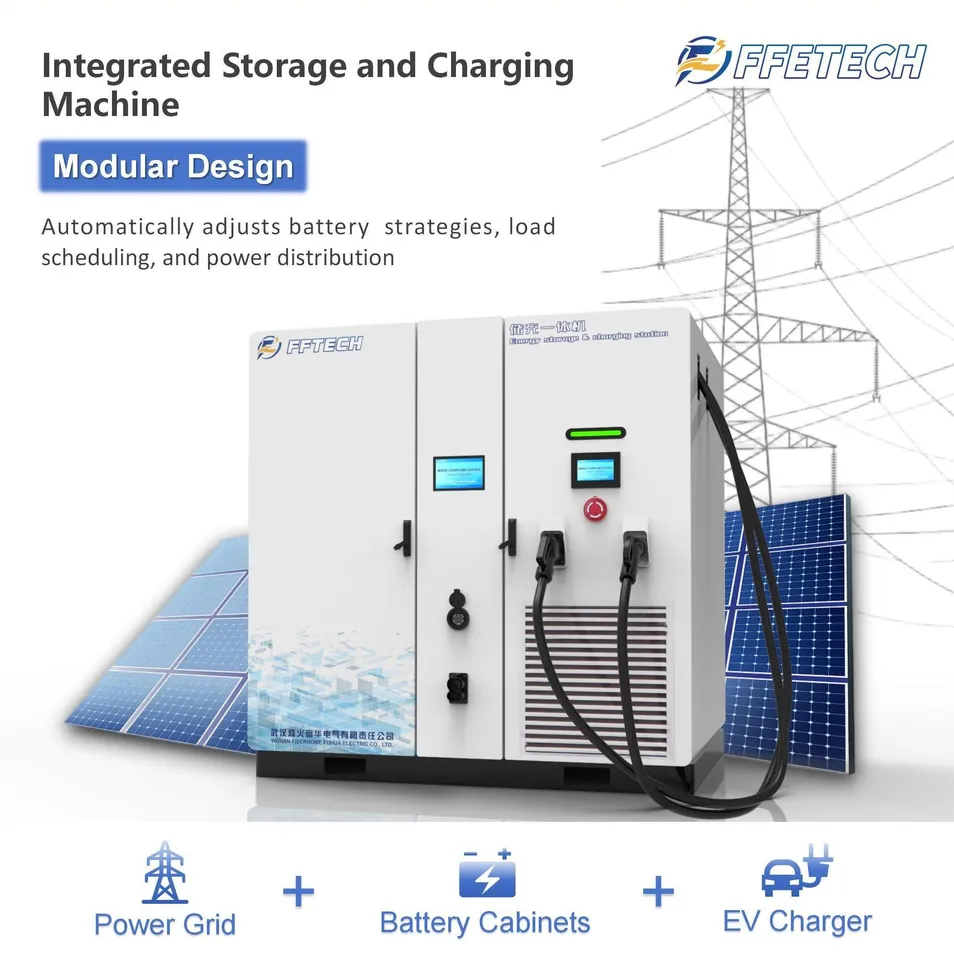

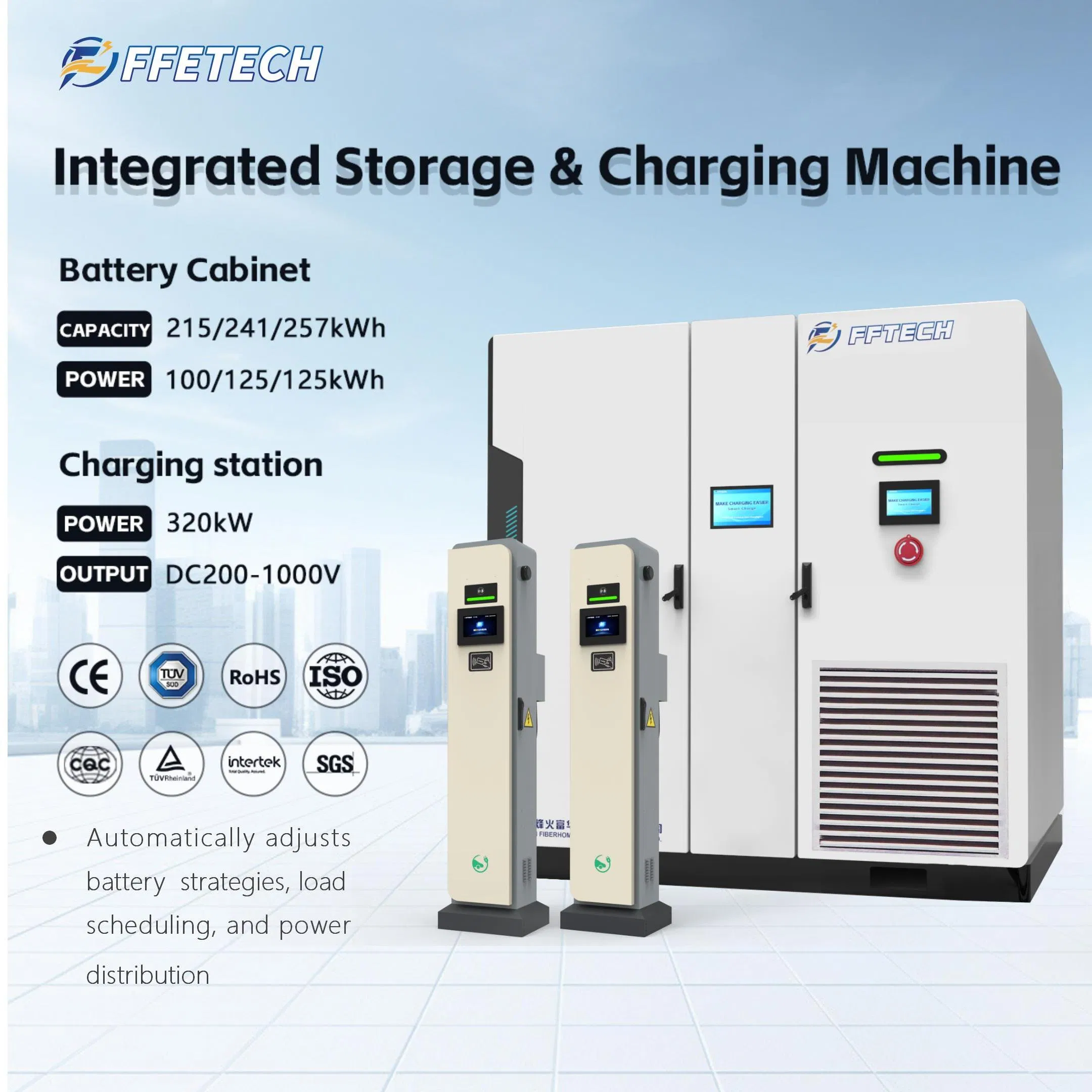

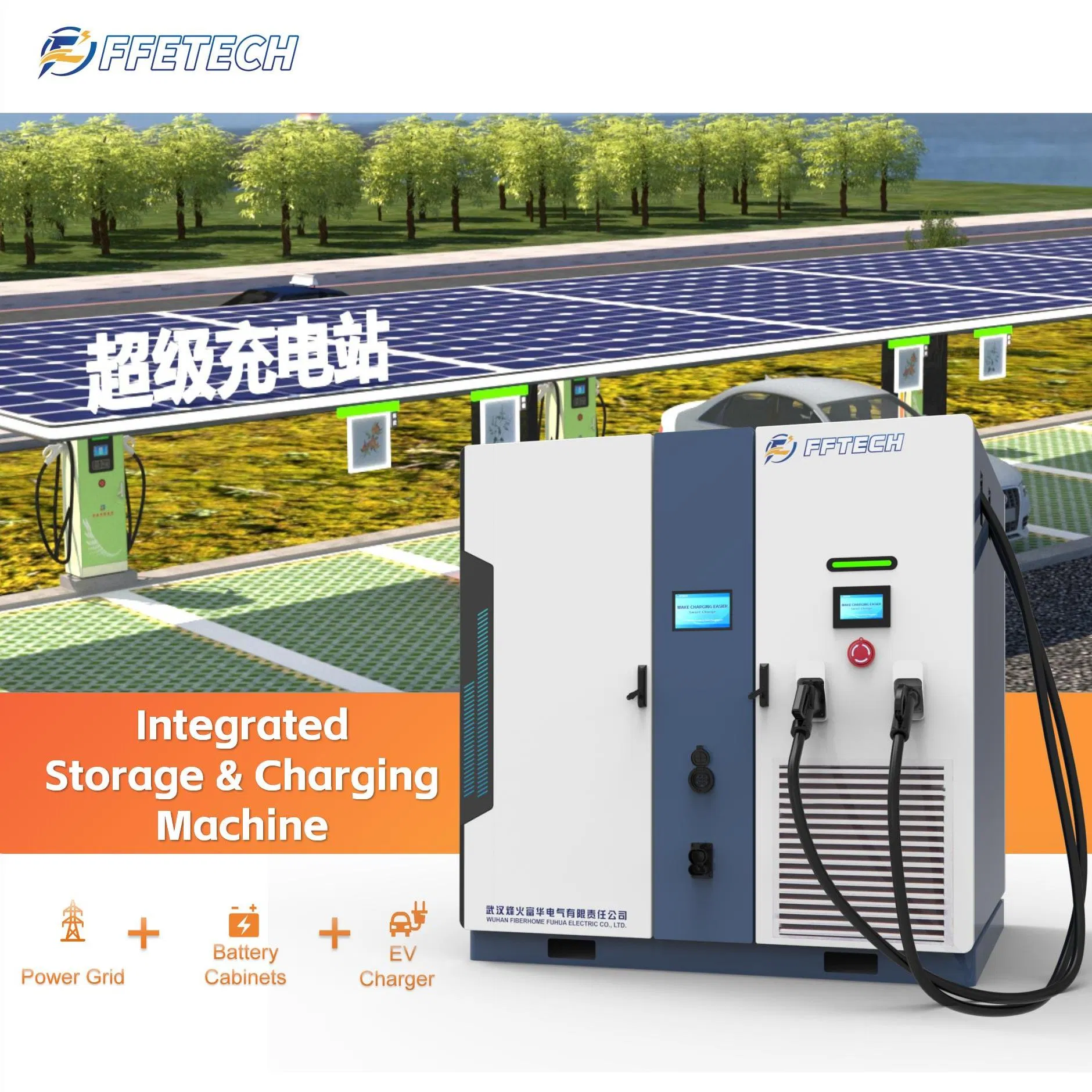

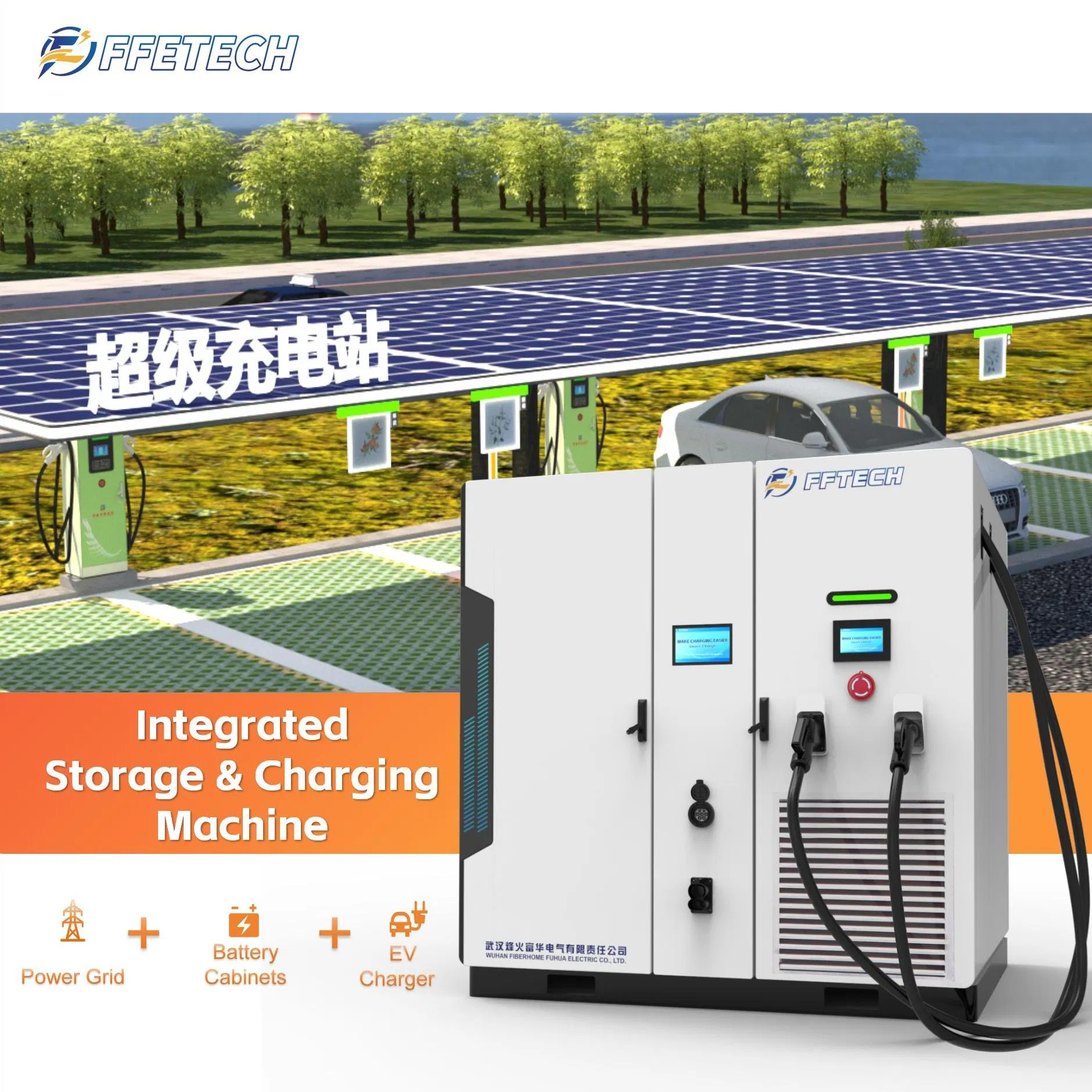

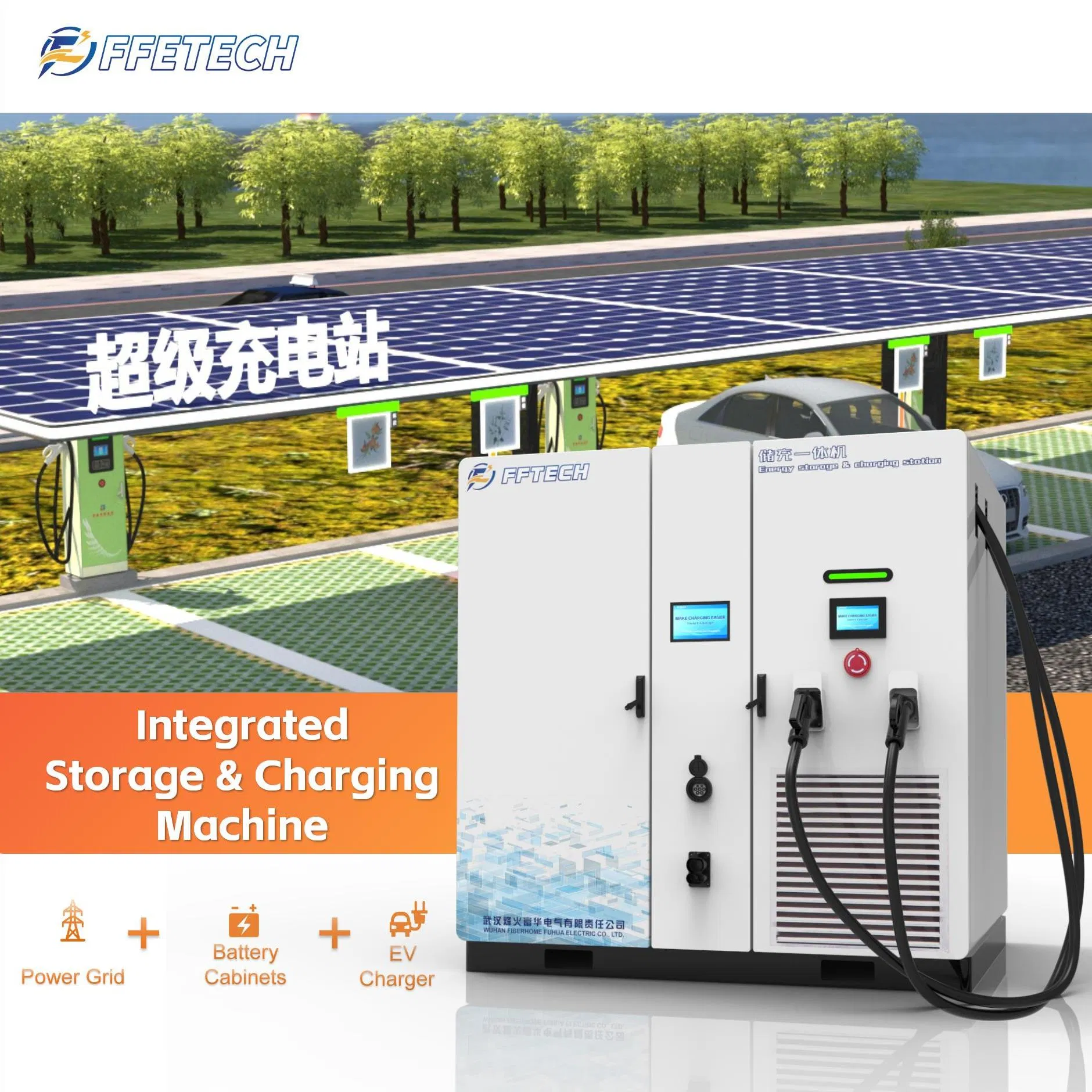

This product uses a zero-capacity-increment, flexible smart charging pile as the energy storage and charging system carrier. With modular design, it integrates lithium iron phosphate battery cabinets, battery management system (BMS), power conversion system (PCS), DC-DC charging system, local control system (EMS), air conditioning, fire protection, and other devices into one, providing a core solution for both energy storage and charging.

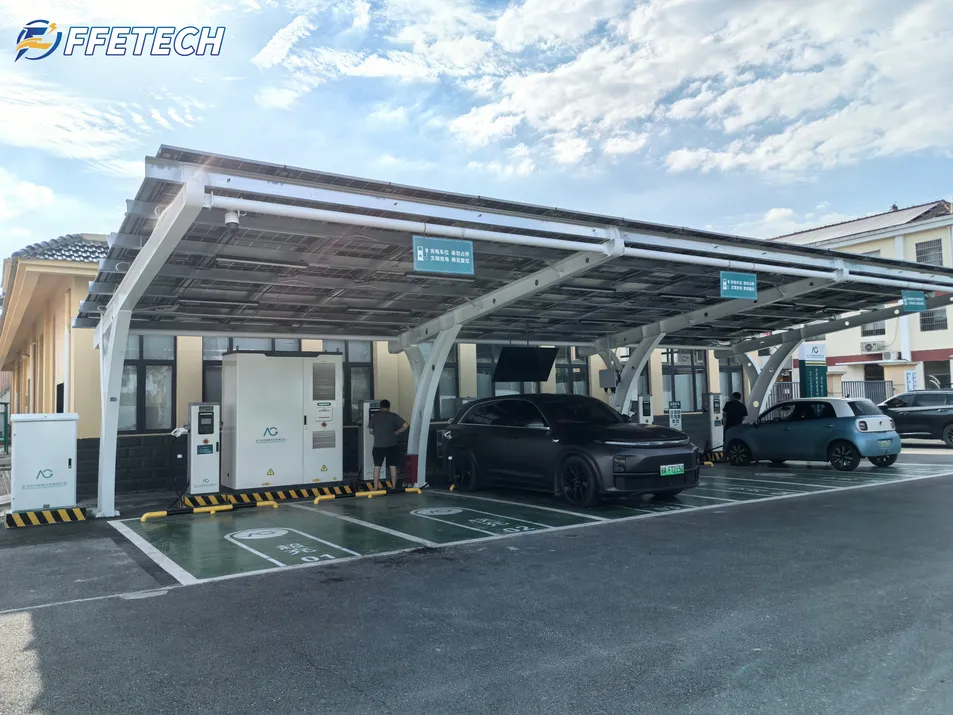

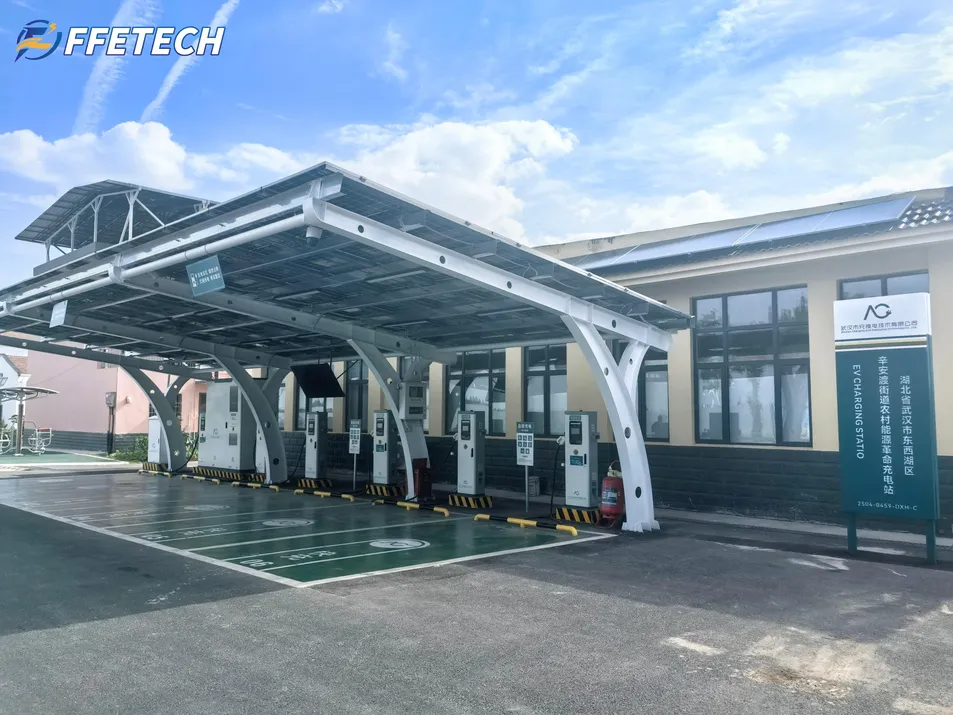

It aims to improve energy efficiency, lower costs, and enhance power supply reliability and stability. Suitable for EV charging stations, commercial complexes, industrial parks, residential communities, and emergency power supply sites, optimizing power resource allocation and supporting the popularity of new energy vehicles.

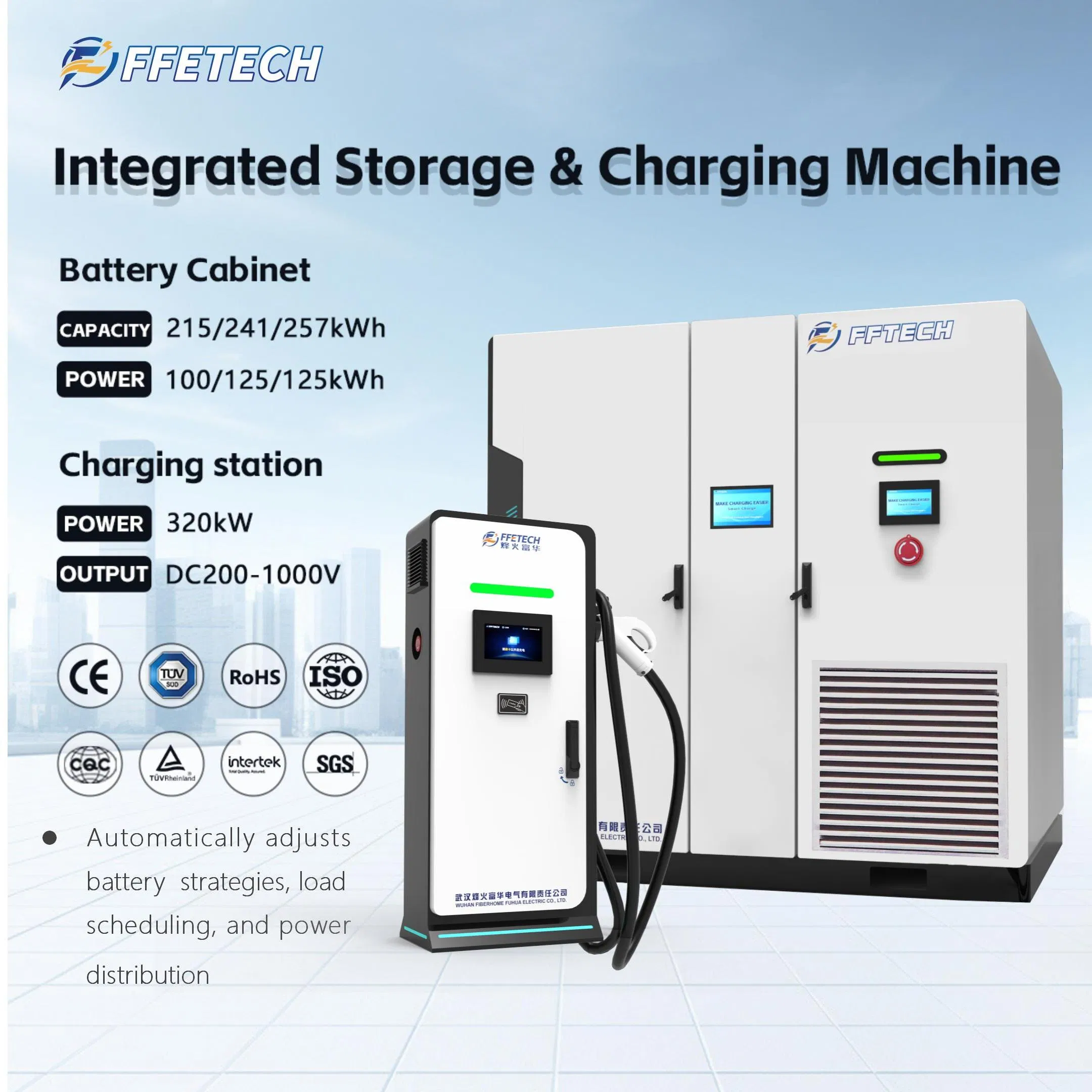

| Specifications | FH-ES-215 | FH-ES-241 | FH-ES-257 |
|---|---|---|---|
| Cell Type | LFP3.2V/280Ah | LFP3.2V/280Ah | LFP3.2V/280Ah |
| Standard Capacity (kWh) | 215 | 241 | 257 |
| Nominal Power (kW) | 100 | 125 | 125 |
| Operating Voltage (V) | 648~876 | 648~876 | 691.2~934.4 |
| Battery Life | ≥6000 cycles @25℃±2℃ | ||
| System Efficiency | ≥90% | ||
| Protection Rating | IP54 | ||
| Operating Temp | -20℃~+55℃ | ||
