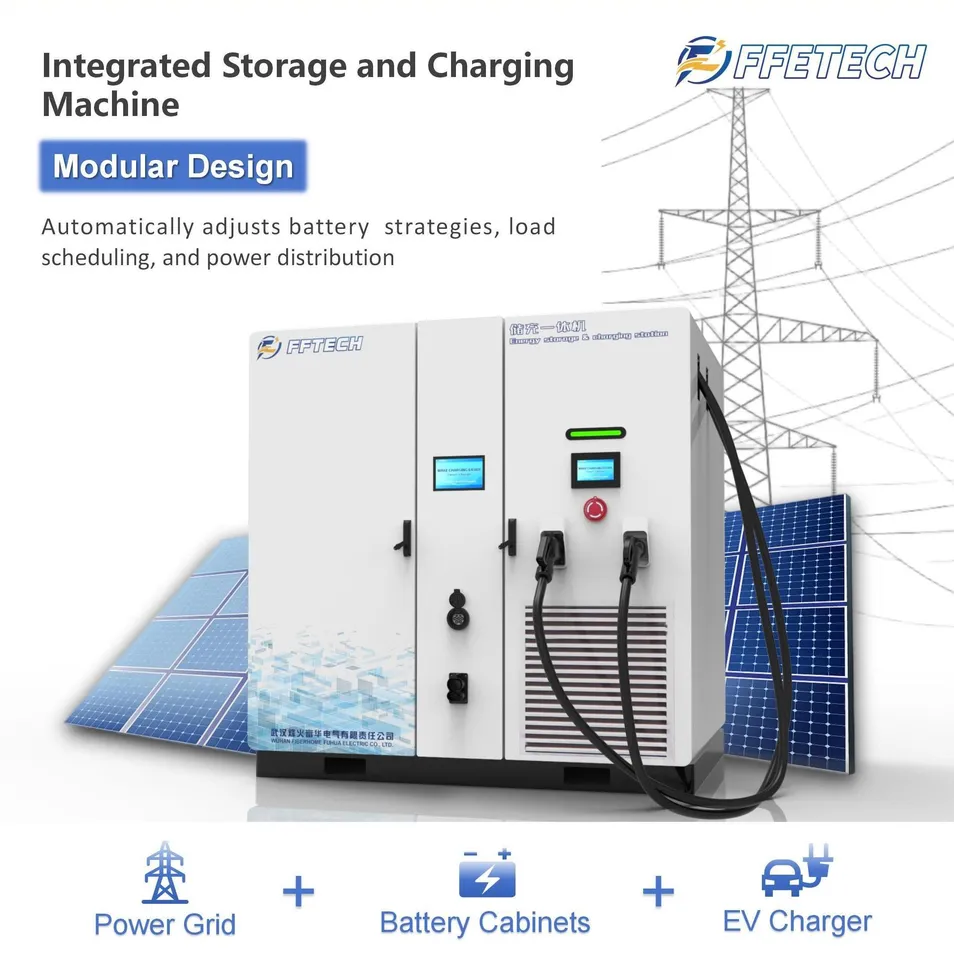

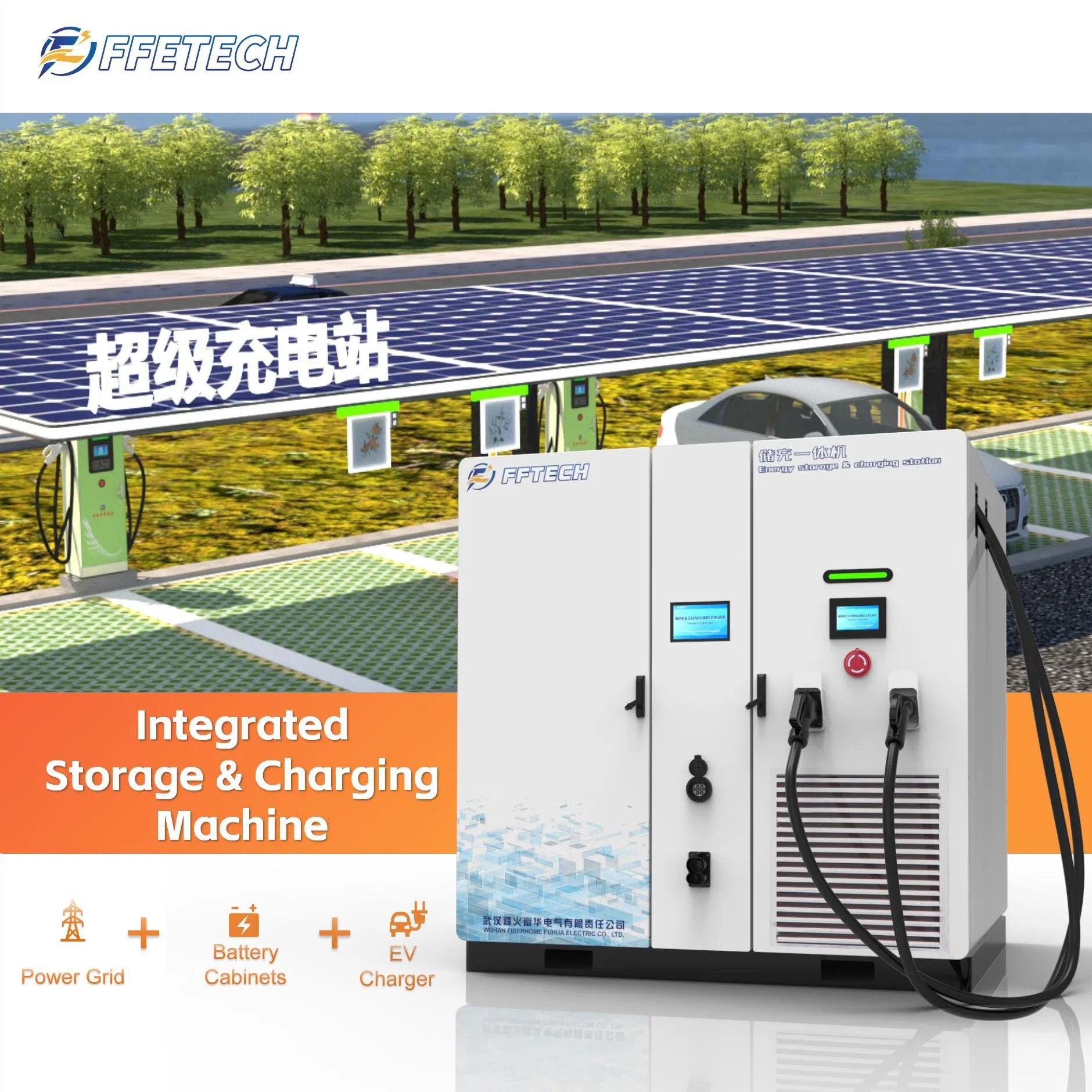

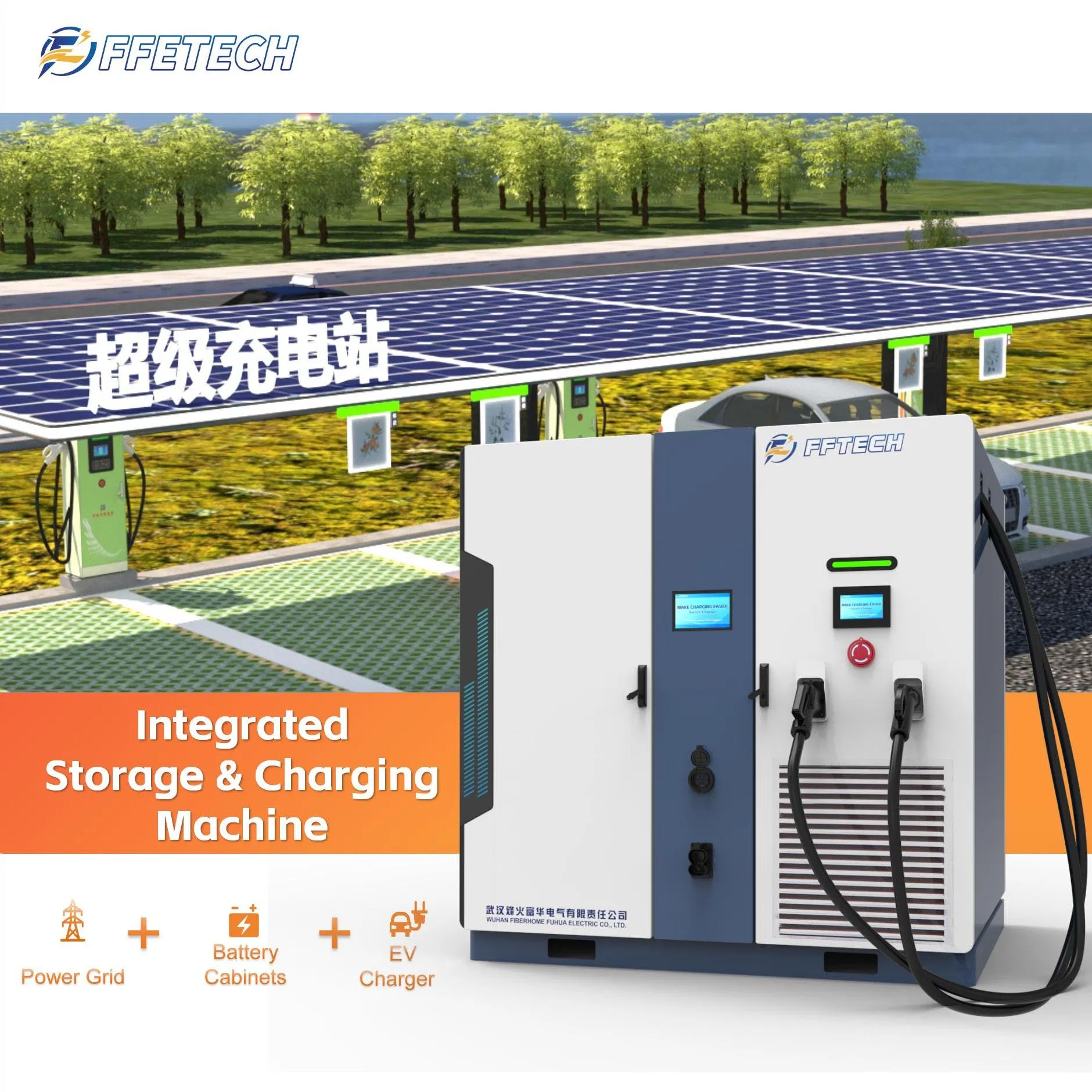

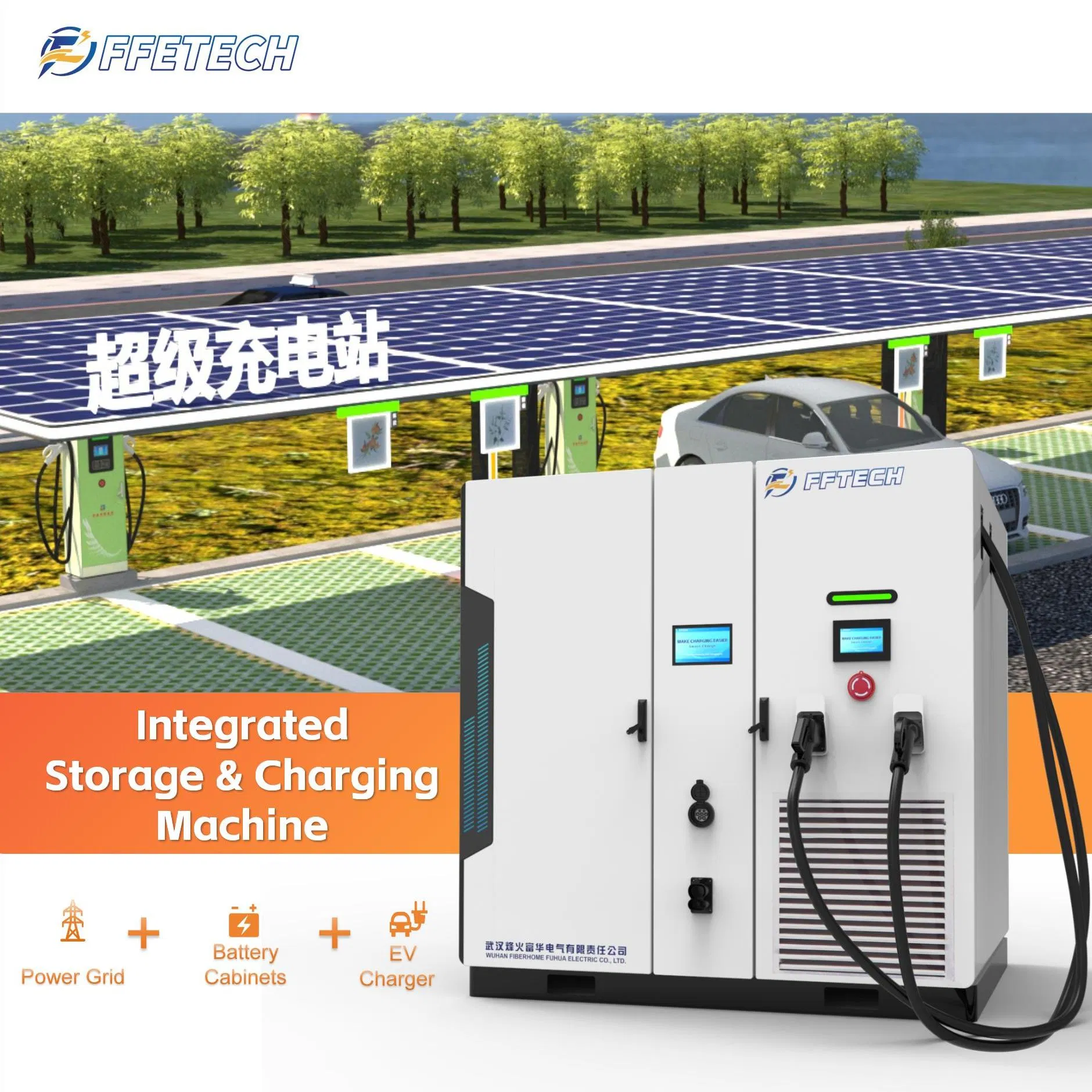

This product uses a zero-capacity-increment, flexible smart charging pile as the energy storage and charging system carrier. With modular design, it integrates lithium iron phosphate battery cabinets, battery management system (BMS), power conversion system (PCS), DC-DC charging system, local control system (EMS), air conditioning, fire protection, and other devices into one.

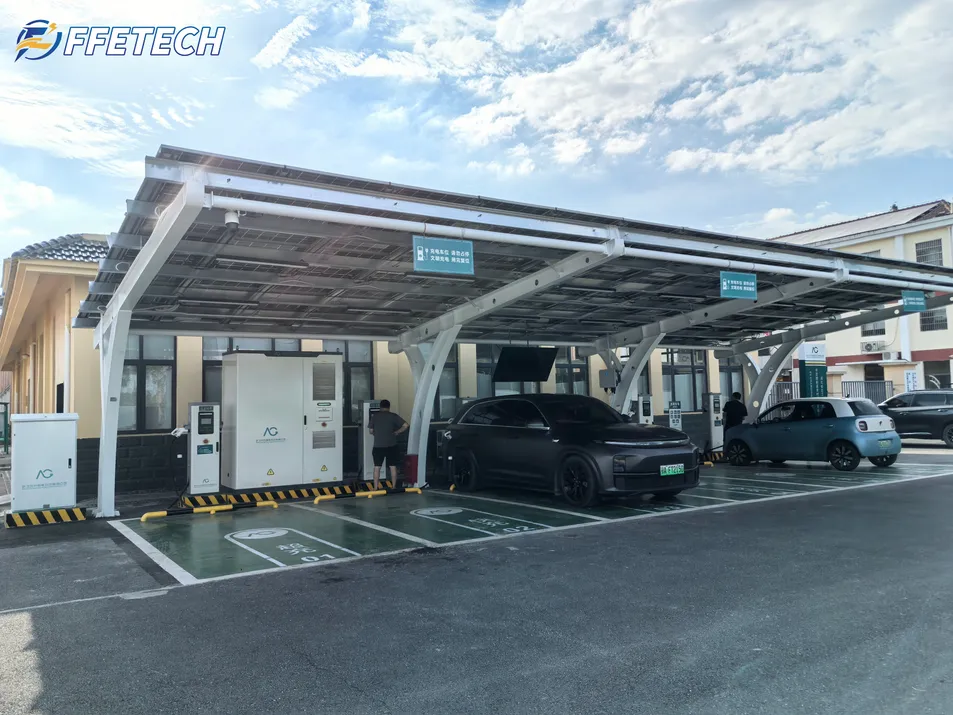

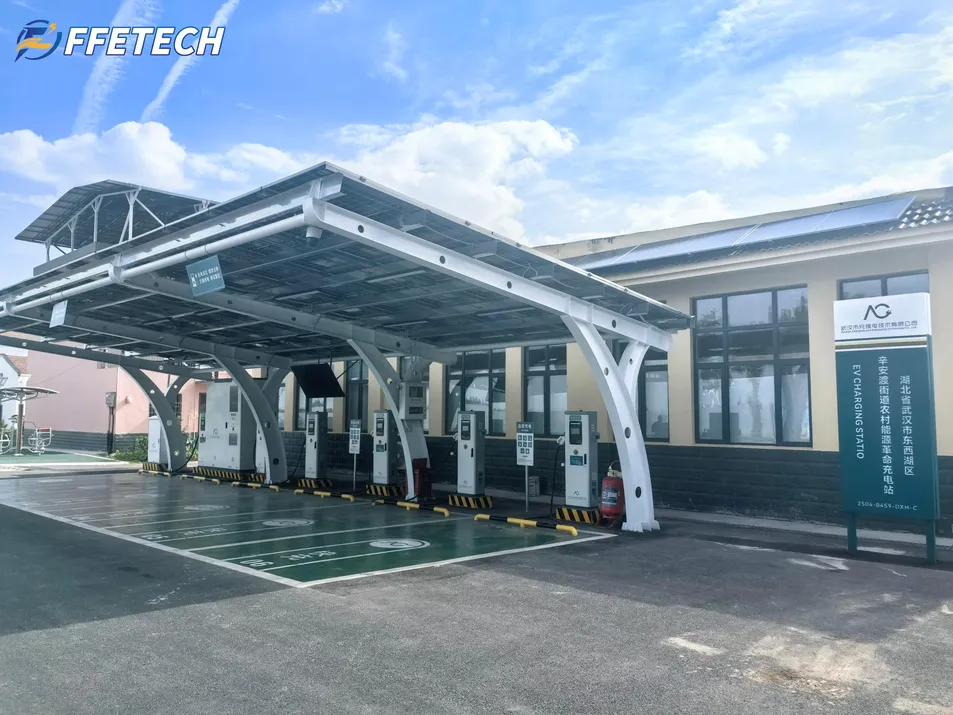

It aims to improve energy efficiency, lower costs, and enhance power supply reliability and stability. Suitable for EV charging stations, commercial complexes, industrial parks, residential communities, and emergency power supply sites, optimizing power resource allocation and supporting the popularity of new energy vehicles.

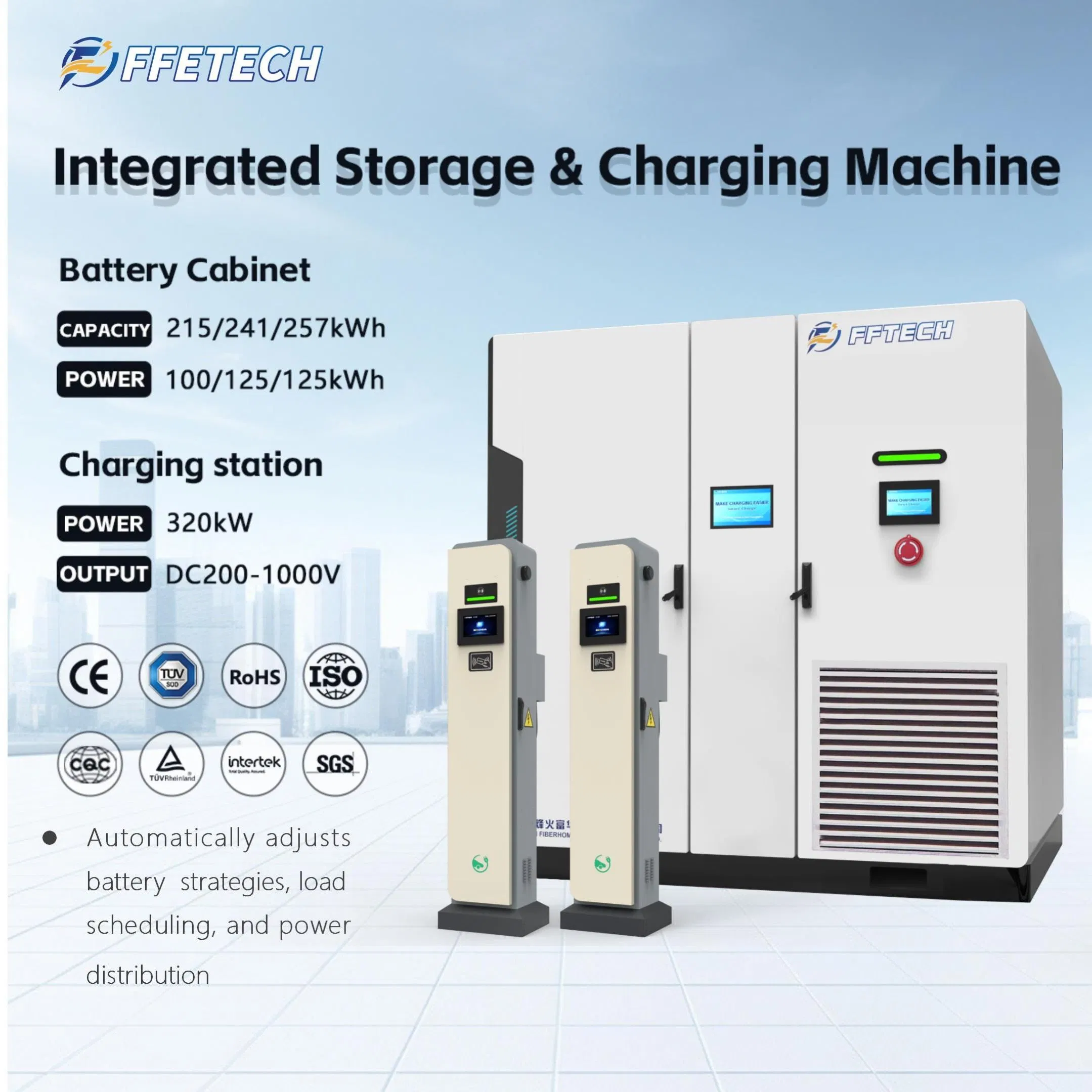

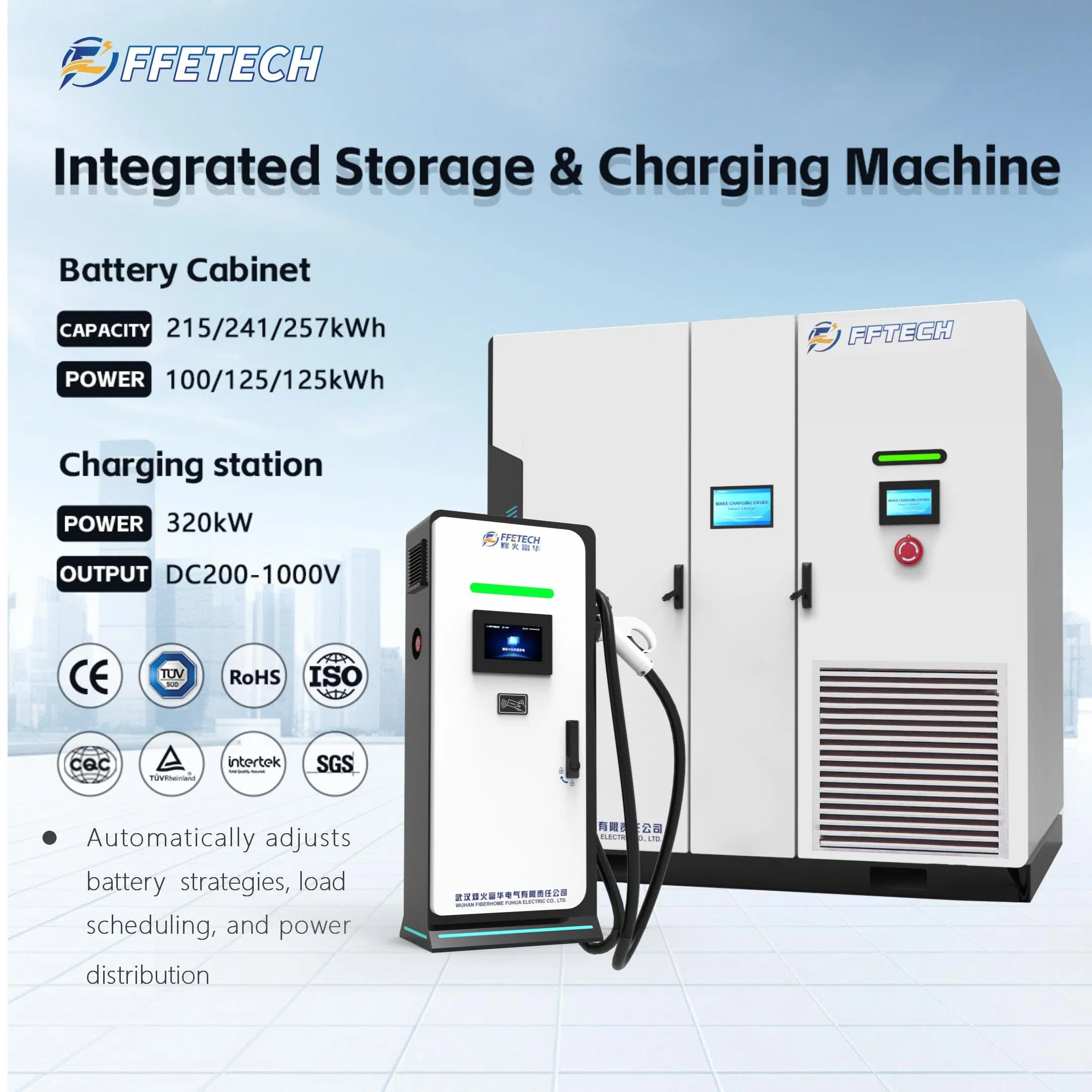

| Parameter Type | Feature | FH-ES-215 | FH-ES-241 | FH-ES-257 |
|---|---|---|---|---|
| DC Side | Cell Type | LFP 280Ah | LFP 280Ah | LFP 280Ah |
| Capacity (kWh) | 215 | 241 | 257 | |
| Nominal Power (kW) | 100 | 125 | 125 | |
| Voltage Range (V) | 648~876 | 648~876 | 691.2~934.4 | |
| AC Side | Nominal Voltage | AC380V | AC380V | AC380V |
| Output Current (A) | 158 | 158 | 158 | |
| THD | <3% | <3% | <3% | |
| Charging Stack | Input Voltage | DC200-1000V | DC200-1000V | DC200-1000V |
| Nominal Power | 320KW | 320KW | 320KW | |
| Efficiency | 95% | 95% | 95% |
Allows for fast charging of electric vehicles. This makes it an ideal solution for commercial public applications where users require fast charging speed and efficiency.
Ensures peace of mind by making it resistant to dust and water (IP54). This provides a reliable and long-lasting charging solution for frequent and outdoor use.
Modular design makes it easy to install and connect to a power source. This feature is especially useful for sites requiring rapid deployment and easy setup.
