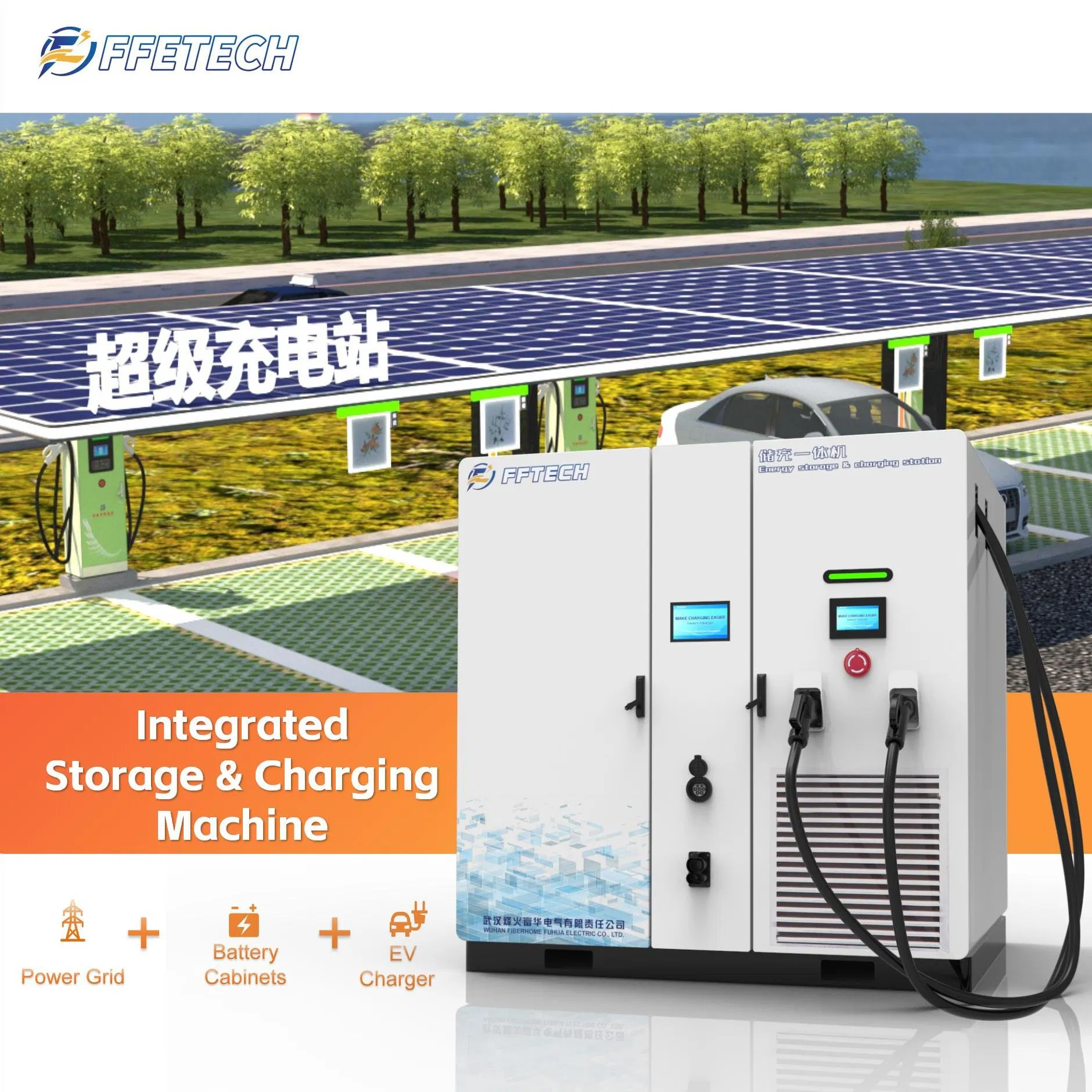

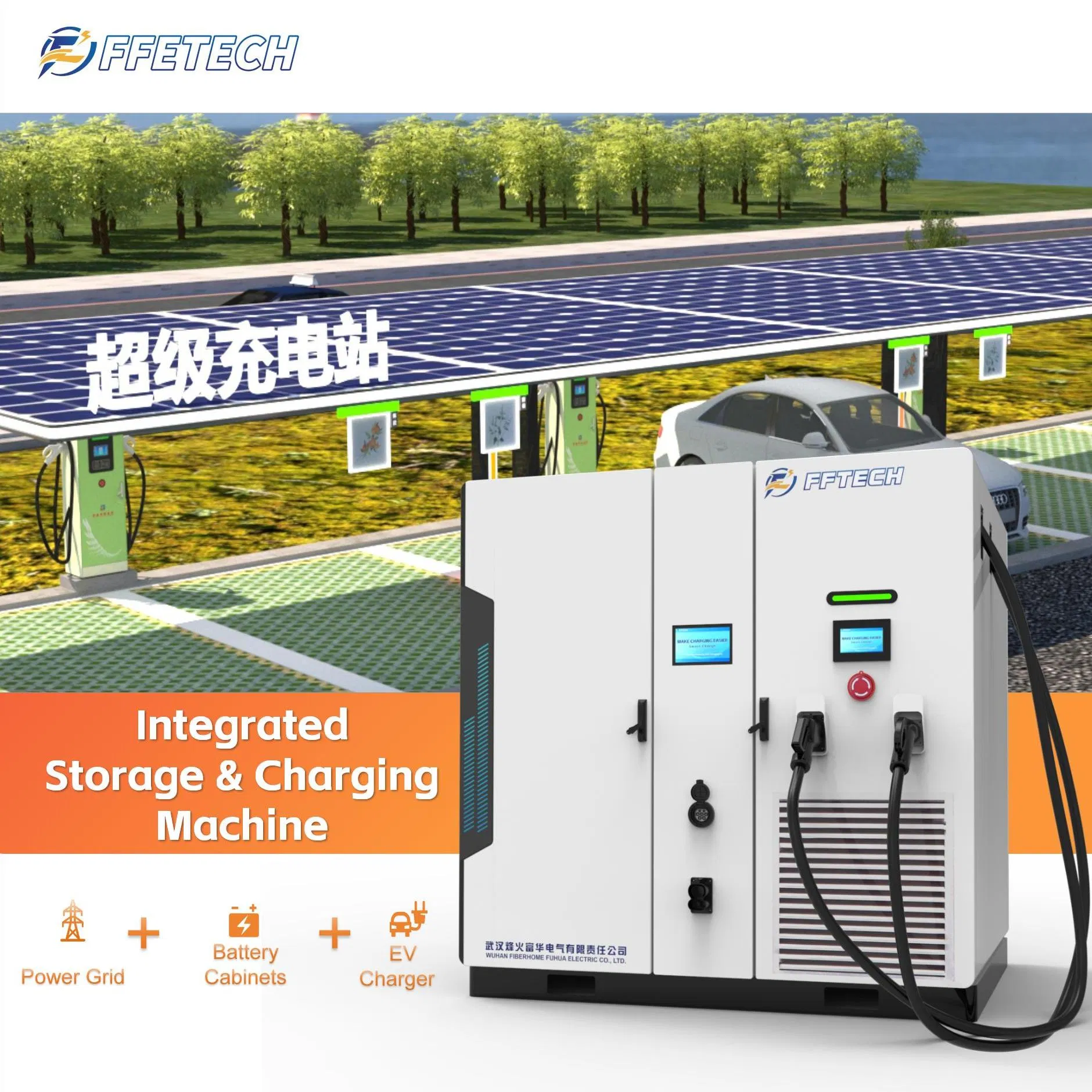

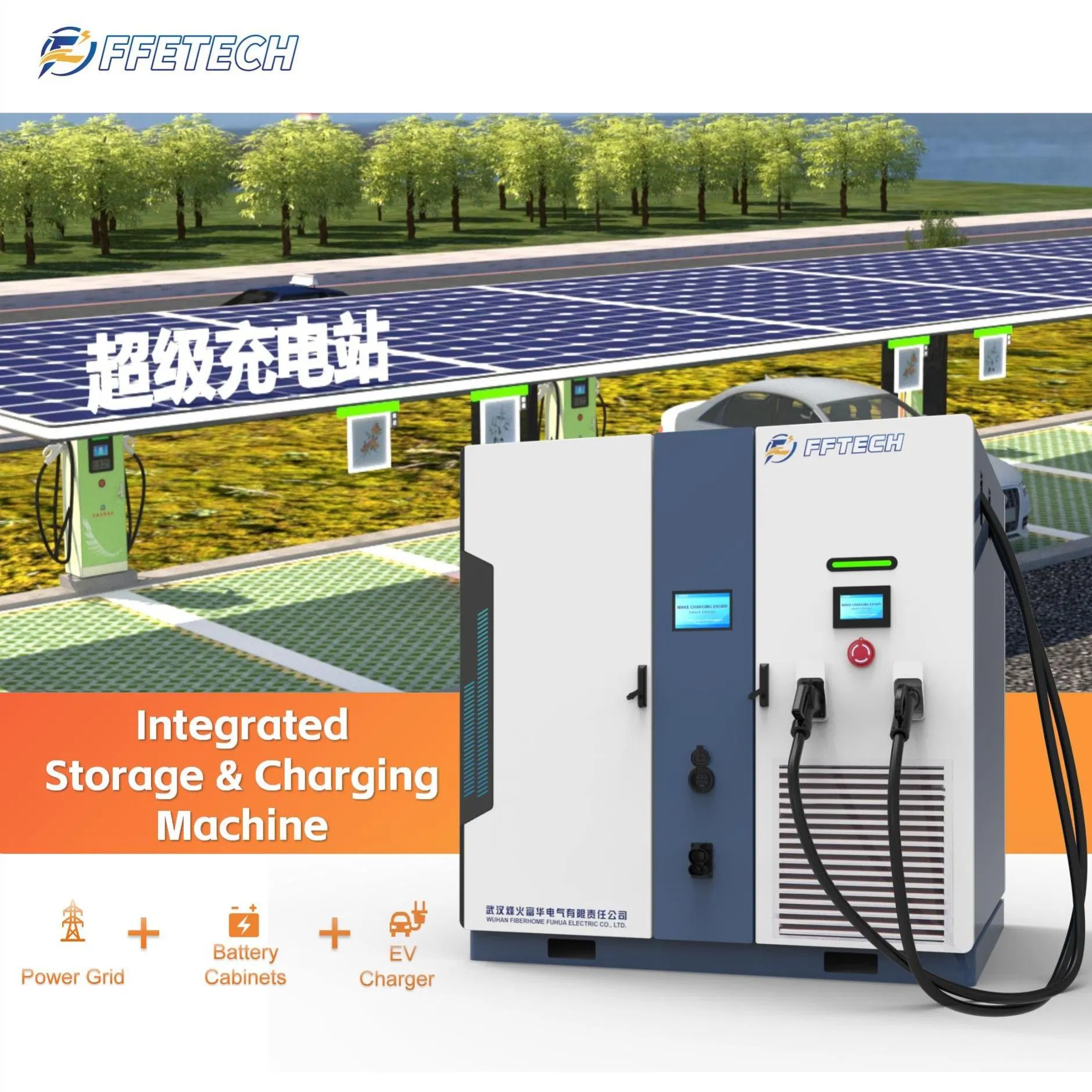

Affordable Energy Storage Solution - Easy Installation Charging Unit

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T, Tesla
Installation:	Floor Type

Basic Specifications

Model NO.

FH-ES-241

Location

Public Use

Charging Interfaces

Battery + EV Charger

Start Mode

Credit Card, Mobile Remote, RFID

Voltage Range

648-934.4V

Max DC Current

158A

Depth of Discharge

100%/90%

Output Voltage

AC380V

Product Description

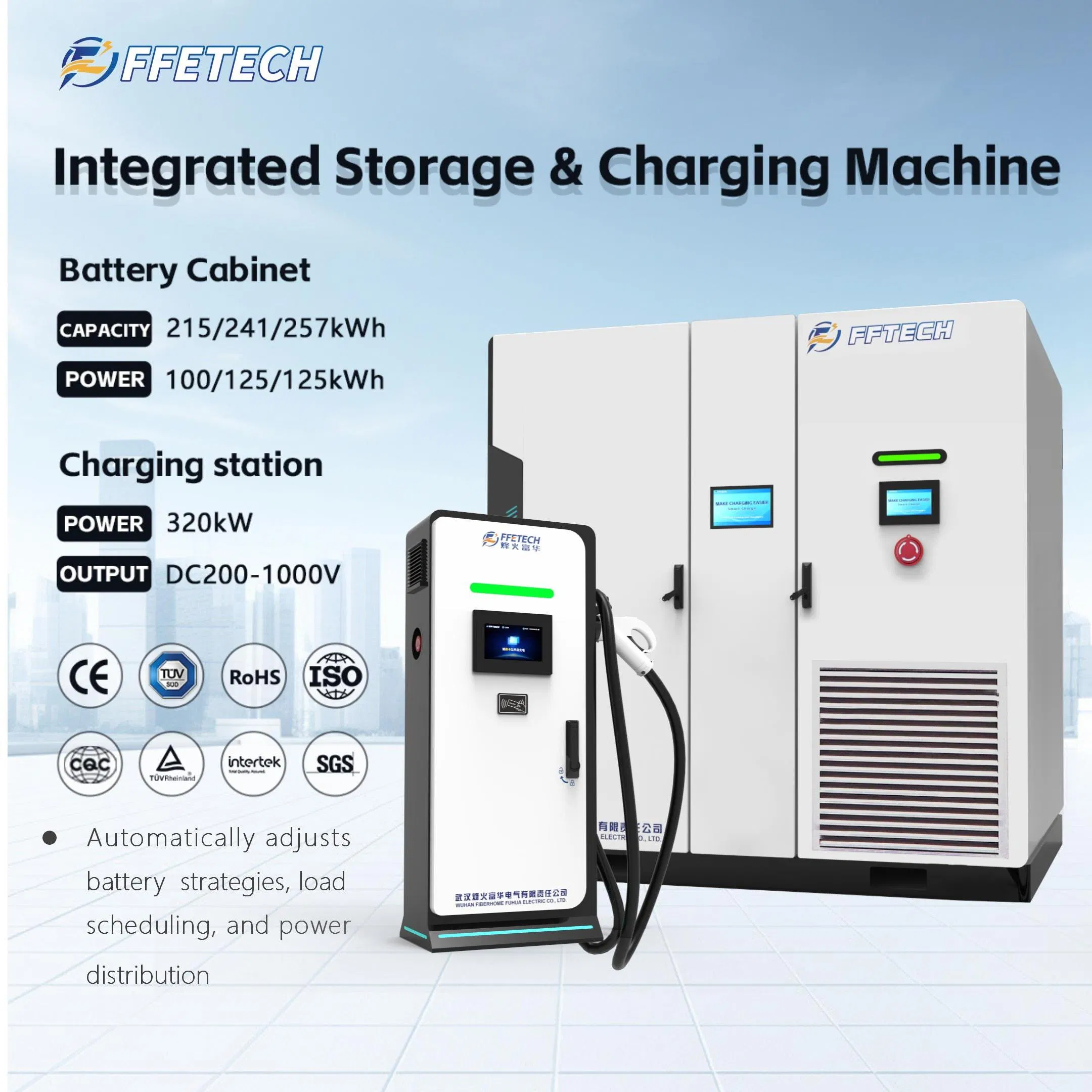

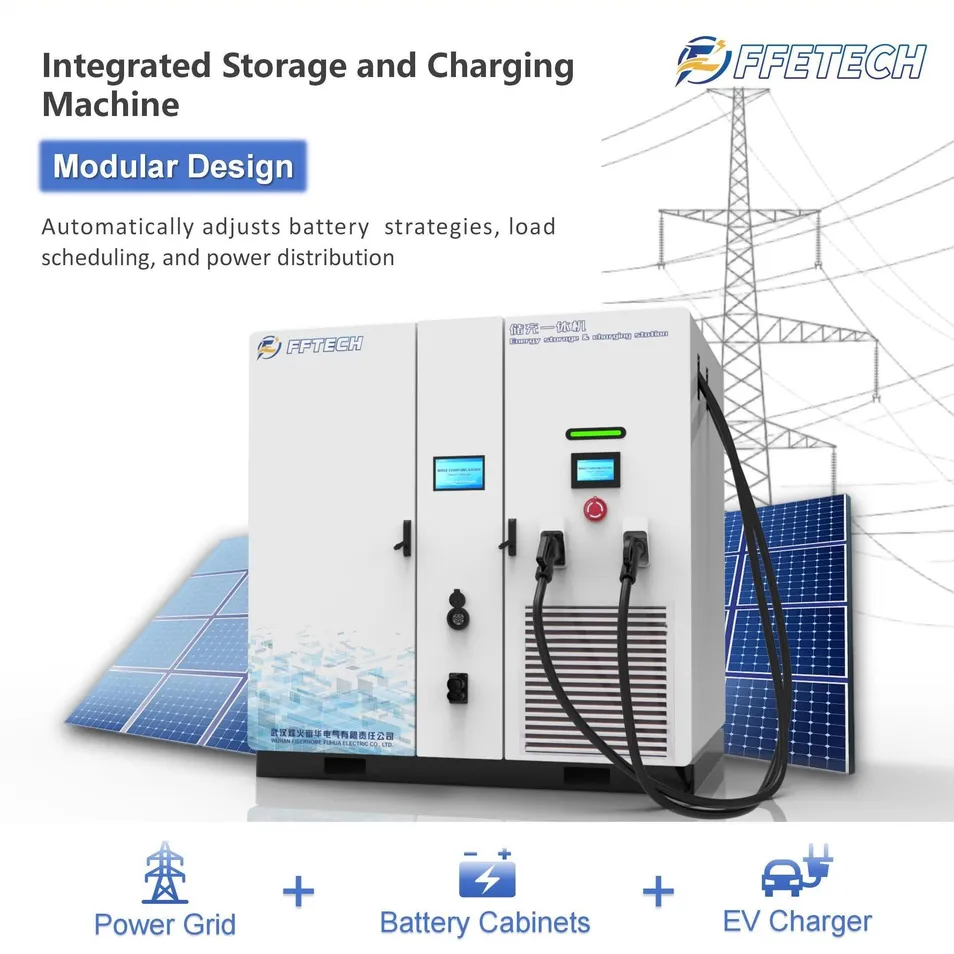

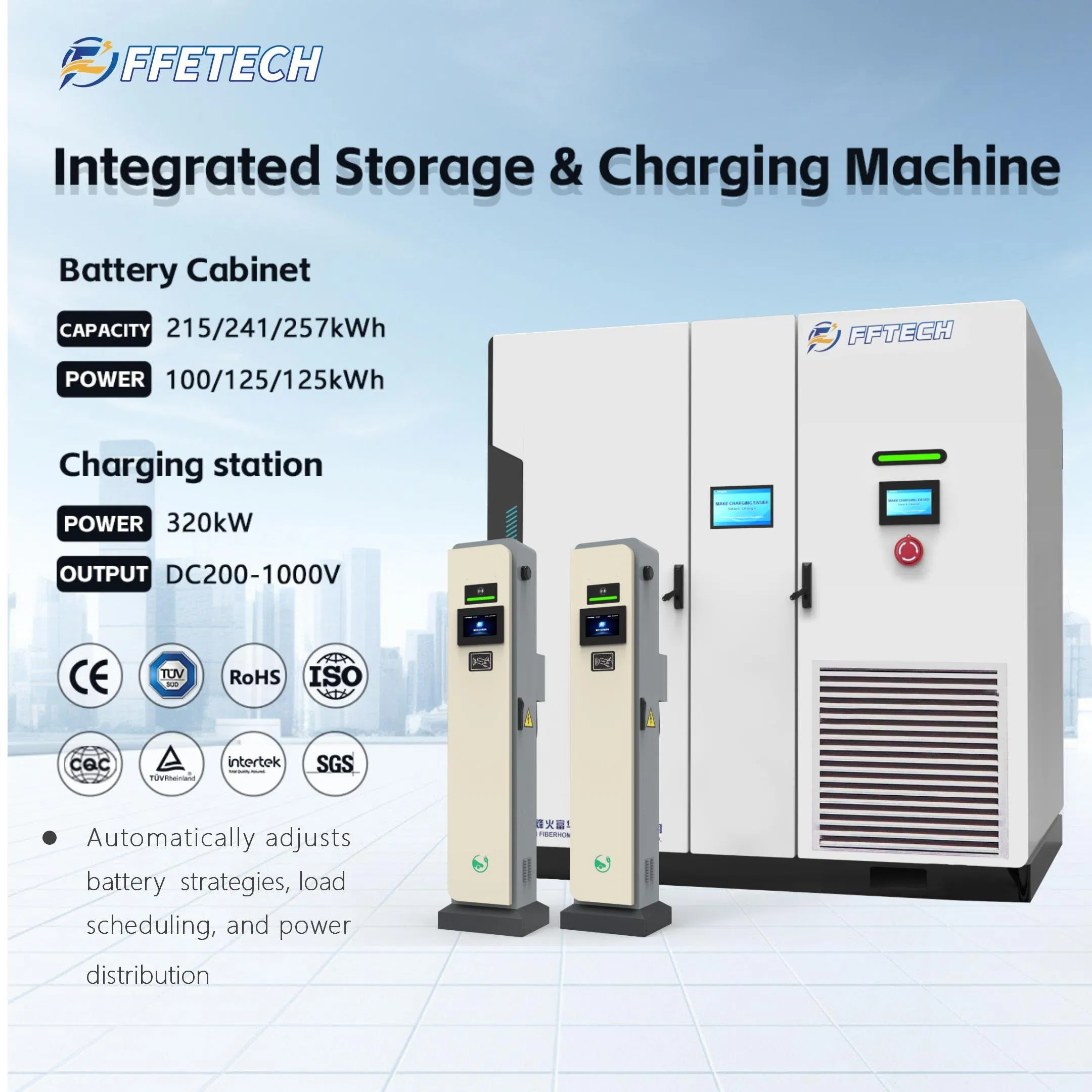

This product uses a zero-capacity-increment, flexible smart charging pile as the energy storage and charging system carrier. With modular design, it integrates lithium iron phosphate battery cabinets, battery management system (BMS), power conversion system (PCS), DC-DC charging system, local control system (EMS), air conditioning, fire protection, and other devices into one, providing a core solution for both energy storage and charging.

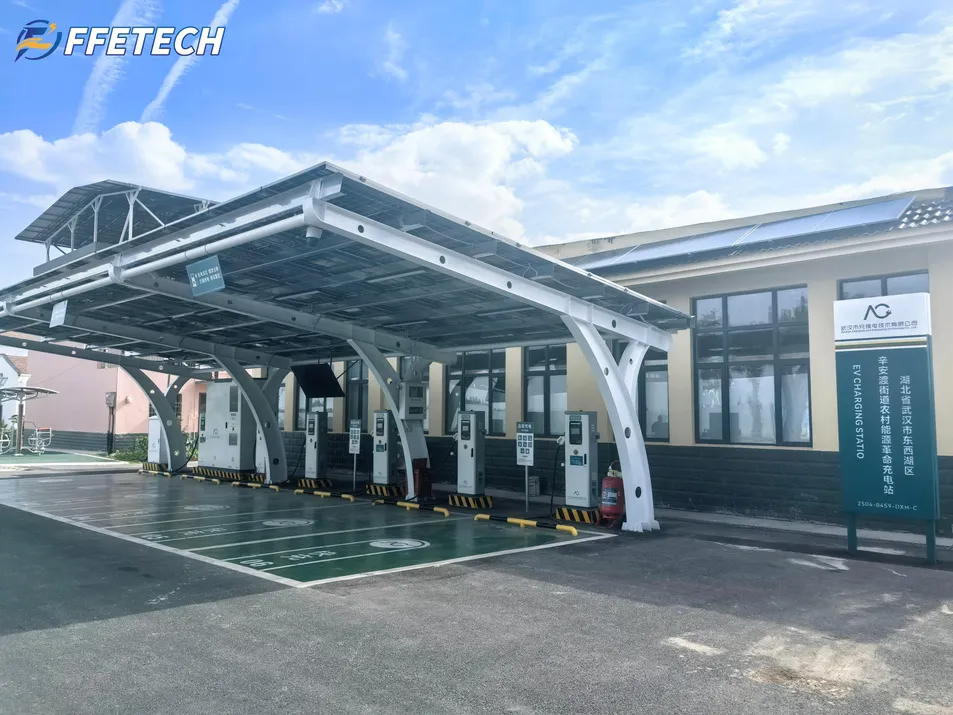

It aims to improve energy efficiency, lower costs, and enhance power supply reliability and stability. Suitable for EV charging stations, commercial complexes, industrial parks, residential communities, and emergency power supply sites, optimizing power resource allocation and supporting the popularity of new energy vehicles.

Product Parameter

Model		FH-ES-215	FH-ES-241	FH-ES-257
DC Side Parameters
Cell Type	LFP 3.2V/280Ah	LFP 3.2V/280Ah	LFP 3.2V/280Ah	LFP 3.2V/280Ah
Standard Capacity	kWh	215	241	257
Nominal Power	kW	100	125	125
Voltage Range	V	648~876	648~876	691.2~934.4
Battery Life	Cycles	≥6000 cycles @25℃±2℃
AC Side Parameters
Nominal Voltage	V	AC380V	AC380V	AC380V
Nominal Current	A	158	158	158
Wiring Method	-	Three-phase four-wire
Charging Terminal Parameters
Output Voltage	V	DC200-1000V
Standard	-	GB Standard 9-core DC Charging Gun

Key Features

⚡ Fast Charging Capability: Allows for fast charging of electric vehicles. This makes it an ideal solution for commercial public applications where users require fast charging.
🛡️ Reliability and Durability: Ensure peace of mind by making it resistant to dust and water (IP54). This provides a reliable and long-lasting charging solution for frequent use.
🛠️ Easy Installation: Easy to install and connect to a power source. This feature is especially useful for users who need an easy installation process.

Production Process

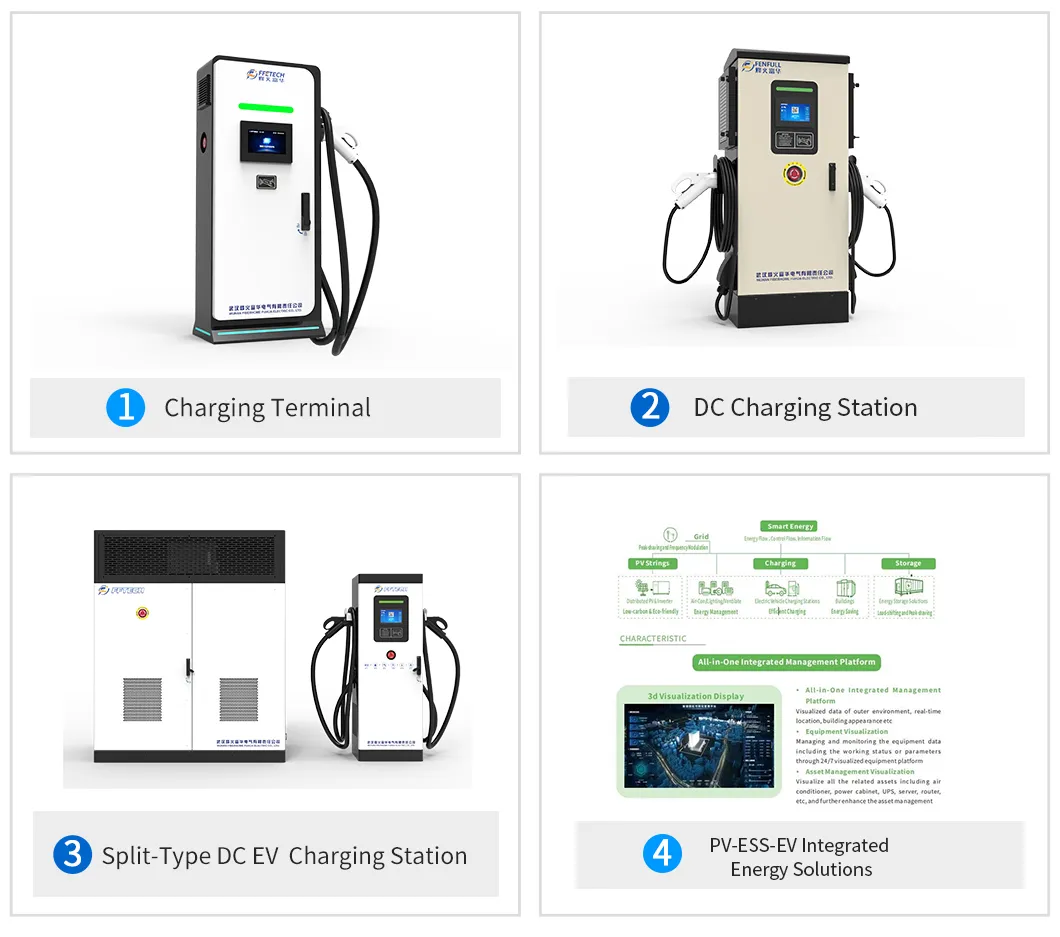

Related Products

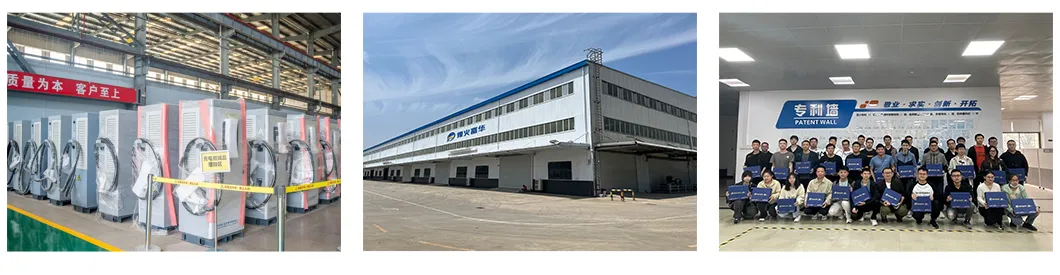

Facility & Quality Control

Frequently Asked Questions

Q1: Do you have inspection before delivery?

Yes. We have a specialized QC team to perform random and 100% inspections before delivery to ensure quality.

Q2: What is the standard lead time?

The standard lead time is normally 15-25 days, although it may vary during peak seasons.

Q3: Can you provide customized services?

Yes, we offer OEM and ODM services. We have various customization options for specific product categories to meet your needs.

Q4: Are you a manufacturer?

Yes. We operate our own factory and maintain a strong R&D team at our head office to drive innovation.

Q5: What are the packaging details?

Most products are packed in sturdy carton boxes. Packaging can also be customized upon the customer's specific request.

Q6: Are your products suitable for extreme environments?

Yes, our systems are designed with IP54 ingress protection and maintain an operating temperature range of -20℃ to +55℃, suitable for diverse outdoor locations.
