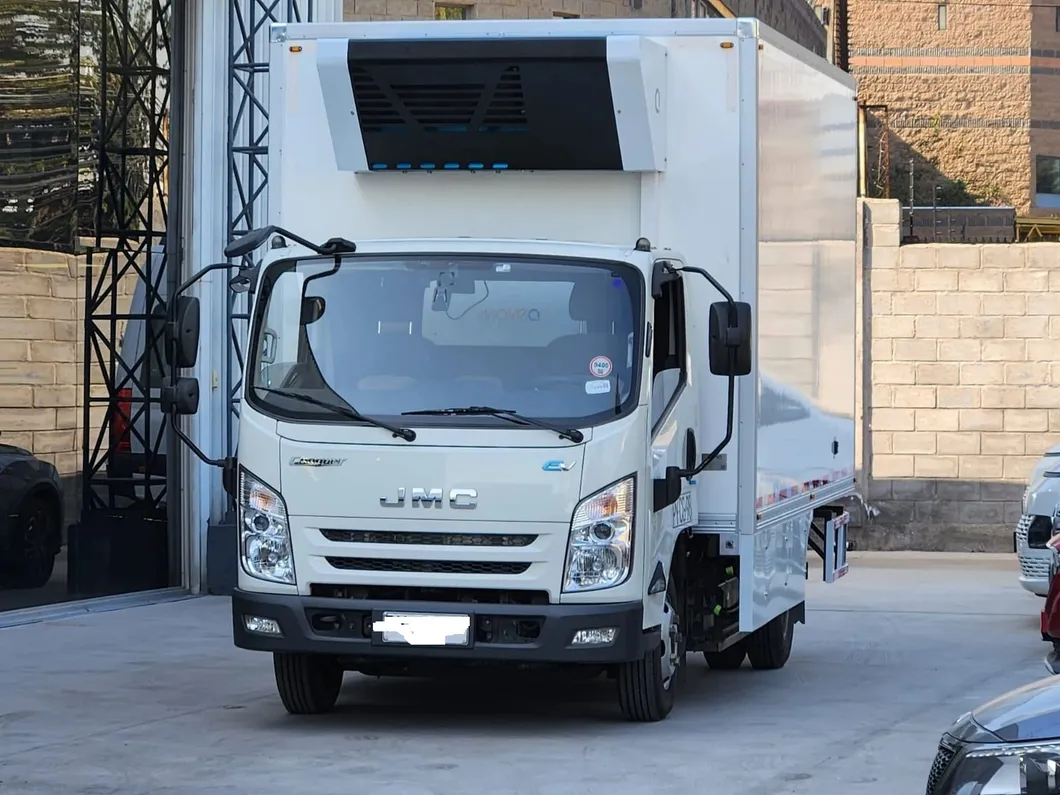

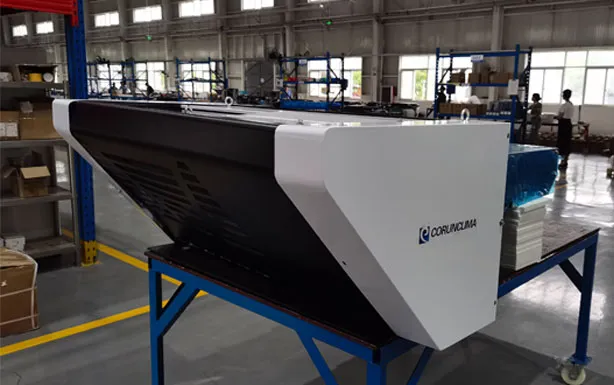

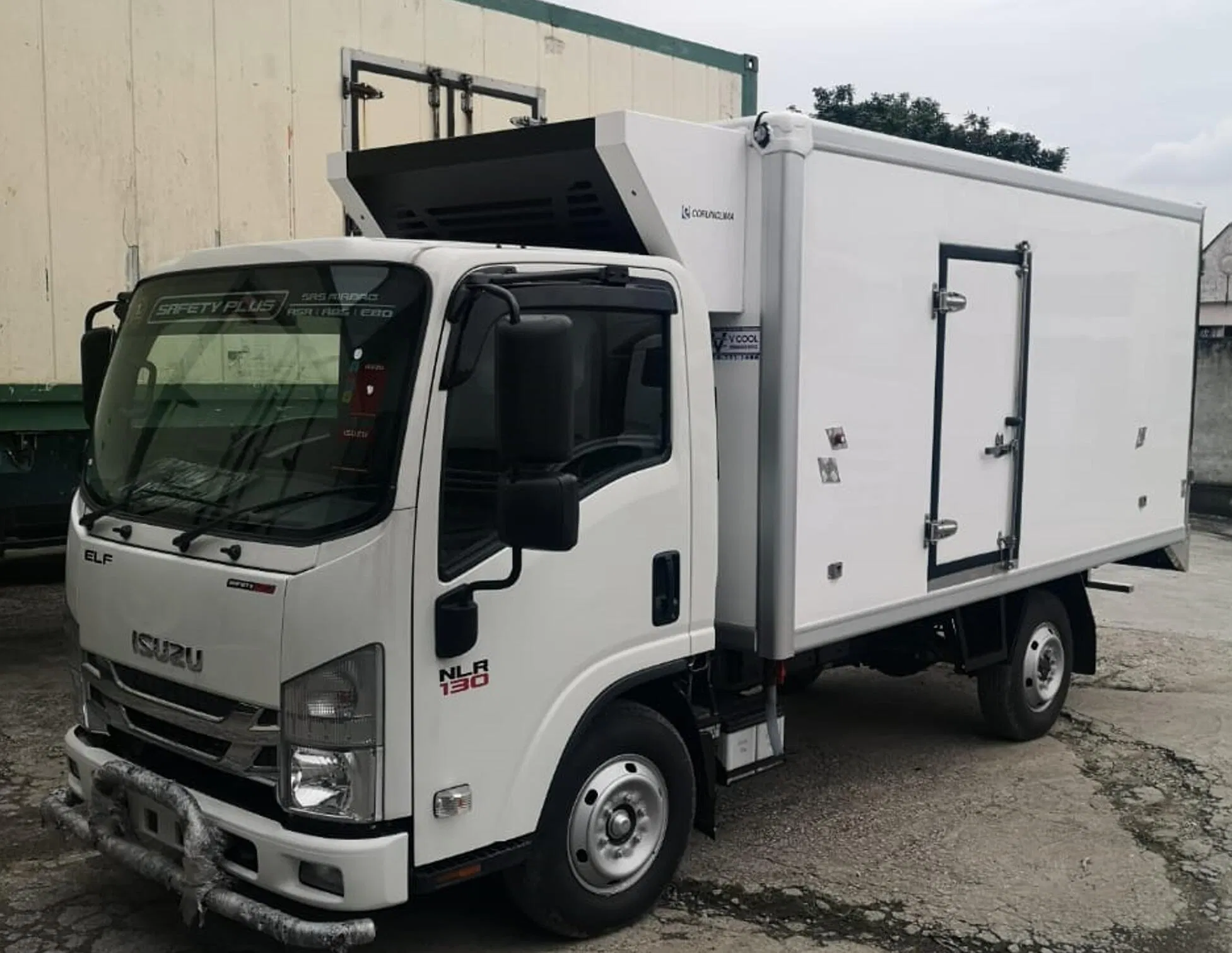

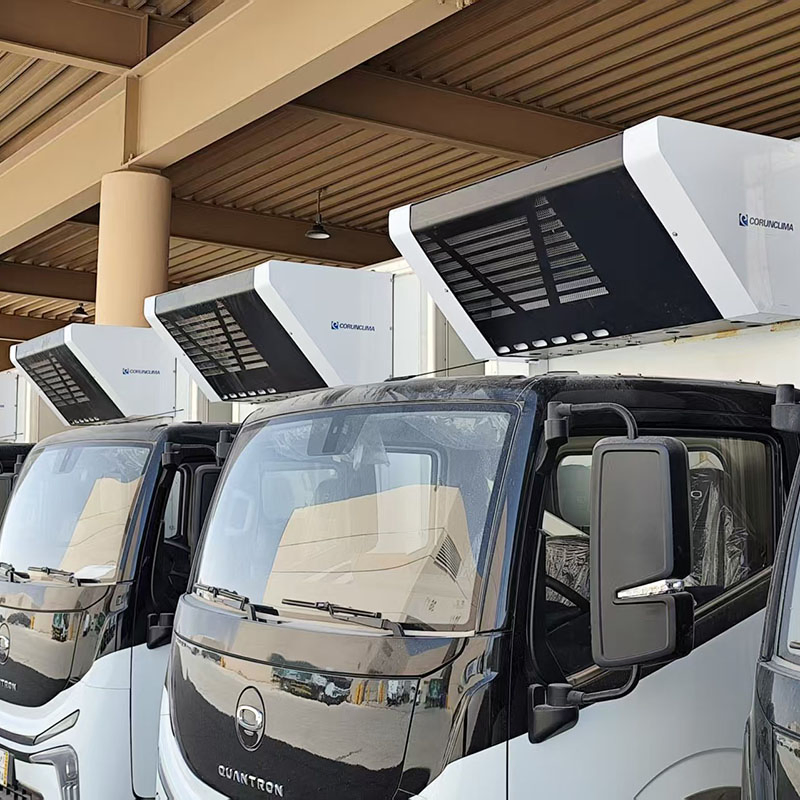

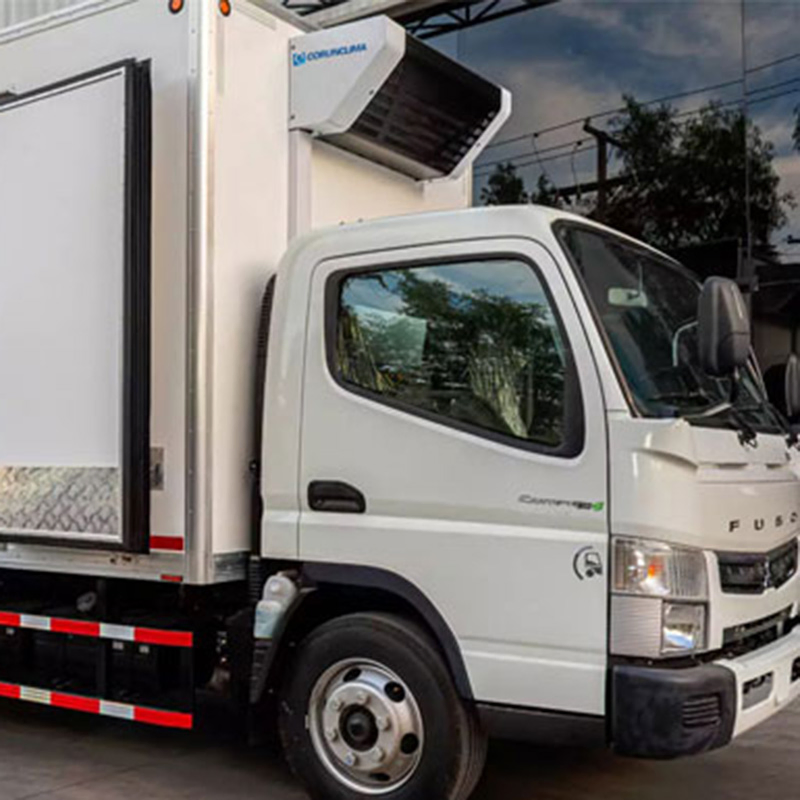

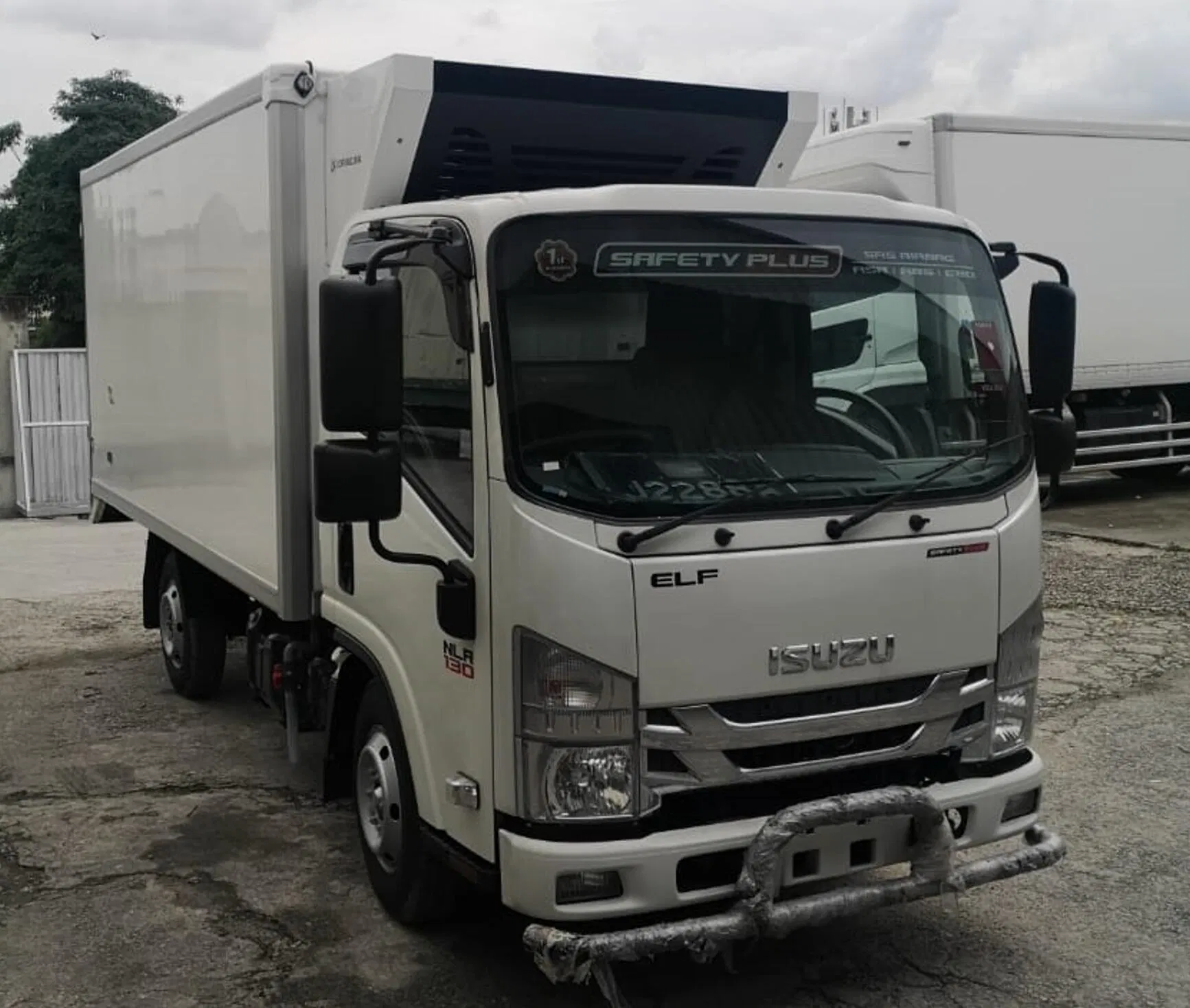

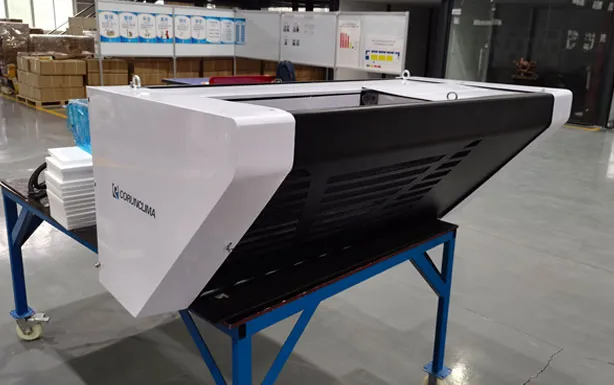

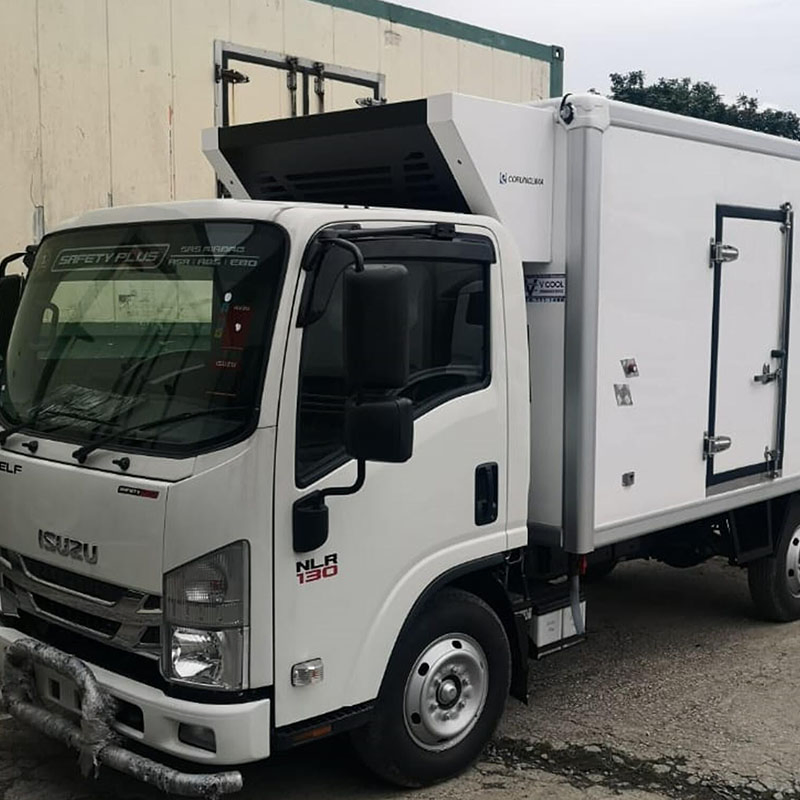

Full DC Electric Technology: Designed for engine trucks and electric trucks. Monoblock type integrated system including condenser, evaporator, DC electric compressor, battery, and charger in one piece.
High Efficiency: Replaces diesel engine self-powered units. Reduces fuel consumption by 20% to 25% for engine trucks. Operates fully independent from the vehicle's original battery for EV trucks.
| Model No. | V350MB | V450MB | V650MB | |
|---|---|---|---|---|
| Temperature Range | -18ºC ~ +25ºC | -18ºC ~ +25ºC | -18ºC ~ +25ºC | |
| Voltage | DC48V | DC48V | DC48V | |
| Cooling Capacity | -5ºC / 23ºF | 3400W | 5800W | 6510W |
| -20ºC / -4ºF | 2200W | 3380W | 3900W | |
| Lithium Battery | 4.8kwh | 9.6kwh/19.2kwh | 9.6kwh/19.2kwh | |
| Working Time | 5-6hrs | 4-6hrs / 8-12hrs | 3-5hrs / 6-10hrs | |
| Charging Time | 1.5-3hrs | 3-7hrs / 6-14hrs | 3-7hrs / 6-14hrs | |

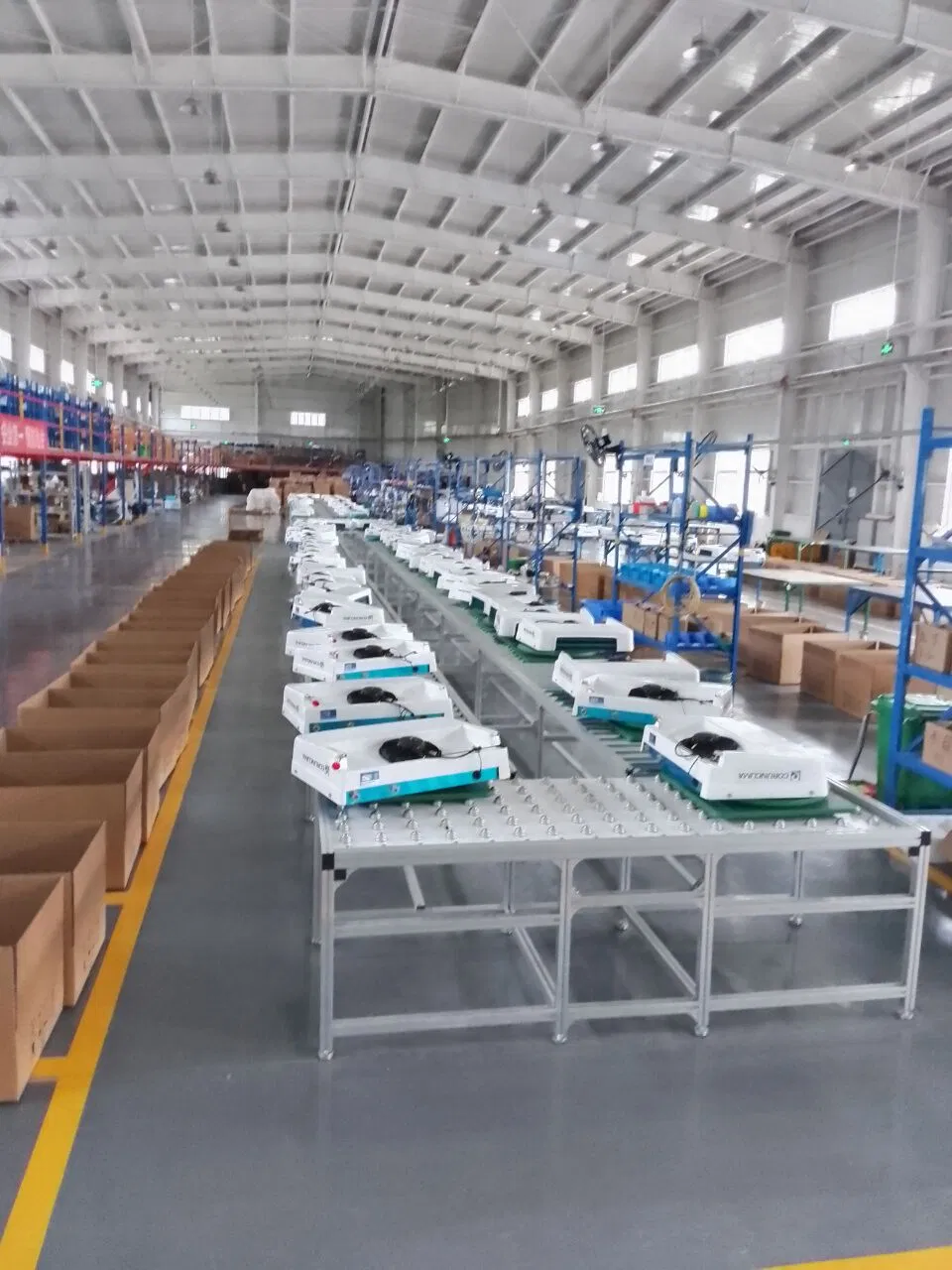

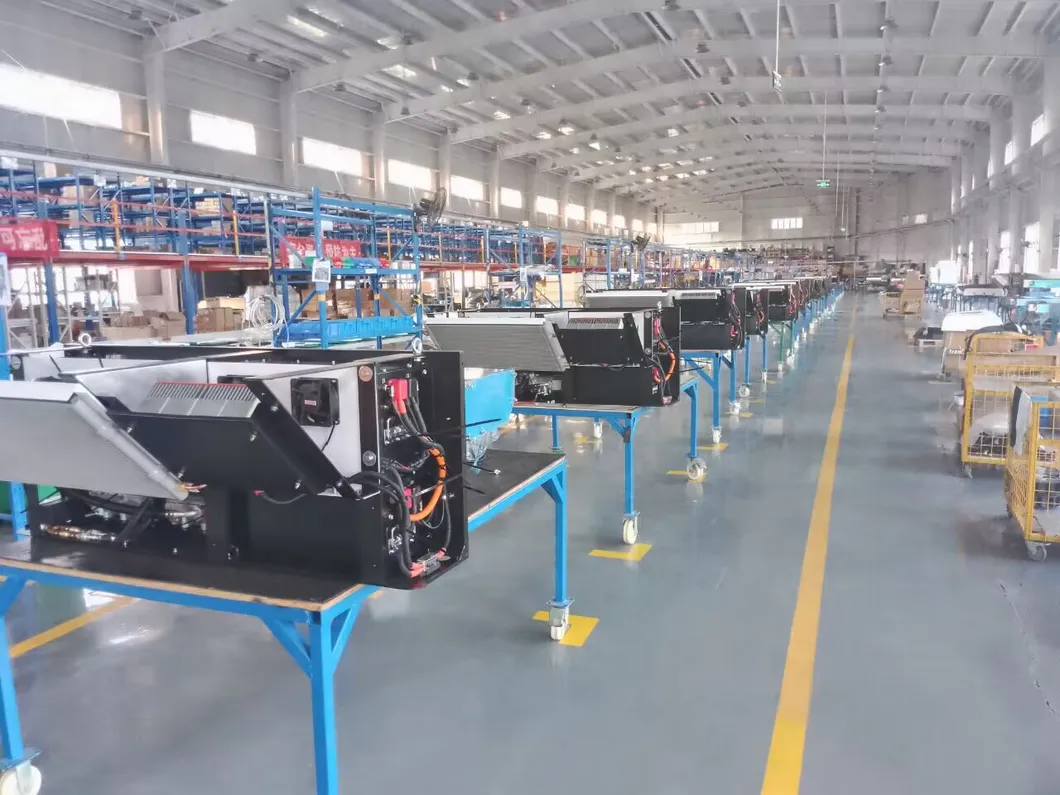

All products undergo rigorous testing before delivery: 100% pressure test for no leakage, 100% electric test, and 3% performance test to ensure the highest reliability.
