Irvion Charger
1 / 5

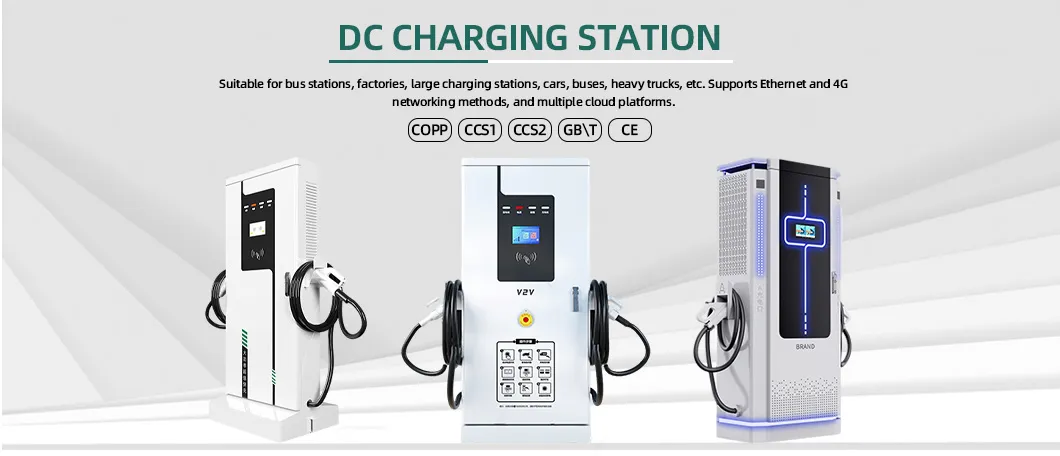

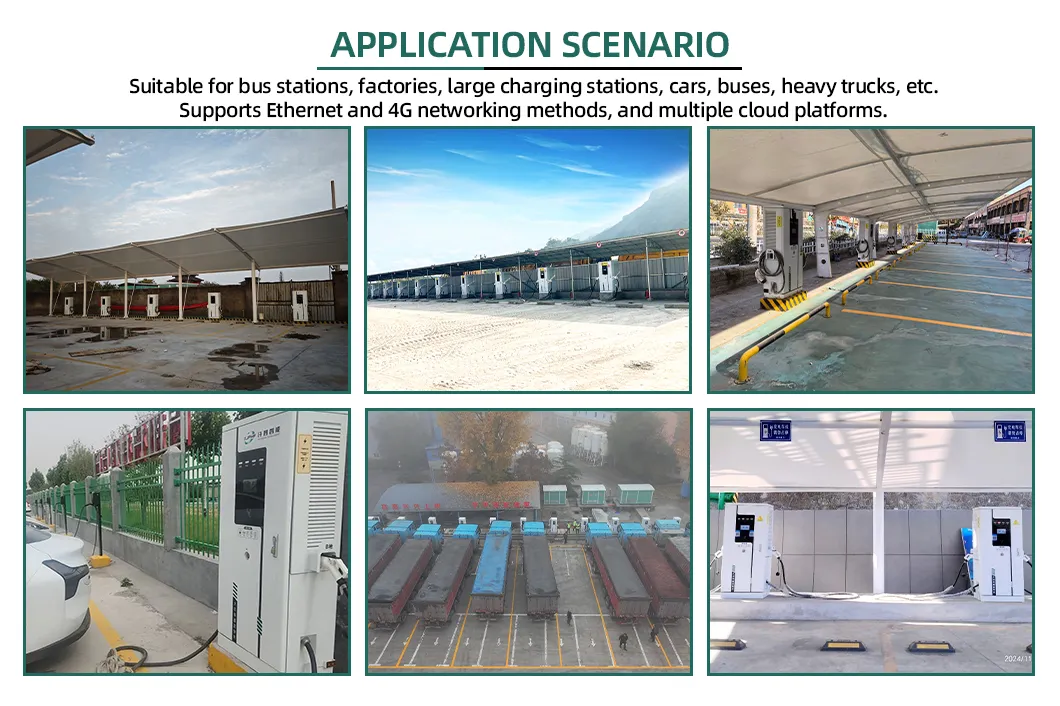

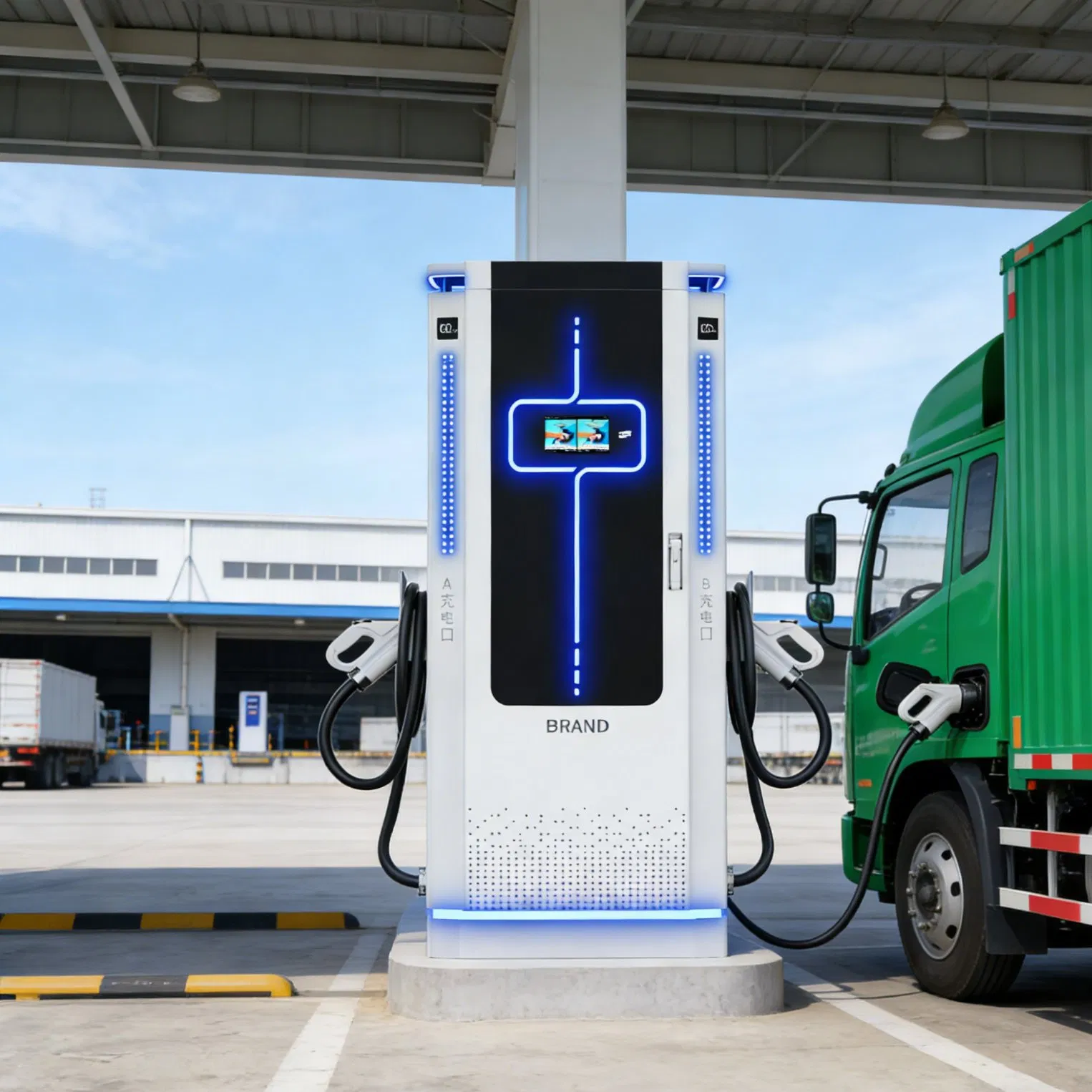

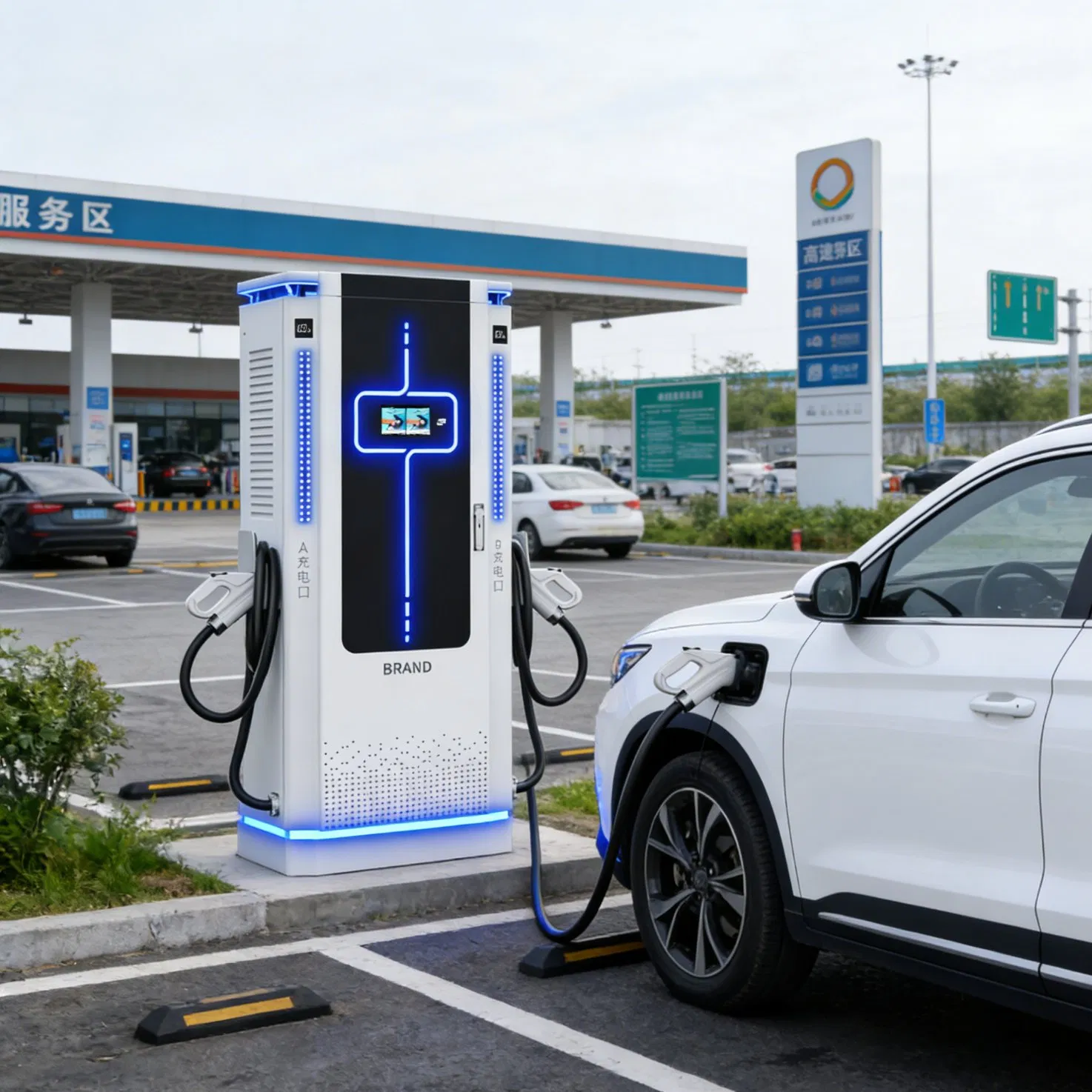

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.
The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.
| Model / Rated Power | 40KW - 600KW | Body Size | 750 x 410 x 1700 (mm) |
|---|---|---|---|
| Installation | Floor Type | Weight | 194kg - 274kg |
| Connector Type | CCS1, CCS2, Chademo, GB/T | Gun Barrel Length | 5 Meters / 7 Meters |
| Charging Interfaces | One Pile with Multiple Charges (2 Guns) | HMI | 7-Inch LCD Touch Screen + LED |
| Protection Level | IP54 | Connection | 4G All-Network / Ethernet |
| Start Method | RFID Card, QR Code Scanning | Protocol | OCPP 1.6 (2.0.1) |
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights and various third-party inspection reports for our equipment. Our products have been successfully deployed in large-scale domestic and international charging stations.
We adopt professional packaging methods sufficient to protect the equipment during long-distance transit. We support sea transportation, air transportation, and land transportation.
| Package Size | 800.00cm * 650.00cm * 1760.00cm |
|---|---|
| Gross Weight | 300.000kg |
| Package Type | Standard Protective Box |
