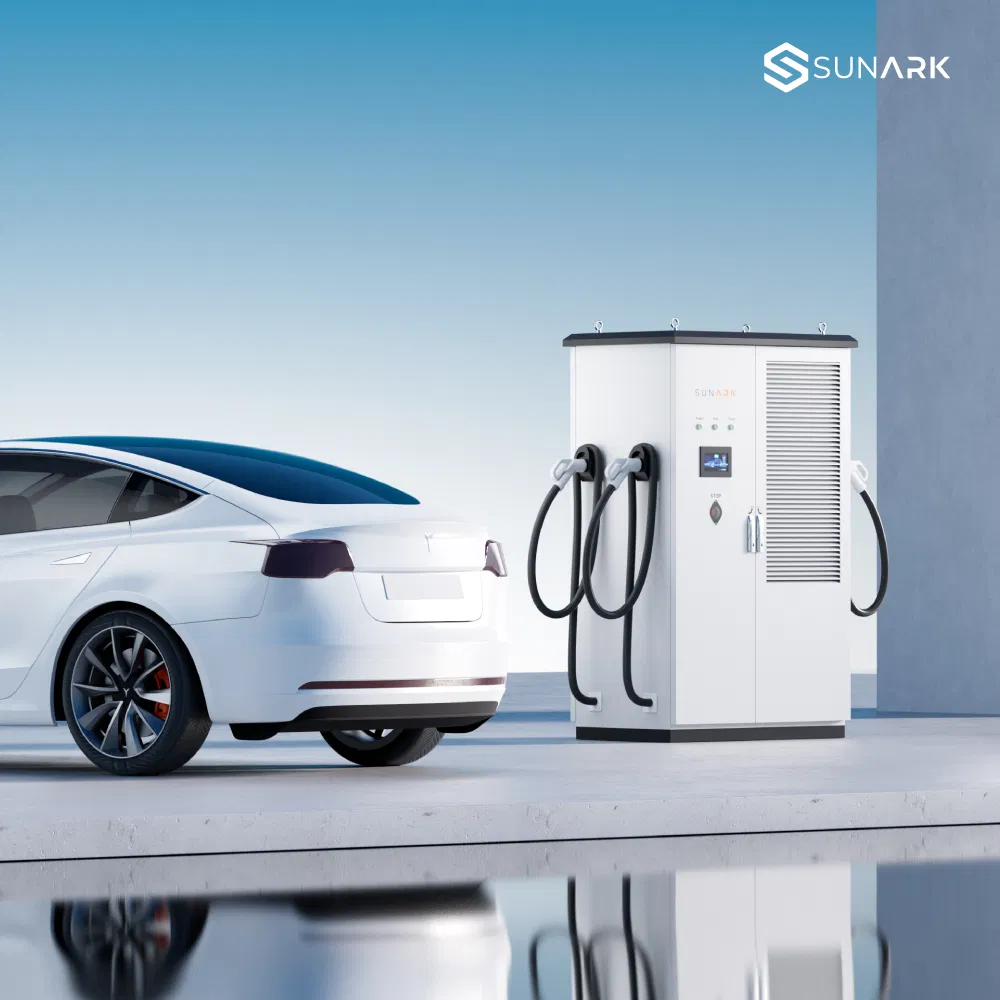

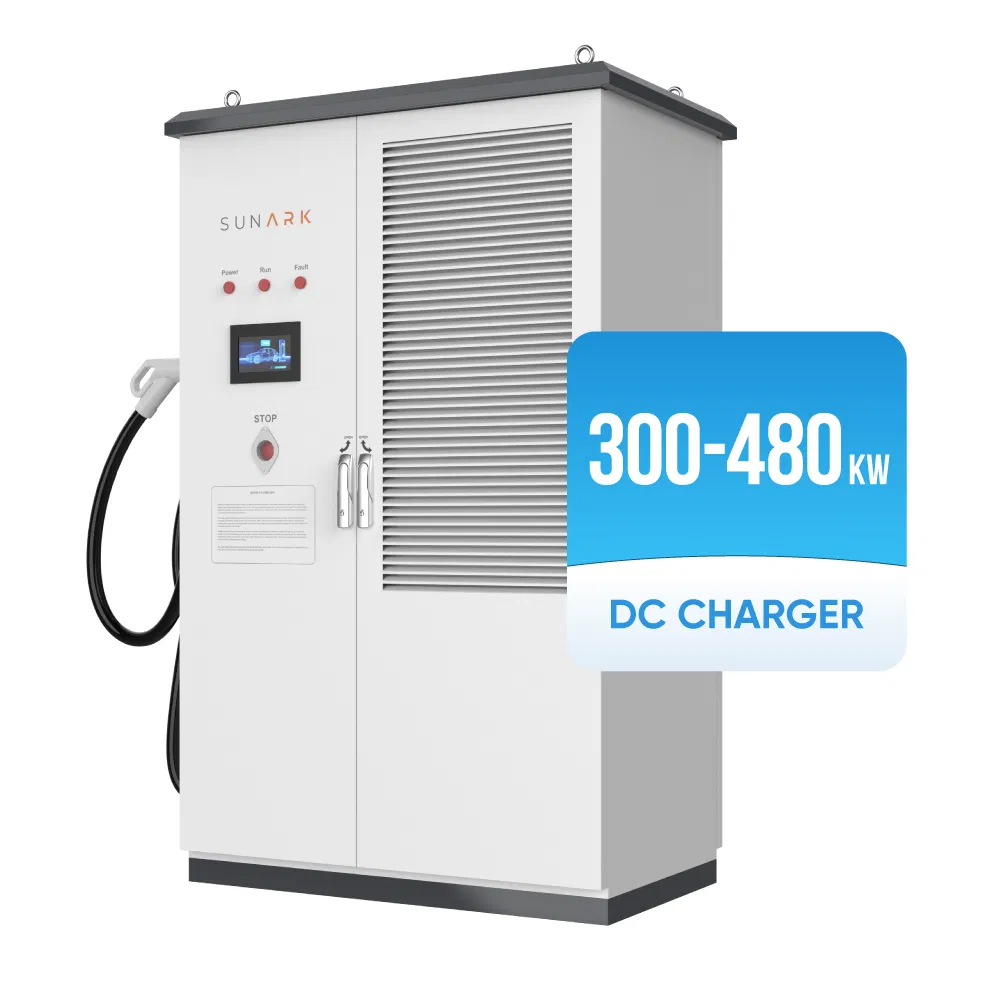

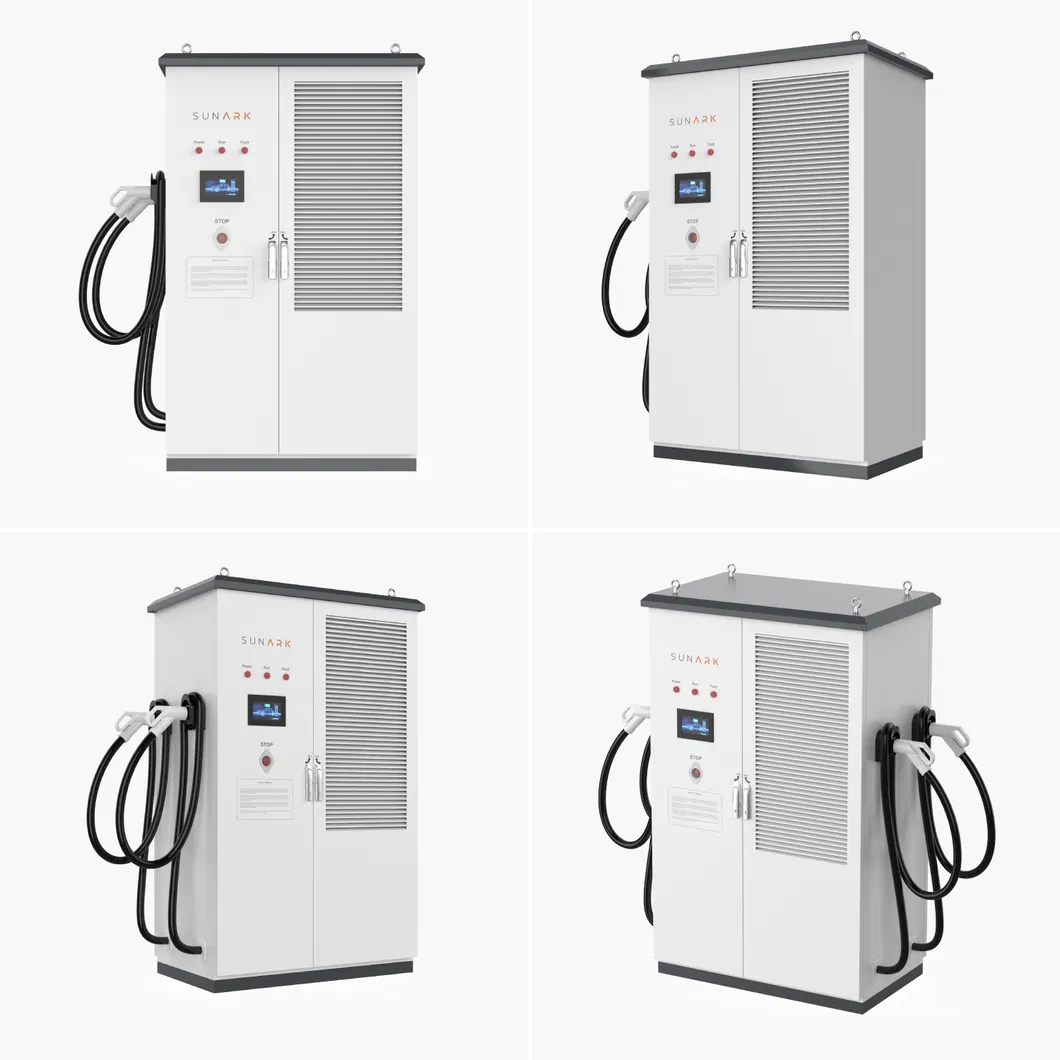

Irvion Charger
1 / 5

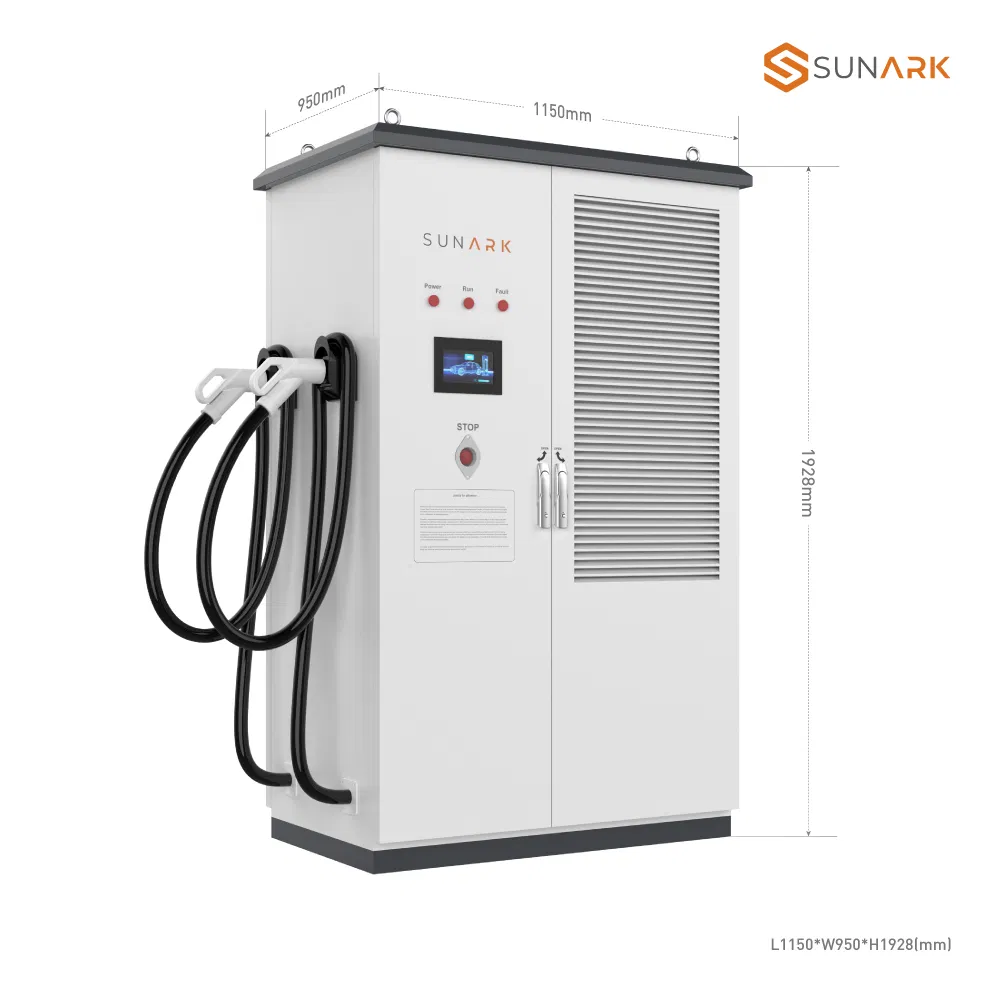

| Location | Private Use / Public Use |
|---|---|
| Charging Interfaces | One Pile with Multiple Charges |
| EV Charger Type | DC |
| Charger Capacity | 300/360/480kw |
| Mounting | Ground-Mounted |
| Cooling | Air-Cooled |
| IP Ratings | IP 54 |
| Display | 7 Inches Touch Screen |
| User Authentication | QR Code / RFID Card / Password Login |
| Communication Protocol | OCPP 1.6J Protocol (Optional) |
| Interface | Ethernet / 3G / 4G / WiFi (Optional) |
| Certificates | IEC 62196, IEC 61851, SAE J1772 |
| Origin | China |
| Technical Specifications | |
|---|---|
| Input Requirements | Three-Phase, 5 Wire AC system, AC380V±15%, 45-65Hz |
| Environmental Requirements | Temp: -25 to 55°C, Humidity: 5 to 95%, Storage: -40 to 70°C |
| Mechanical Features | IP 54, Air-cooled |
| Output Power | 300KW / 360KW / 480KW |
| Output Range | DC200-750V / DC150-500V (JIS) |
| Max. Current | 200 Amp (Single Output) |
| Power Factor | ≥0.99 (above 50% load) |
| Safety Protection | Over Current, Over/Under Voltage, Surge, Leakage, Short Circuit, Over Temperature |

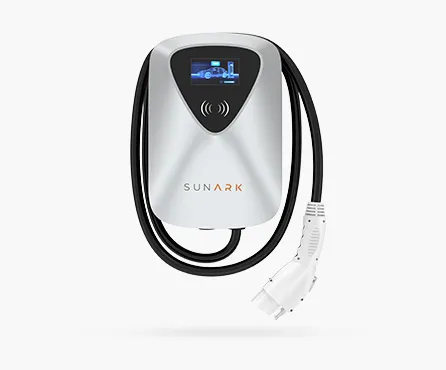

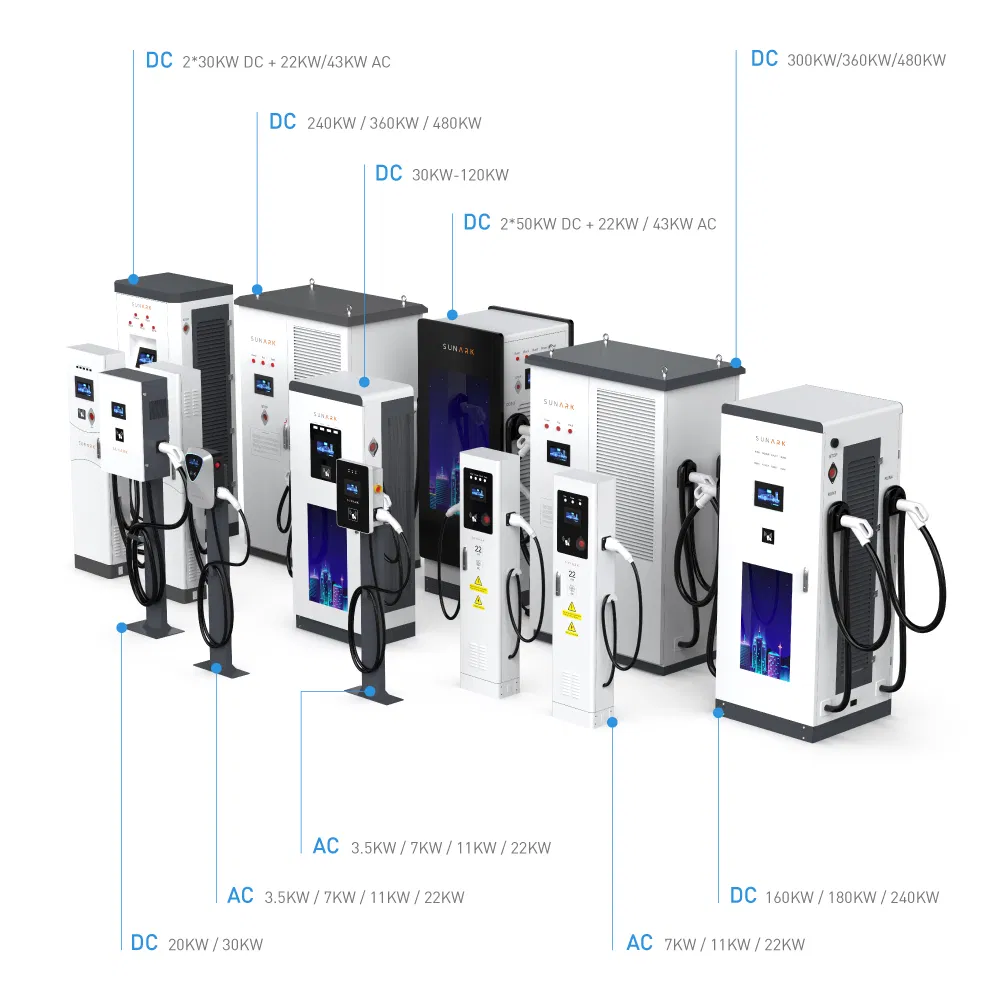

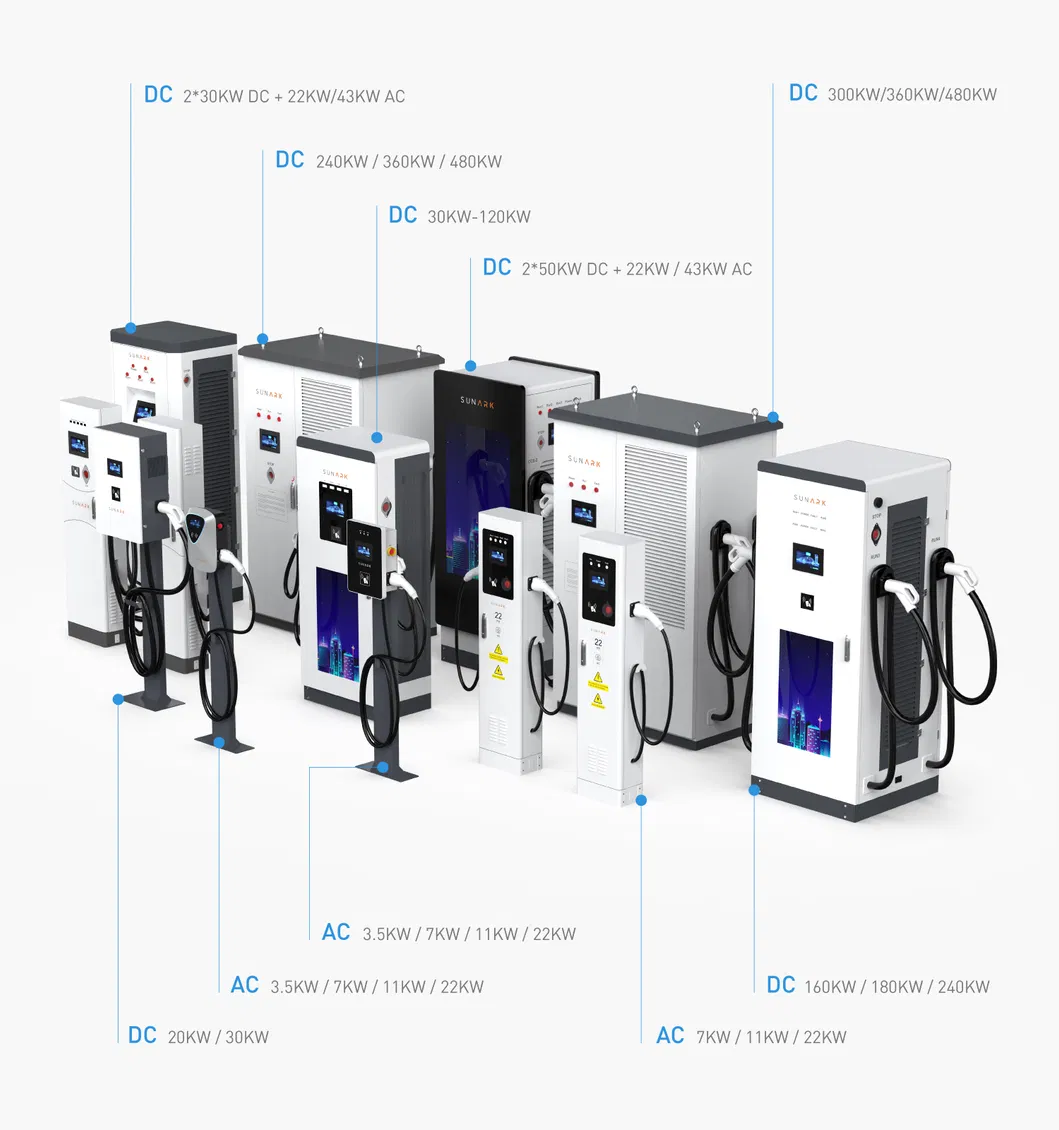

Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Output Voltage: 220~240V, 380-415V

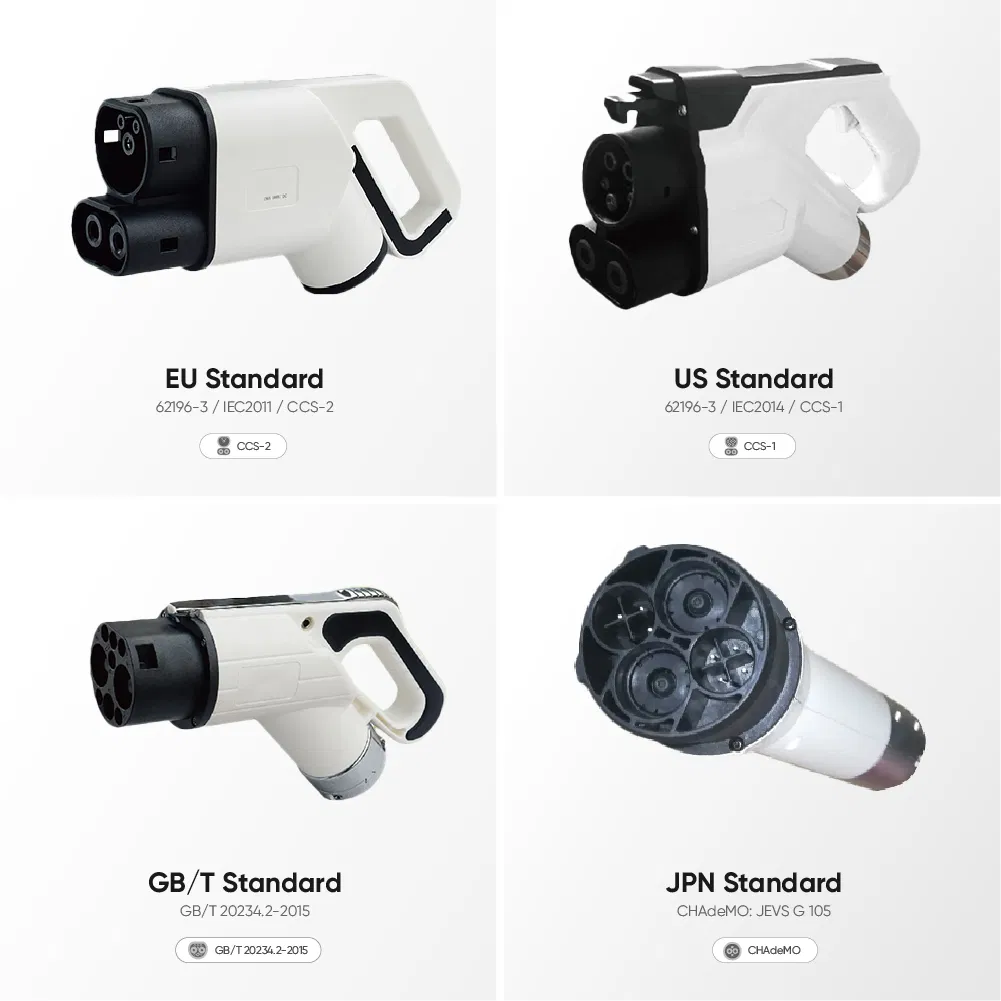

Connector: CCS1/2, CHAdeMO

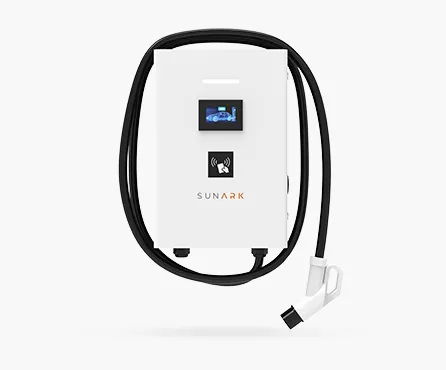

Rated Power: 20/30KW
Output Current: 80/125A
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO

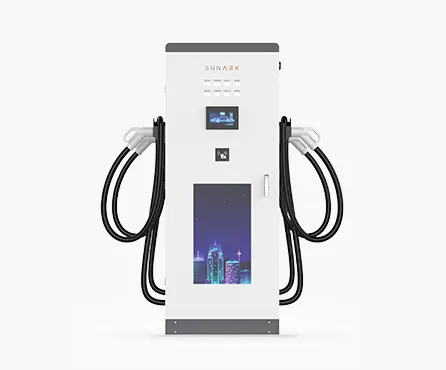

Rated Power: 90/100/120/160/180/240KW
Output Current: 200A*2
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO

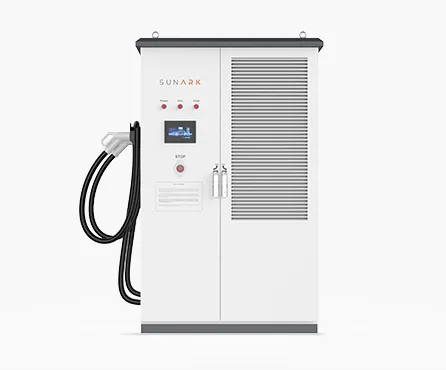

Rated Power: 300/360/480KW
Output Current: 200A*2
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO

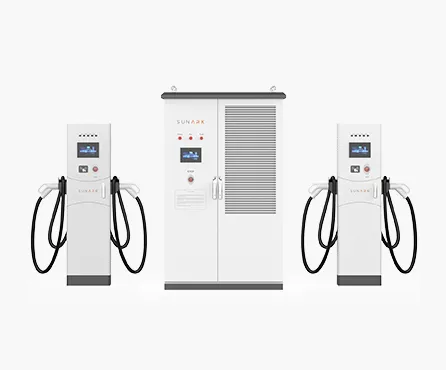

Rated Power: 240/360/480KW
Connector Terminals: 2/3/4
Number of Outputs: 4/6/8
High Efficiency Load Balancing

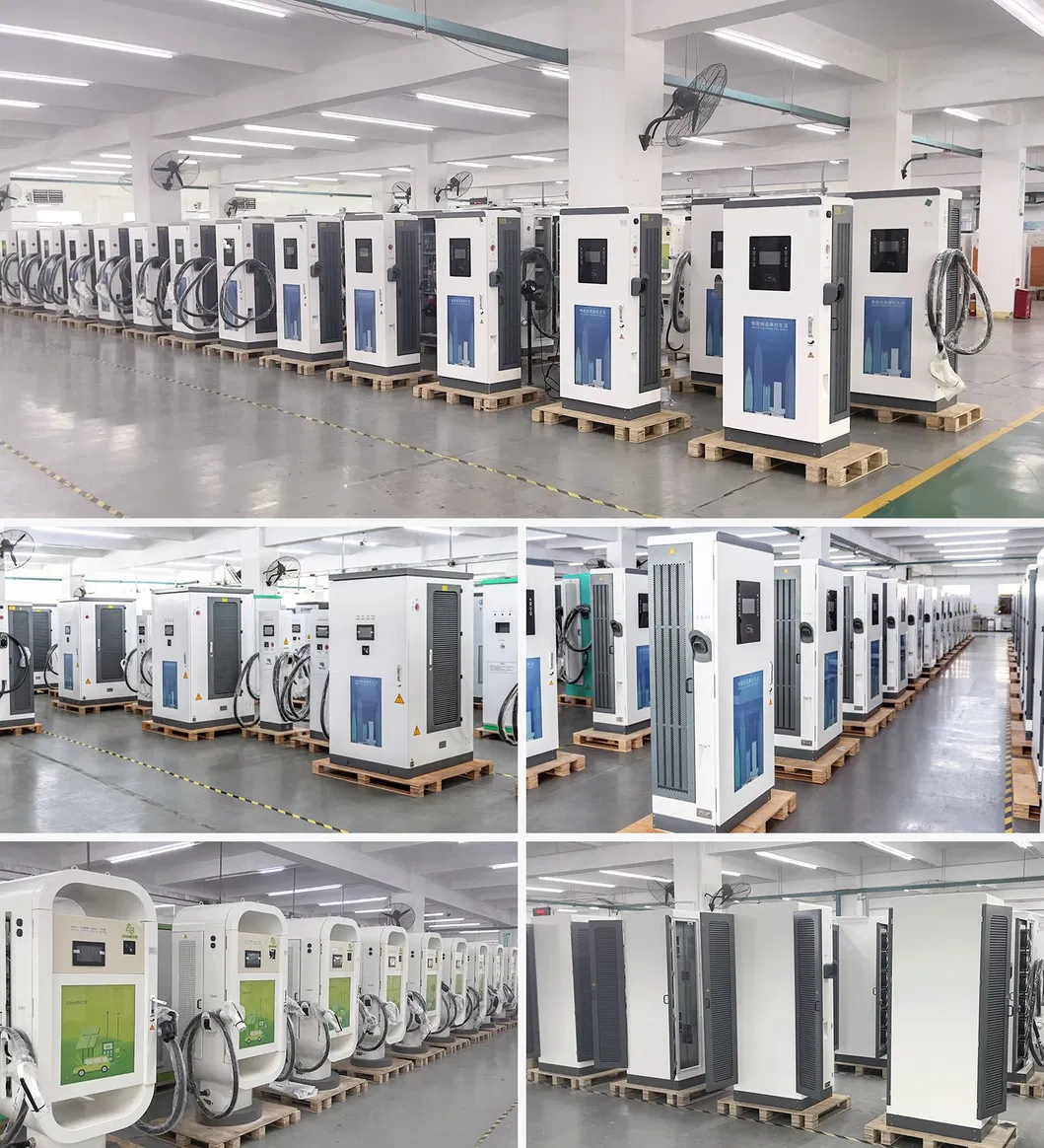

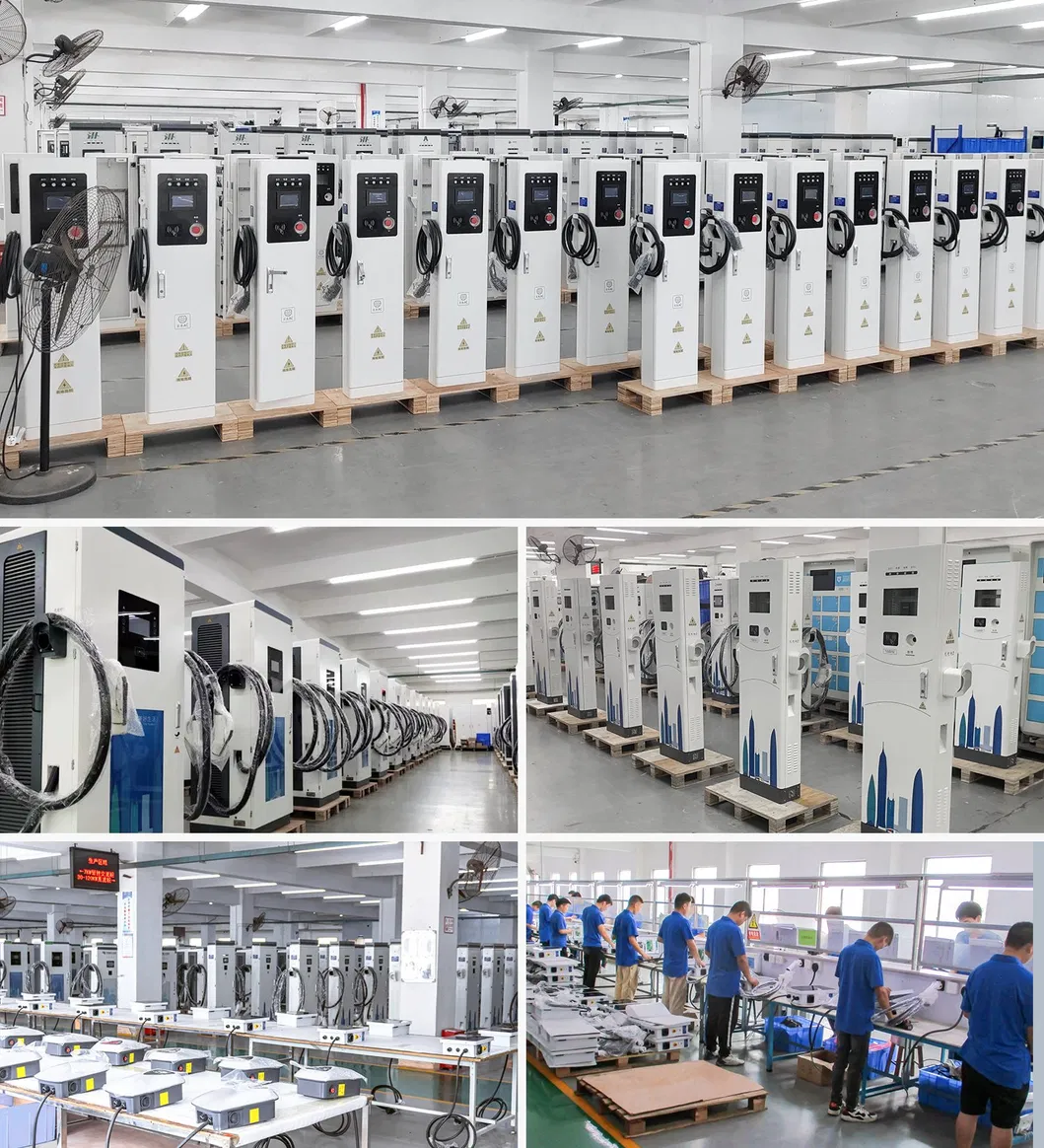

As a professional manufacturer since 2002, the company specializes in environmentally friendly battery and charging solutions. By developing advanced technology and adopting world-class production equipment, the facility ensures long product life, high energy density, and strict adherence to environmental standards. With a team of approximately 2,000 employees, including veteran research professors and over 50 engineers, the company continues to innovate in the field of battery and EV charging technology, meeting and exceeding international quality standards.
