Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
1 / 5
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station

Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station

Customization: Available

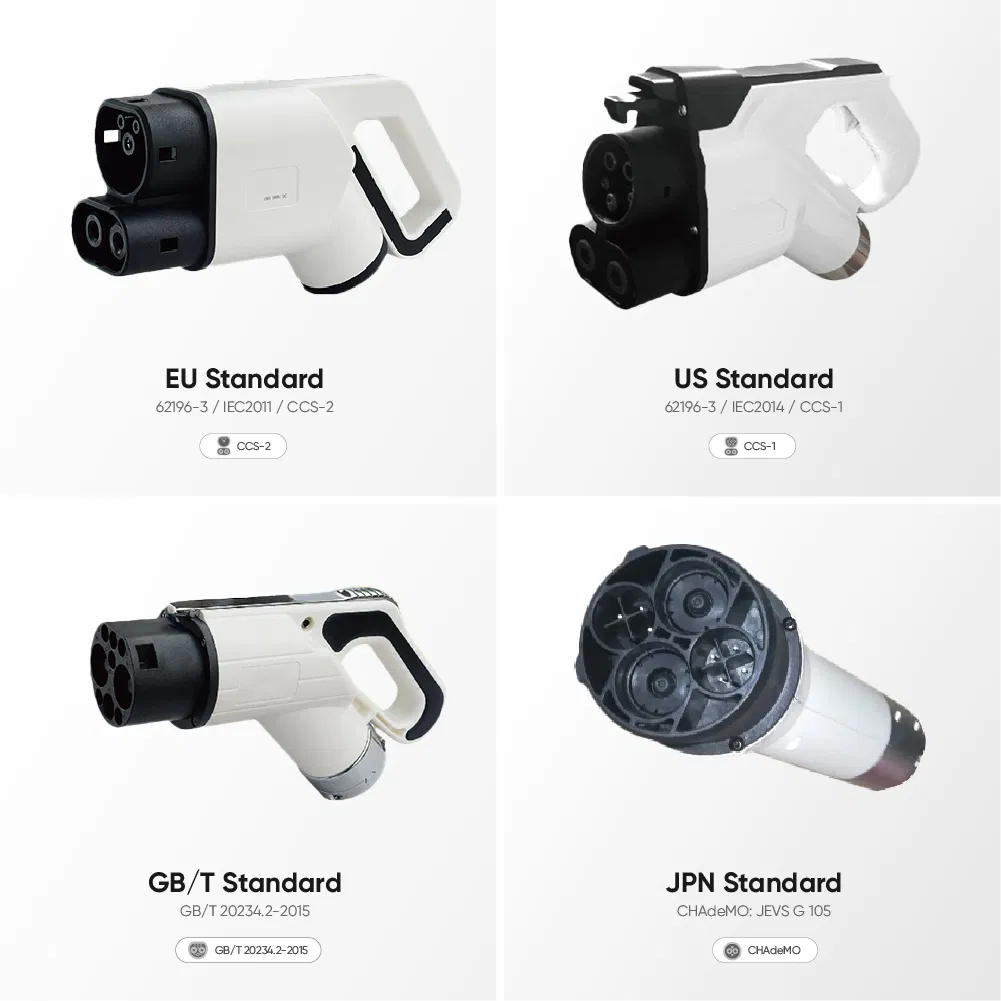

Connector Type: CCS1, CCS2, CHAdeMO, GB/T
Installation: Wall Mounted
Send Inquiry

Product Description

i

Basic Information

Model NO.
EV Charger DC 20-30KW
Location
Private / Public Use
Charging Interfaces
Multiple Charges Support
EV Charger Type
DC
Charger Capacity
20/30kw
Mounting
Wall-Mounted / Pile Type
Cooling
Air-Cooled
IP Ratings
IP 54
Display
7 Inches Touch Screen
User Authentication
QR Code / RFID Card / Password
Communication
OCPP 1.6J Protocol
Interface
Ethernet / 3G / 4G / WiFi
Certificates
IEC 62196, IEC 61851, SAE J1772
★

Product Description

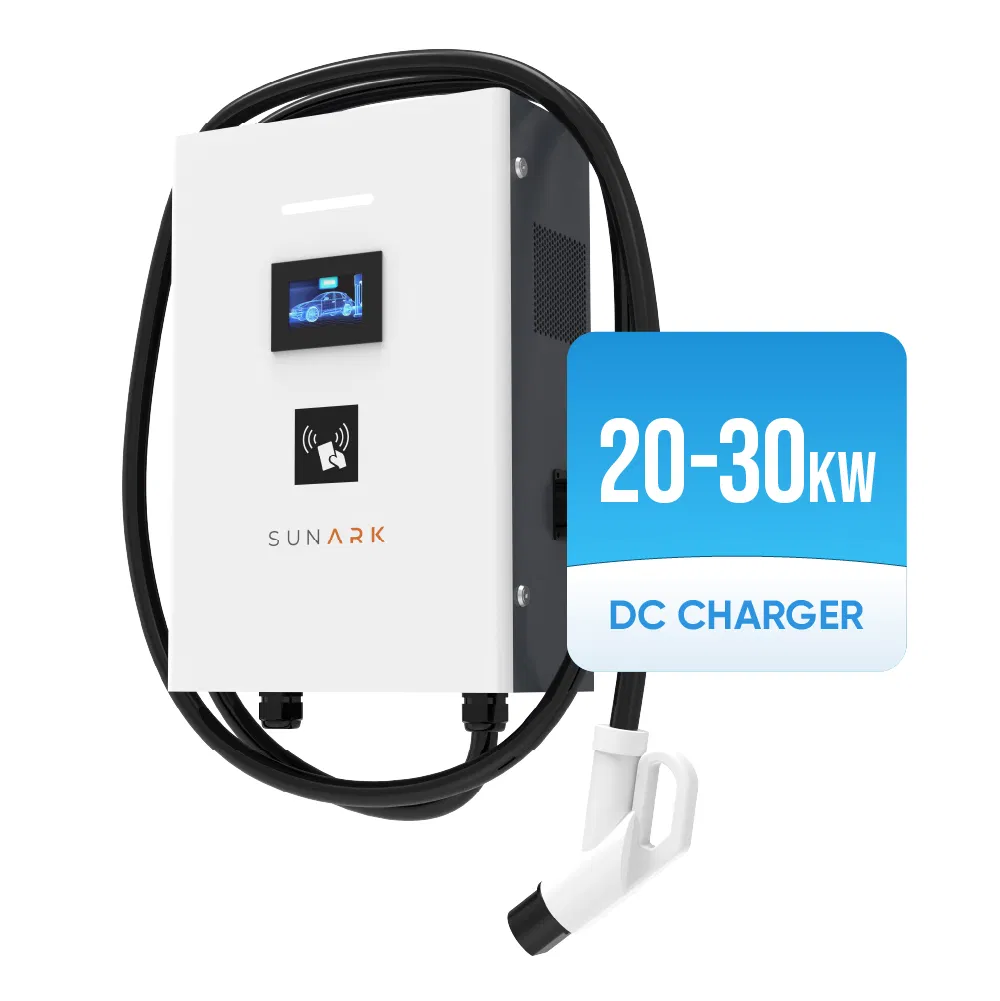

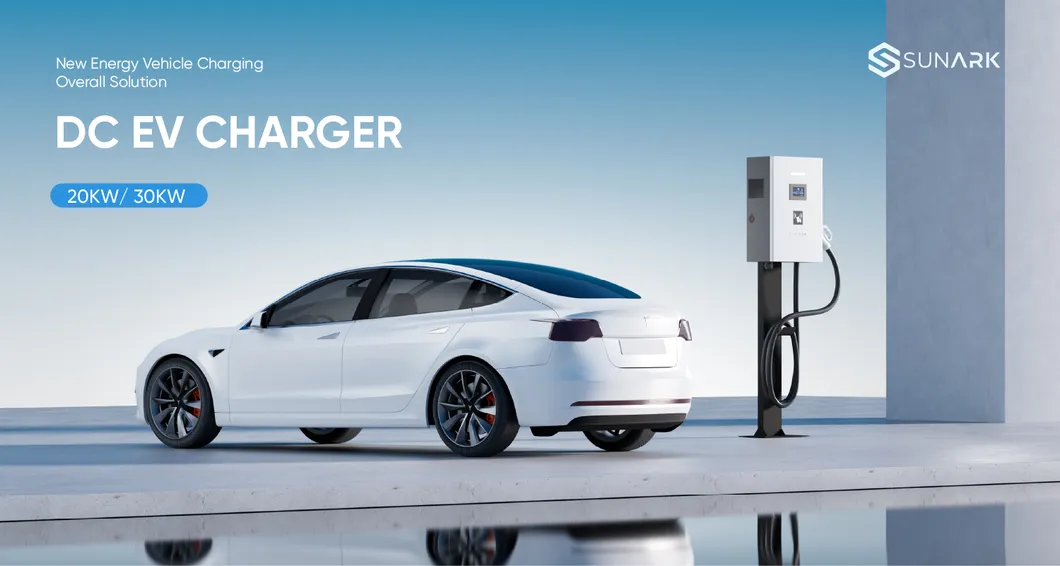

DC EV Charger Station

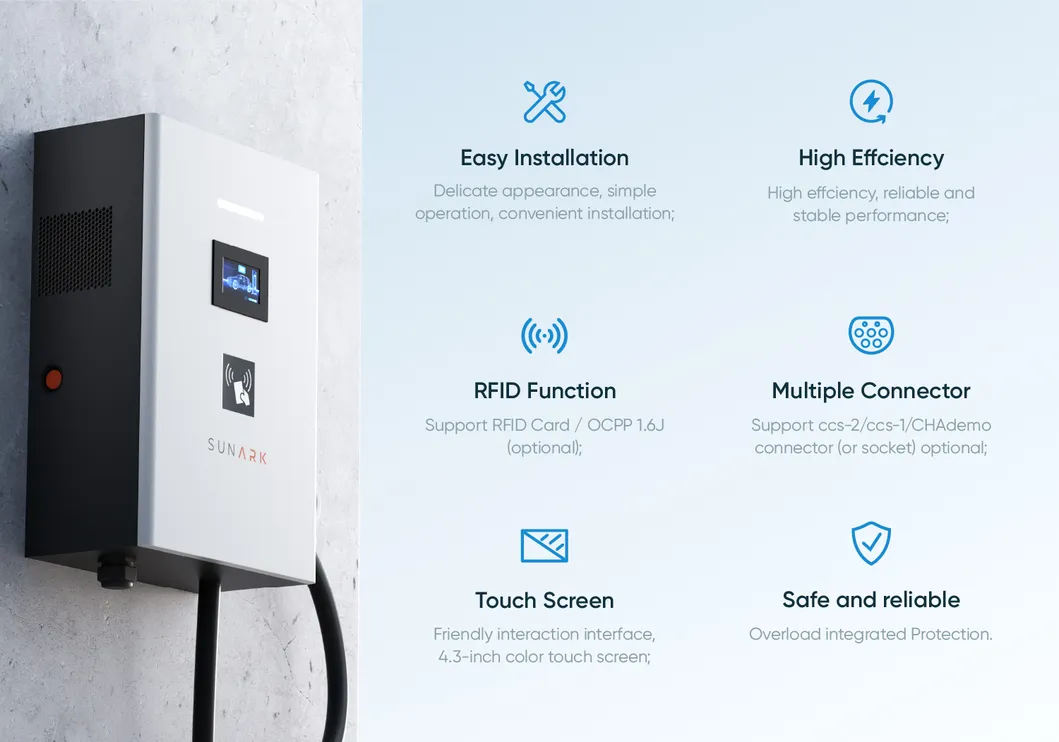

Charging Station Details
Technical Parameters
General Requirements
Charger Capacity20KW30KW
MountingWall-Mounted
Input Requirements
AC Supply SystemThree-Phase, 5 Wire AC system
Input VoltageAC380V±15%
Mechanical & Environmental
IP RatingsIP 54
Ambient Temperature-25 to 55°C
Output Requirements
Max. Current80 Amp125 Amp
Output VoltageDC200-750V / DC150-500V(JIS)
Communication & Protection
ProtocolOCPP 1.6J Protocol (Optional)
SafetyOver/Under Voltage, Surge, Leakage, Short Circuit Protection
📷

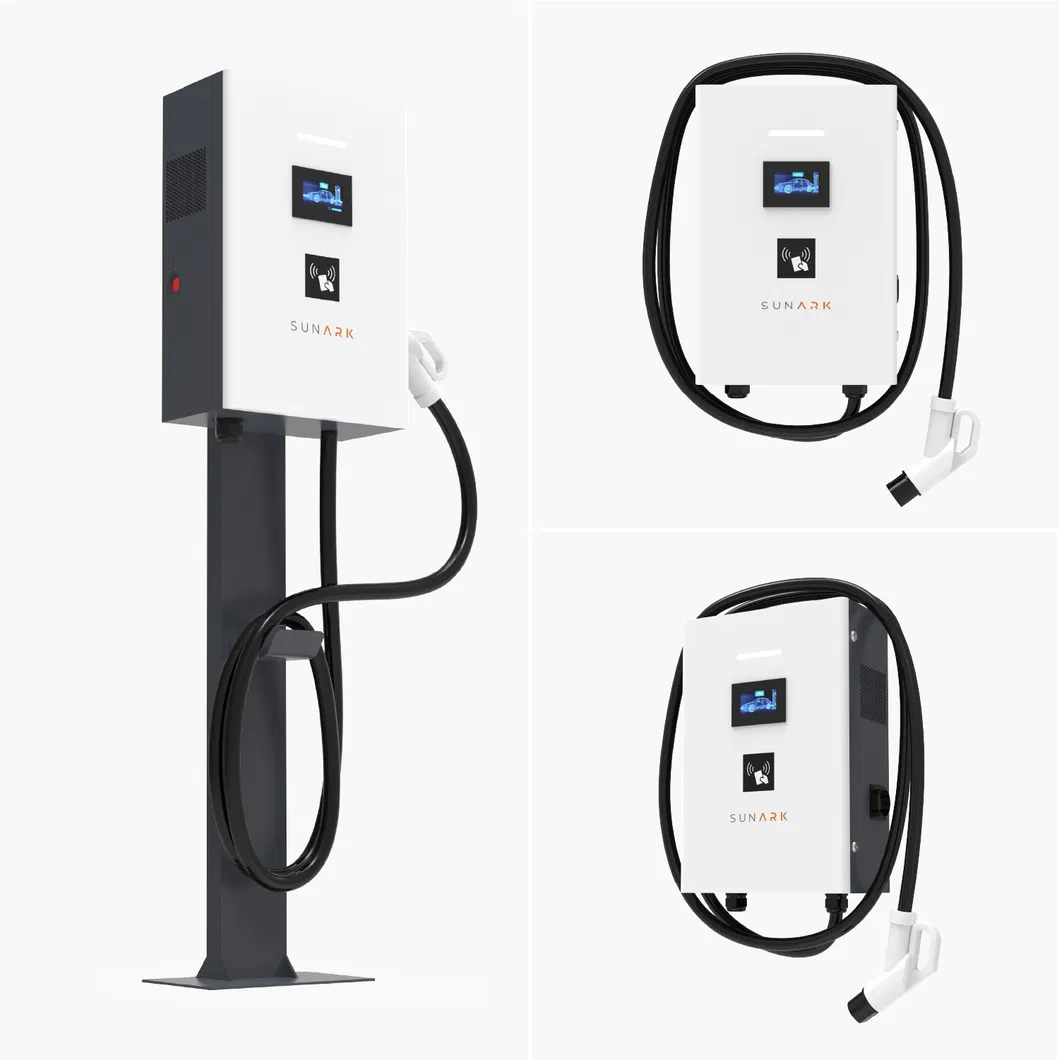

Detailed Photos

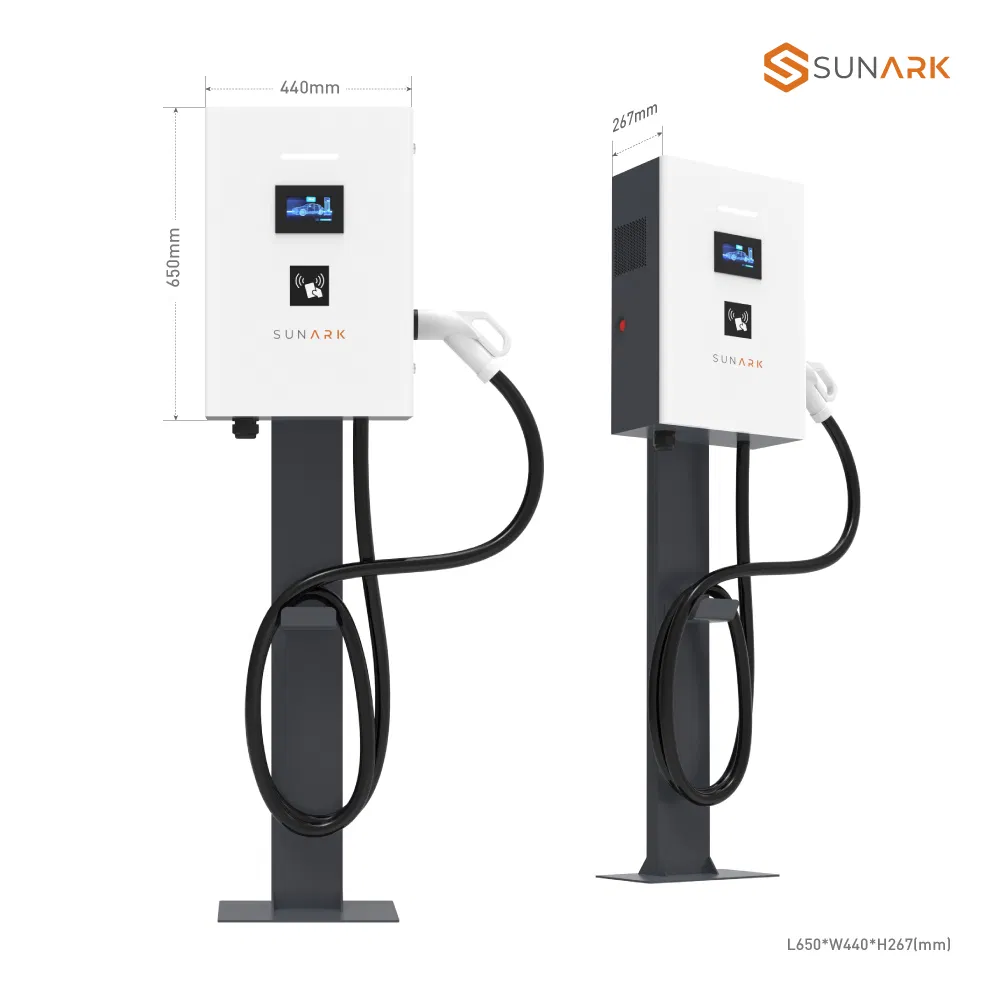

Detailed View
✔

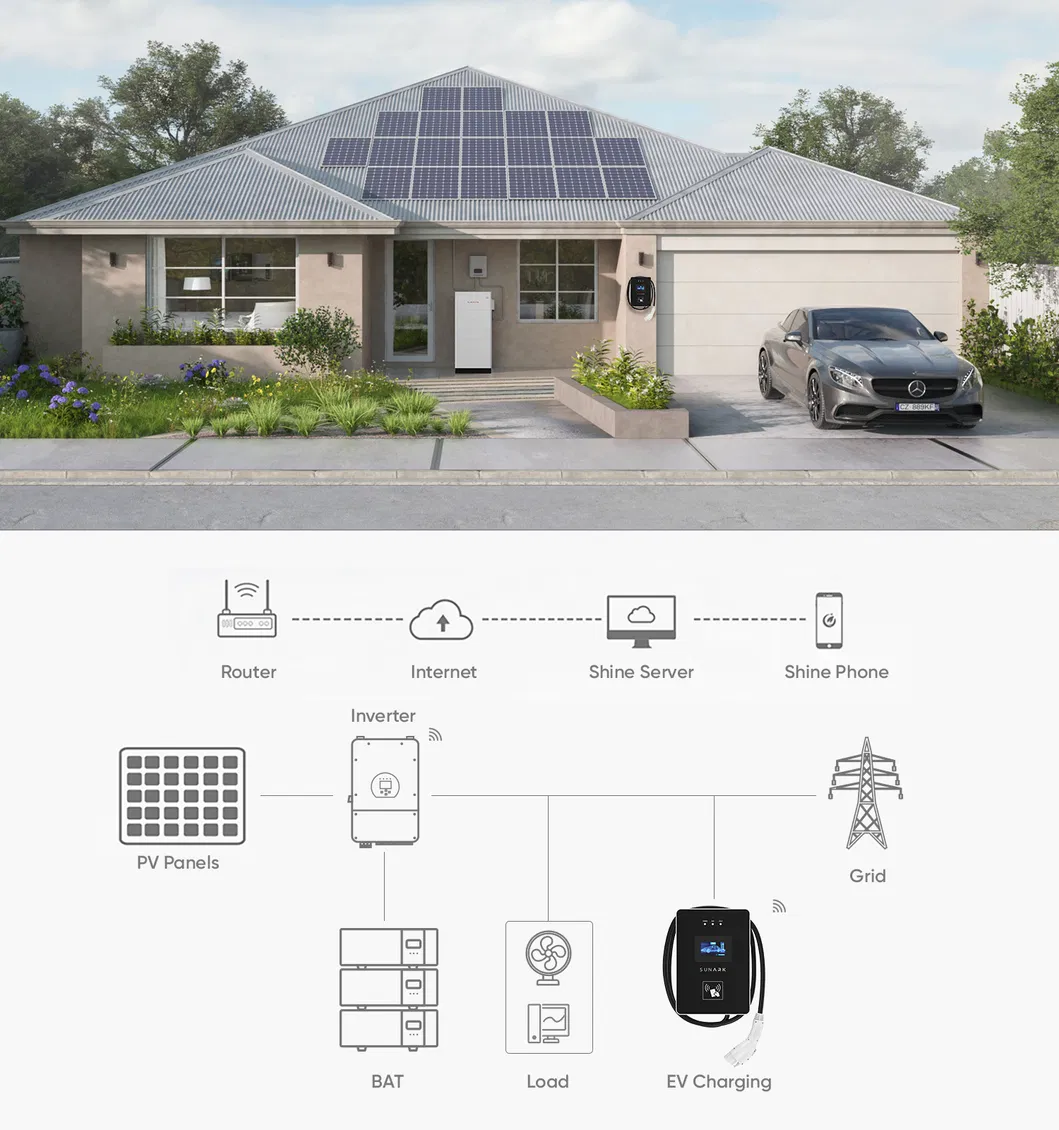

Applications

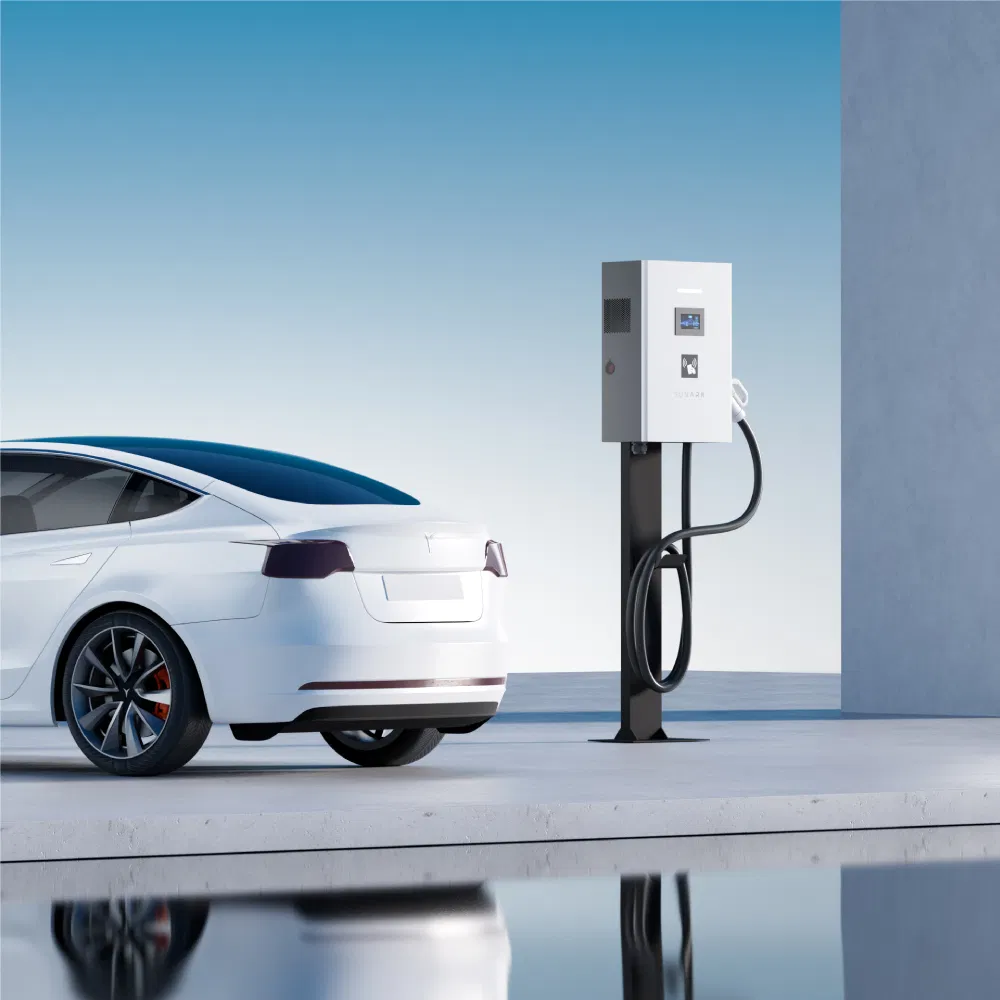

Application Scenarios
⚙

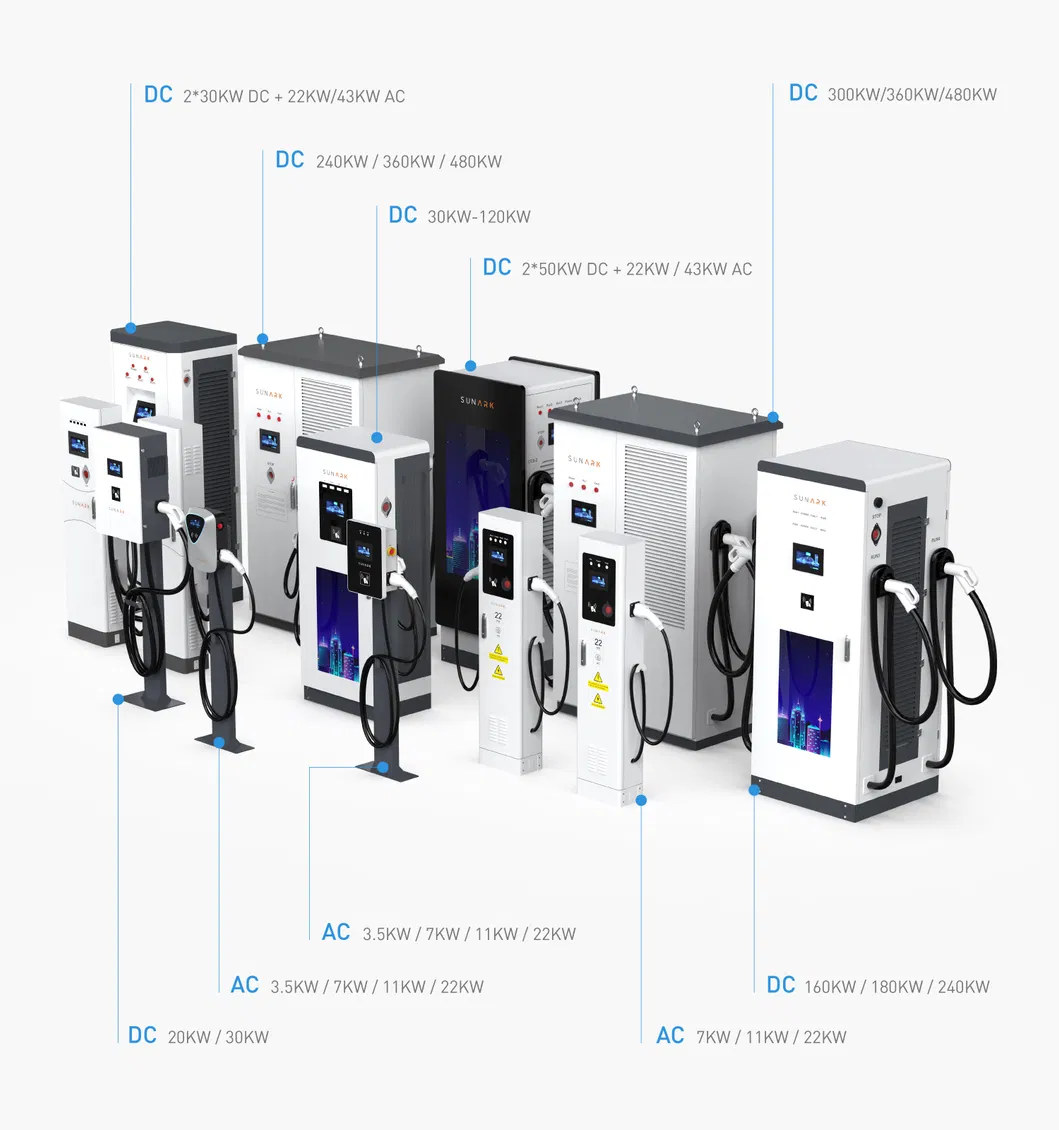

Products Series

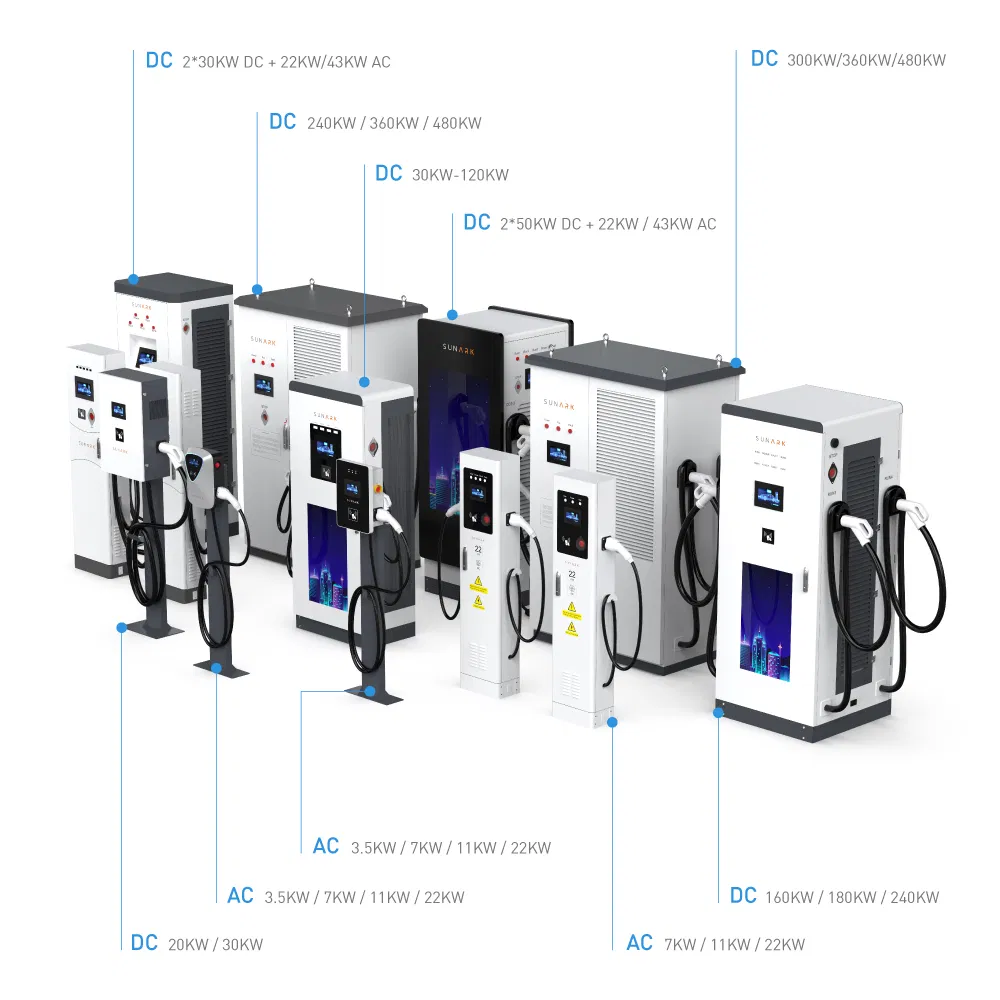

Product Range
AC Series 3.5-22KW Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Output Voltage: 220~240V, 380-415V
Connector: CCS1/2, CHAdeMO
DC Series 20-30KW Rated Power: 20/30KW
Output Current: 80/125A
Output Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO

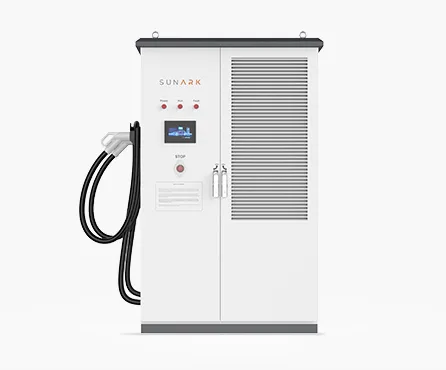

DC Series 30-80KW Rated Power: 30/40/50/60/80KW
Output Current: 125/150/200A
Connector: CCS1/2, CHAdeMO

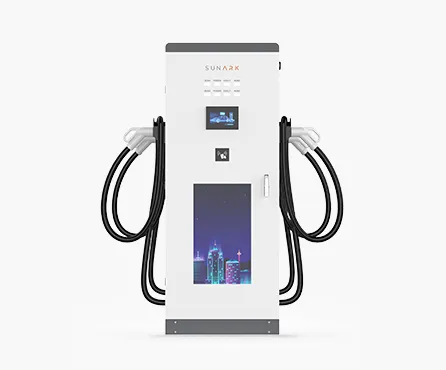

DC Series 90-240KW Rated Power: 90/100/120/160/180/240KW
Output Current: 200A*2
Connector: CCS1/2, CHAdeMO

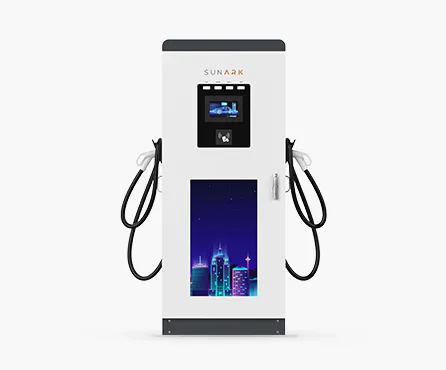

High Power DC 300-480KW Rated Power: 300/360/480KW
Dual Outputs: 200A*2
Connector: CCS1/2, CHAdeMO
🏭

Factory & Certificates

🏢

Company Overview

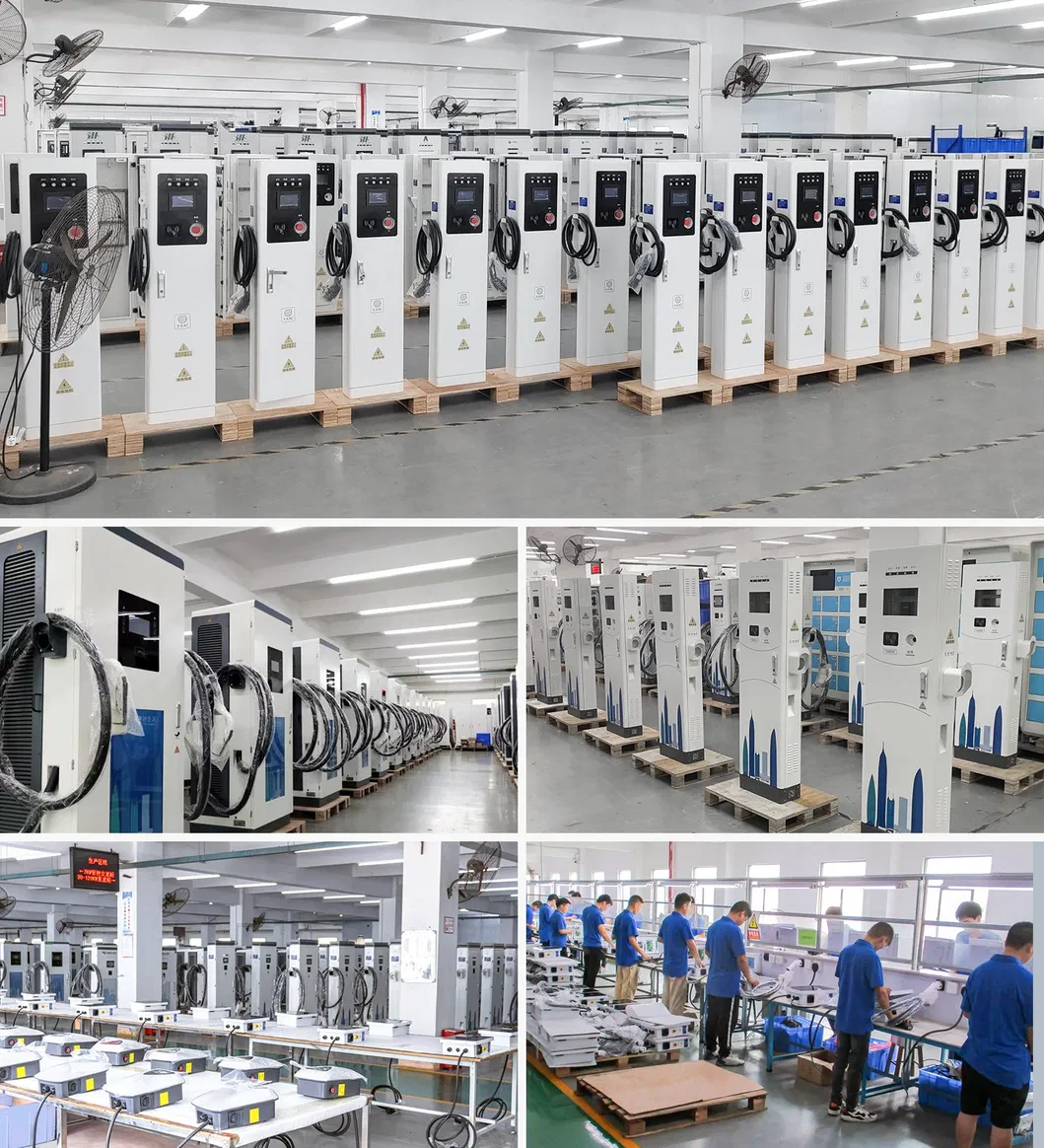

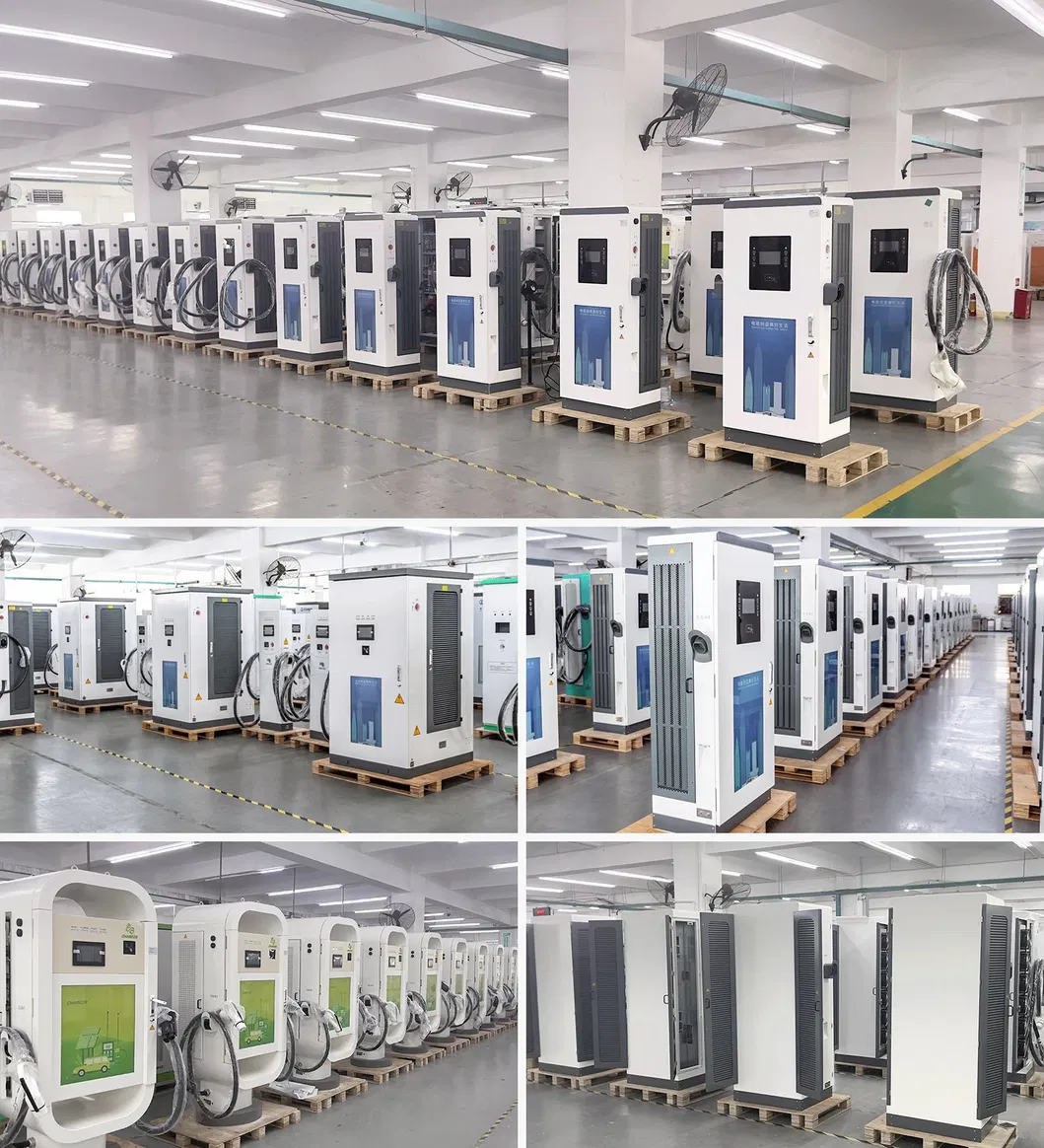

Production Facility
?

Frequently Asked Questions

What are the main mounting options for the 20-30KW DC charger?
The 20-30KW series is versatile and supports both wall-mounted installation and pile-type (pedestal) mounting to suit different site requirements.
Is the charger suitable for outdoor environments?
Yes, the chargers have an IP54 rating, providing protection against dust and water splashes, making them suitable for both indoor and outdoor use.
Which communication protocols are supported for network management?
The chargers support the standard OCPP 1.6J protocol, allowing for easy integration with various Central Management Systems (CMS) via Ethernet, Wi-Fi, or 4G.
How do users authenticate themselves before charging?
Multiple authentication methods are available, including QR Code scanning, RFID card swiping, and password login through the integrated touch screen.
What safety protections are built into the system?
The system includes comprehensive safety features such as over-current, over-voltage, under-voltage, residual current protection, surge protection, and over-temperature shutdown.
